Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 60mm -
Fork Suntour NEX
-
Groupset Gates CDC, Nexus -
Suspension Hardtail -
Motor Bosch hub-drive -
Battery Bosch Li-ION InTube 625 Wh, Capacity: 625 Wh, Location: Powertube -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
48cm
164cm - 174cm
52cm
172cm - 181cm
56cm
179cm - 188cm
60cm
186cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
High Aluminium Uni
Suspension Fork
Suntour NEX E25 60 mm
Drivetrain
Shift Levers
Shimano Gripshift Nexus SL-C7000-5R
Cassette
Gates Carbon Drive CDX Sprocket
Crank
Samox EC37A-F5-BNI Cranks 170 mm + GATES CDC Chainwh.
Chain
Gates Belt Carbon Drive Belt CDC, 125T
Pedals
VP VPE-461 MTB Alloy Pedal w. Reflector
Wheels
Front Hub
Formula CL51 QR, 9 x 100 mm, Centerlock

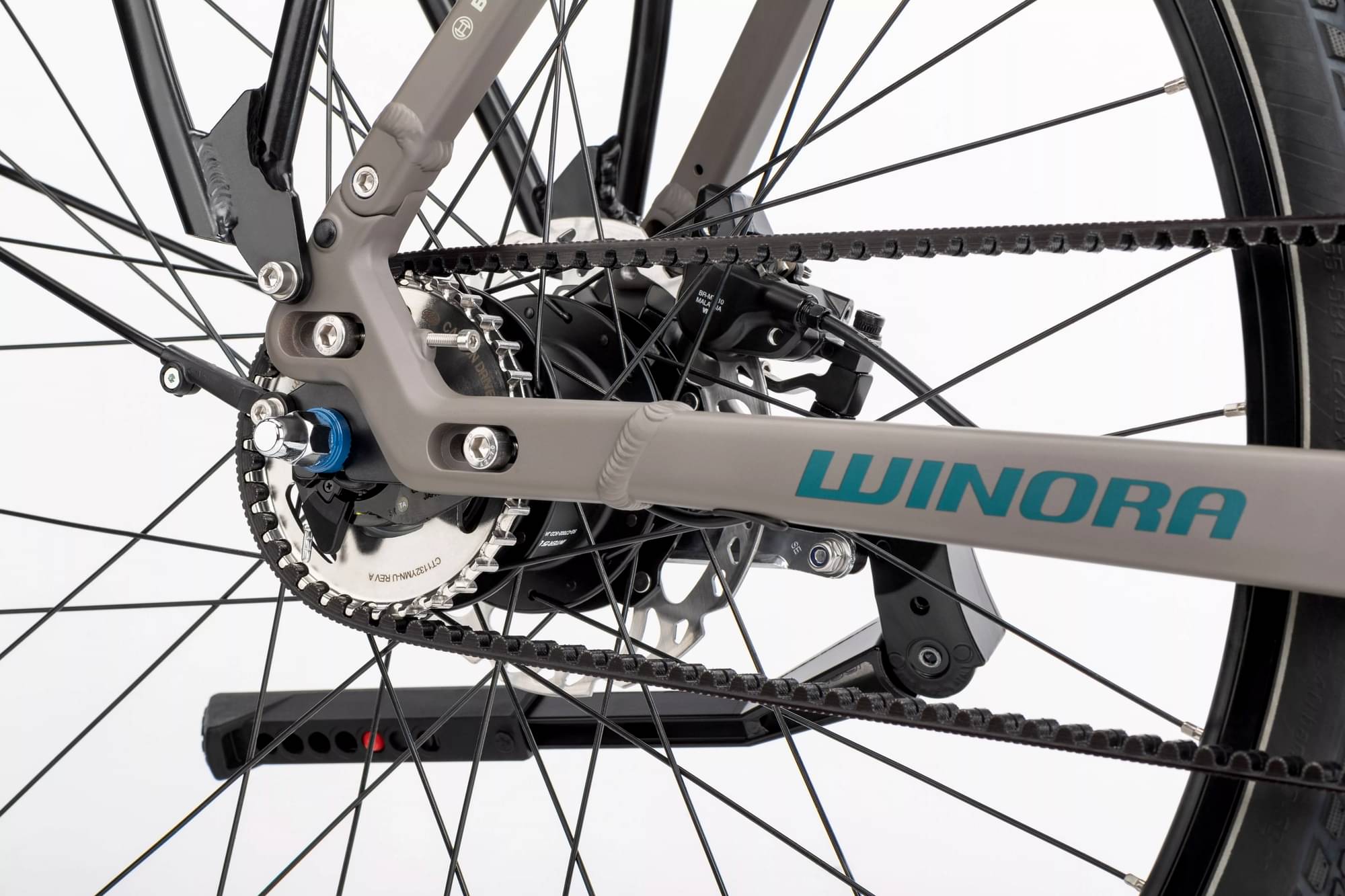

Rear Hub
Shimano Nexus SG-C7000-5c, 10x135 mm, Centerlock
Rims
Ryde Hollow rim Zac421 36H
Tires
Schwalbe Marathon Almotion REF 55-584
Brakes
Brakes
Shimano Hydraulic Disc brake
Cockpit
Stem
XLC Adjustable ST99A-1, Dia. 31.8 mm, L: 80 mm
Handlebar
JD TR25AL Dia. 31.8 mm, Rise: 25 mm
Headset
Feimin FP-H858 ZS56
Seat
Saddle
Selle Royal Viento
Seatpost
XLC Suspension Harmony-LT2, Dia. 31.6 mm, Tavel: 300 mm
Motor & Battery

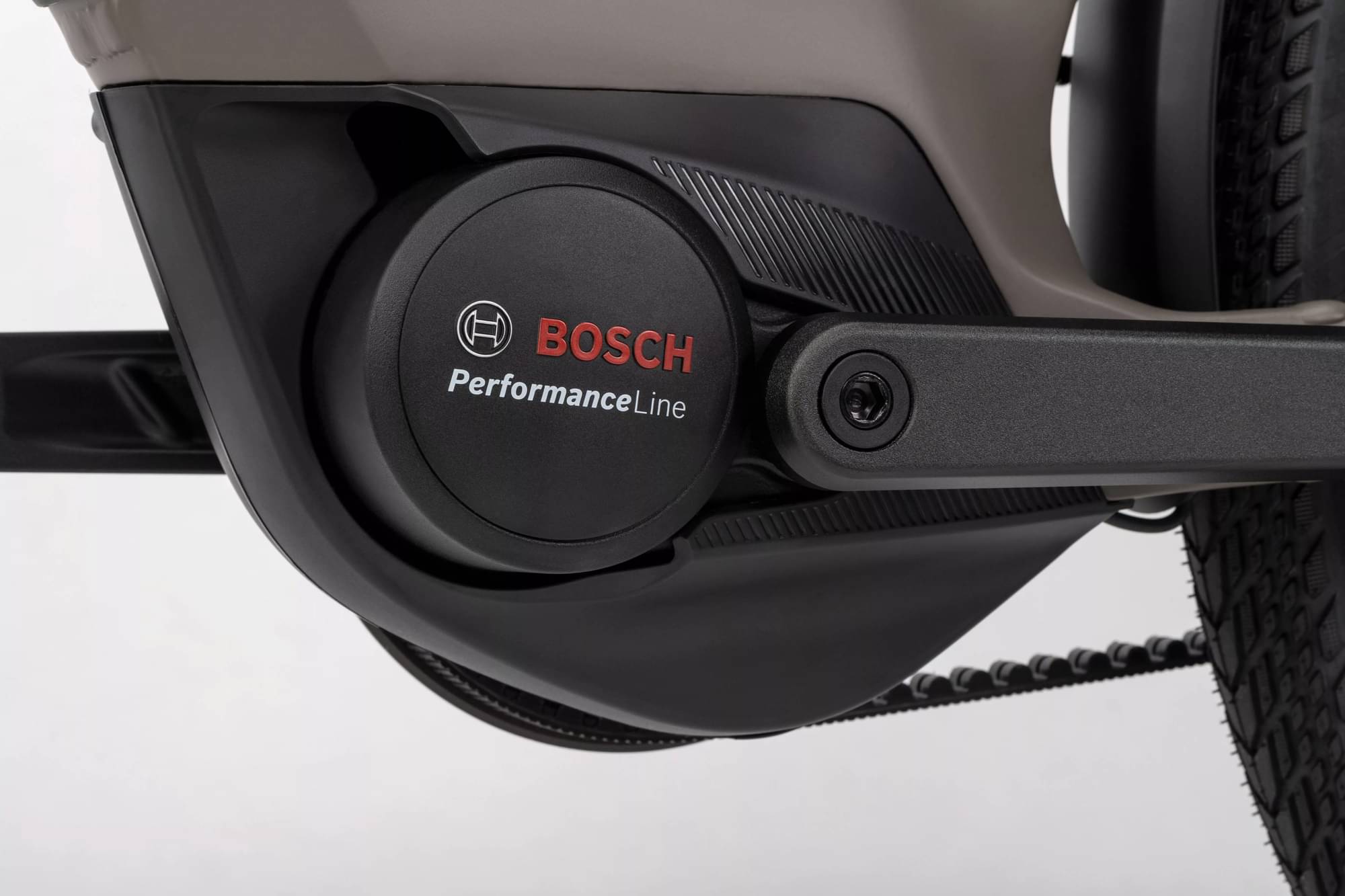

Motor
Bosch
Battery
Bosch Li-ION InTube 625 Wh, Capacity: 625 Wh, Location: Powertube
Charger
Bosch Charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 52cm | 56cm | 60cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.637 mm | 1.513 mm | 1.497 mm | 1.508 mm |
| Front Center | 666 mm | 675 mm | 685 mm | 696 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 82 mm | 69 mm | 69 mm | 69 mm |
| Stack | 673 mm | 637 mm | 642 mm | 656 mm |
| Reach | 411 mm | 421 mm | 429 mm | 435 mm |
| Top Tube Length | 632 mm | 641 mm | 649 mm | 658 mm |
| Seat Tube Angle | 70.9 ° | 71.1 ° | 71.5 ° | 71.7 ° |
| Seat Tube Length | 480 mm | 520 mm | 560 mm | 600 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 155 mm | 155 mm | 160 mm | 175 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1134 mm | 1144 mm | 1154 mm | 1165 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 800 mm | 820 mm | 850 mm | 870 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 164 cm | 172 cm | 179 cm | 186 cm |
| Rider Max Height | 174 cm | 181 cm | 188 cm | 196 cm |
