Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 60mm -

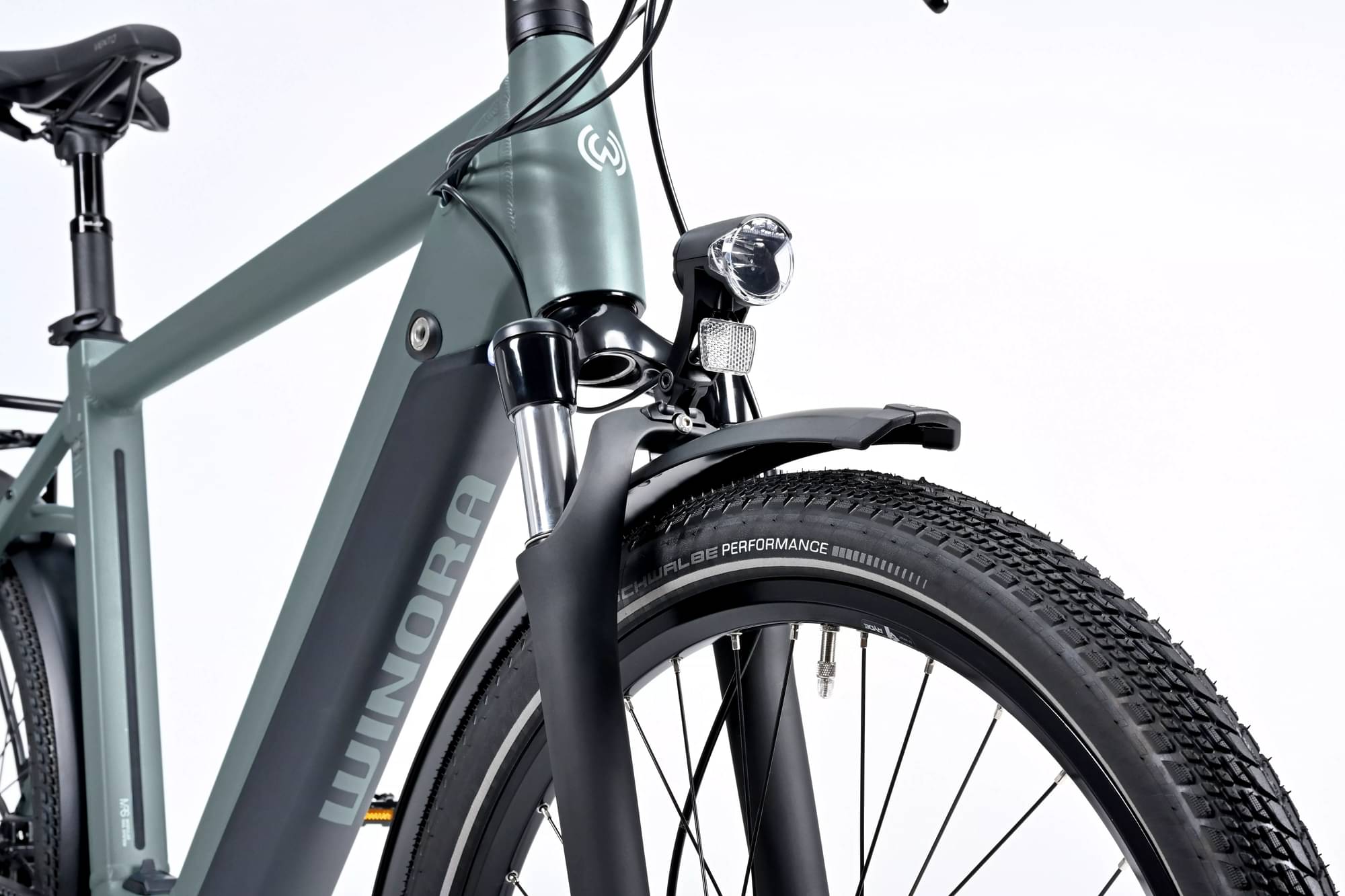

Fork Suntour NEX
-
Groupset Gates CDC, Nexus -
Suspension Hardtail -
Motor Bosch hub-drive -

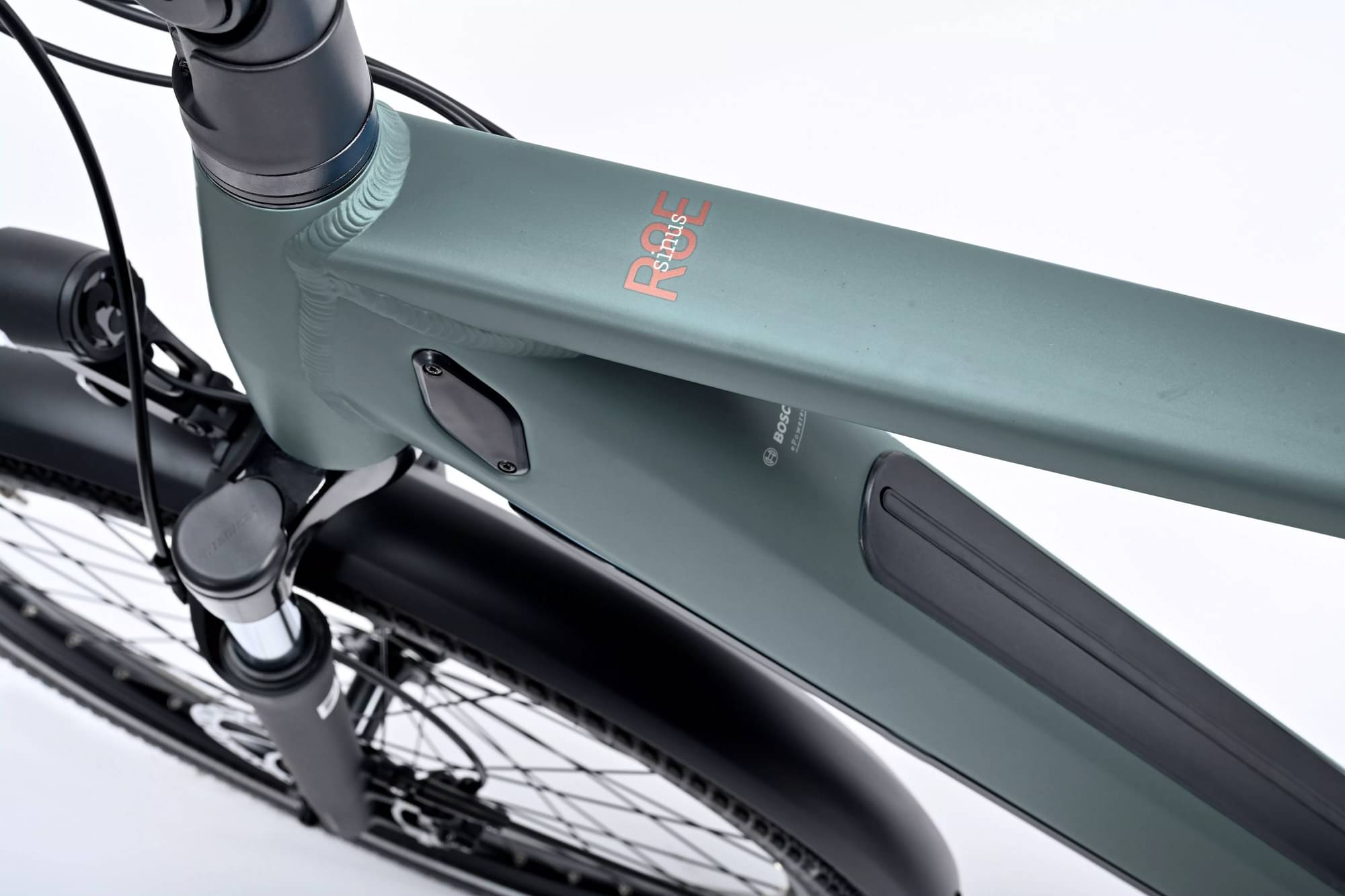

Battery Bosch Li-ION InTube 500 Wh, Capacity: 500 Wh, Location: Powertube -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Tektro Hydraulic Disc
Sizing
Recommended size guide.
46cm
161cm - 172cm
50cm
170cm - 180cm
54cm
178cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

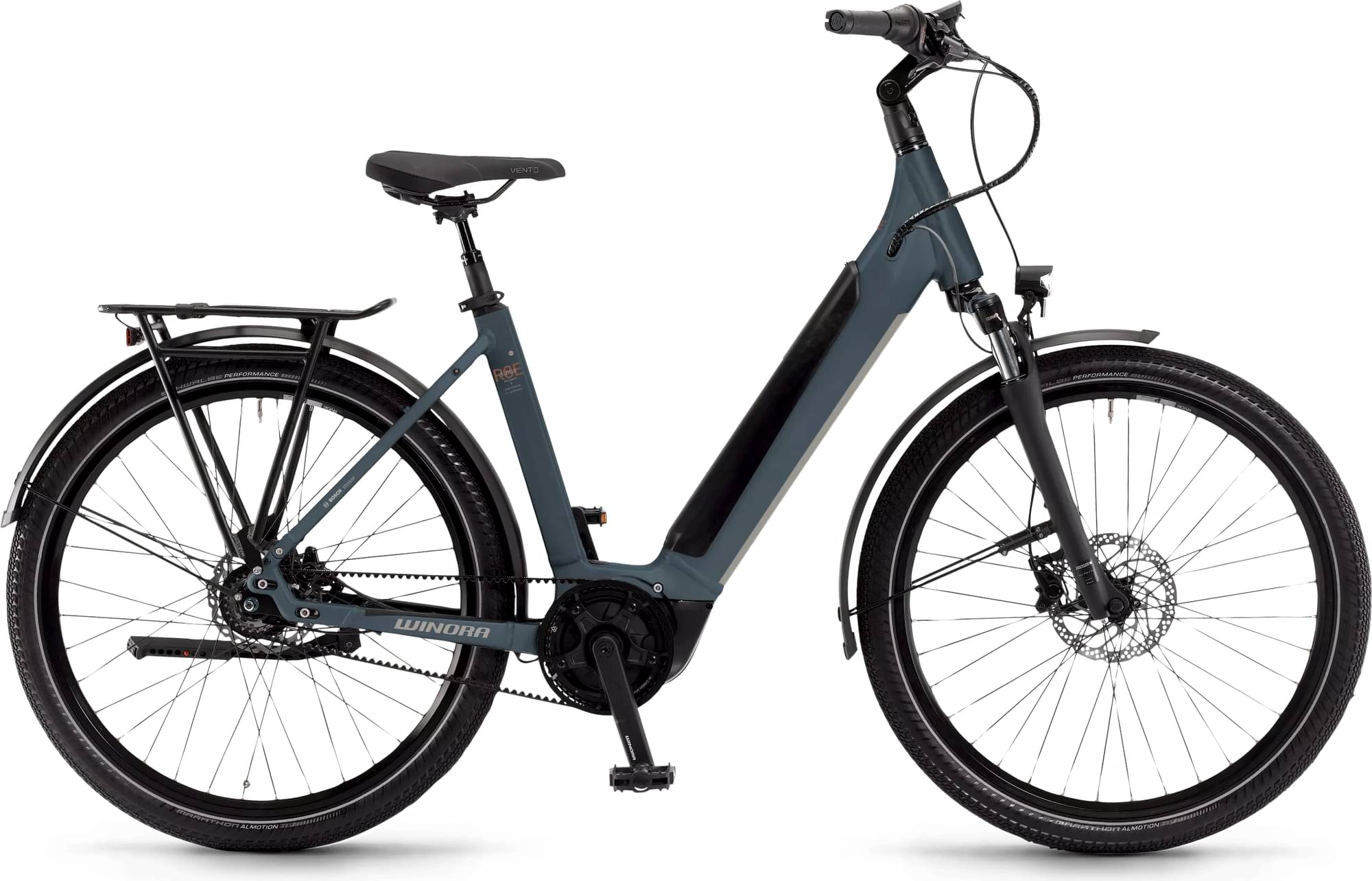

Low Aluminium Low entry

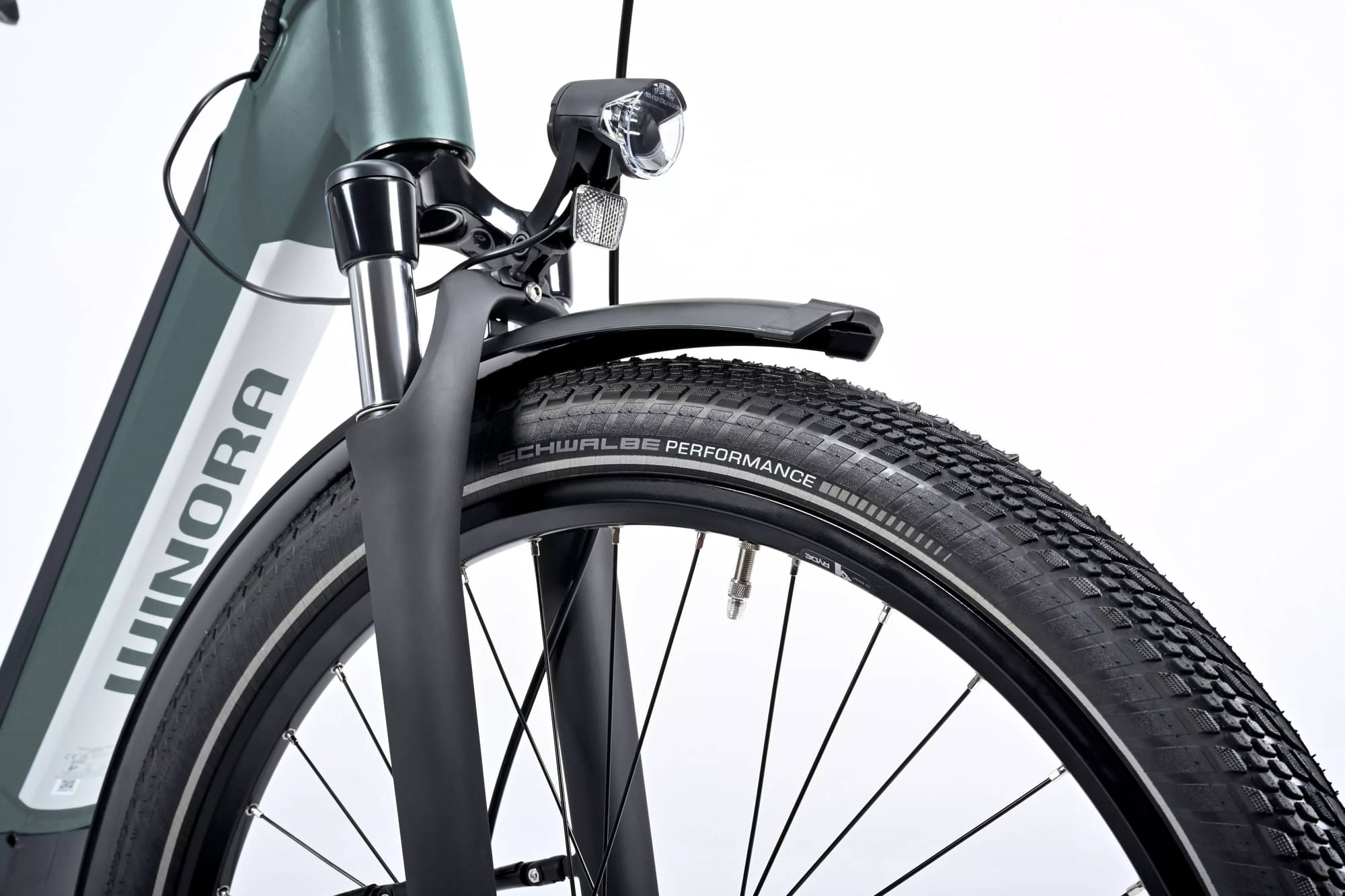

Suspension Fork
Suntour NEX E25 60 mm

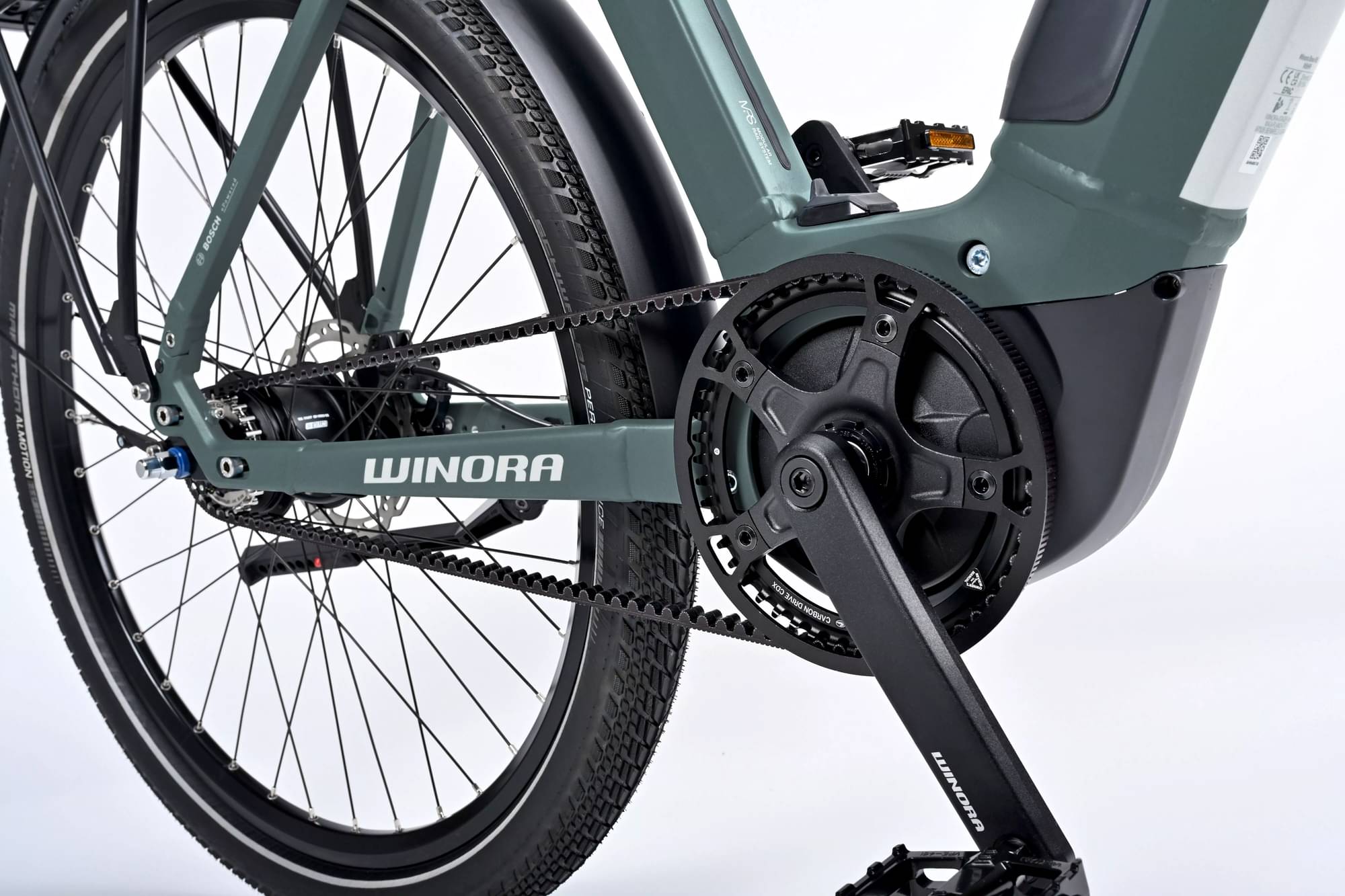

Drivetrain
Shift Levers

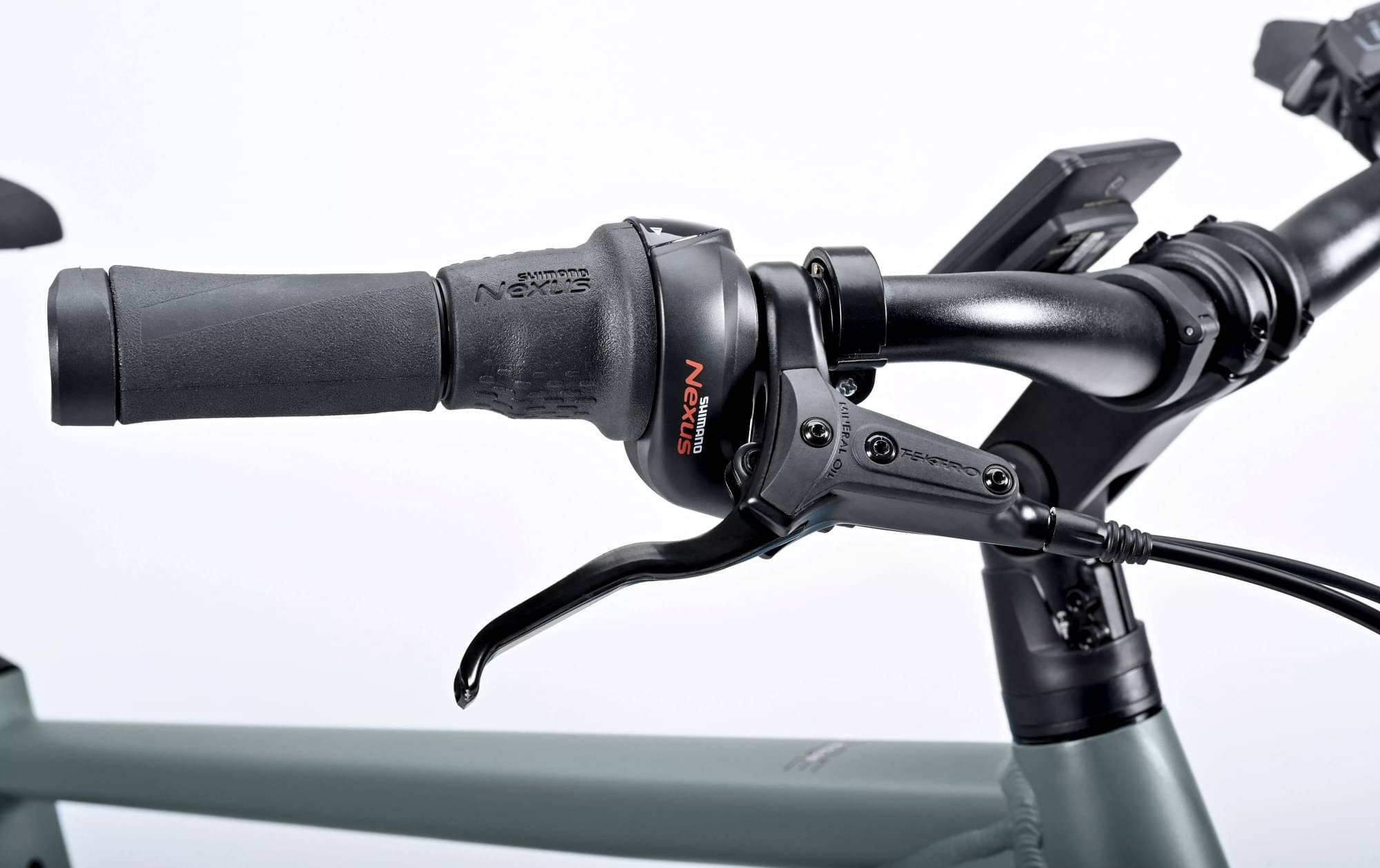

Shimano Gripshift Nexus SL-C6000-8R
Cassette
Gates Carbon Drive CDC Sprocket
Crank
Samox EC37A-F5-BNI Cranks 170 mm + GATES CDC Chainwh.
Chain

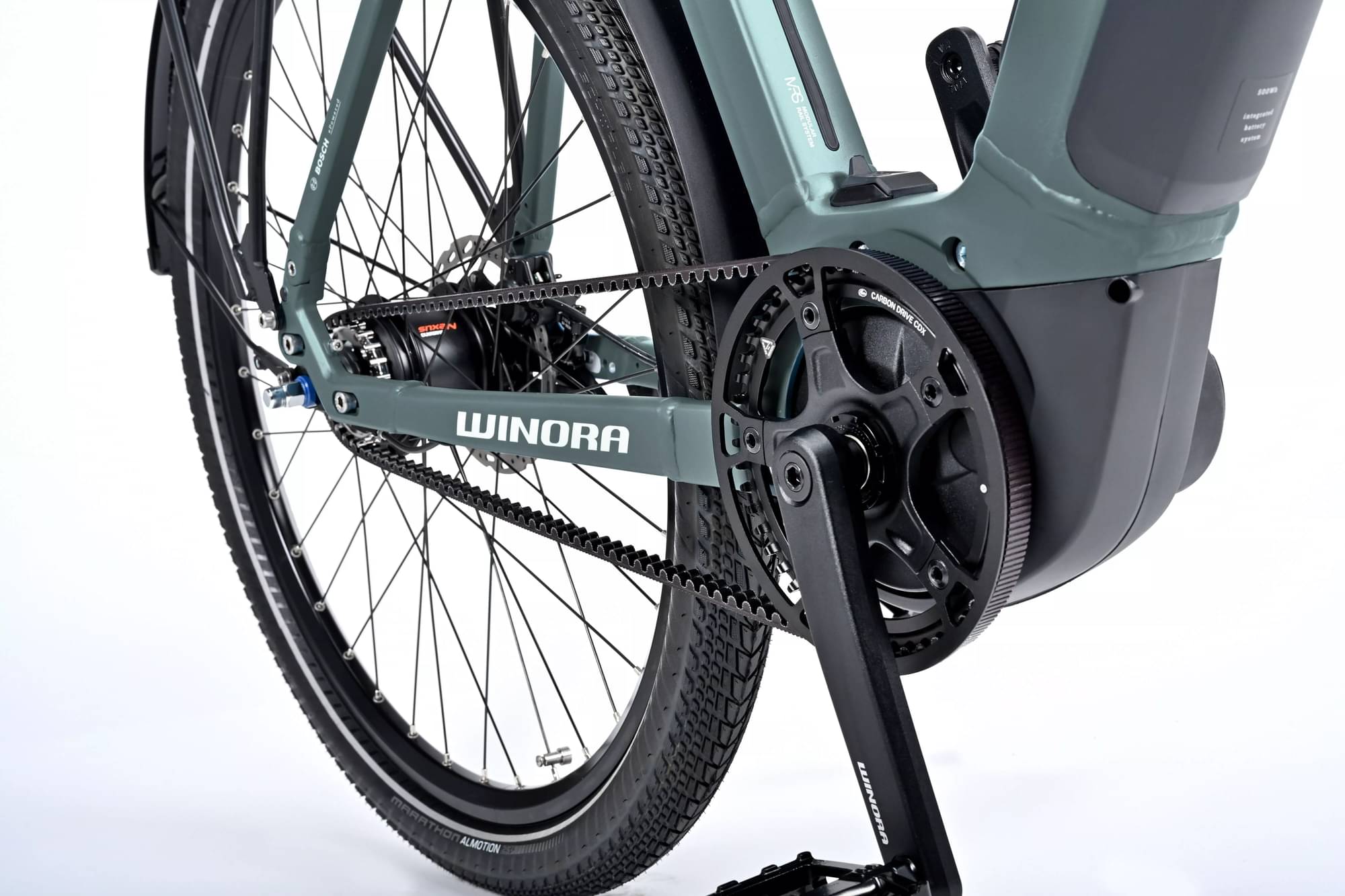

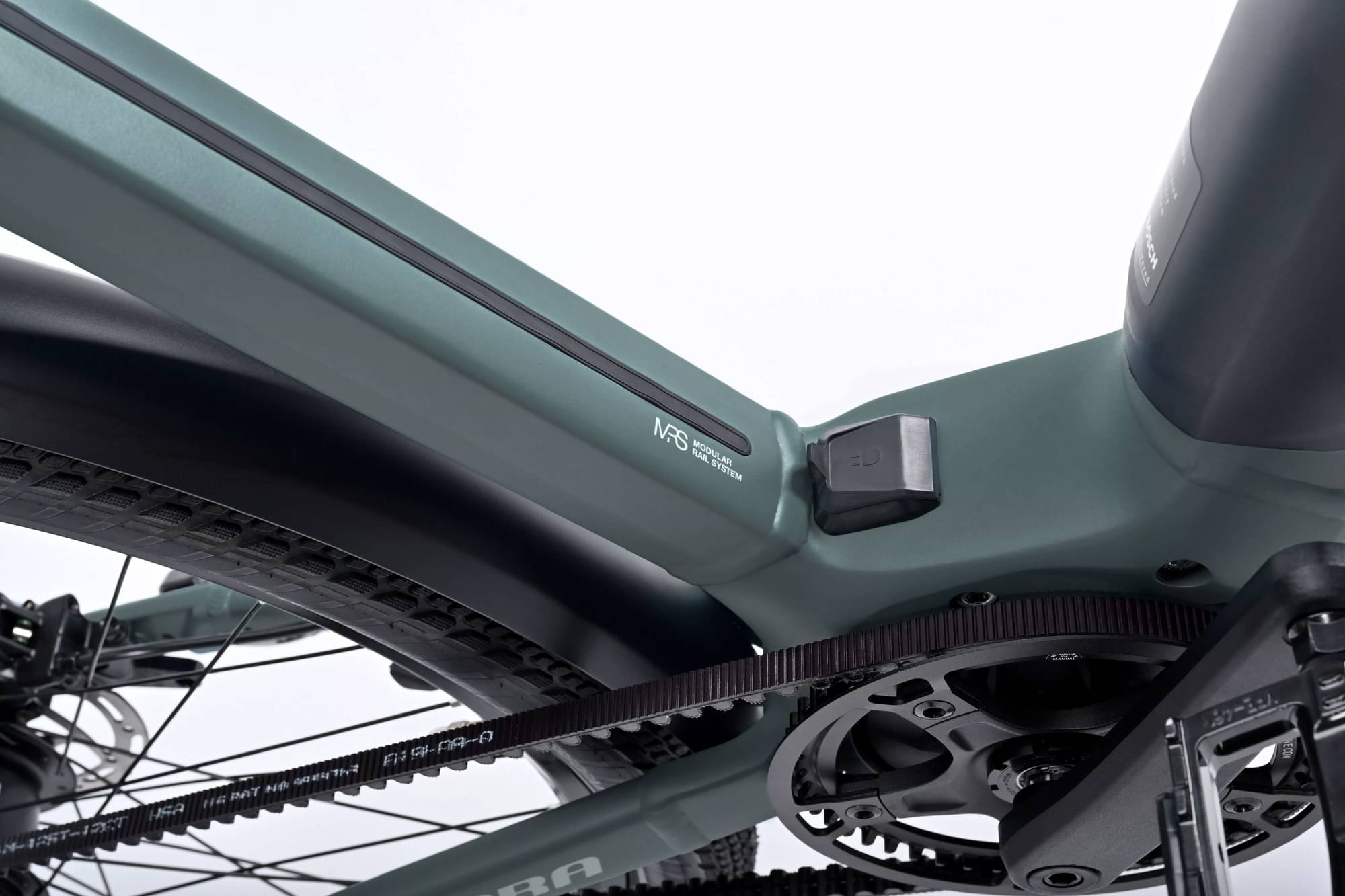

Gates Belt Carbon Drive Belt CDC, 125T
Pedals
VP VPE-461 MTB Alloy Pedal w. Reflector
Wheels
Front Hub
VP Modus JA159F QRx100 mm, 36H, 6 Bolt Disc

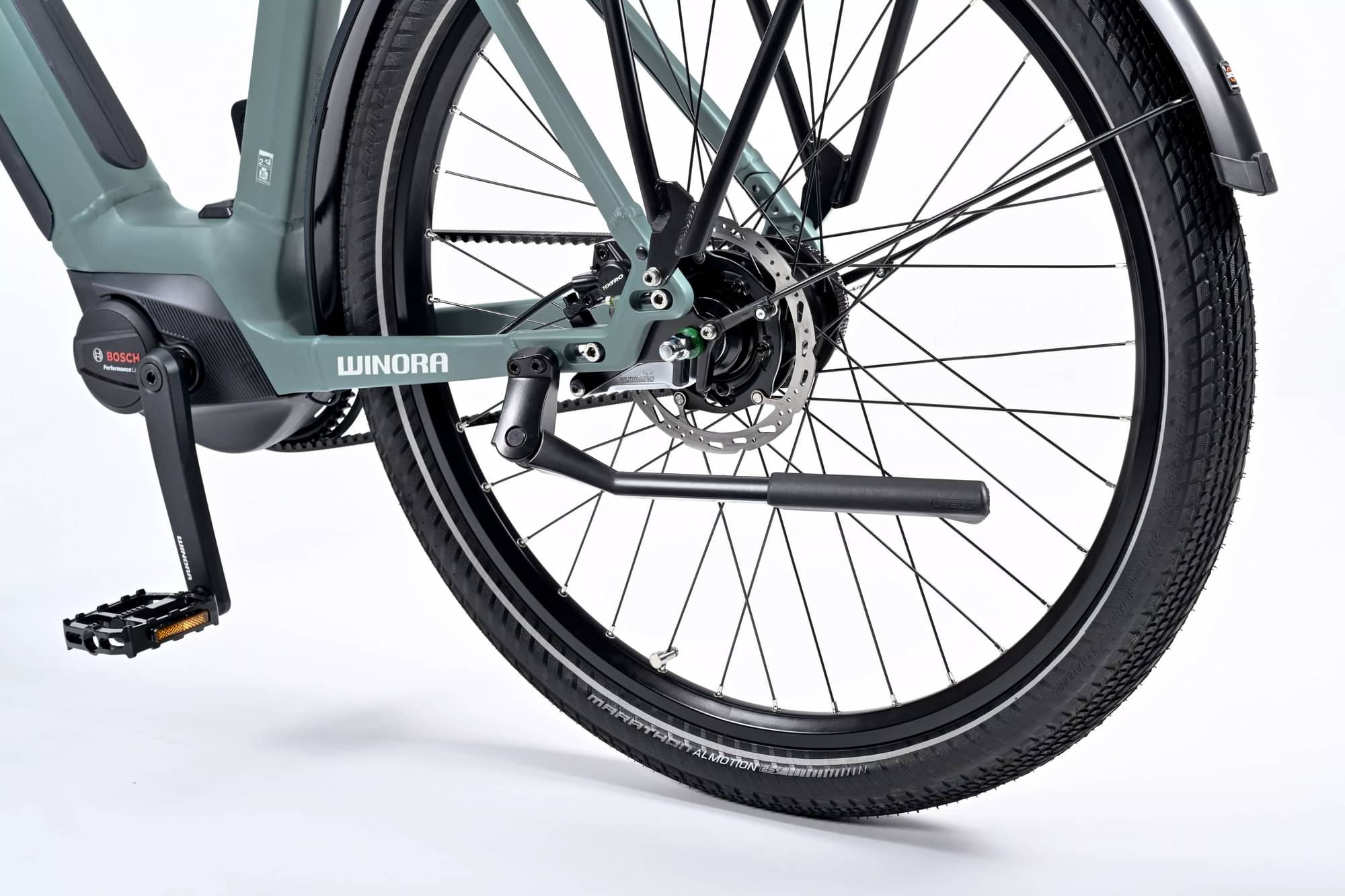

Rear Hub

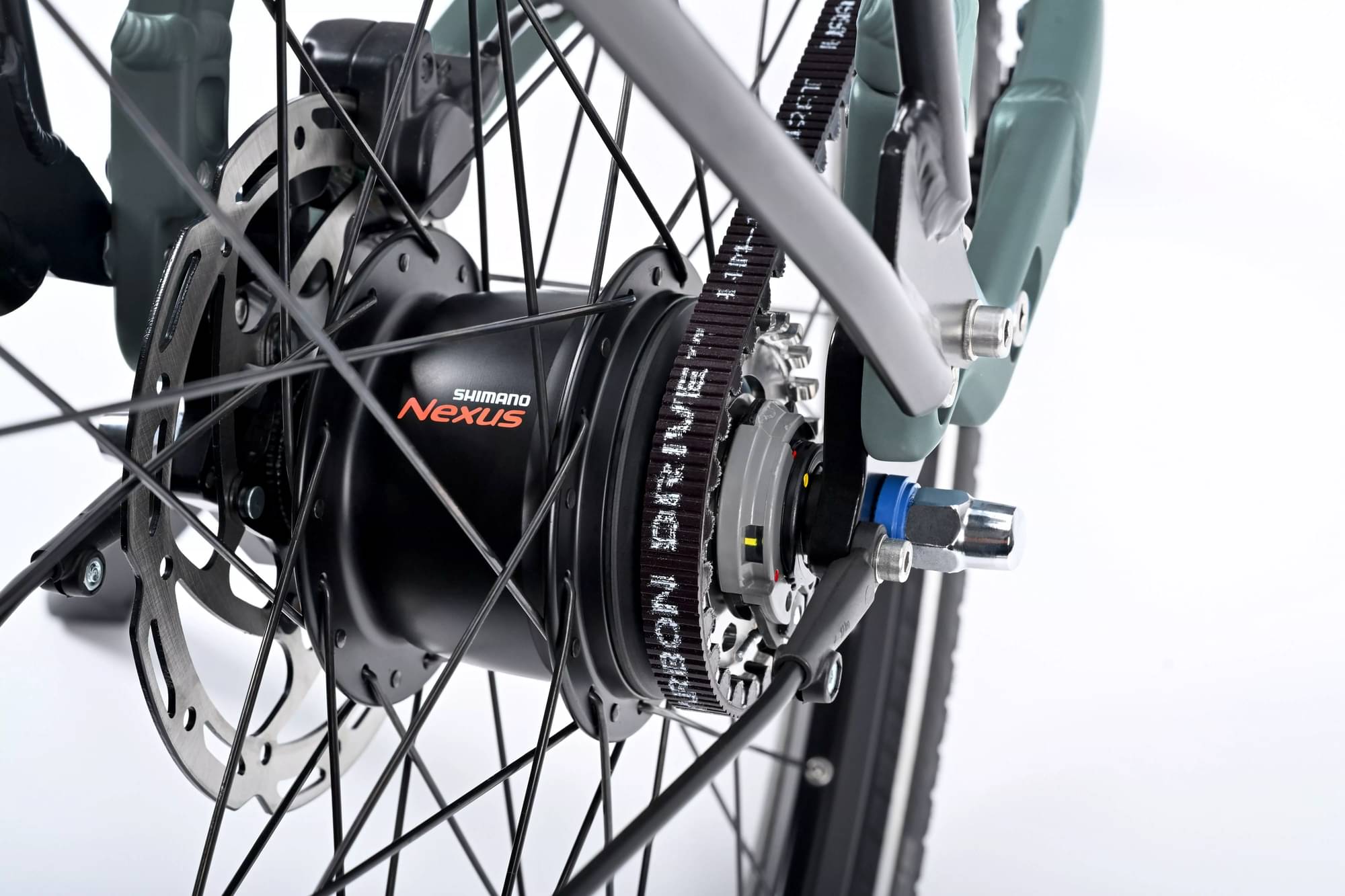

Shimano Nexus SG-C6001-8D, QRx135 mm, 36H, Centerlock
Rims
Ryde Hollow rim Zac421 36H
Tires
Schwalbe Marathon Almotion REF 55-584
Brakes
Brakes

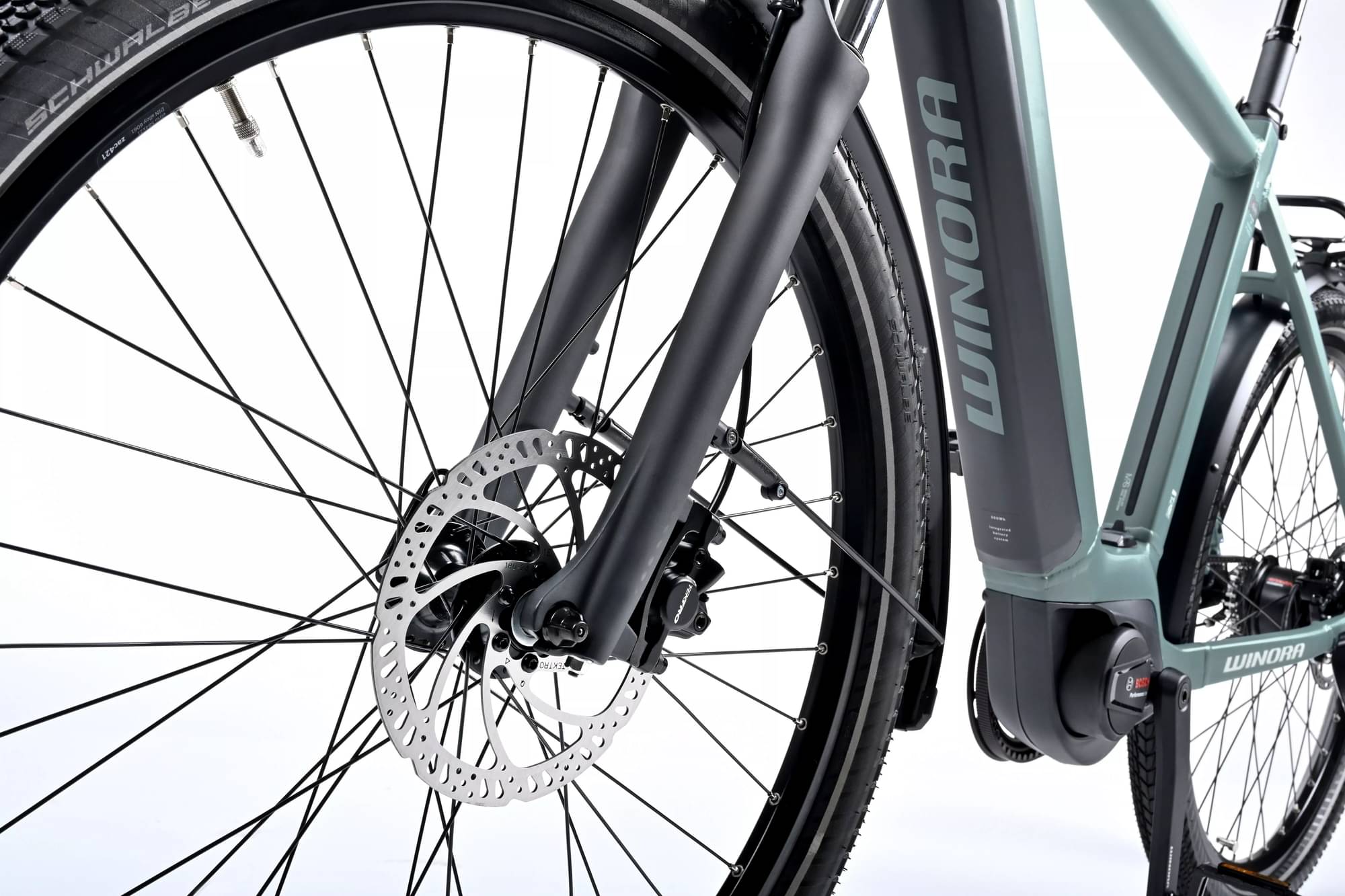

Tektro Hydraulic Disc brake HD-T275, 180 mm
Cockpit
Stem
XLC Adjustable ST99A-1, Dia. 31.8 mm, L: 80 mm
Handlebar
JD TR25AL Dia. 31.8 mm, Rise: 25 mm
Headset
Cane Creek Viscoset ZS44 + Feimin ZS56
Seat
Saddle
Selle Royal Viento
Seatpost
XLC Suspension Harmony-LT2, Dia. 31.6 mm, Tavel: 300 mm
Motor & Battery

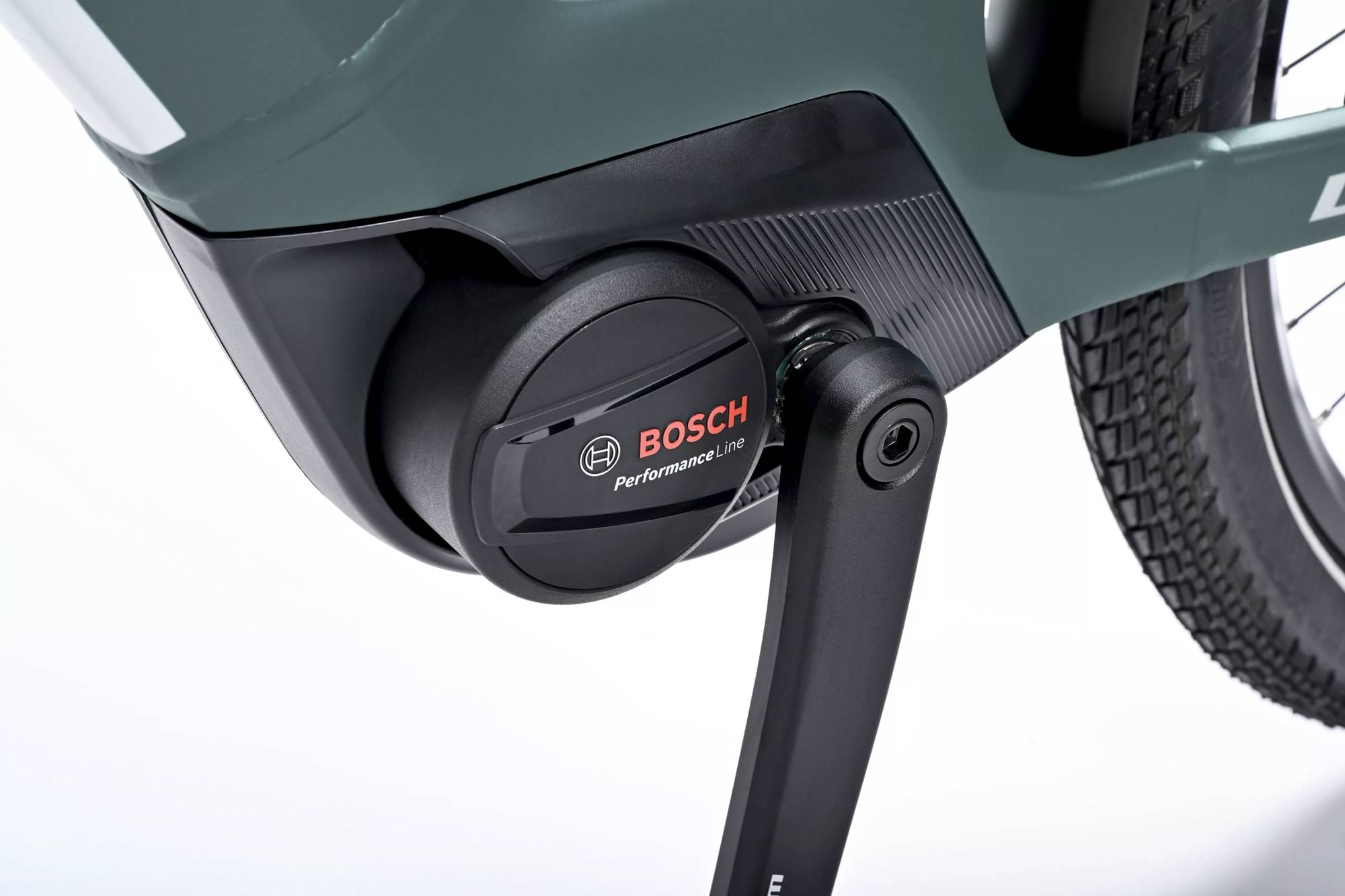

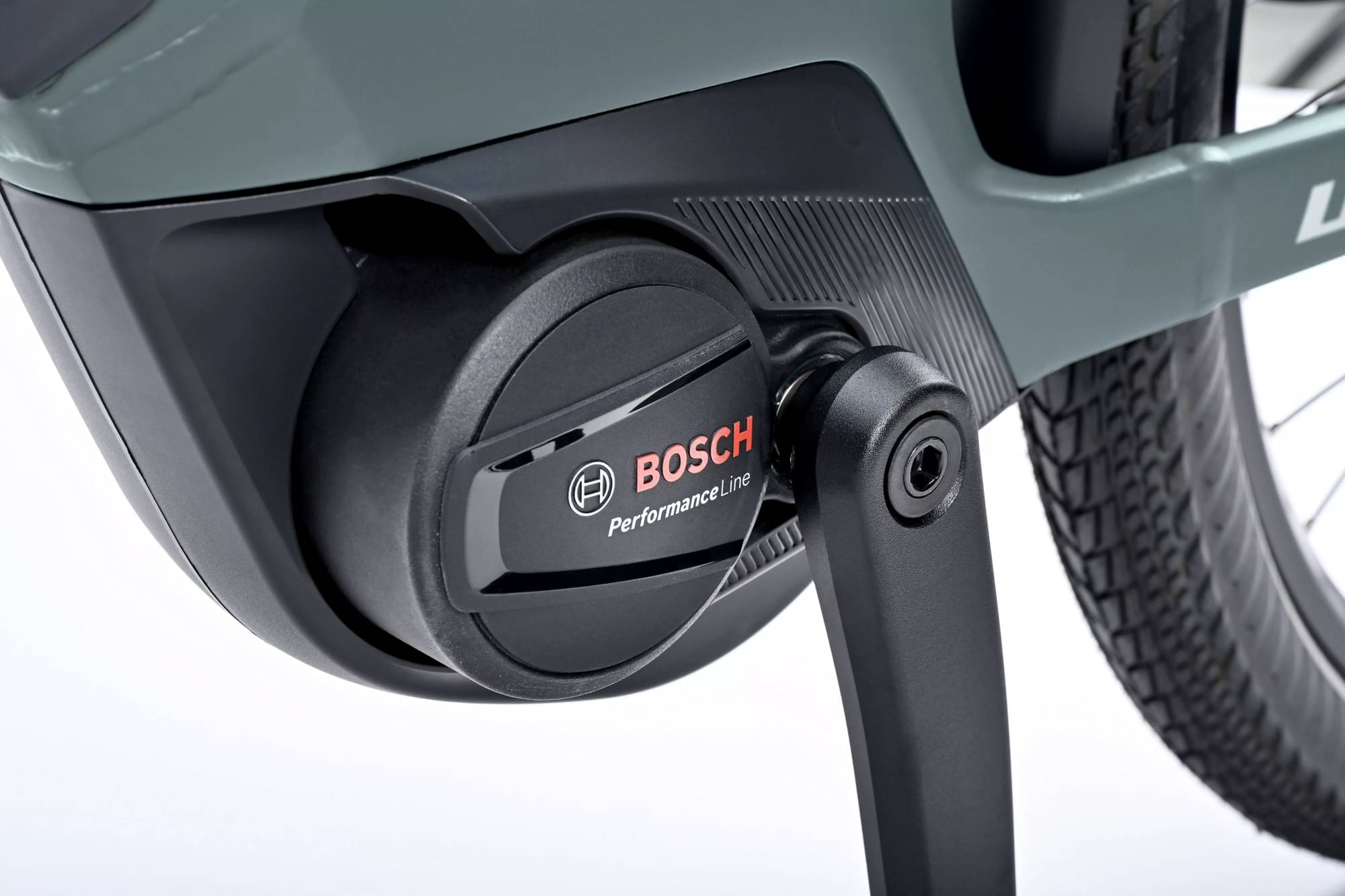

Motor
Bosch
Battery
Bosch Li-ION InTube 500 Wh, Capacity: 500 Wh, Location: Powertube
Charger
Bosch Charger 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm |
|---|---|---|---|
| Stack Reach Ratio | 1.561 mm | 1.525 mm | 1.506 mm |
| Front Center | 700 | 710 mm | 720 mm |
| Rake | 45 mm | 45 mm | 45 mm |
| Trail | 71 mm | 71 mm | 72 mm |
| Stack | 668 mm | 668 mm | 673 mm |
| Reach | 428 mm | 438 mm | 447 mm |
| Top Tube Length | 652 mm | 661 mm | 671 mm |
| Seat Tube Angle | 71.5 ° | 71.5 ° | 71.6 ° |
| Seat Tube Length | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 190 mm | 190 mm | 195 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1169 mm | 1179 mm | 1189 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 460 mm | 450 mm | 450 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 161 cm | 170 cm | 178 cm |
| Rider Max Height | 172 cm | 180 cm | 191 cm |
