Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 60mm -
Fork Suntour NEX
-
Groupset CUES -
Suspension Hardtail -
Motor Bosch hub-drive -
Battery Bosch Li-ION InTube 625 Wh, Capacity: 625 Wh, Location: Powertube -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
46cm
161cm - 172cm
50cm
170cm - 180cm
54cm
178cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components

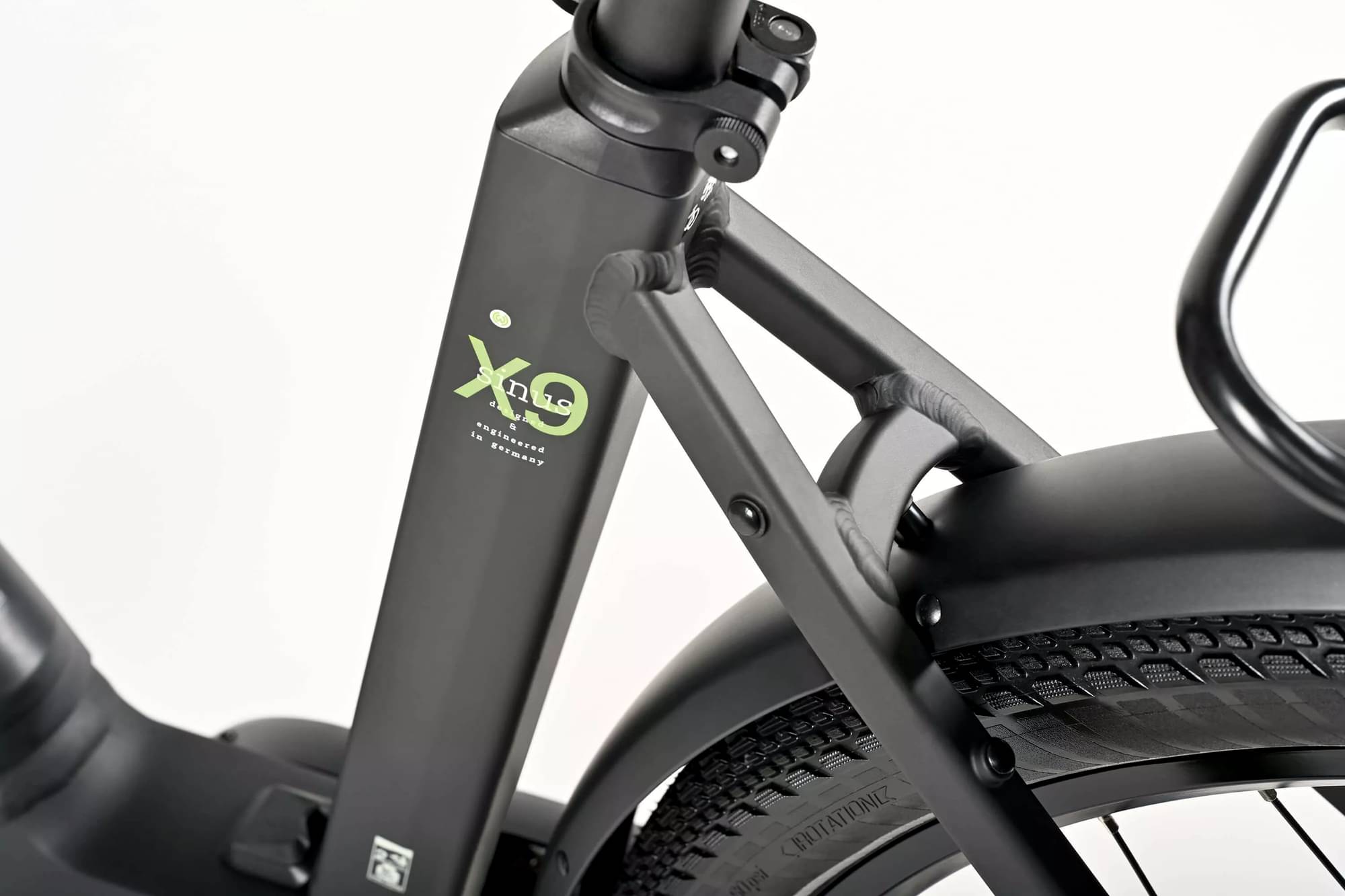

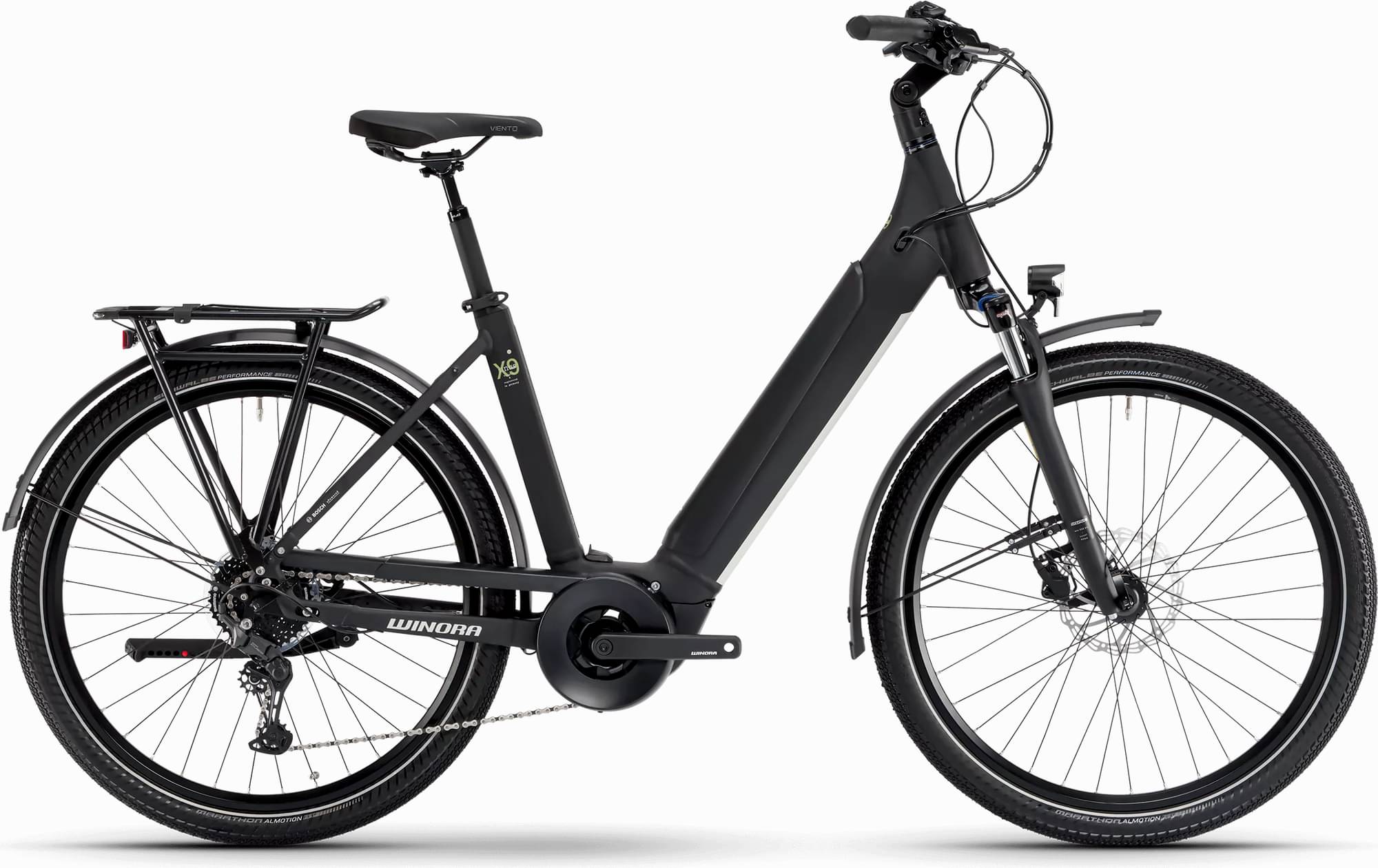

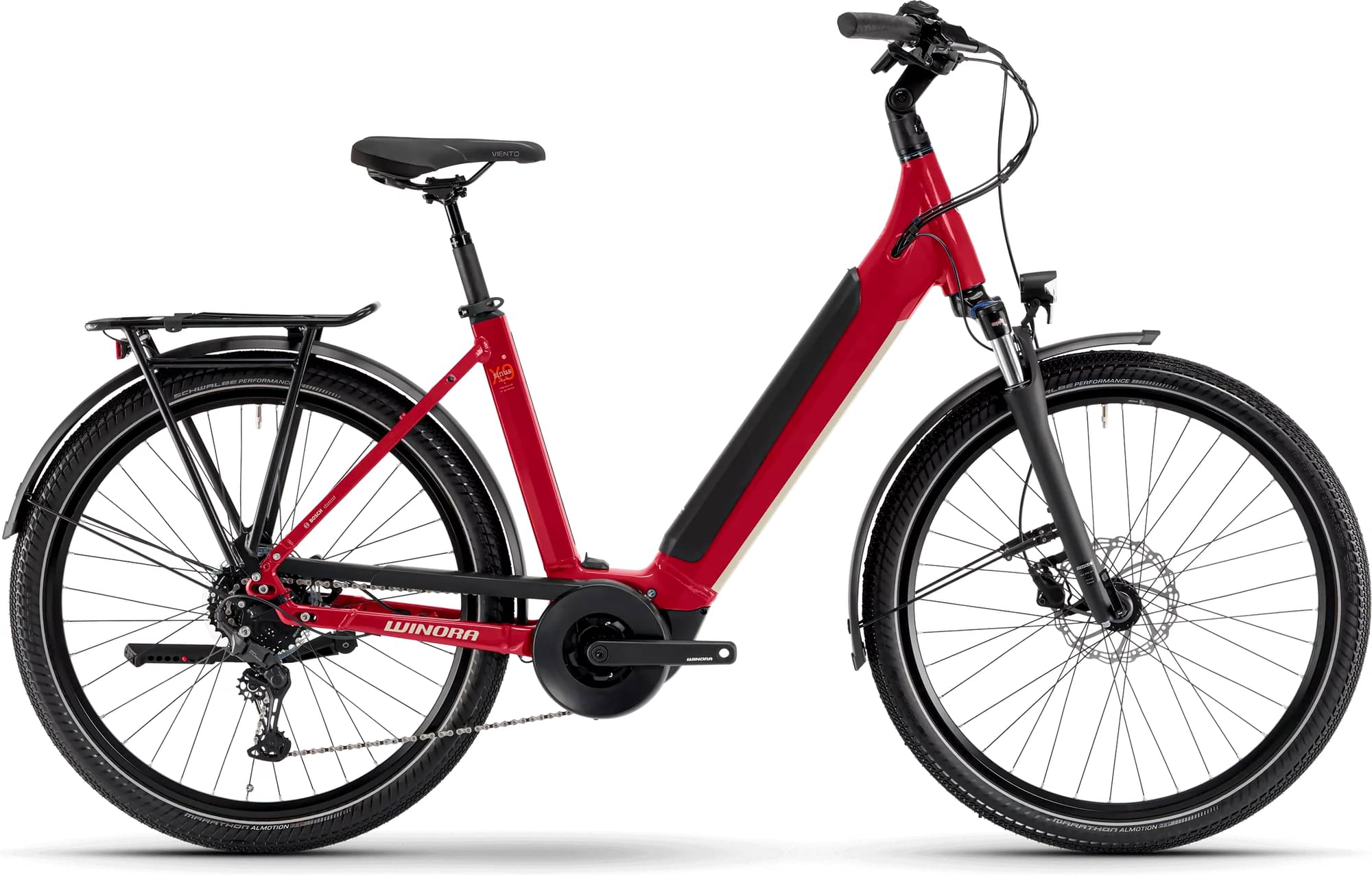

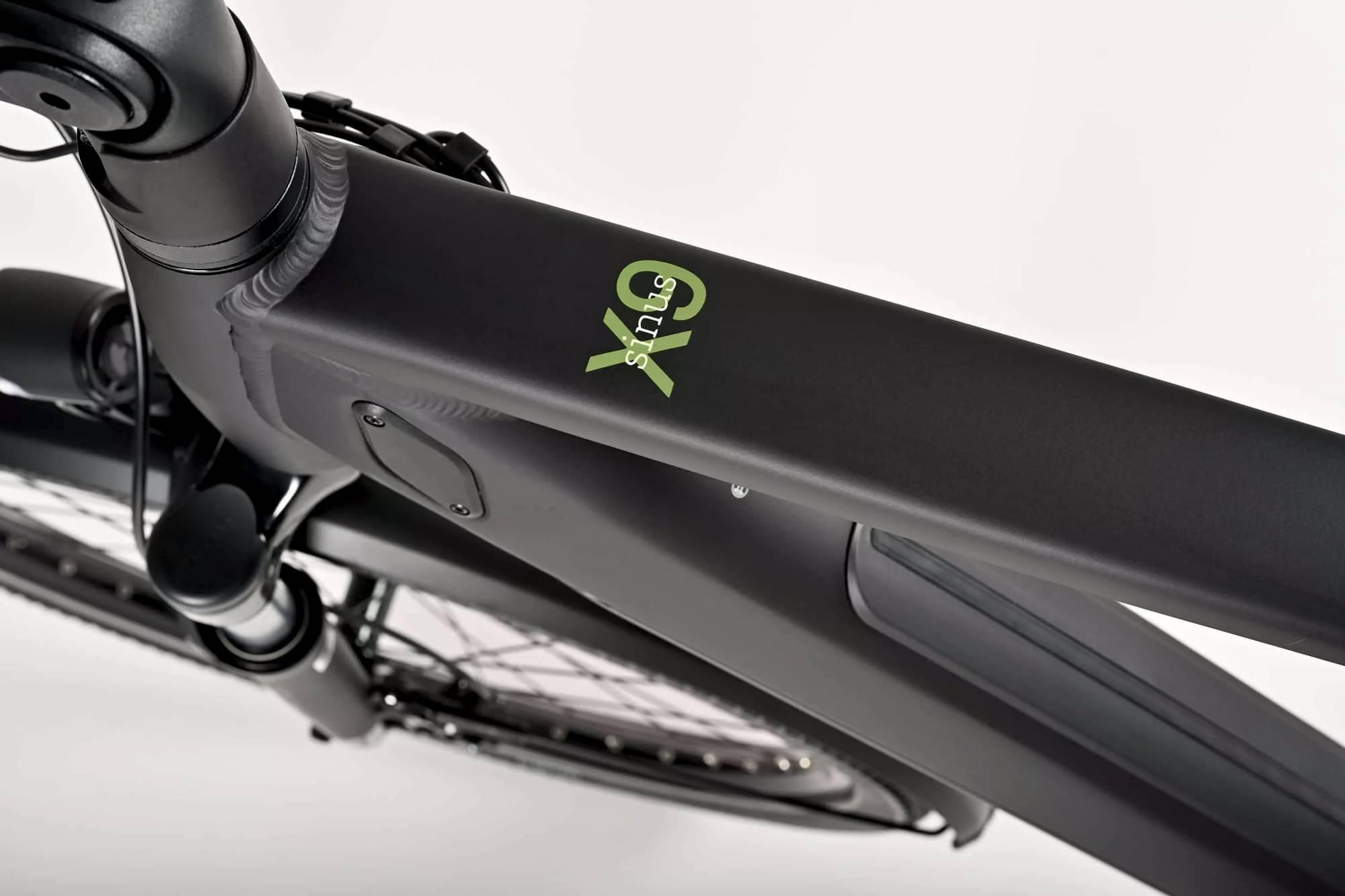

Frame
Frame
Low Aluminium Low entry

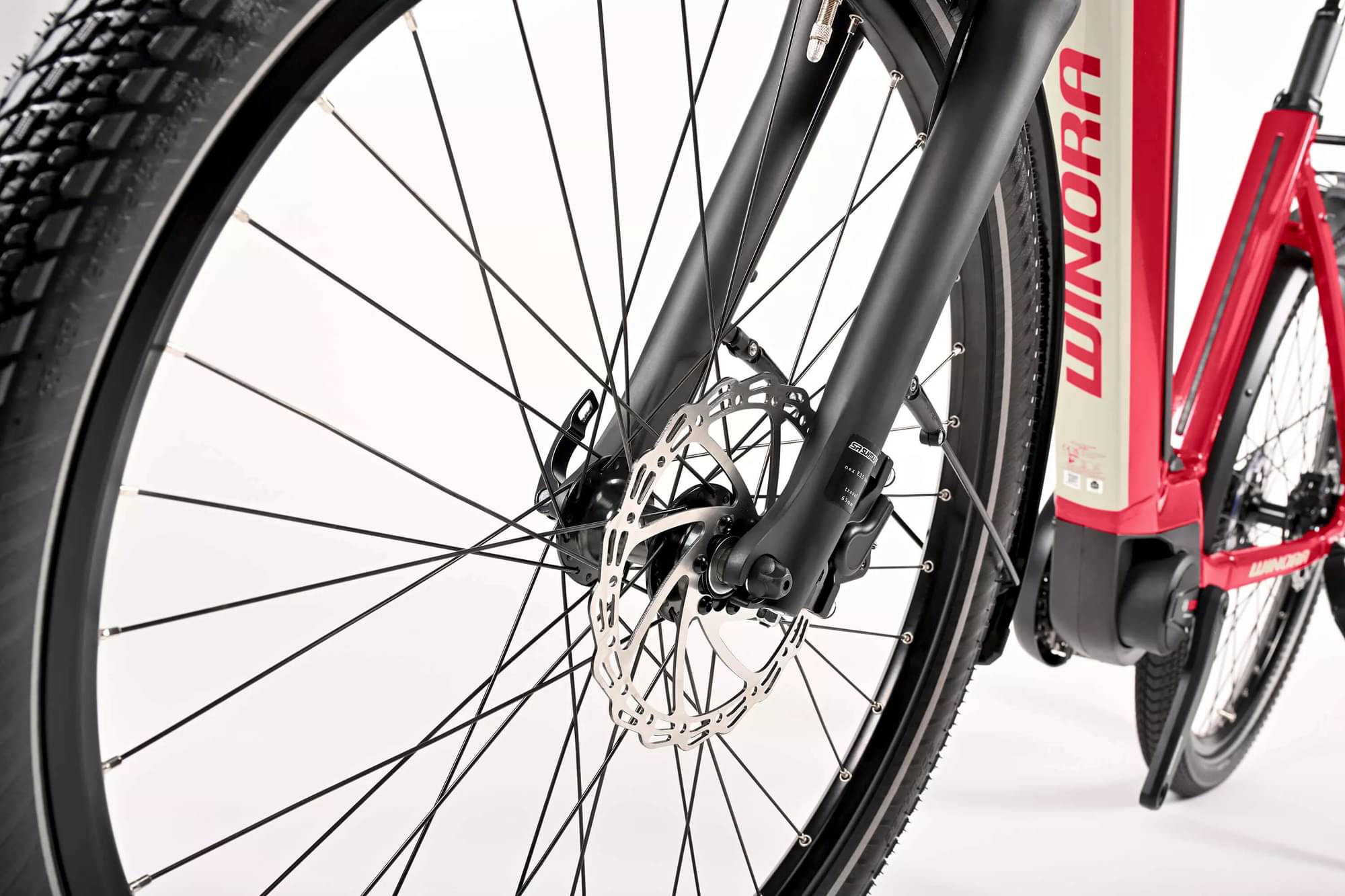

Suspension Fork
Suntour NEX E25 60 mm
Drivetrain
Rear Derailleur
Shimano Cues RD-U3020, 9s
Shift Levers
Shimano Triggershift Cues SL-U4000-9R, Rapidfire
Cassette
Shimano CS-LG300-9, HG
Crank
Samox aluminium crank
Bottom Bracket
integrated in the motor
Chain
Shimano Chain Cues LG500
Chain Guide
Herrmans Slyde38
Pedals
VP E461

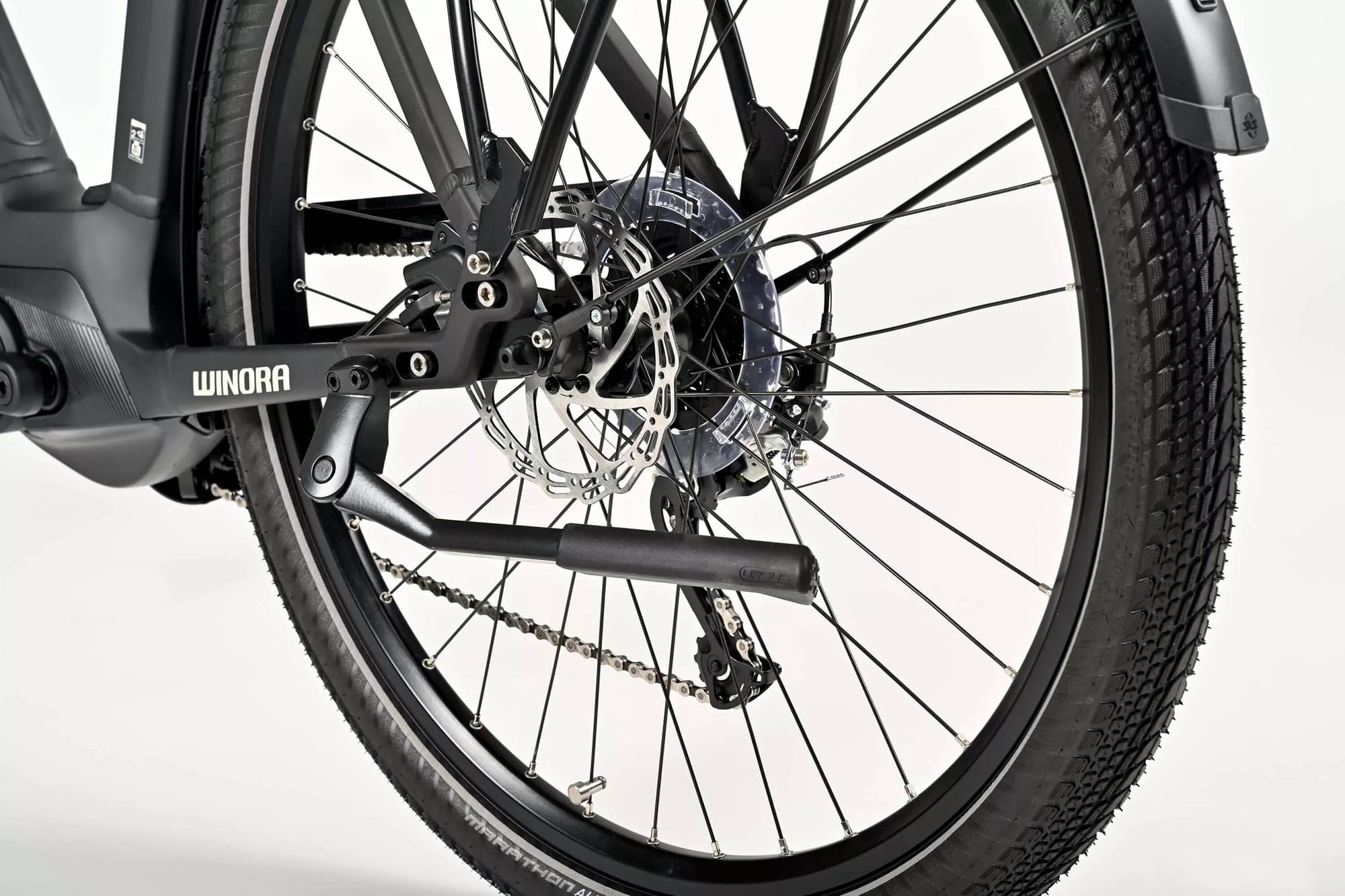

Wheels
Front Hub
Winora alu hub
Rear Hub
Winora alu hub
Rims
Ryde Hollow rim Zac421
Tires
Schwalbe Marathon Almotion 55-584

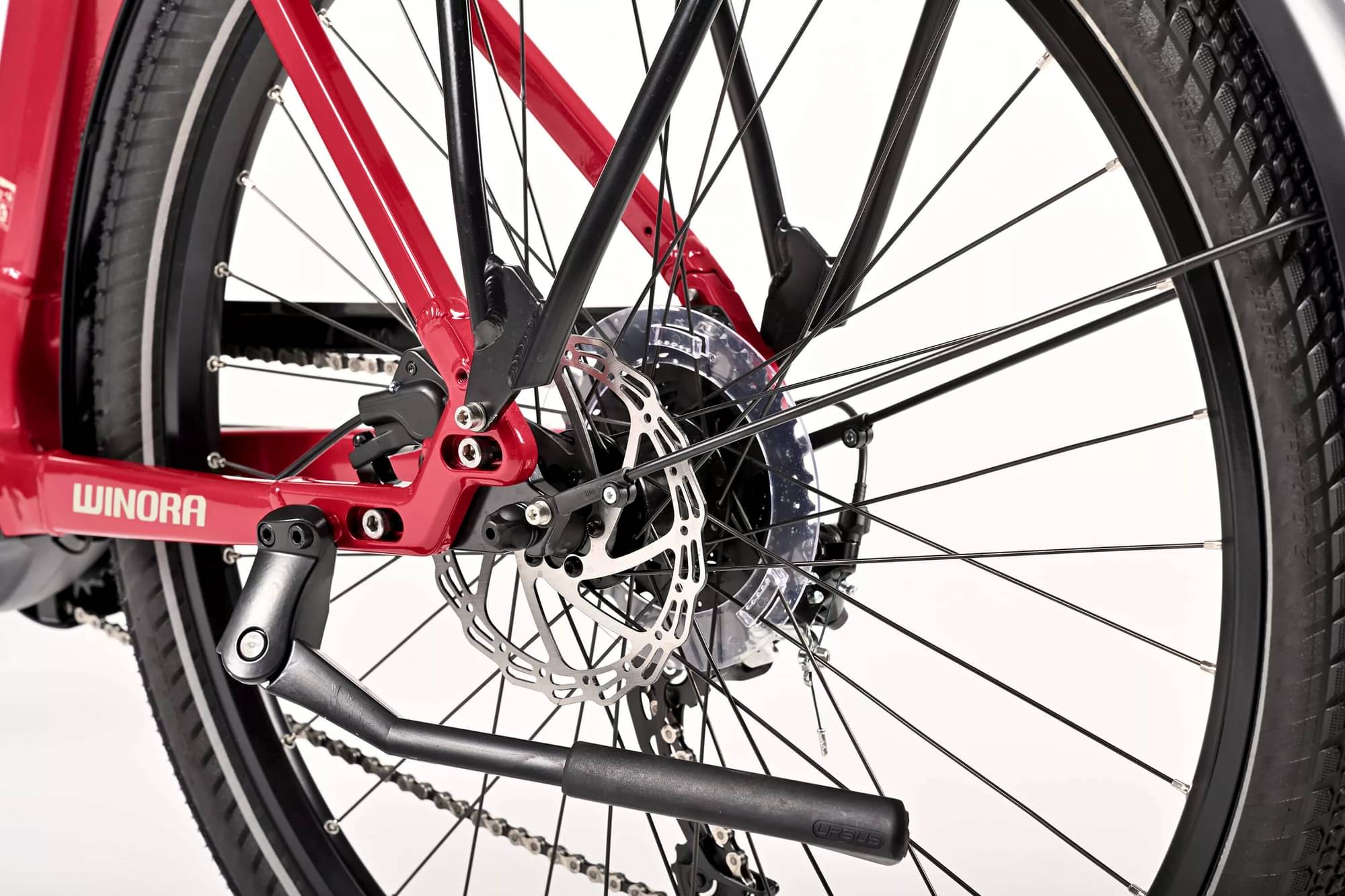

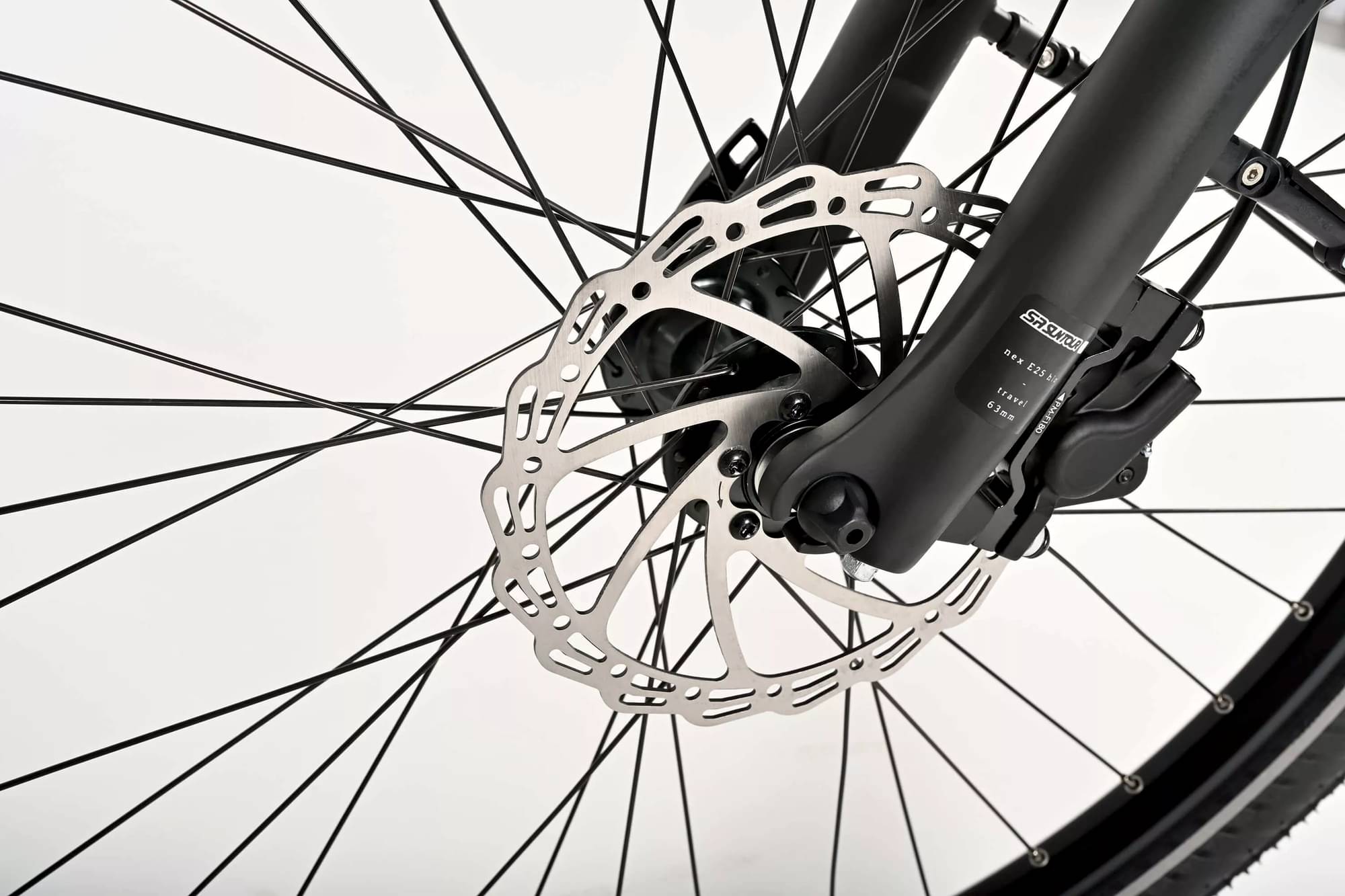

Brakes
Brakes
Alhonga Hydraulic Disc brake HT474, 180 mm

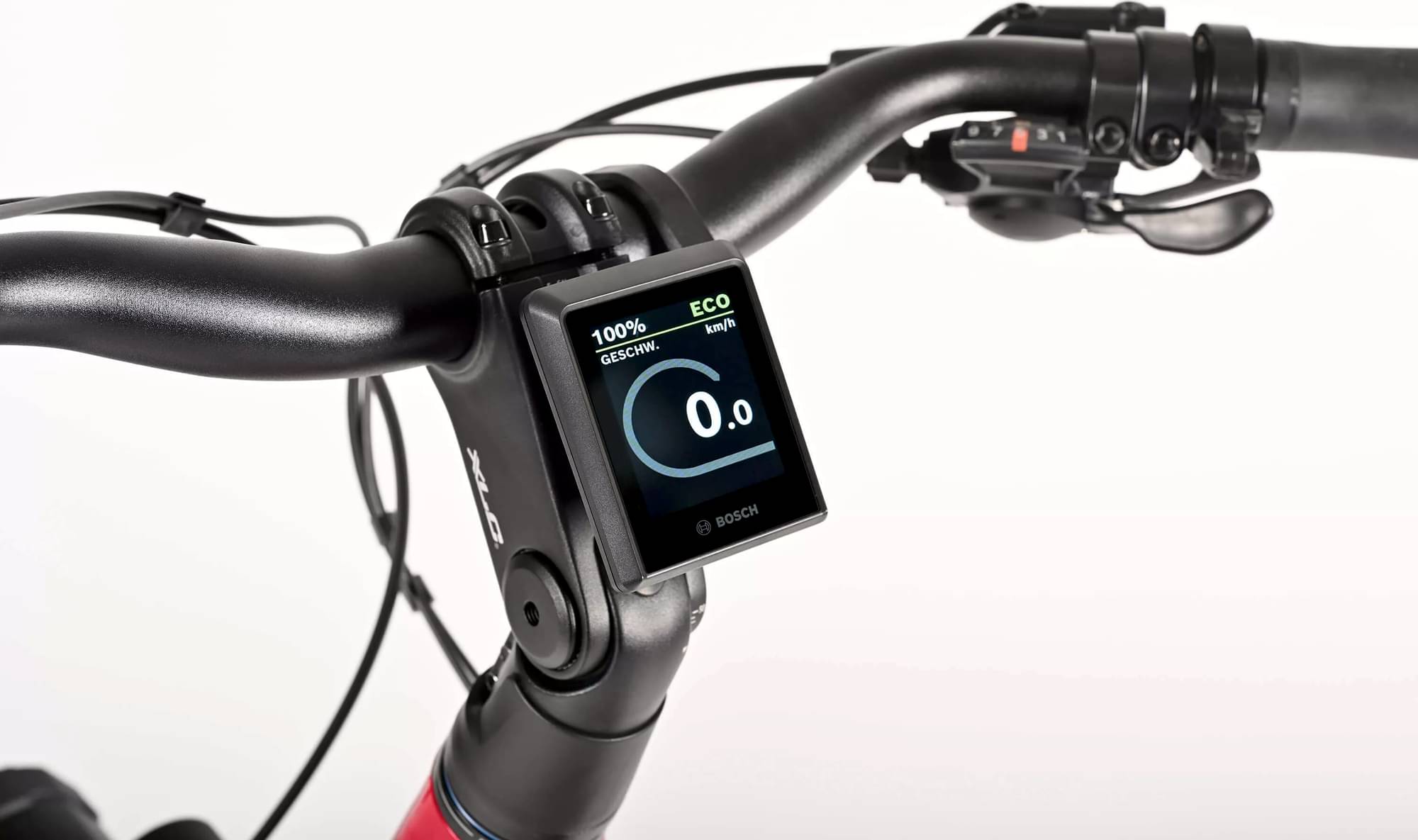

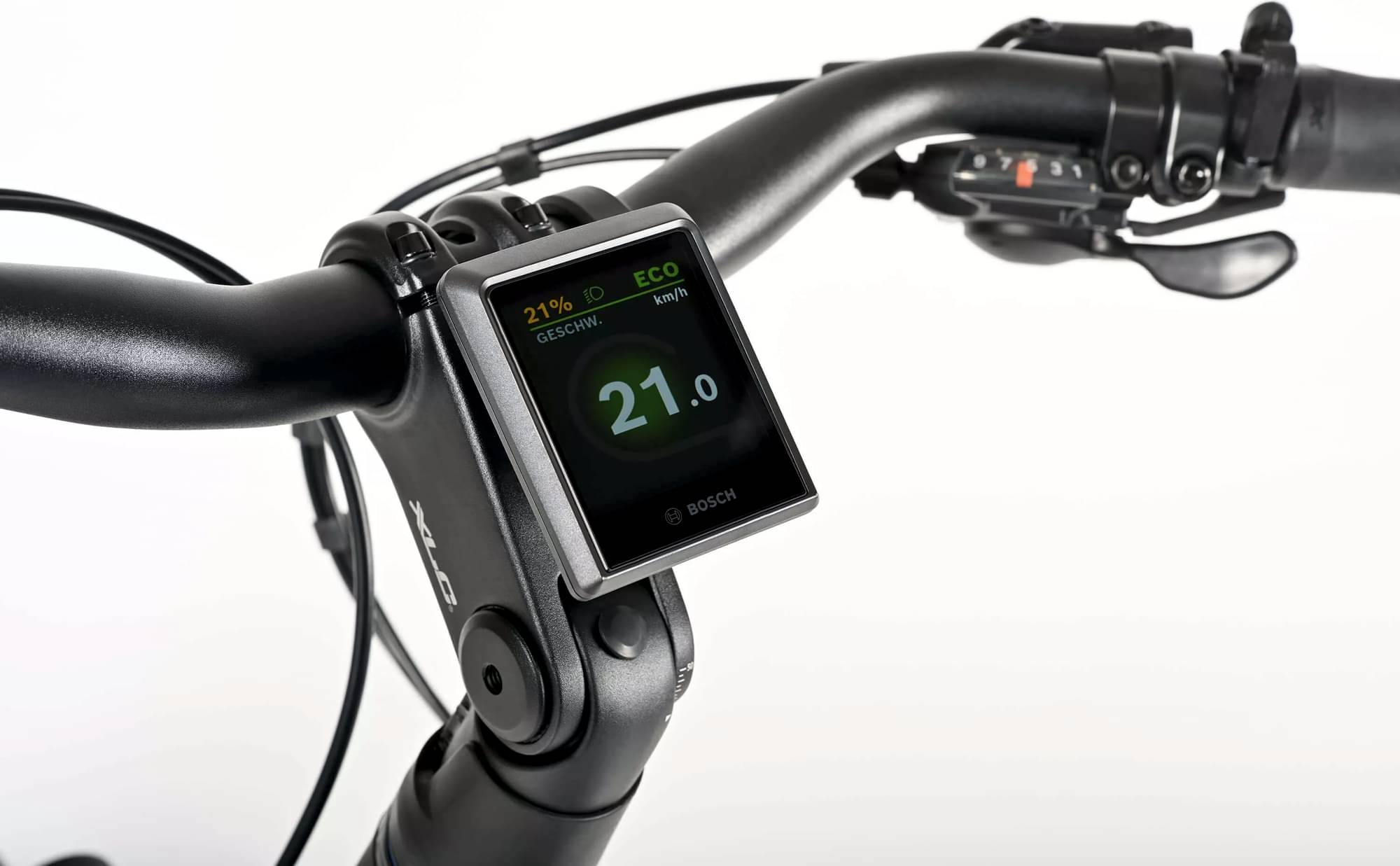

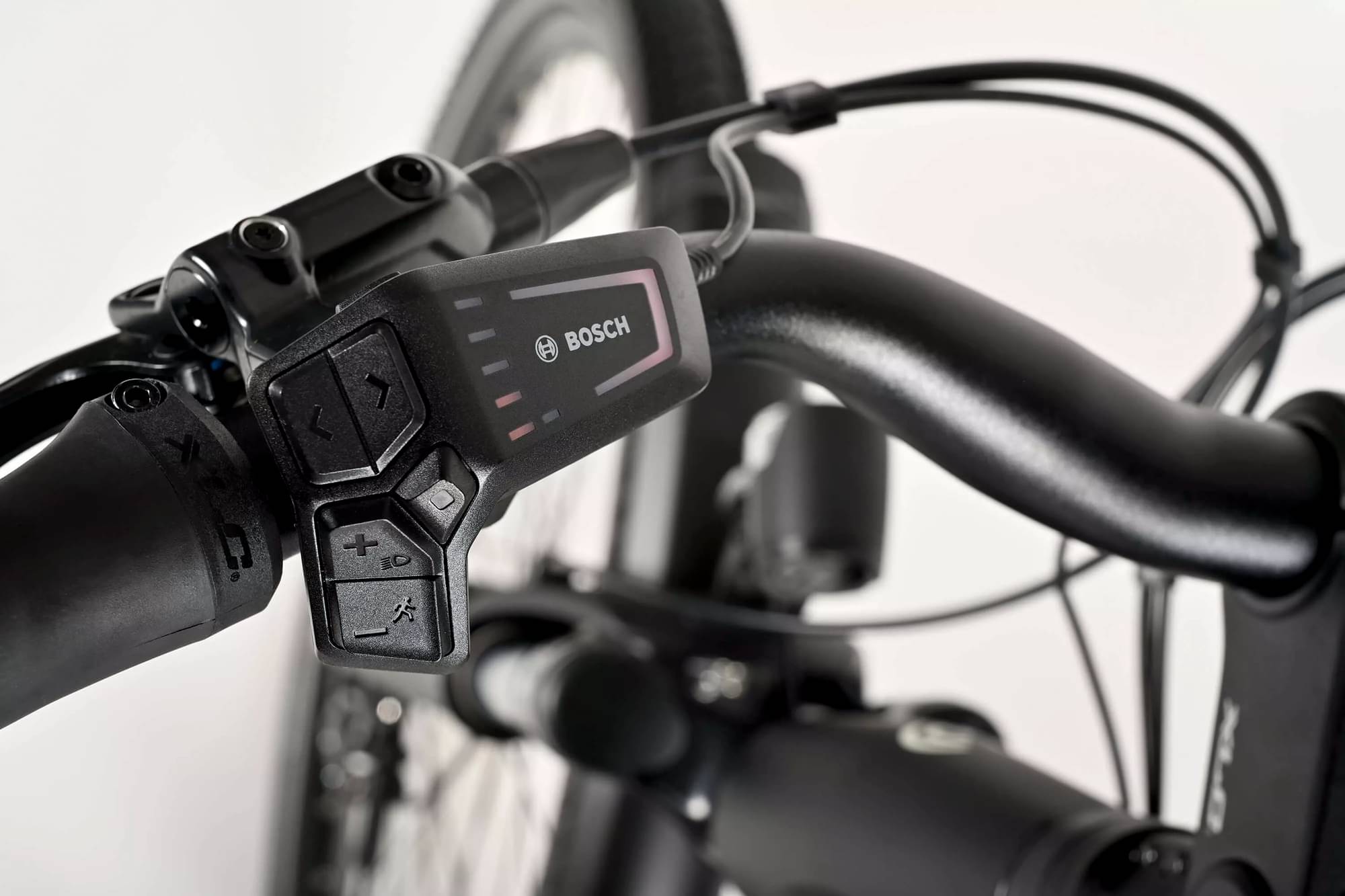

Cockpit
Stem
XLC Adjustable A-Head, adjustable, Dia. 31.8 mm
Handlebar
Winora Ergobar, oversize

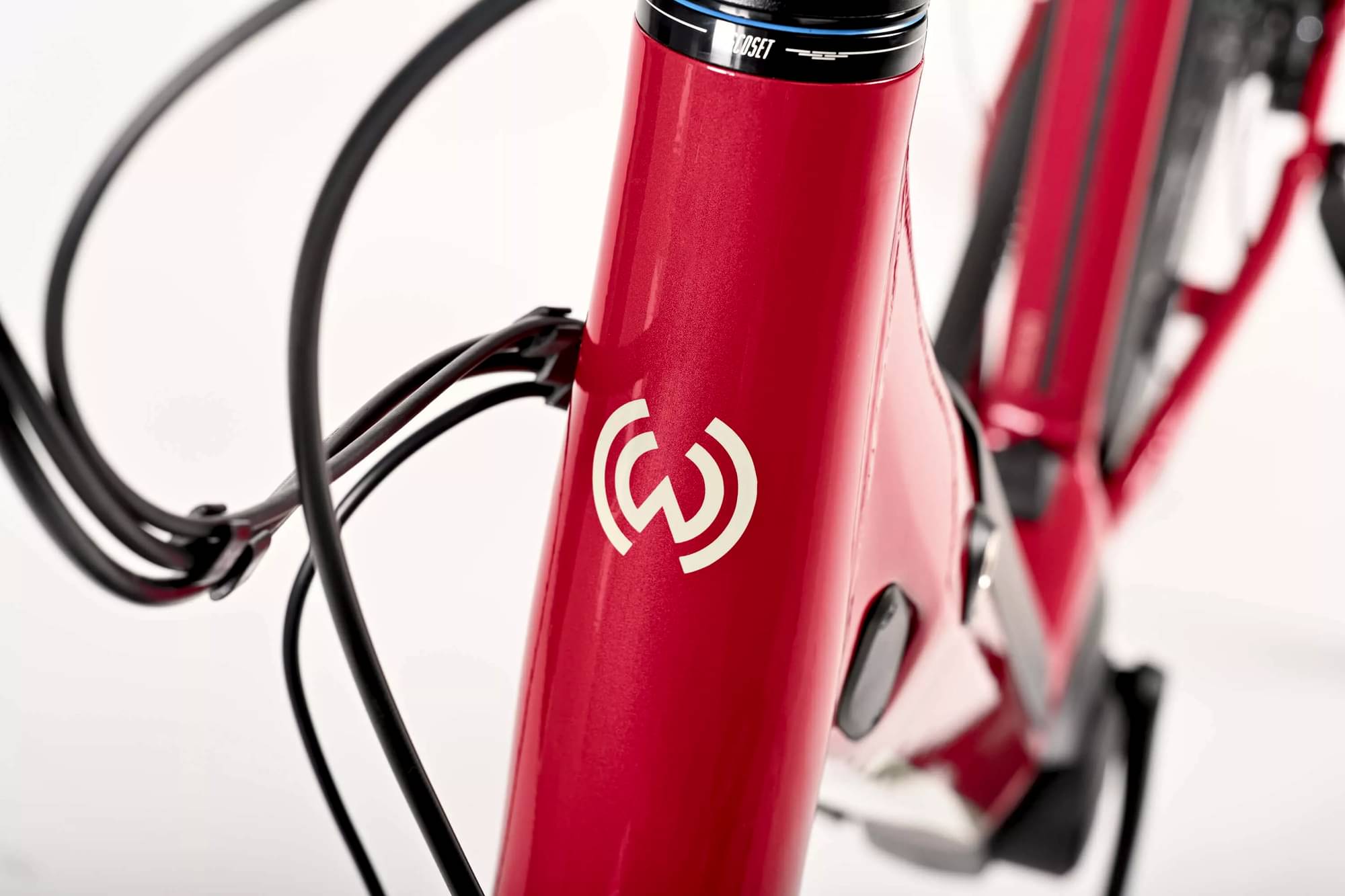

Headset
Cane Creek Viscoset
Seat

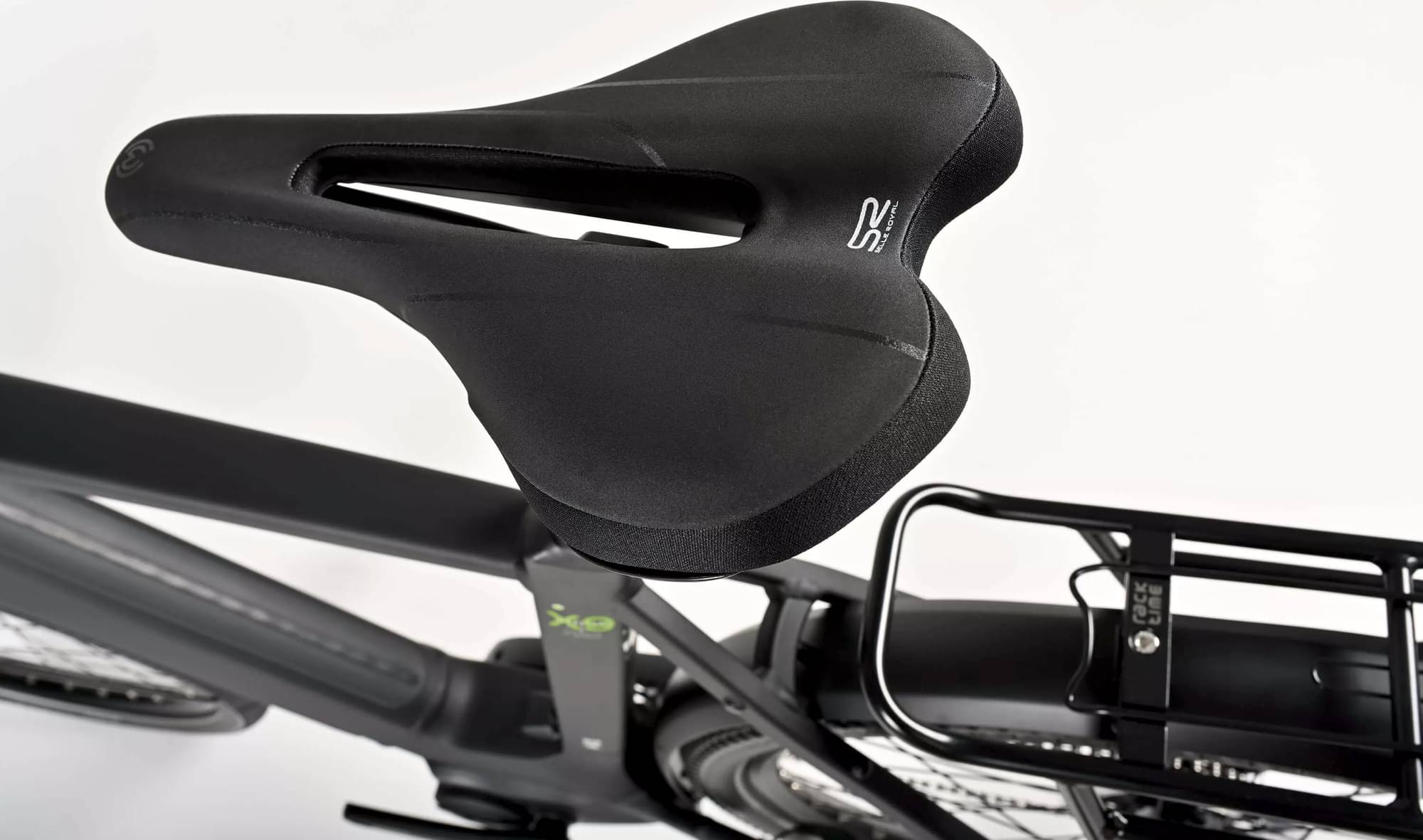

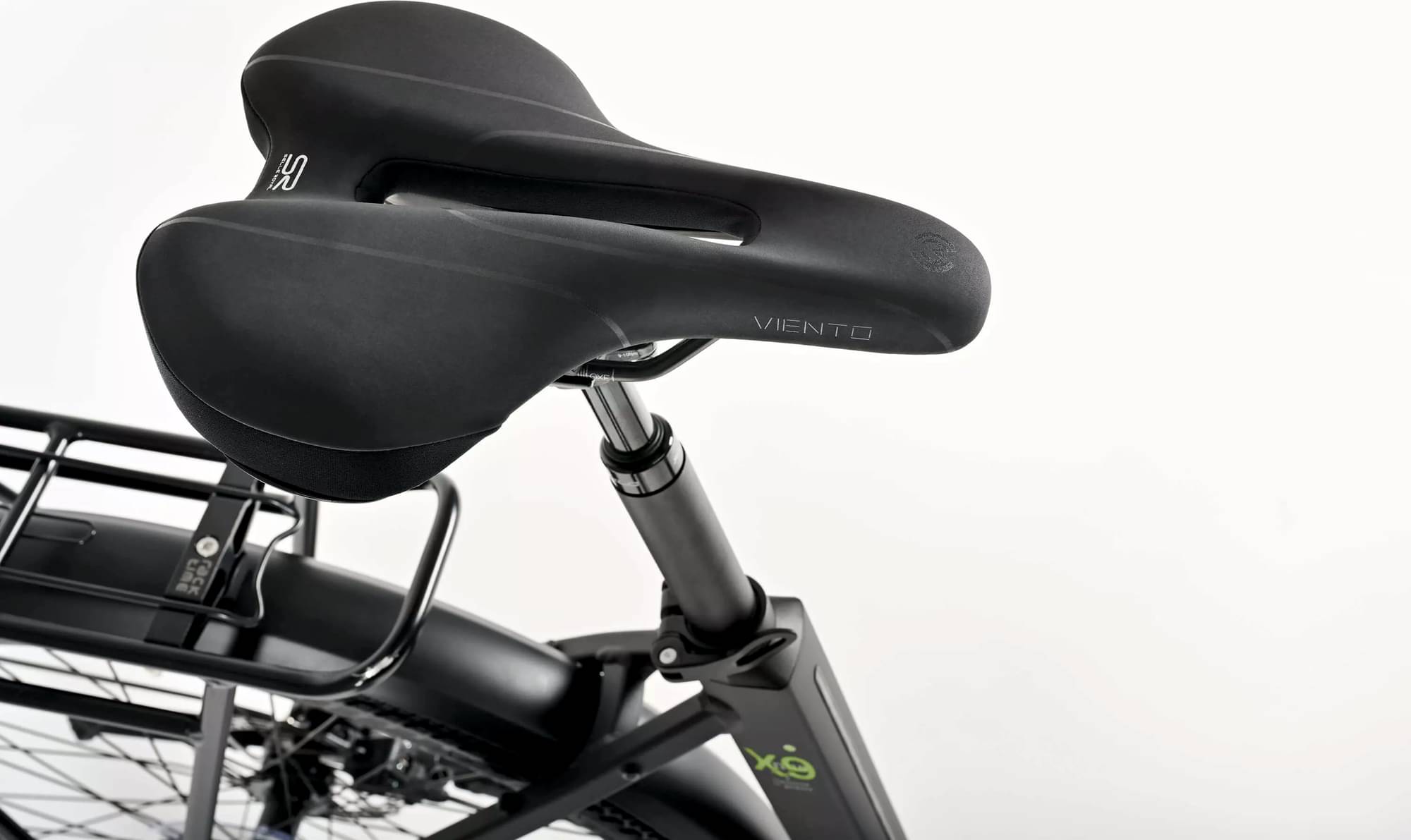

Saddle
Selle Royal Viento
Seatpost
Winora Suspension Patent, Dia. 31.6 mm
Motor & Battery

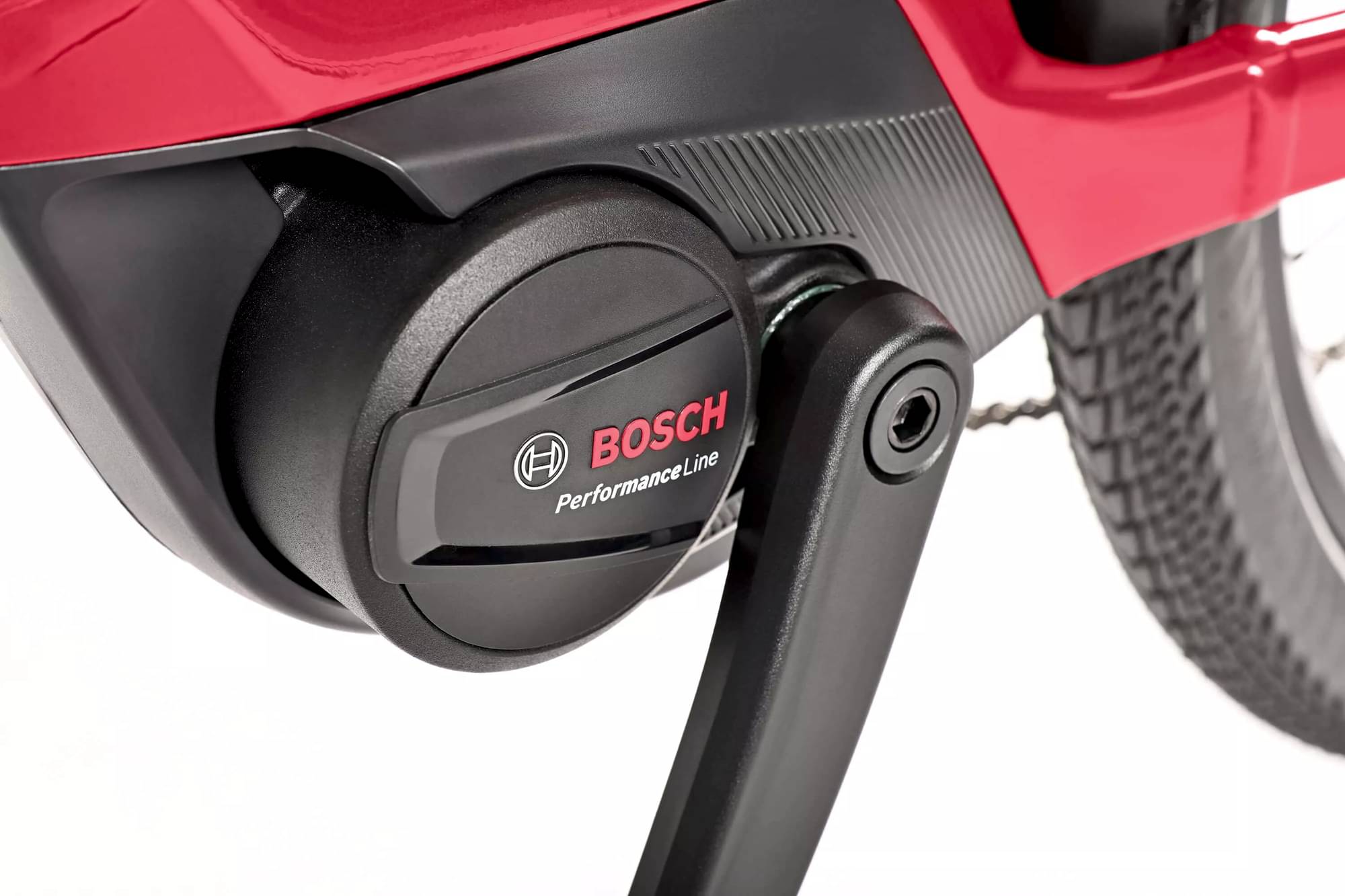

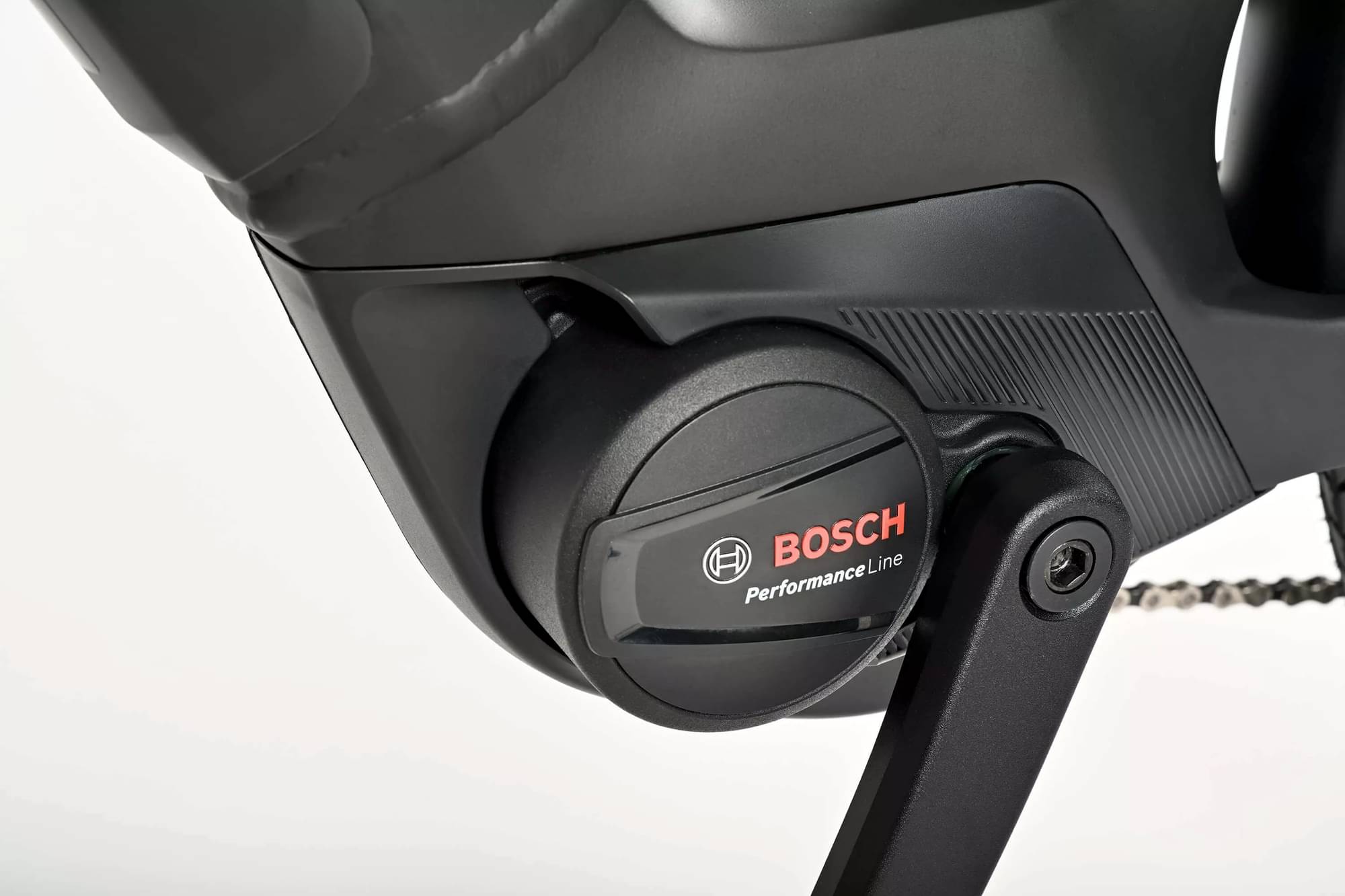

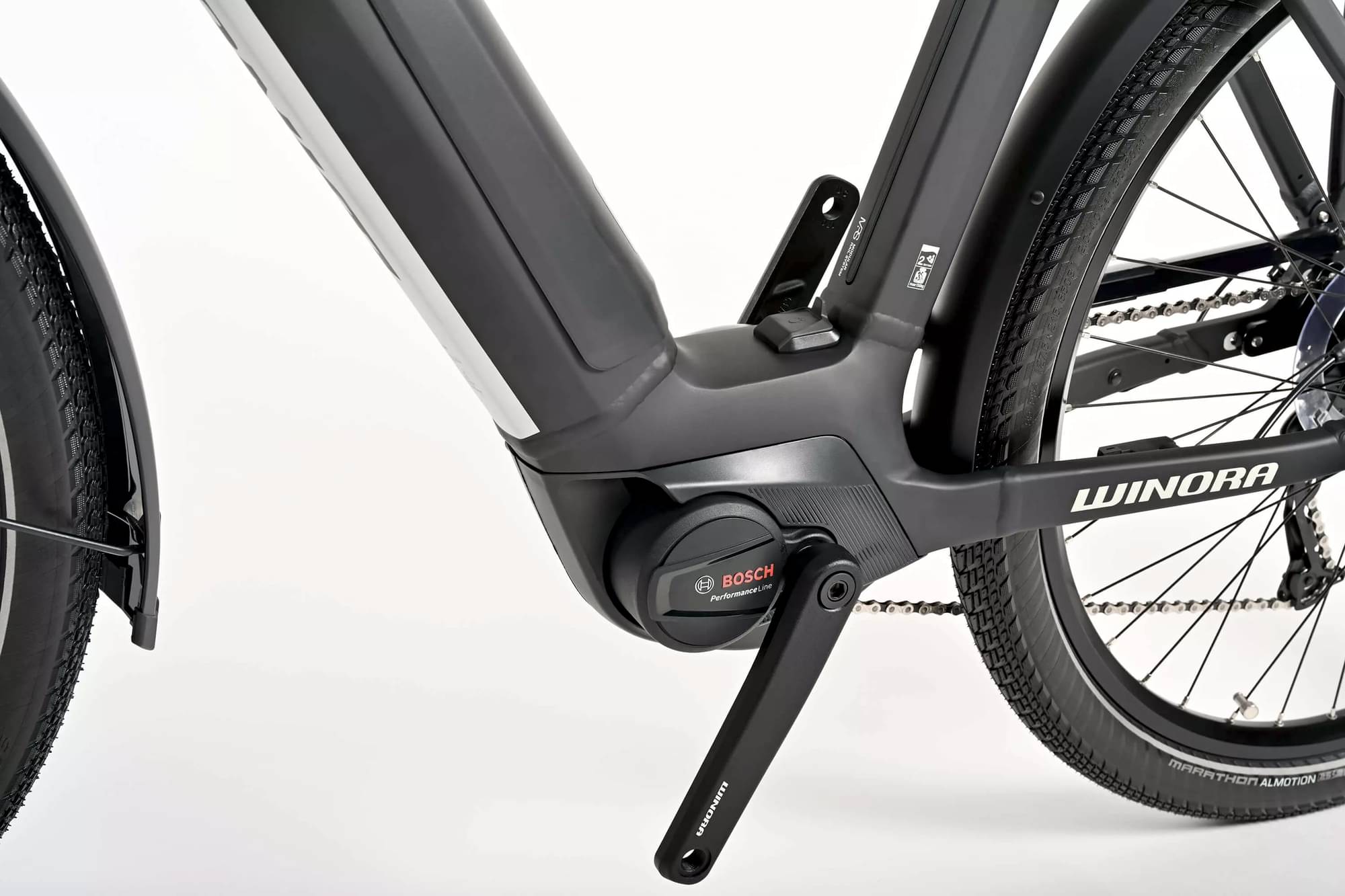

Motor
Bosch

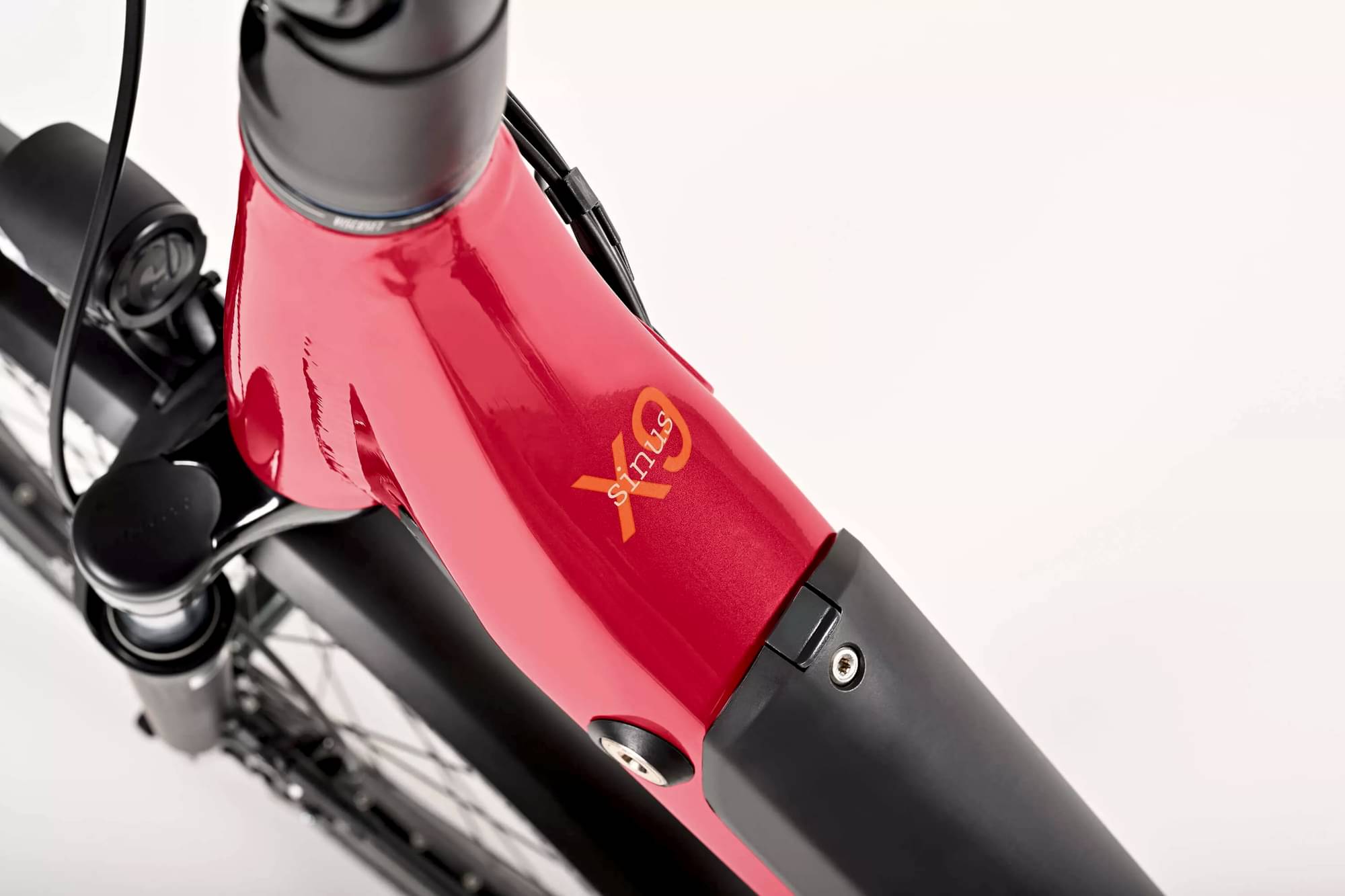

Battery
Bosch Li-ION InTube 625 Wh, Capacity: 625 Wh, Location: Powertube
Charger
Bosch standard charger 4 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm |
|---|---|---|---|
| Stack Reach Ratio | 1.561 mm | 1.525 mm | 1.506 mm |
| Front Center | 700 | 710 mm | 720 mm |
| Rake | 5 mm | 5 mm | 4 mm |
| Trail | 115 mm | 115 mm | 116 mm |
| Stack | 668 mm | 668 mm | 673 mm |
| Reach | 428 mm | 438 mm | 447 mm |
| Top Tube Length | 652 mm | 661 mm | 671 mm |
| Seat Tube Angle | 71.5 ° | 71.5 ° | 71.6 ° |
| Seat Tube Length | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 190 mm | 190 mm | 195 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1169 mm | 1179 mm | 1189 mm |
| Bottom Bracket Drop | -60 mm | -60 mm | -60 mm |
| Standover Height | 460 mm | 450 mm | 450 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 161 cm | 170 cm | 178 cm |
| Rider Max Height | 172 cm | 180 cm | 191 cm |
