Bike details
Overview
Key information split into simple groups.

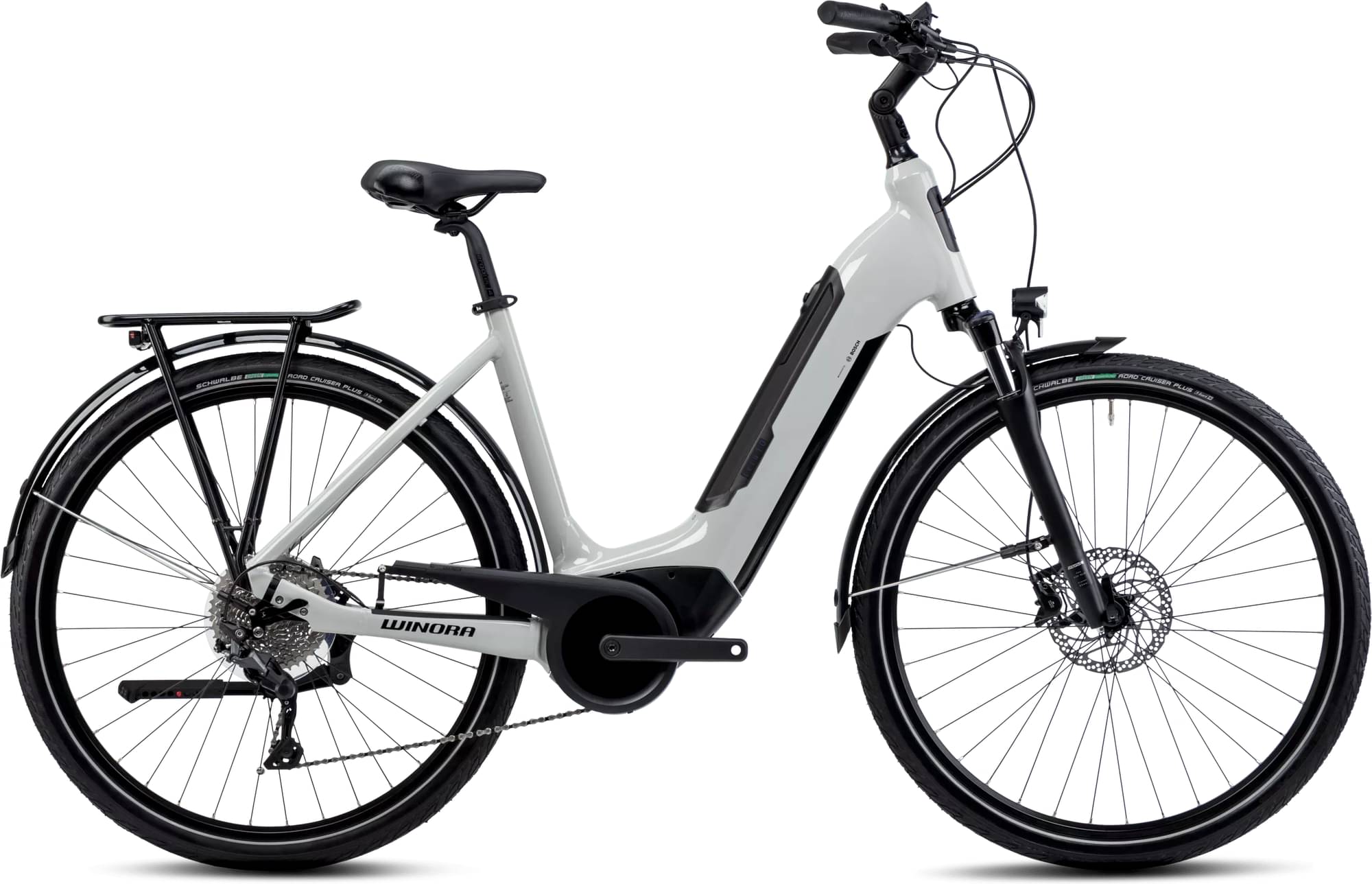

Bike summary
-
-
Frame Aluminum -
Fork Suntour NEX -
Groupset Deore -
Suspension Hardtail -
Motor Bosch 600W 63Nm mid-drive -
Battery Bosch Li-ION PowerTube, Capacity: 500 Wh, Location: Powertube -
Drivetrain 1 × 10 -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Low Aluminium
Suspension Fork
Suntour NEX E25-HLO

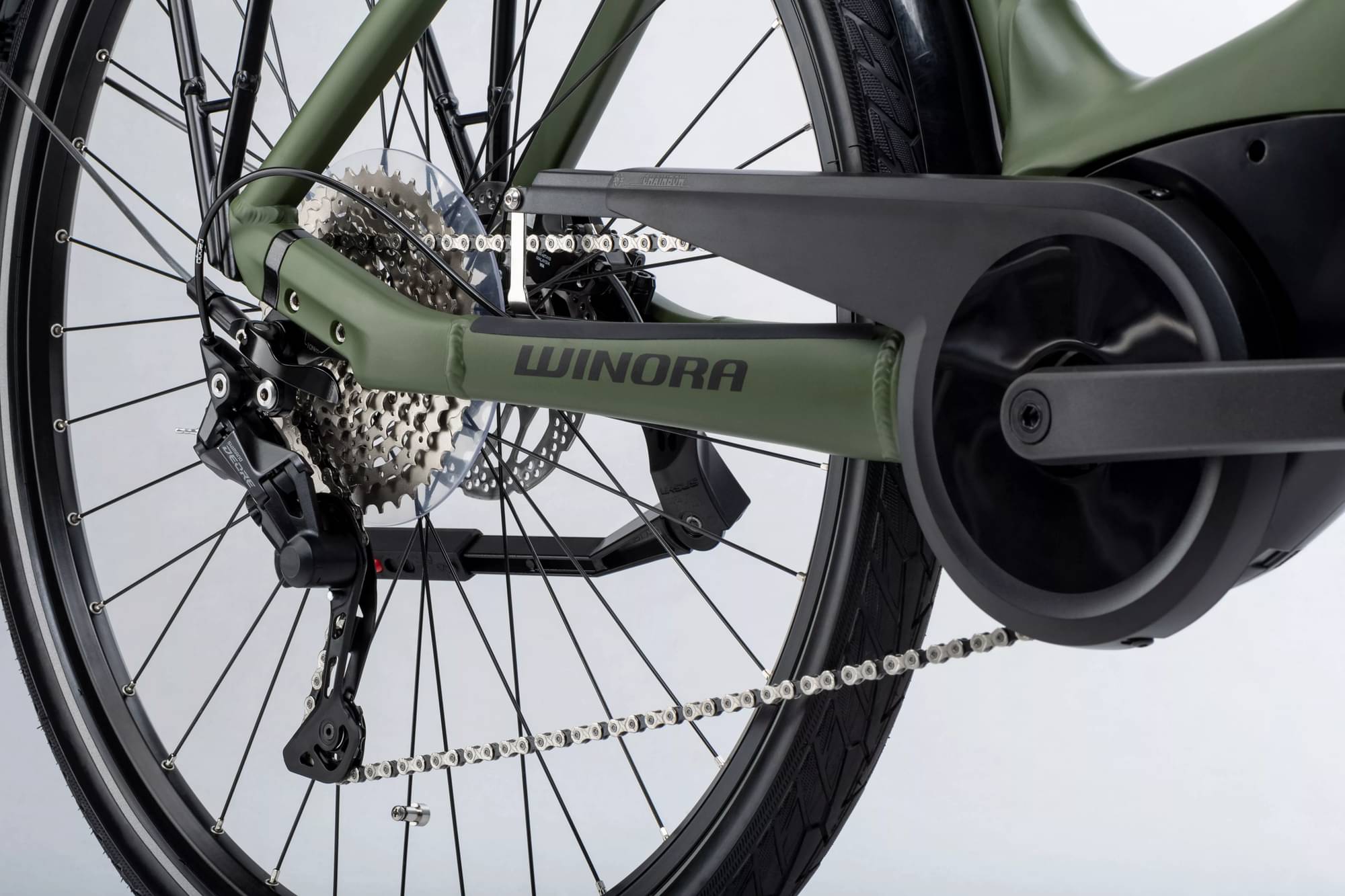

Drivetrain
Rear Derailleur
Shimano Deore M4120
Shift Levers
Shimano Deore M4100
Cassette
Shimano CSM4100
Bottom Bracket
integrated in the motor
Chain
KMC Chain e10S
Chain Guide
SKS Chainbow-E 38T
Pedals
VP E461
Wheels
Front Hub
aluminium hub
Rear Hub
aluminium hub
Rims
Ryde Hollow rim Eco21
Tires
Schwalbe Road Cruiser 50-622
Brakes
Brakes
Shimano Hydraulic Disc brake

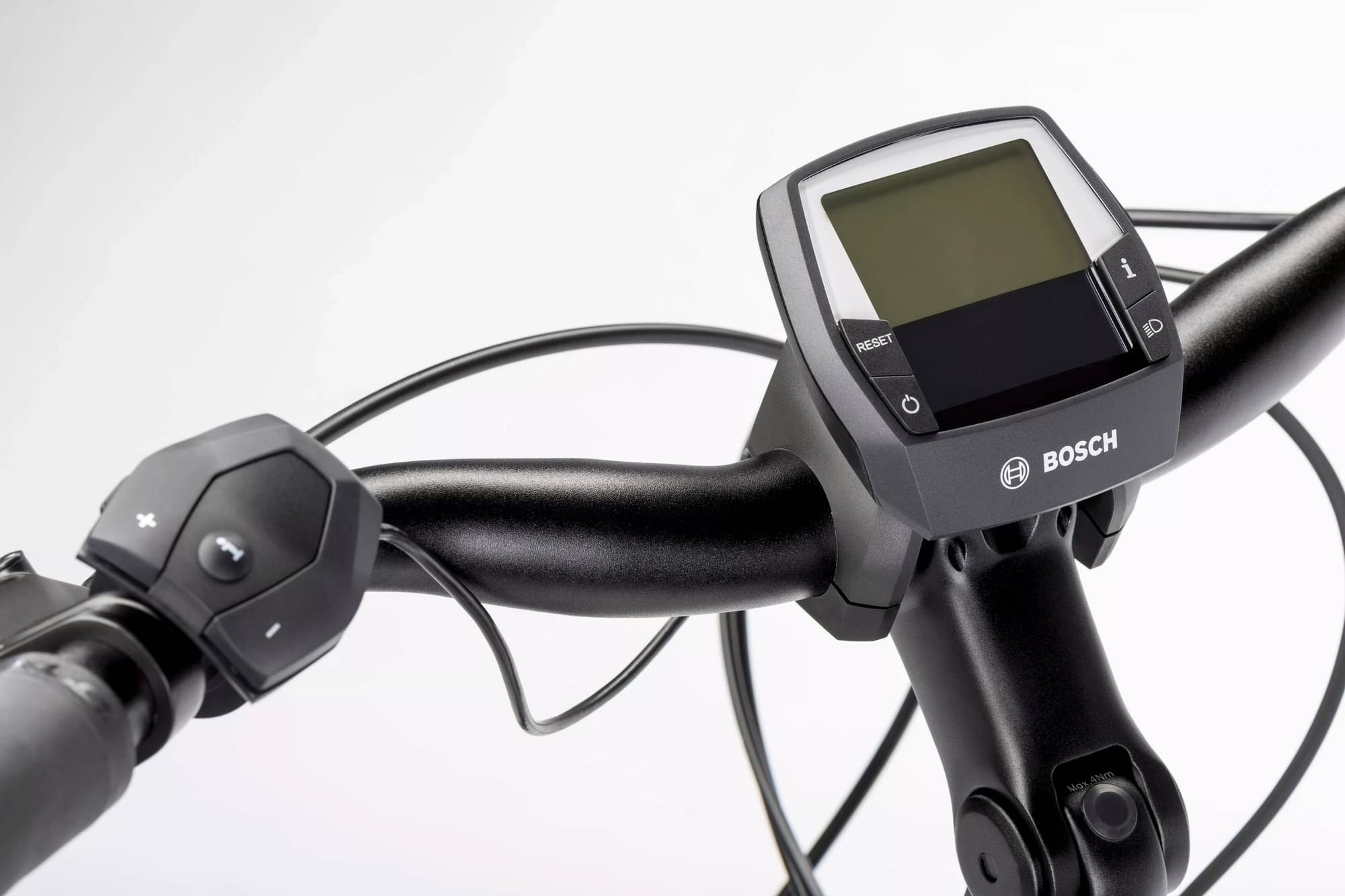

Cockpit
Stem
Adjustable aluminium, angle ajustable
Handlebar
Ergobar, oversize
Headset
Feimin A-Head Tapered
Seat
Saddle
Selle Royal Wave
Seatpost
XLC Suspension
Motor & Battery

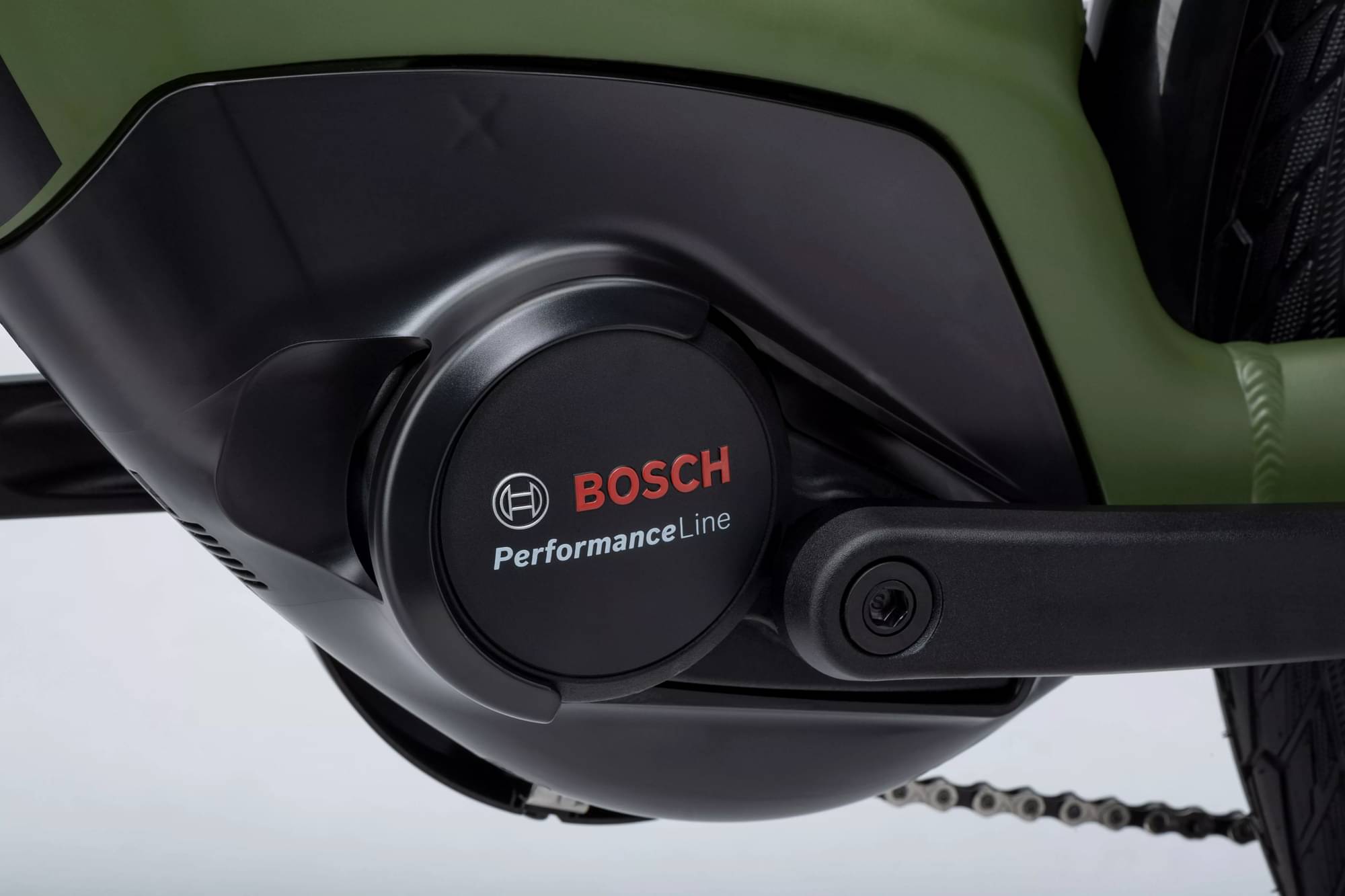

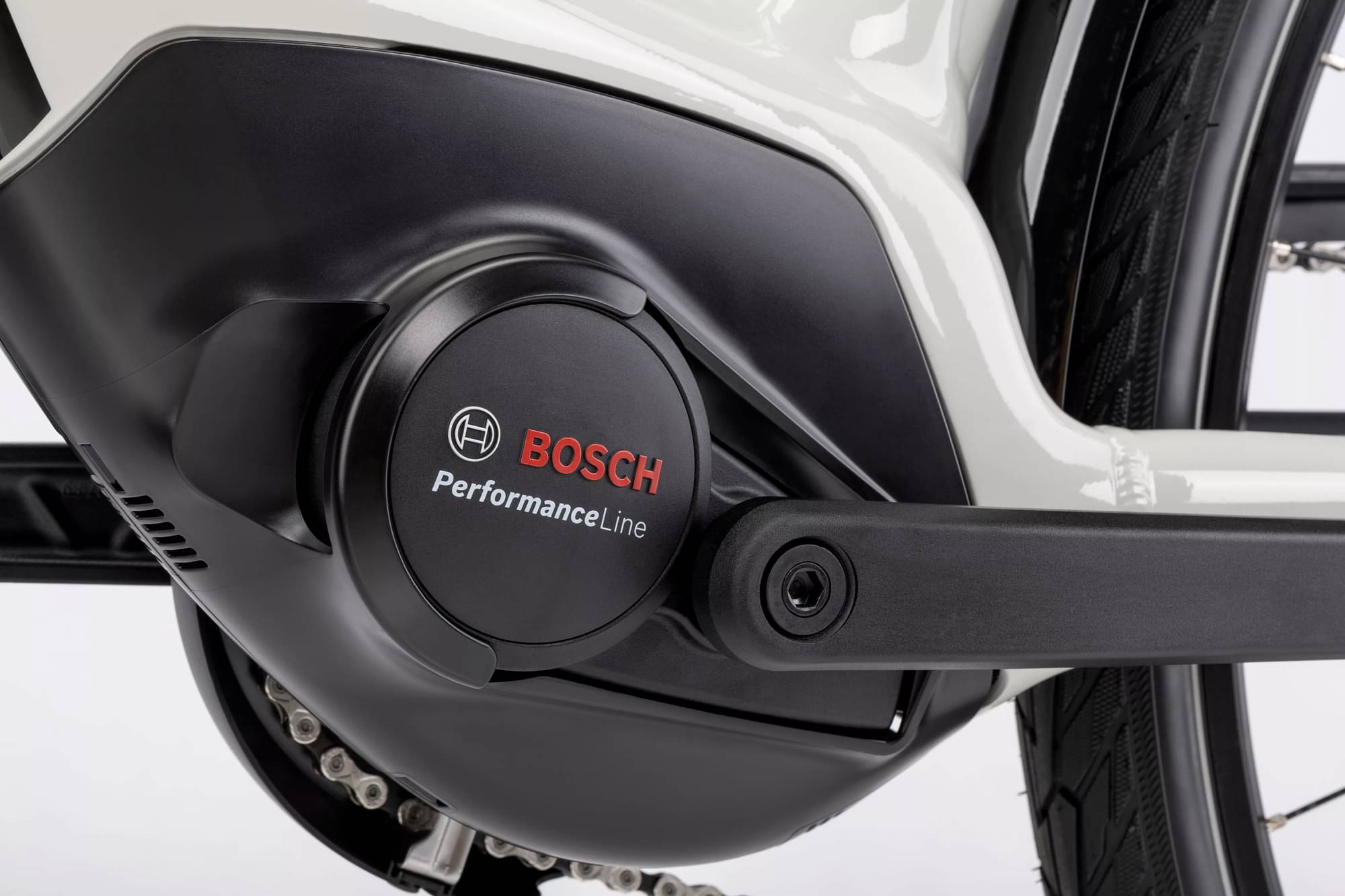

Motor
Bosch Performance Line
Battery
Bosch Li-ION PowerTube, Capacity: 500 Wh, Location: Powertube
Charger
Bosch compact charger 2A
