Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Nexus -
Suspension Hardtail -
Motor Bosch hub-drive -
Battery Bosch Li-ION InTube 500 Wh, Capacity: 500 Wh, Location: Powertube -
Drivetrain Internally Geared Hub -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
41cm
153cm - 164cm
46cm
162cm - 171cm
51cm
169cm - 178cm
56cm
176cm - 184cm
61cm
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Low Aluminium Uni

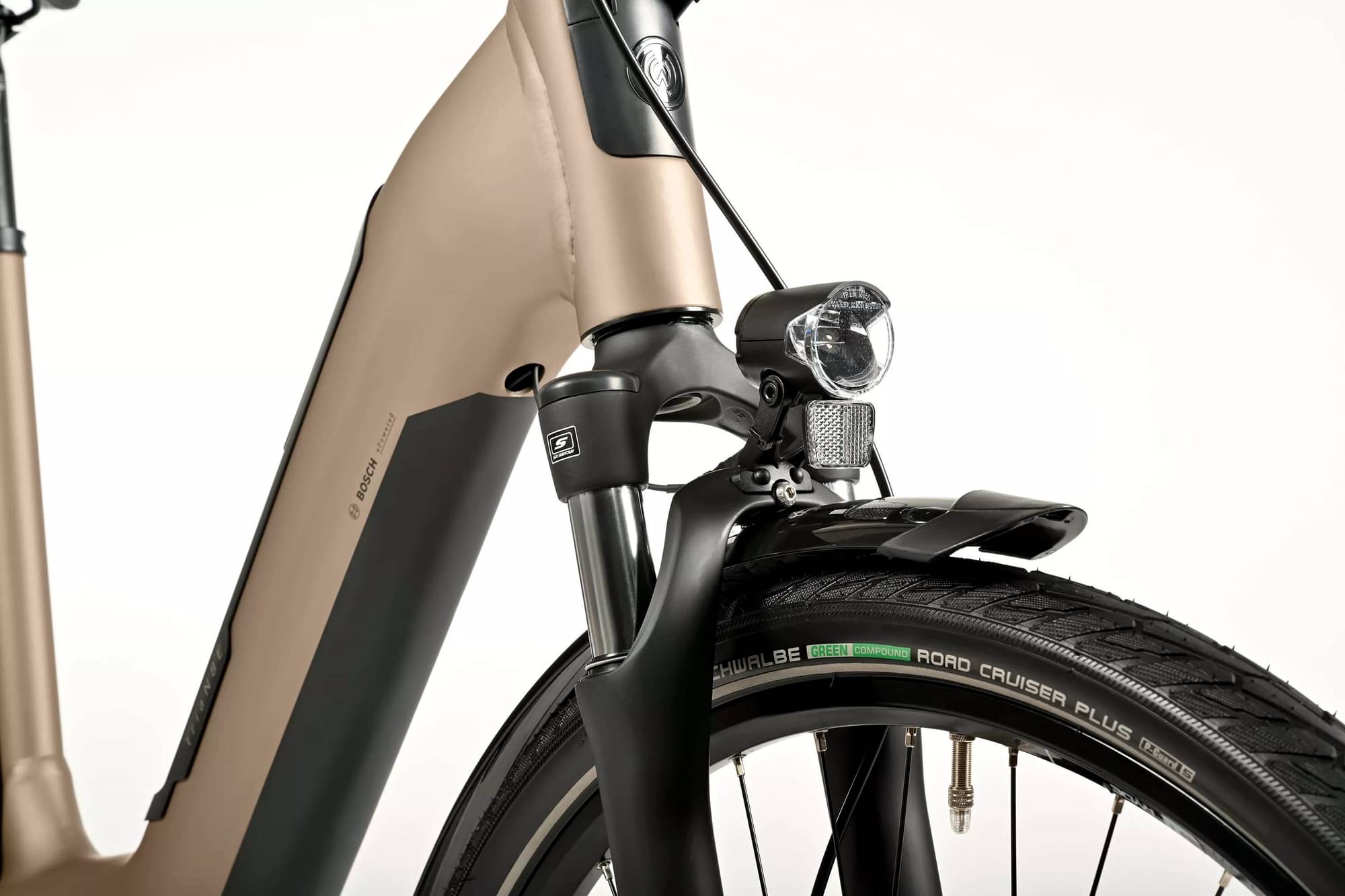

Suspension Fork
Suntour 28 SR NEX-E25 63 mm
Drivetrain
Shift Levers
Shimano Gripshift Nexus SL-C6000-8R
Cassette
Shimano Nexus SM-GEAR sprocket 8s
Crank
Samox EC37A-F9-BNI Crankarm 170 mm + Chainring
Chain
KMC Chain X8 8s
Chain Guide
SKS Chainbow-E 38T
Pedals
VP VPE-461 MTB Alloy Pedal w. Reflector
Wheels
Front Hub
Shimano HB-QC300 QRx100 mm, 36H, Centerlock
Rear Hub
Shimano Nexus SG-C6001-8D, 36H, CL, Internal Geared Hub
Rims
Ryde Hollow rim Eco21
Tires
XLC Traverse CTC 50-622

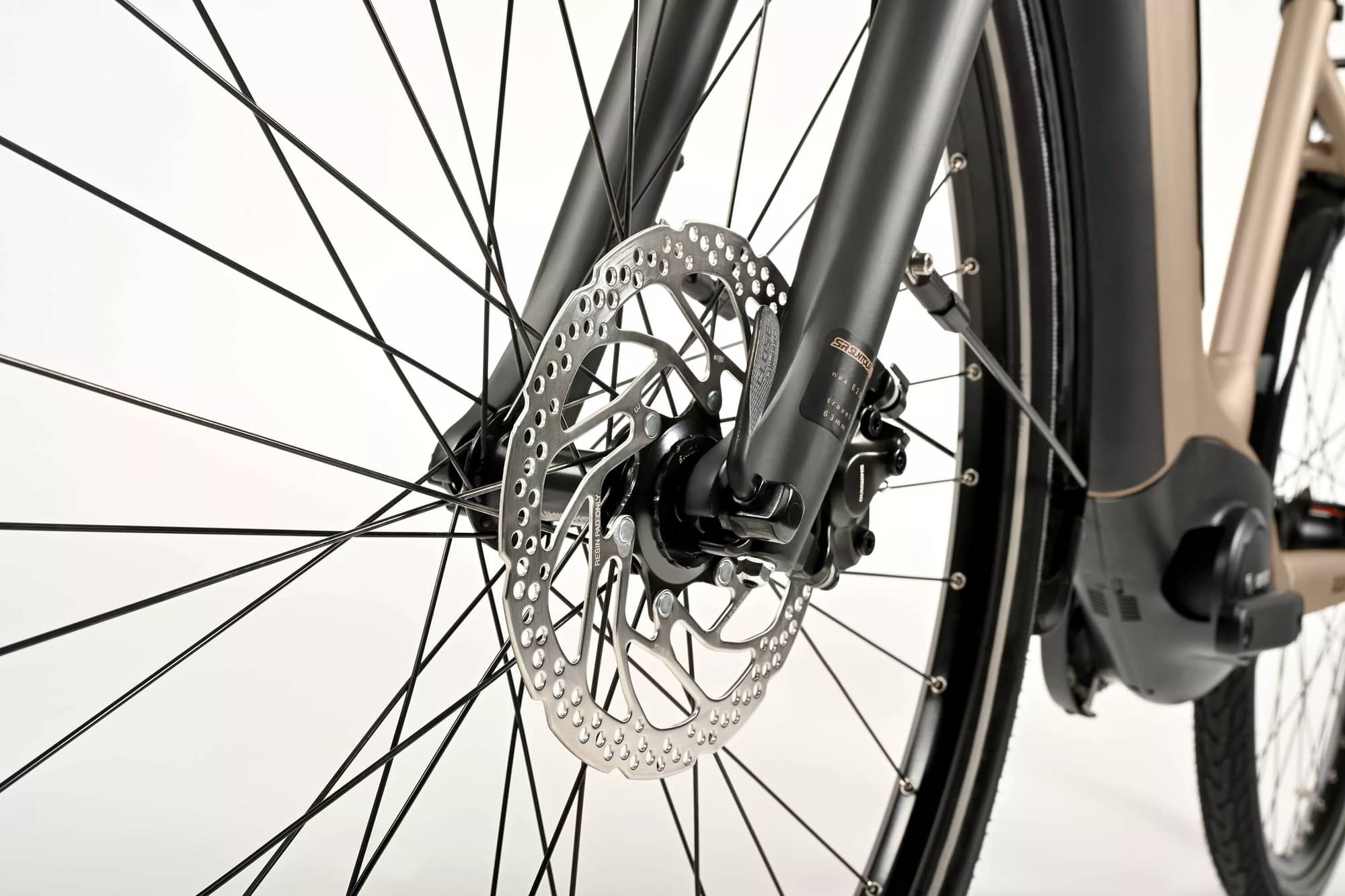

Brakes
Brakes
Shimano Hydraulic Disc brake
Cockpit
Stem
JD Adjustable ST243A-2, Dia. 31.8 mm, L: 85 mm
Handlebar
JD TR25AL Dia. 31.8 mm, Rise: 25 mm
Headset
VP J213PE ID44/55BL
Seat
Saddle
Selle Royal Wave
Seatpost
XLC Suspension SP-DC1, Dia. 31.6 mm, Travel: 300 mm
Motor & Battery

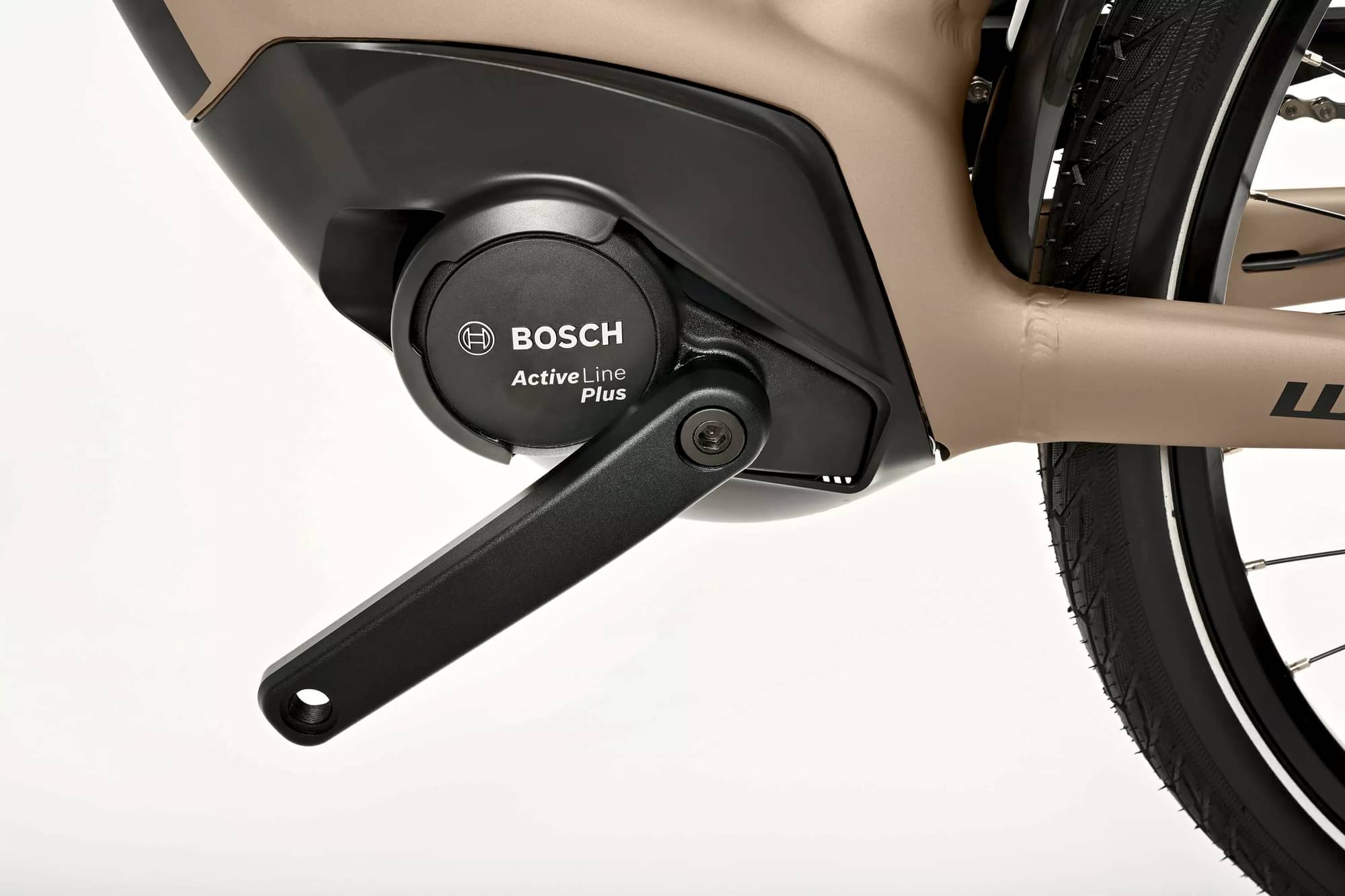

Motor
Bosch
Battery
Bosch Li-ION InTube 500 Wh, Capacity: 500 Wh, Location: Powertube
Charger
Bosch Charger 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 41cm | 46cm | 51cm | 56cm | 61cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.592 mm | 1.553 mm | 1.603 mm | 1.566 mm | 1.53 mm |
| Stack | 643 mm | 643 mm | 667 mm | 667 mm | 667 mm |
| Reach | 404 mm | 414 mm | 416 mm | 426 mm | 436 mm |
| Top Tube Length | 620 mm | 626 mm | 626 mm | 640 mm | 648 mm |
| Seat Tube Angle | 71 ° | 71 ° | 72.5 ° | 72.2 ° | 72.4 ° |
| Seat Tube Length | 410 mm | 460 mm | 510 mm | 560 mm | 610 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 180 mm | 180 mm | 210 mm | 210 mm | 210 mm |
| Chainstay Length | 480 mm | 480 mm | 480 mm | 480 mm | 480 mm |
| Wheelbase | 1140 mm | 1150 mm | 1160 mm | 1170 mm | 1180 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 153 cm | 162 cm | 169 cm | 176 cm | 182 cm |
| Rider Max Height | 164 cm | 171 cm | 178 cm | 184 cm | 193 cm |
