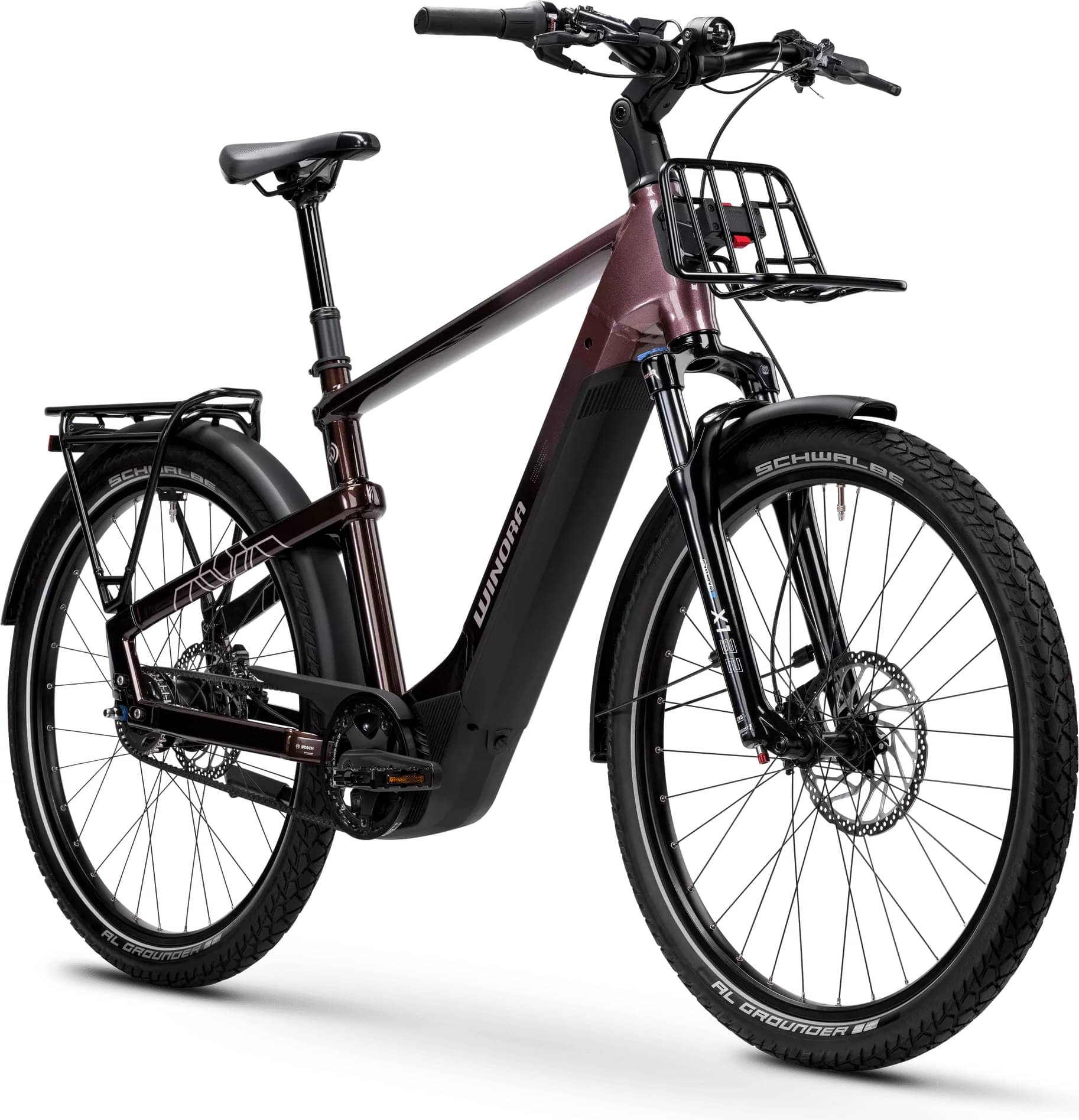

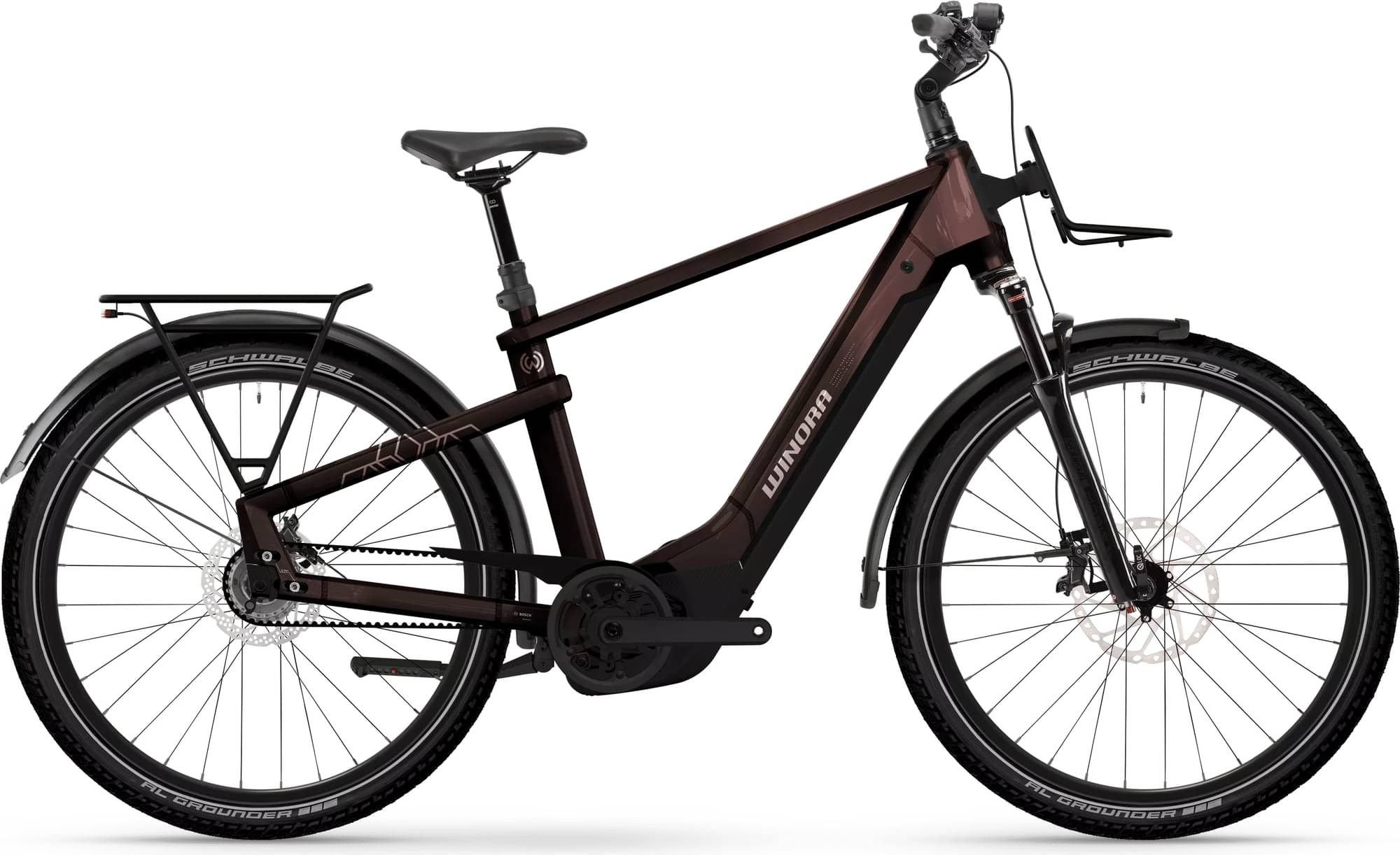

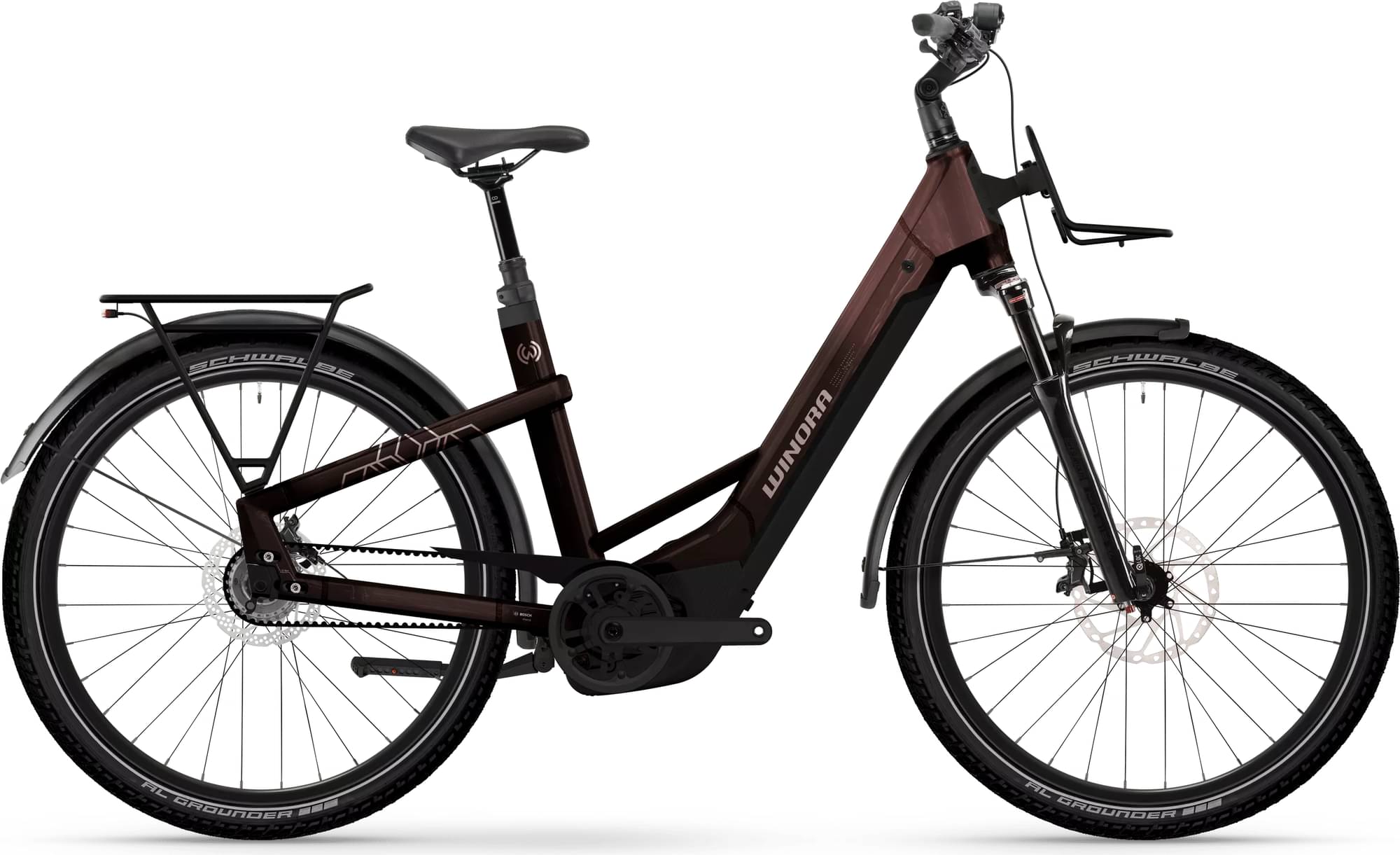

winora YAKUN R5 2025
2025 E-bike
Estimate price |
5,234$
Weight | 29.17 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 80mm -
Fork Suntour X1
-
Groupset Gates CDX, Nexus -
Suspension Hardtail -
Motor Bosch hub-drive -
Battery Bosch Li-ION InTube 600Wh, Capacity: 600 Wh, Location: Powertube -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
164cm - 173cm
MD
171cm - 180cm
LG
178cm - 187cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
High Aluminium Uni
Suspension Fork
Suntour SF23 X1 Boost LO-R 80 mm
Drivetrain
Shift Levers
Shimano Gripshift Nexus SL-C7000-5R, Gripshift
Cassette
Gates Carbon Drive CDX Sprocket, 5 Spline
Crank
XLC Kies ISIS Cranks + GATES CDX Chainring + Spider
Chain
Gates Belt Carbon Drive Belt CDX, 125T
Chain Guide
Winora Belt Guard
Pedals
VP VPE-625 MTB Pedal w. Reflector
Wheels
Front Hub
Shimano HB-TC500-15-B 15x110 mm, 32H, CL
Rear Hub
Shimano Nexus SG-C7000-5D, 32H, CL, Internal Geared Hub
Rims
Schurmann YAK Disc 25-584, 32H, 8,5 mm Valve
Tires
Schwalbe AL Grounder Performance 60-584
Brakes
Brakes
Shimano Hydraulic Disc brake
Cockpit
Stem
Satori Adjustable TDS-673 Dia. 31.8mm, L: 90 mm
Handlebar
JD TR28AL, Dia. 31.8 mm, Rise: 19 mm
Headset
Glory Wheel Semi-integrated ICR-51.9 ZS56/38
Seat
Saddle
Selle Royal Vivo Ergo 1217 HRN
Seatpost
Limotec Dropperpost Alpha A1, Dia. 34.9 mm, Travel: 125 mm
Motor & Battery
Motor
Bosch
Battery
Bosch Li-ION InTube 600Wh, Capacity: 600 Wh, Location: Powertube
Charger
Bosch Charger 4A 230V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.389 mm | 1.418 mm | 1.406 mm | 1.396 mm |
| Front Center | 730 mm | 731 mm | 744 mm | 758 mm |
| Rake | 4 mm | 3 mm | 3 mm | 3 mm |
| Trail | 122 mm | 123 mm | 123 mm | 123 mm |
| Stack | 635 mm | 645 mm | 654 mm | 663 mm |
| Reach | 457 mm | 455 mm | 465 mm | 475 mm |
| Top Tube Length | 617 mm | 628 mm | 640 mm | 653 mm |
| Seat Tube Angle | 76 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 440 mm | 470 mm | 510 mm | 540 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 160 mm | 170 mm | 180 mm | 190 mm |
| Chainstay Length | 472 mm | 472 mm | 472 mm | 472 mm |
| Wheelbase | 1196 mm | 1197 mm | 1210 mm | 1224 mm |
| Bottom Bracket Drop | -60 mm | -60 mm | -60 mm | -60 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 164 cm | 171 cm | 178 cm | 185 cm |
| Rider Max Height | 173 cm | 180 cm | 187 cm | 195 cm |
