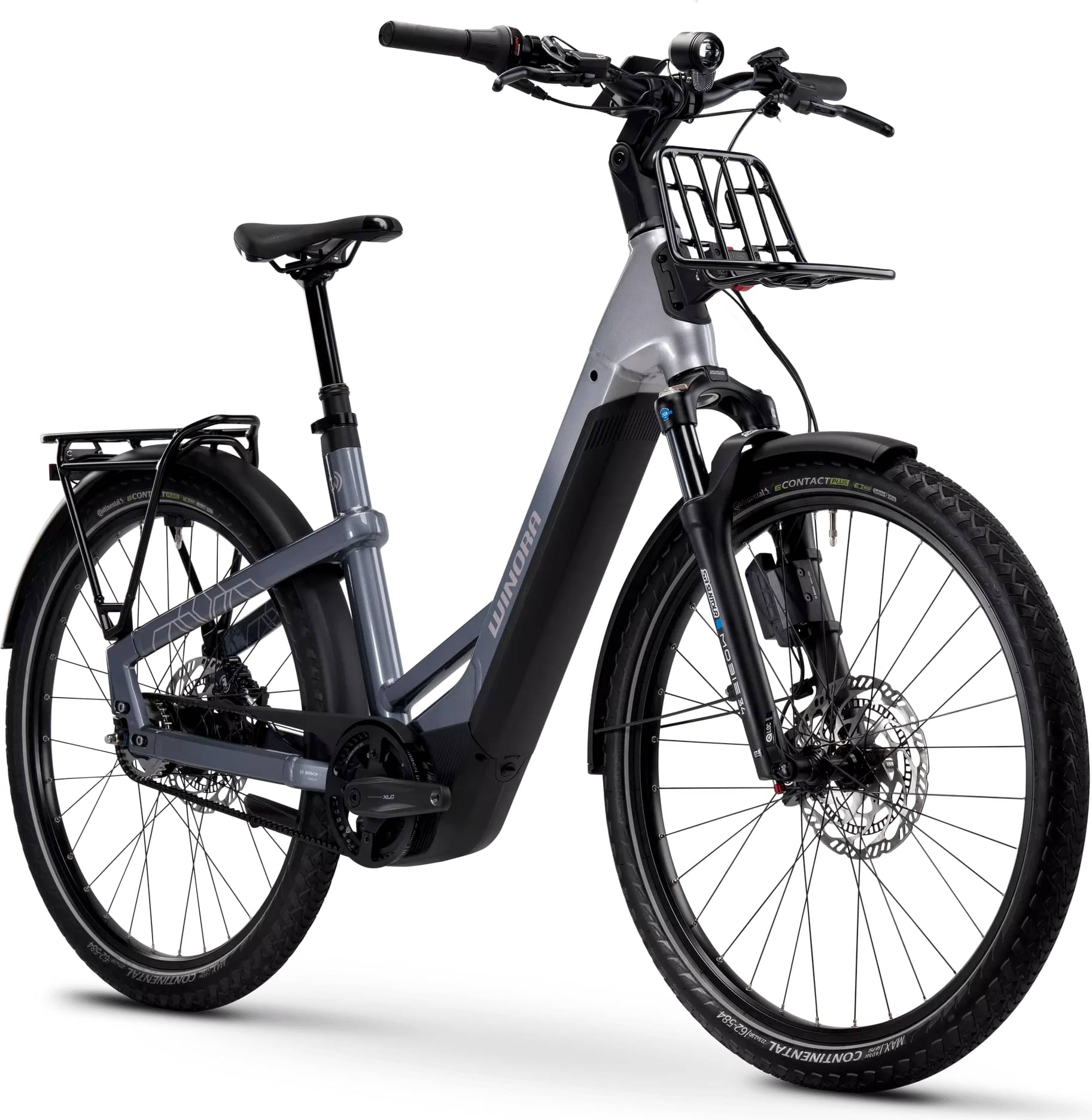

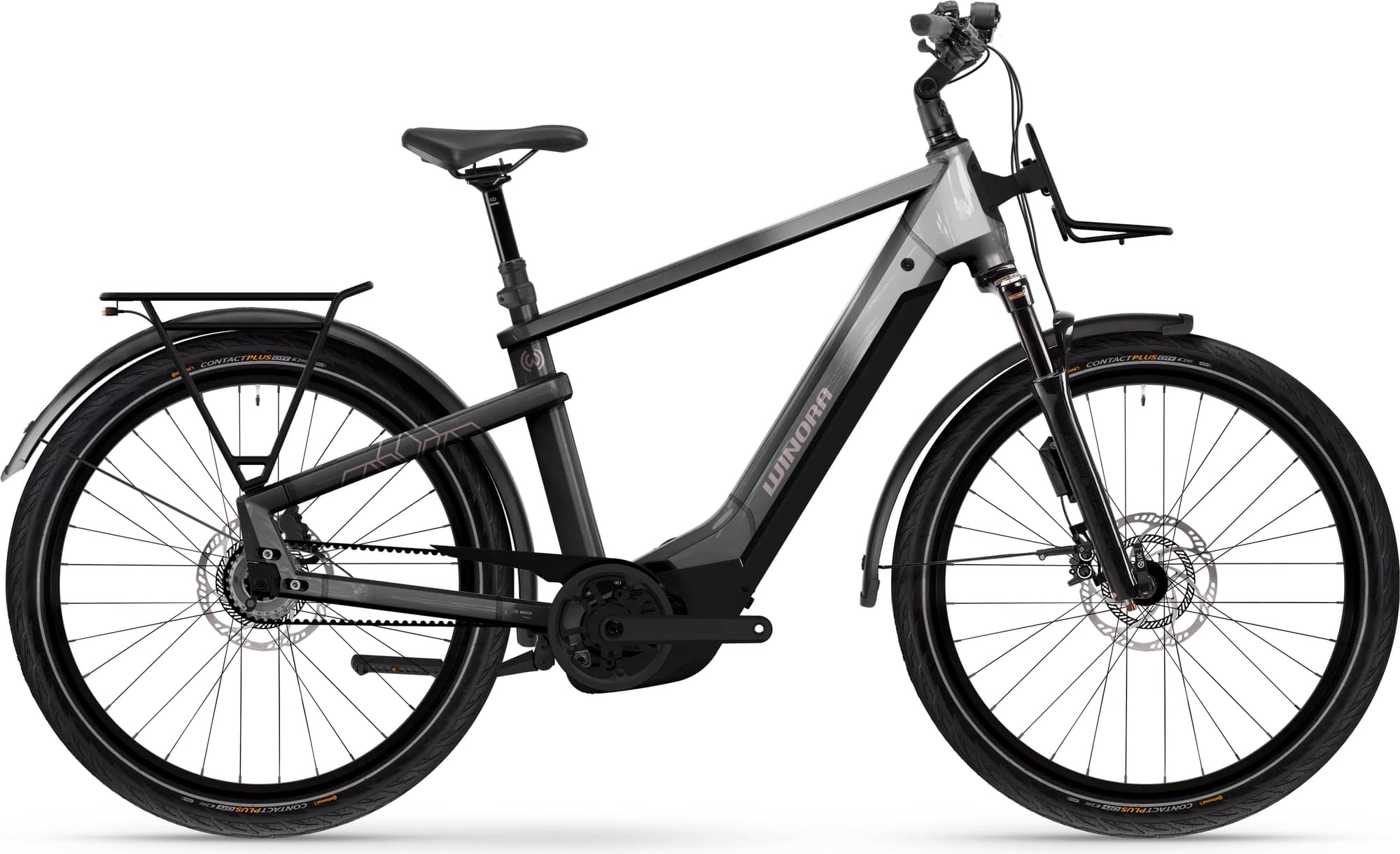

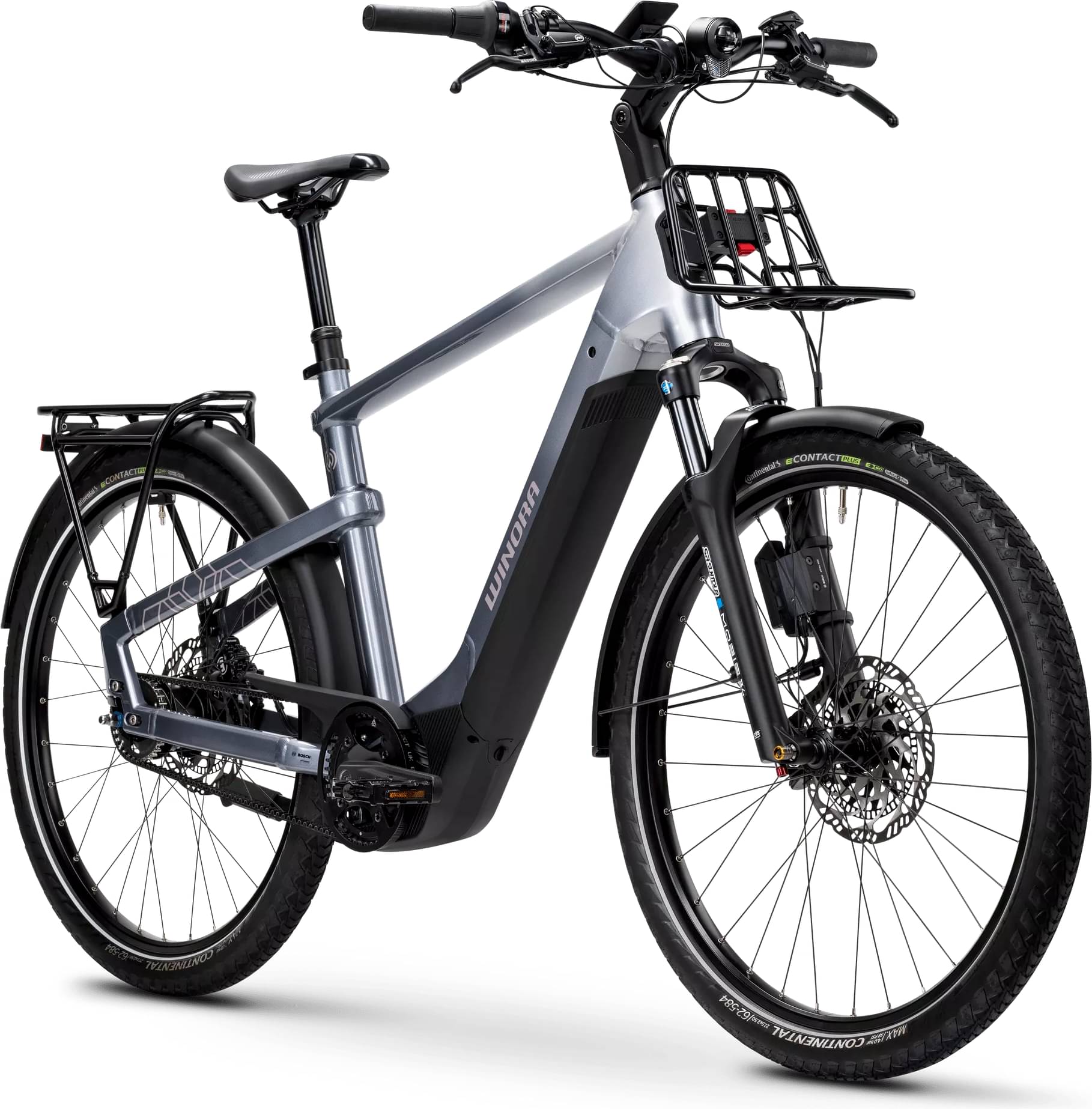

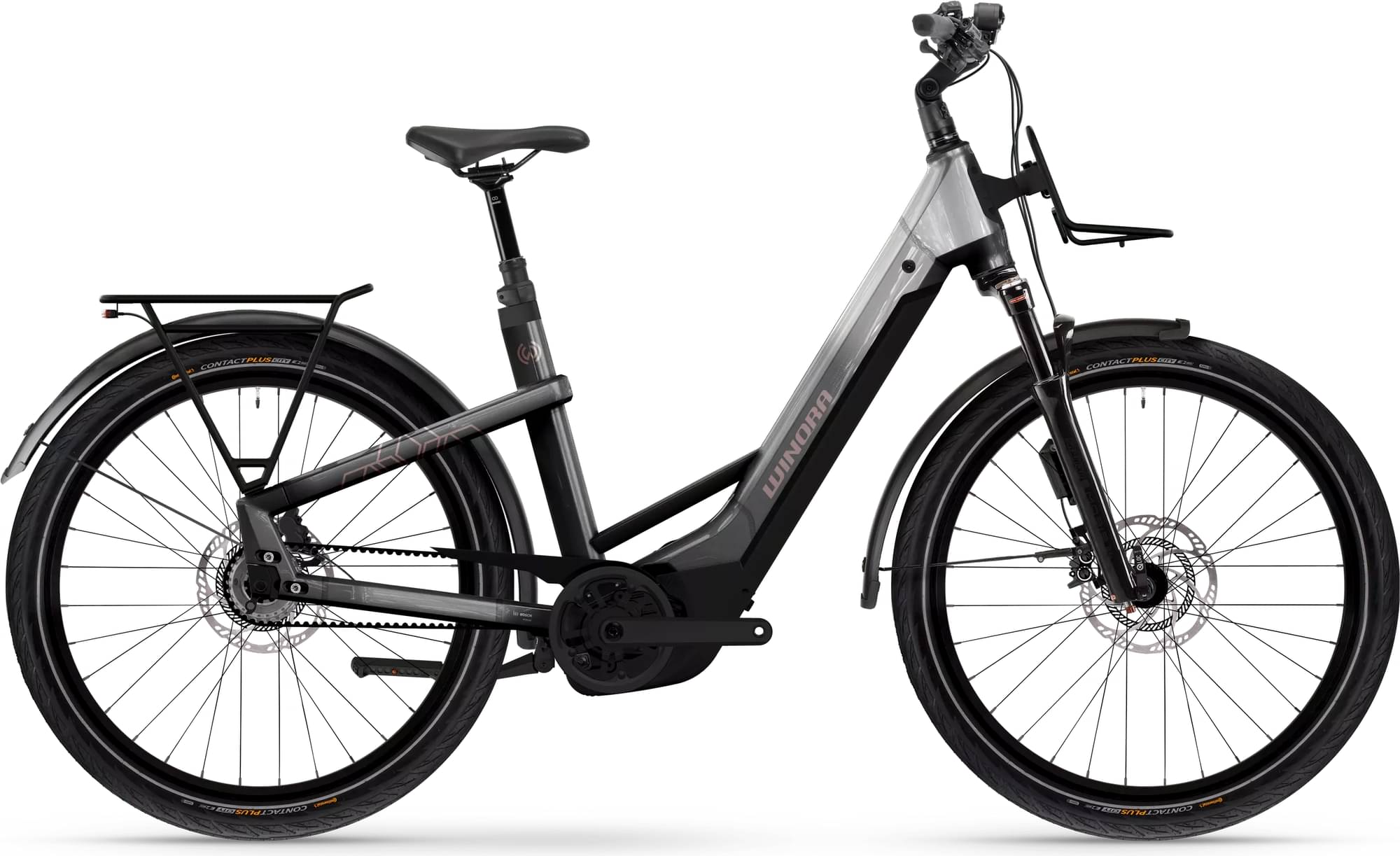

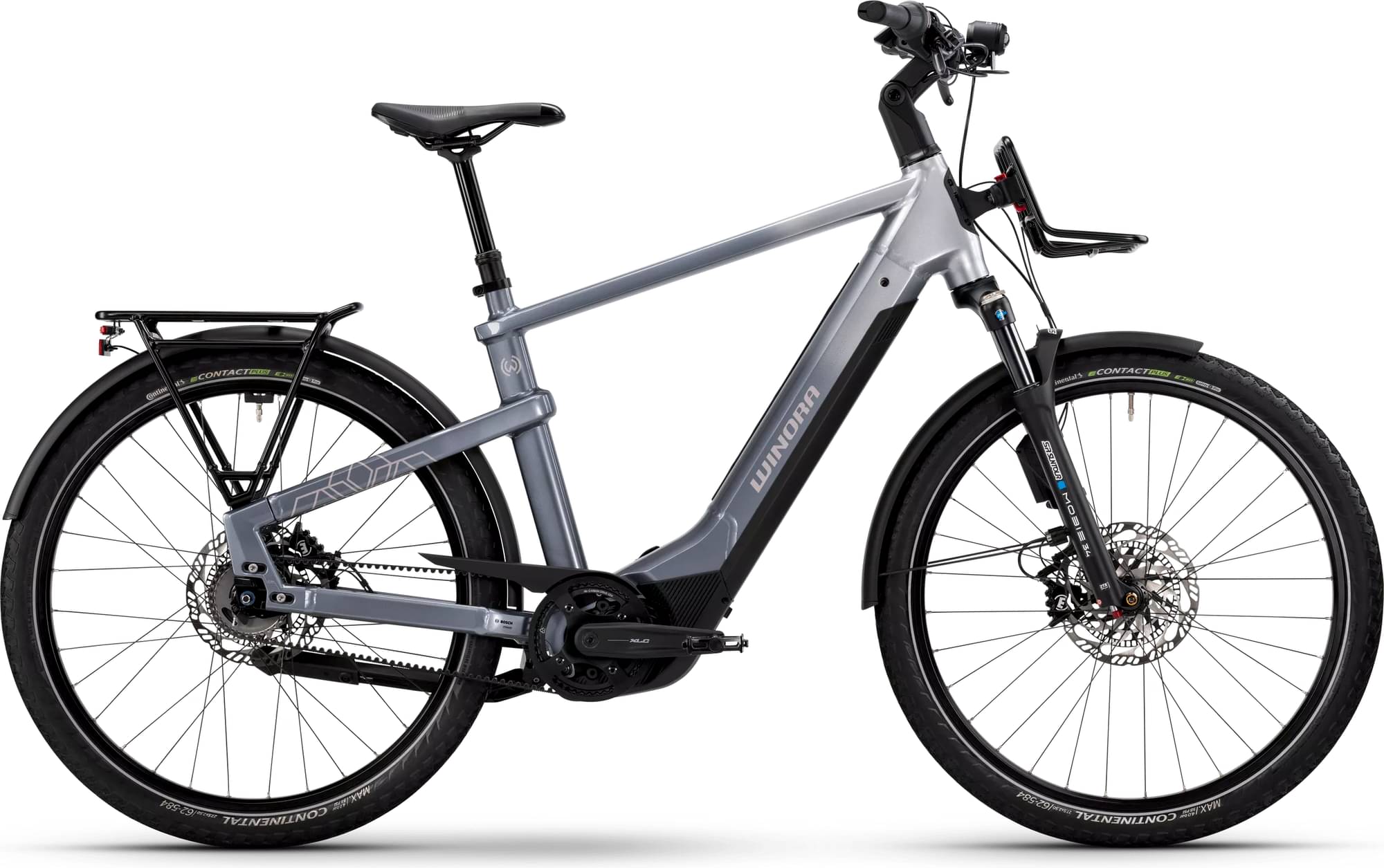

winora YAKUN R5 Pro ABS 2025
2025 E-bike
Estimate price |
6,165$
Weight | 30 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 80mm -
Fork Suntour MOBIE
-
Groupset Gates CDX, Nexus -
Suspension Hardtail -
Motor Bosch hub-drive -
Battery Bosch Li-ION InTube 800 Wh, Capacity: 800 Wh, Location: Powertube -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Magura Hydraulic Disc
Sizing
Recommended size guide.
SM
164cm - 173cm
MD
171cm - 180cm
LG
178cm - 187cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Low Aluminium Uni
Suspension Fork
Suntour SF24 Mobie34 Boost ABS EQ 80 mm
Drivetrain
Shift Levers
Shimano Gripshift Nexus SL-C7000-5R, Gripshift
Cassette
Gates Carbon Drive CDX Sprocket, 5 Spline
Crank
XLC Kies ISIS Cranks + GATES CDX Chainring + Spider
Chain
Gates Belt Carbon Drive Belt CDX, 125T
Chain Guide
Winora Belt Guard
Pedals
VP VPE-625 MTB Pedal w. Reflector
Wheels
Front Hub
Shimano HB-TC500-15-B 15x110 mm, 32H, CL
Rear Hub
Shimano Nexus SG-C7000-5D, 32H, CL, Internal Geared Hub
Rims
Schurmann YAK Disc 25-584, 32H, 8,5 mm Valve
Tires
Continental E-Contact Plus Reflex 62-584
Brakes
Brakes
Magura Hydraulic Disc brake MT C ABS, 4 pistons, 203 mm
Cockpit
Stem
Satori Adjustable TDS-673 Dia. 31.8mm, L: 90 mm
Handlebar
JD TR28AL, Dia. 31.8 mm, Rise: 19 mm
Headset
Glory Wheel Semi-integrated ICR-51.9 ZS56/38
Seat
Saddle
Selle Royal Vivo Ergo 1217 HRN
Seatpost
Limotec Dropperpost Alpha A1, Dia. 34.9 mm, Travel: 125 mm
Motor & Battery
Motor
Bosch
Battery
Bosch Li-ION InTube 800 Wh, Capacity: 800 Wh, Location: Powertube
Charger
Bosch Charger 4A 230V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.389 mm | 1.418 mm | 1.406 mm | 1.396 mm |
| Stack | 635 mm | 645 mm | 654 mm | 663 mm |
| Reach | 457 mm | 455 mm | 465 mm | 475 mm |
| Top Tube Length | 617 mm | 628 mm | 640 mm | 653 mm |
| Seat Tube Angle | 76 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 440 mm | 470 mm | 510 mm | 540 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 160 mm | 170 mm | 180 mm | 190 mm |
| Wheelbase | 1196 mm | 1197 mm | 1210 mm | 1224 mm |
| Bottom Bracket Drop | -60 mm | -60 mm | -60 mm | -60 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 164 cm | 171 cm | 178 cm | 185 cm |
| Rider Max Height | 173 cm | 180 cm | 187 cm | 195 cm |
