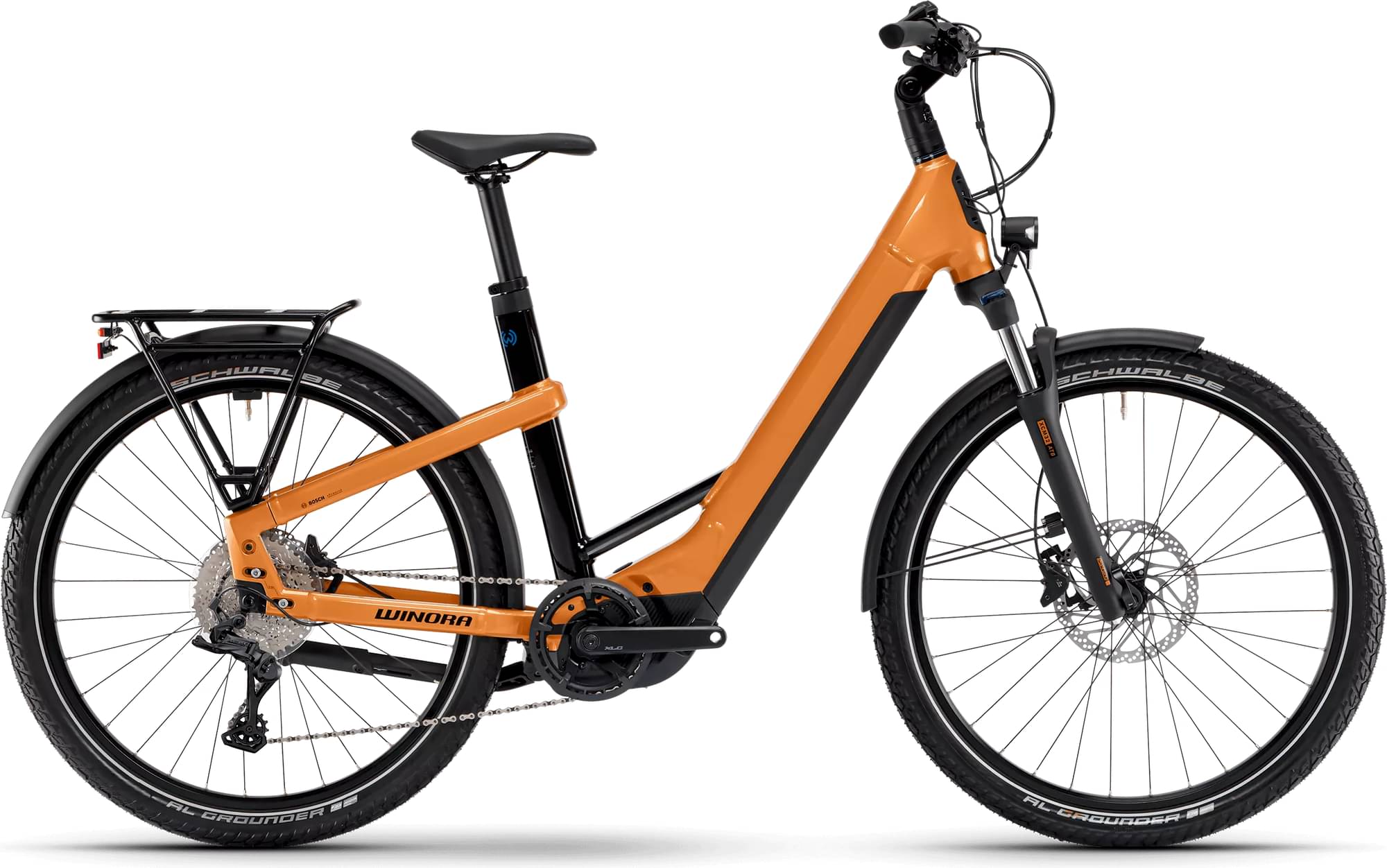

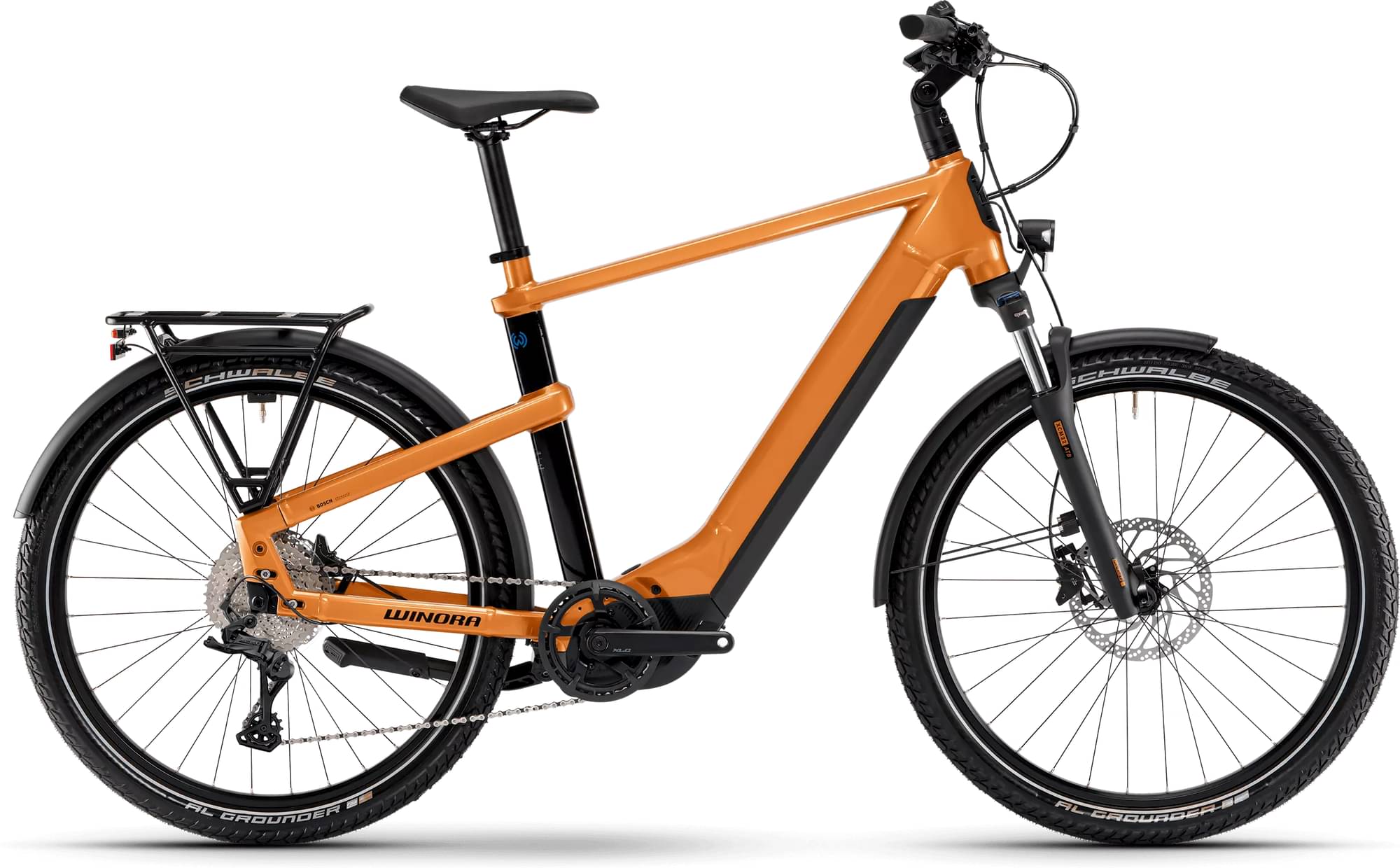

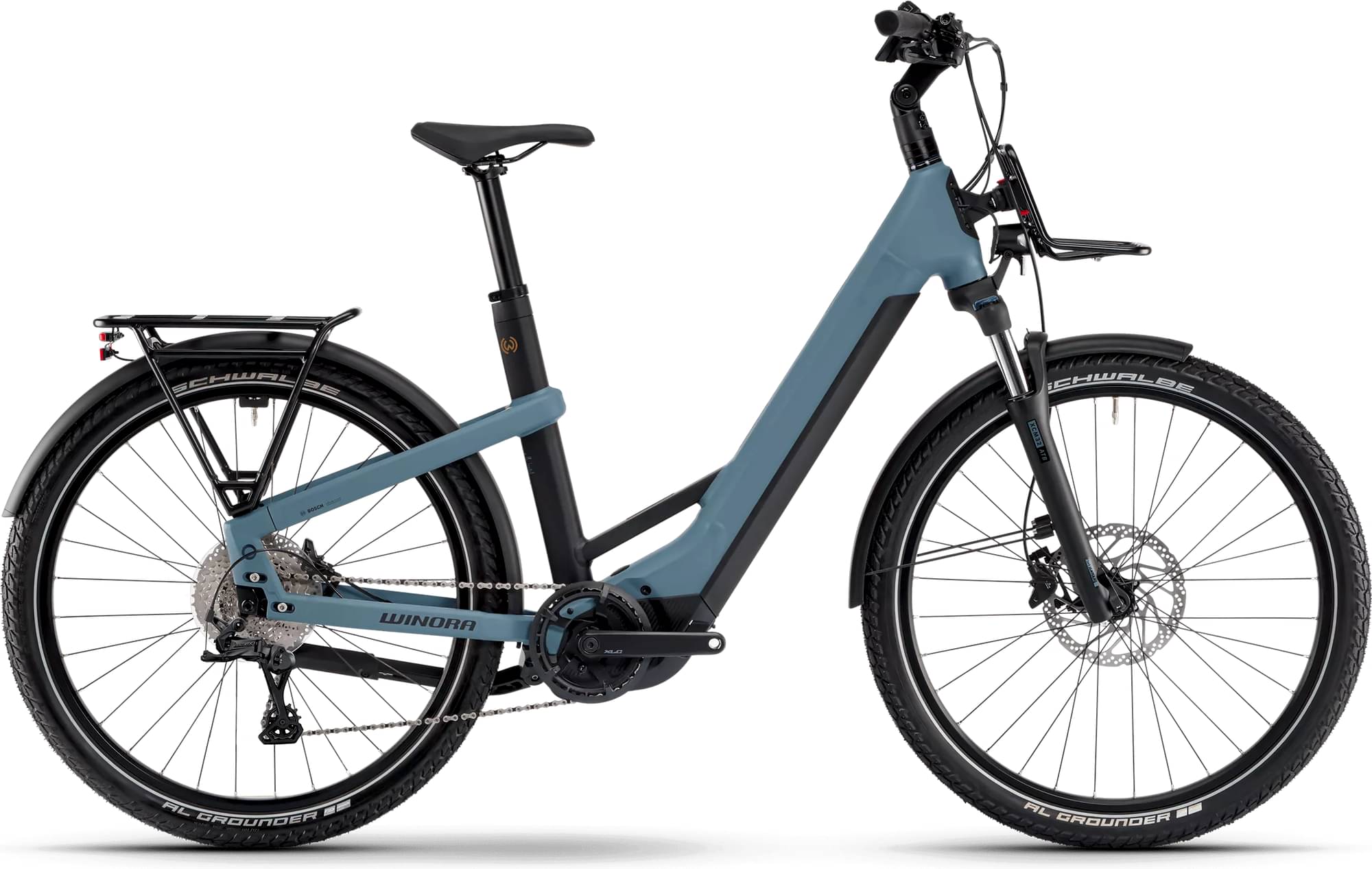

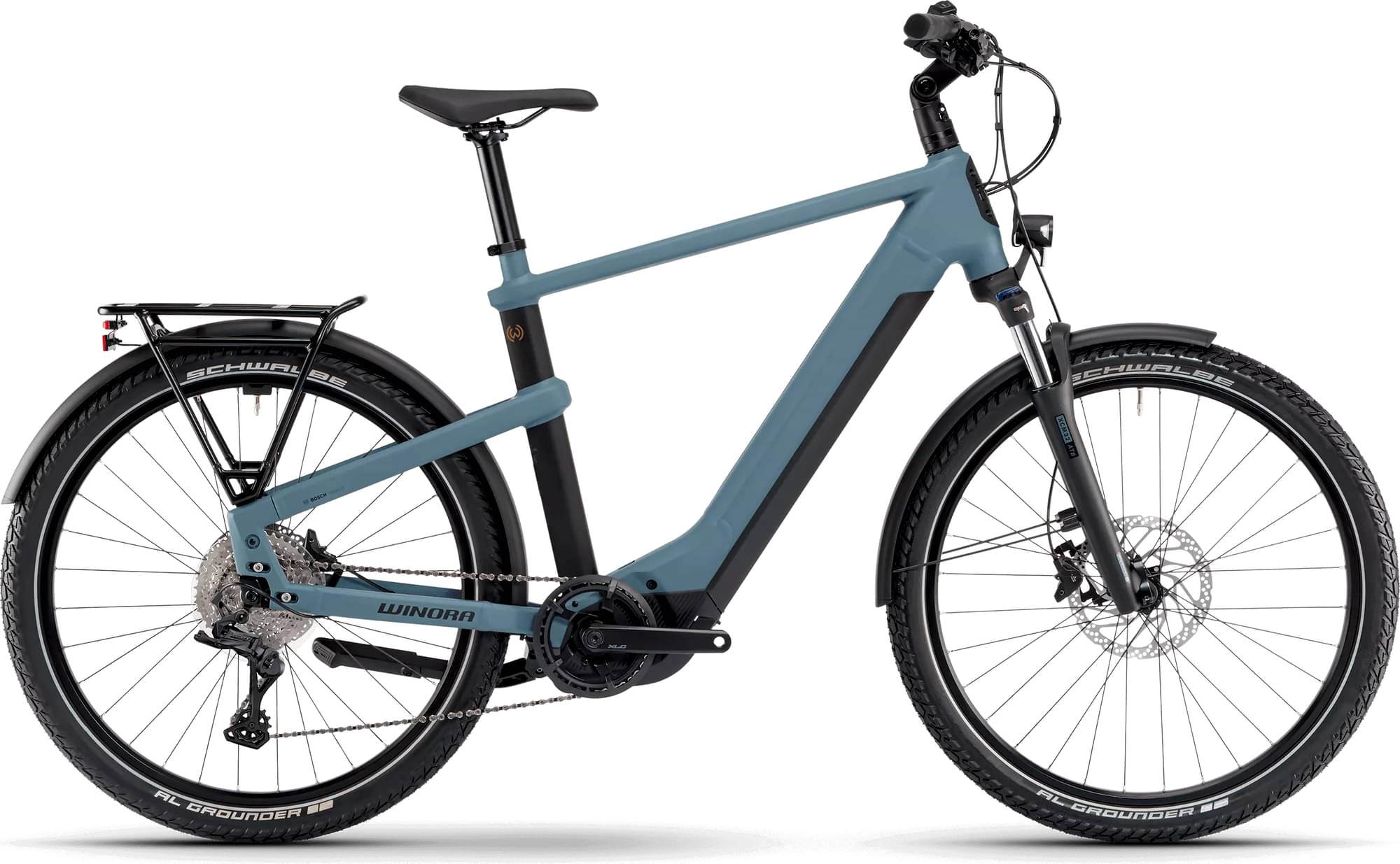

winora Yakun X10 2025
2025 E-bike
Estimate price |
4,652$
Weight | 28.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-

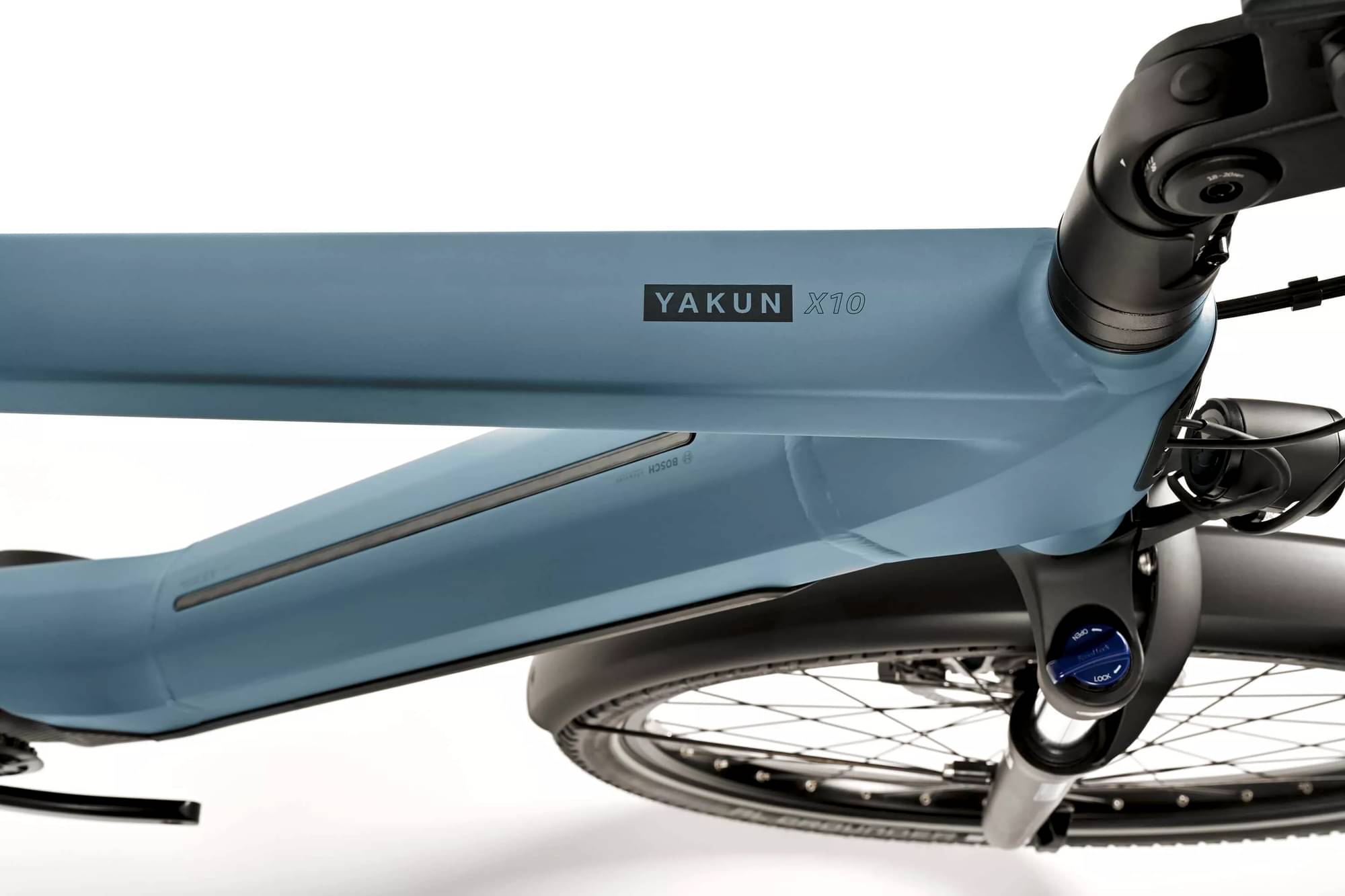

Frame Aluminum -
Travel Front 80mm -
Fork Suntour XCM
-
Groupset microSHIFT Advent X -
Suspension Hardtail -
Motor Bosch hub-drive -

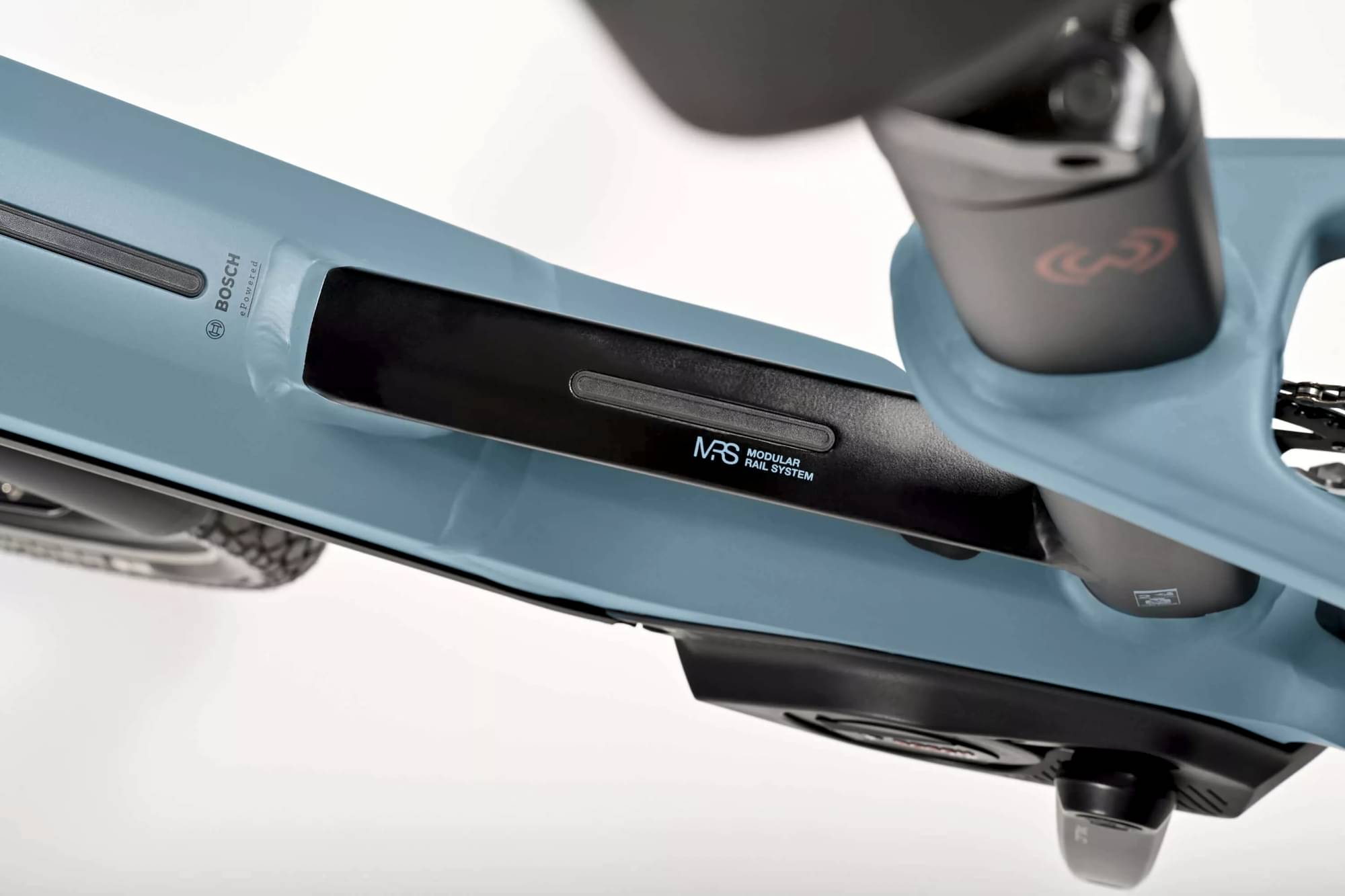

Battery Bosch Li-ION InTube 750 Wh, Capacity: 750 Wh, Location: Powertube -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
45cm
160cm - 171cm
50cm
169cm - 179cm
55cm
177cm - 187cm
60cm
185cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Low Aluminium Low entry

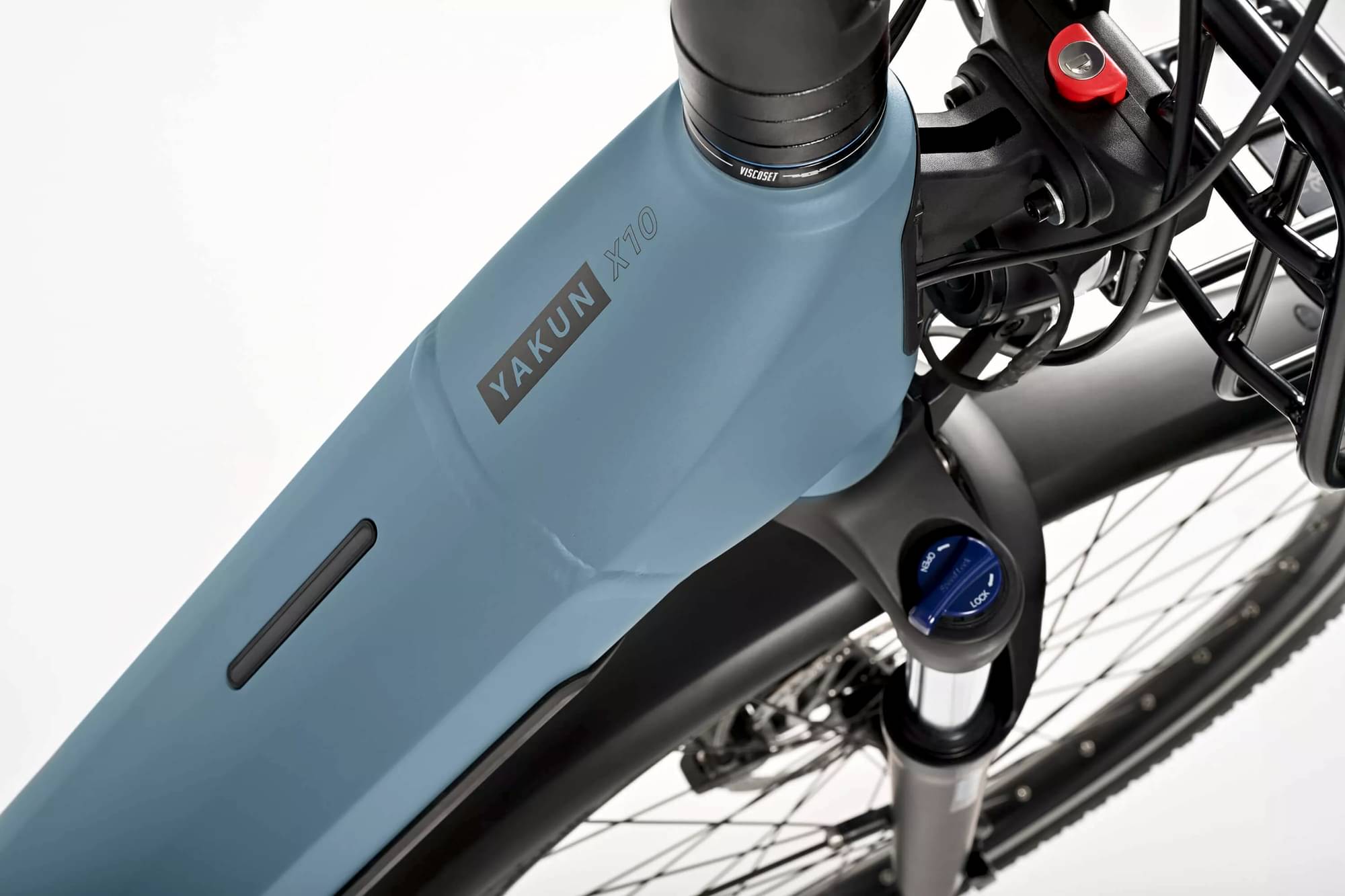

Suspension Fork
Suntour XCM32 ATB NLO DS 80 mm

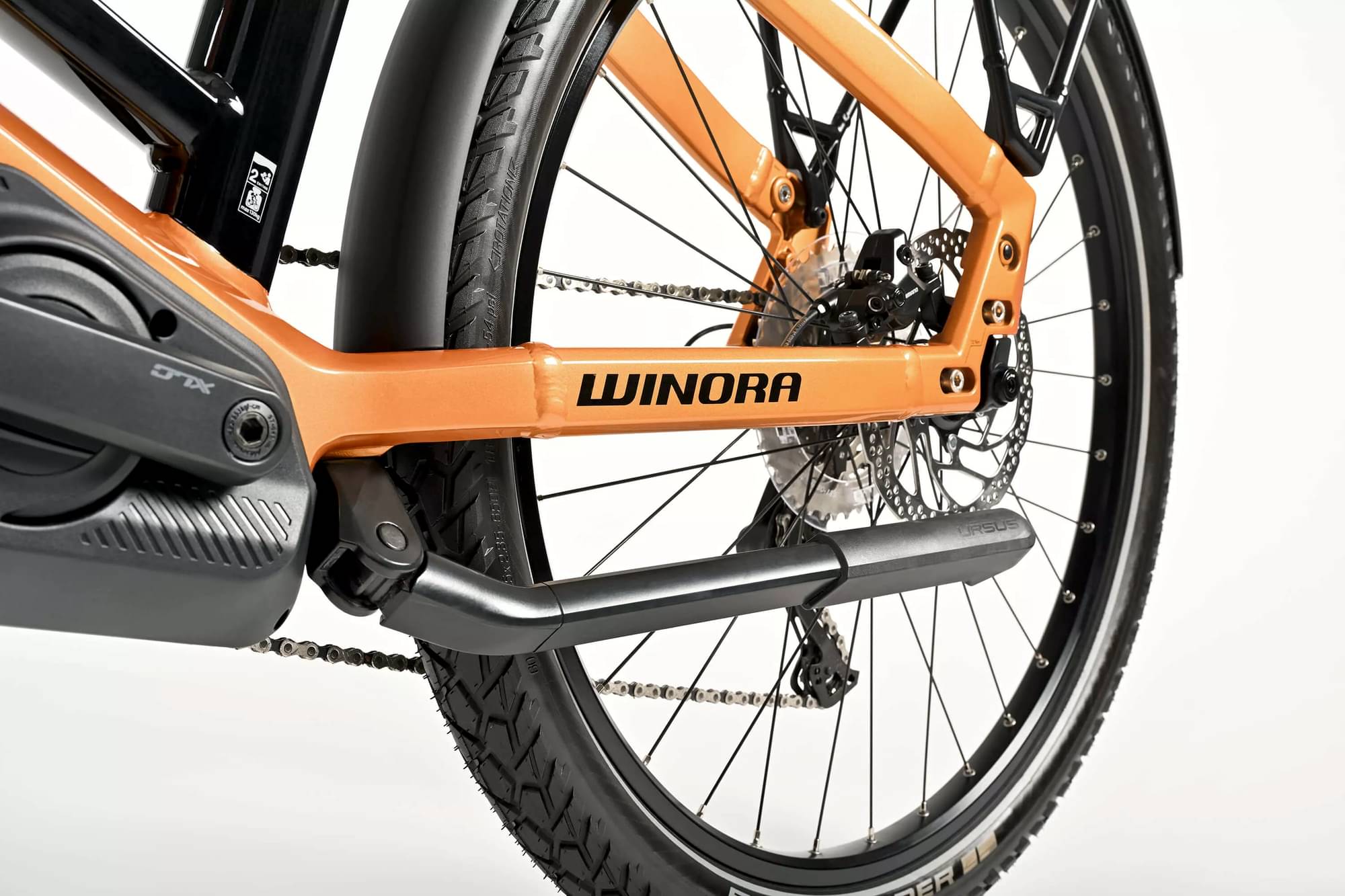

Drivetrain
Rear Derailleur
MicroSHIFT Advent X RD-M, 10s
Shift Levers
MicroSHIFT Triggershift Advent X SL-M9505-R
Cassette
MicroSHIFT X HG104-10
Crank
Miranda Virage
Bottom Bracket
integrated in the motor
Chain
KMC Chain e10S
Pedals
VP 625
Wheels
Front Hub
Winora alu hub 15 x 100 mm
Rear Hub
Shimano HB-MT400 12 x 142 mm
Rims
Schurmann Hollow rim Yak25
Tires

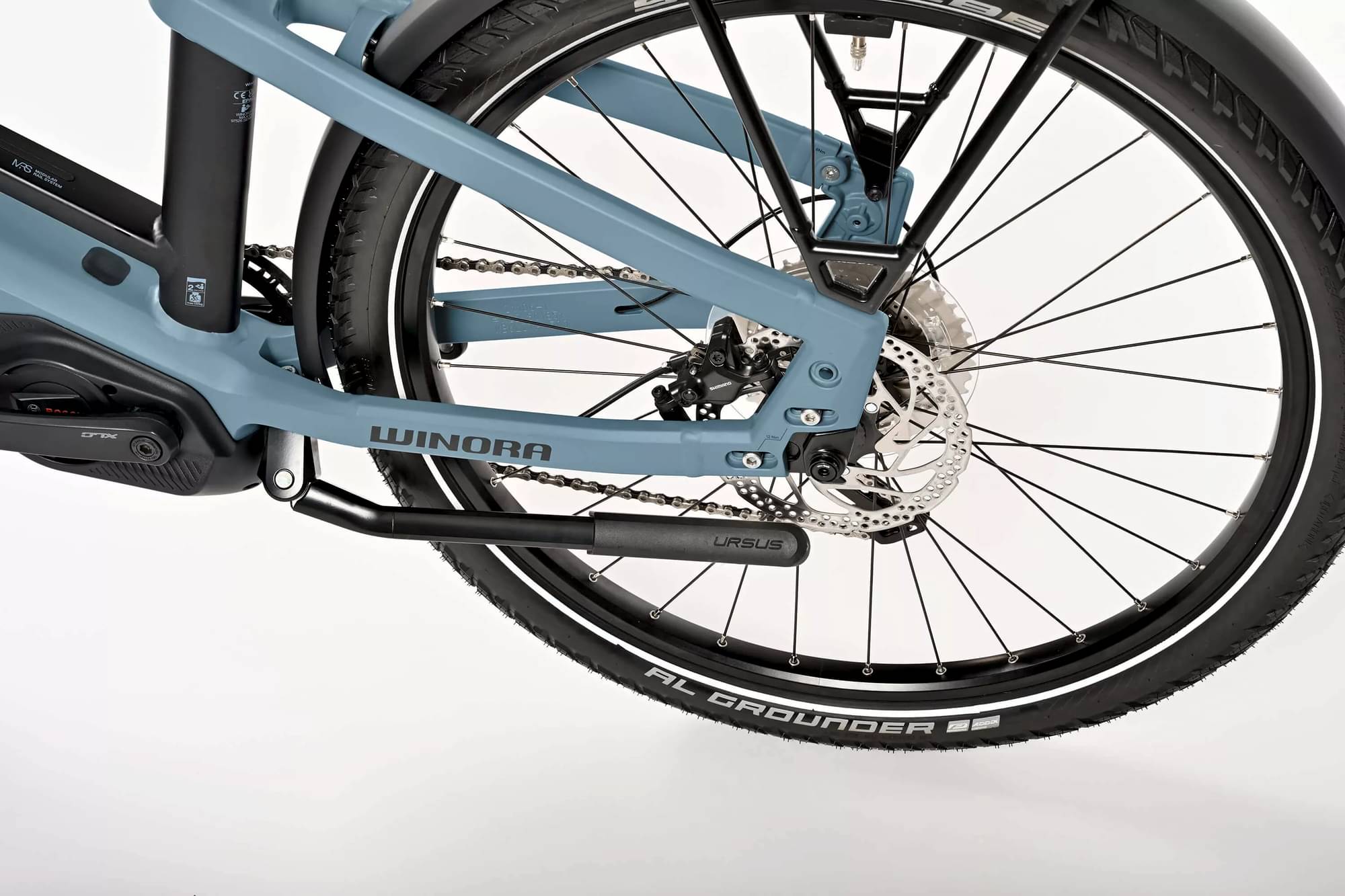

Schwalbe Al Grounder Performance 60-584

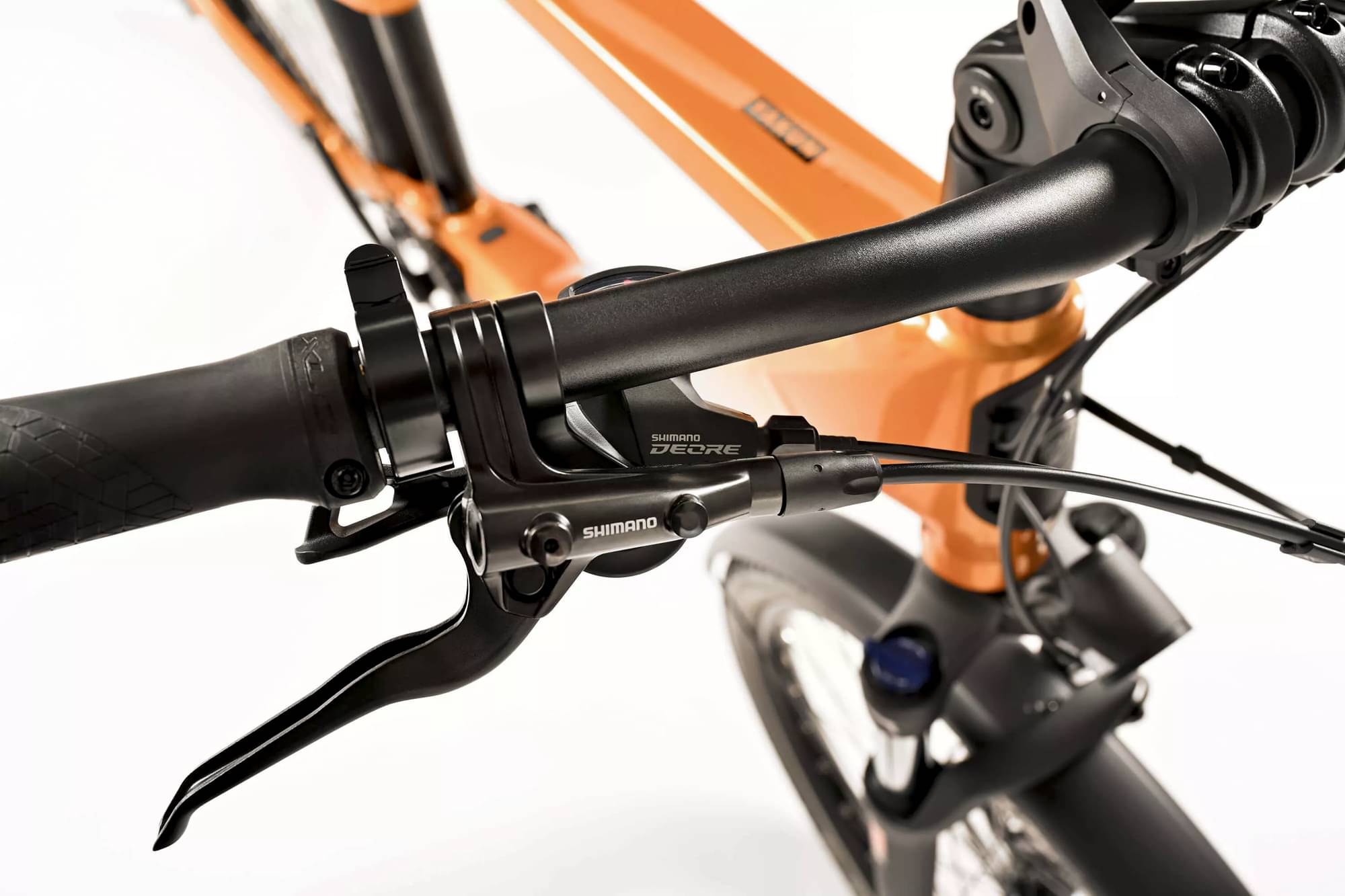

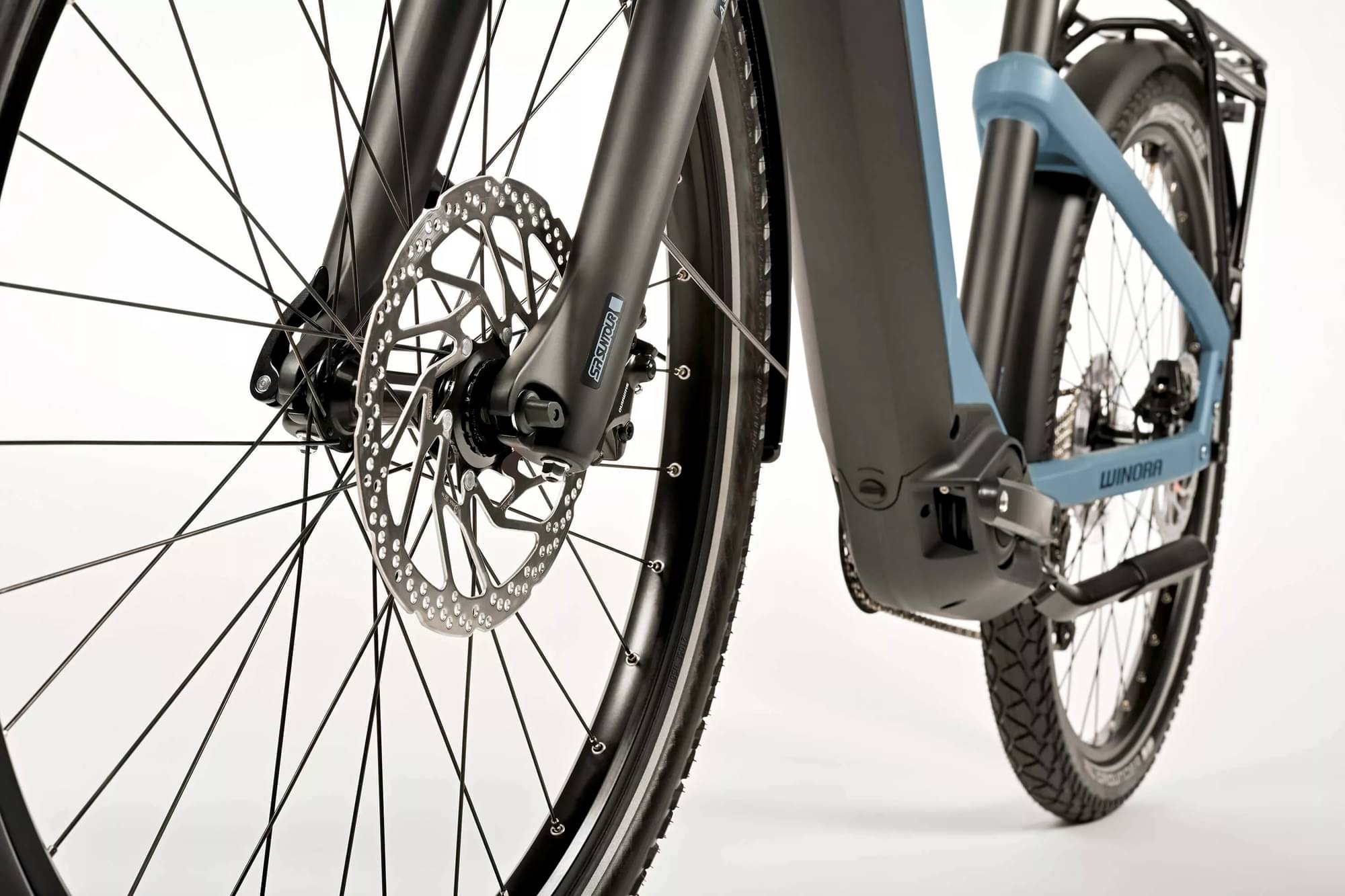

Brakes
Brakes
Shimano Hydraulic Disc brake

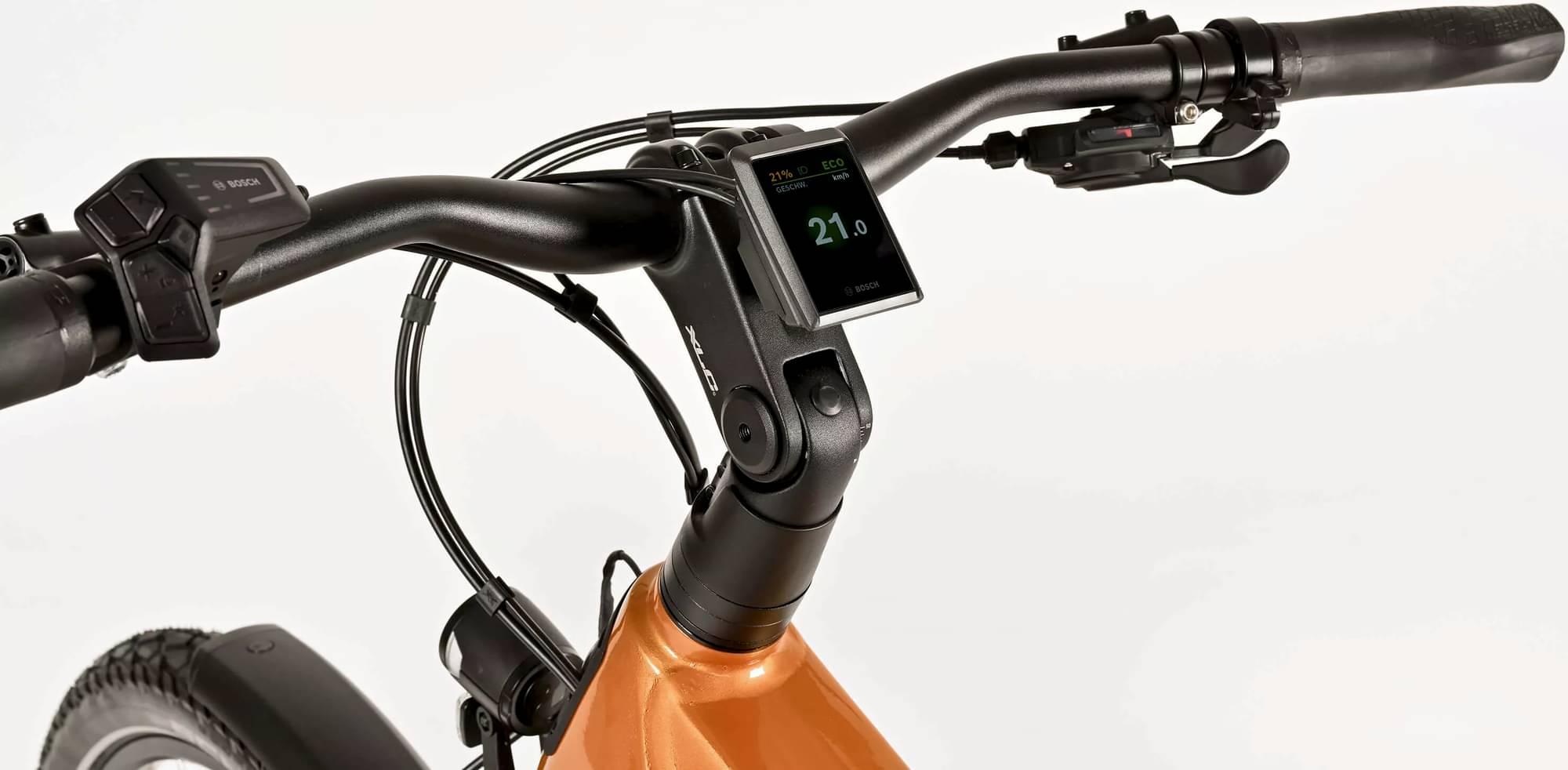

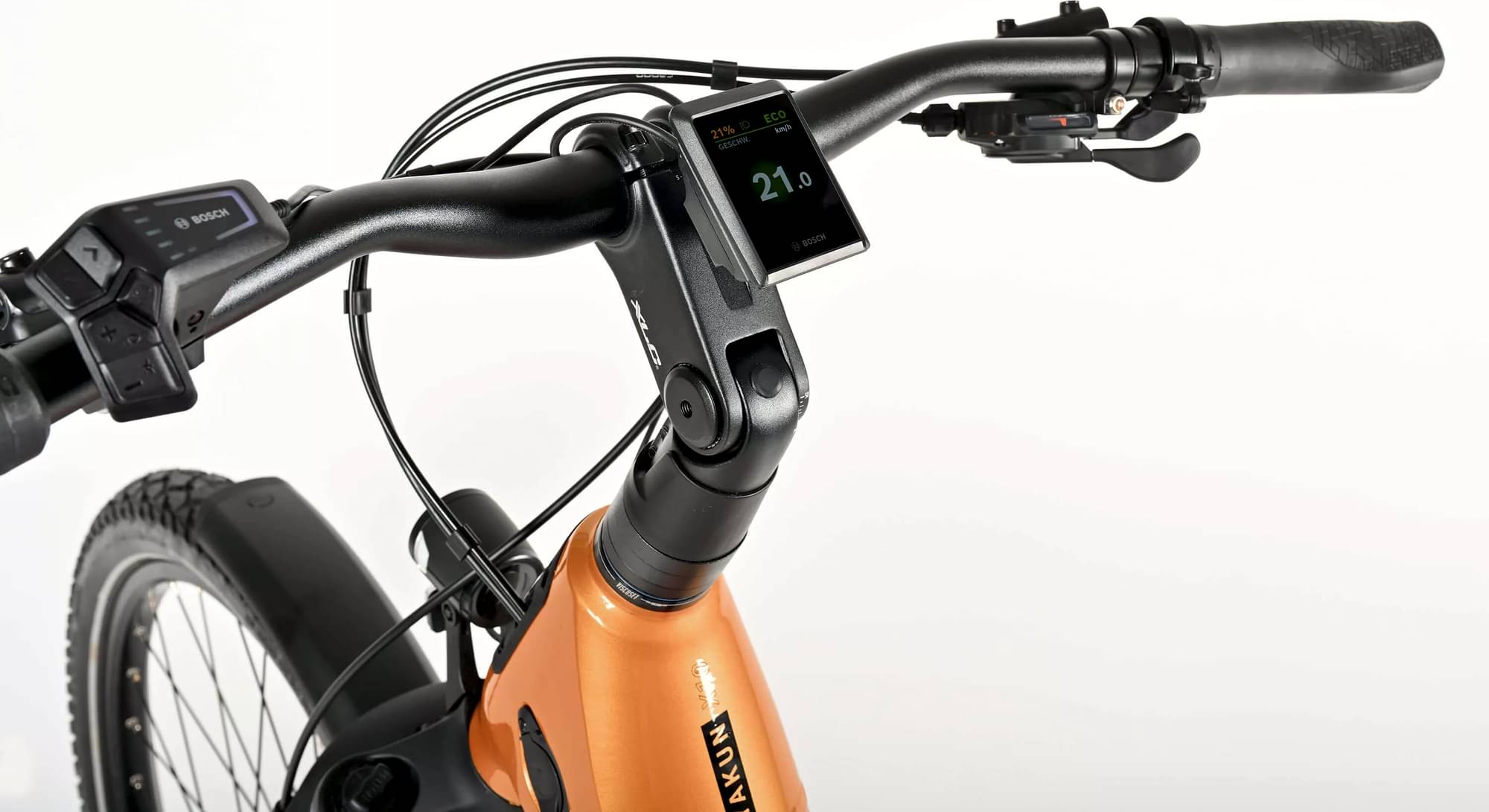

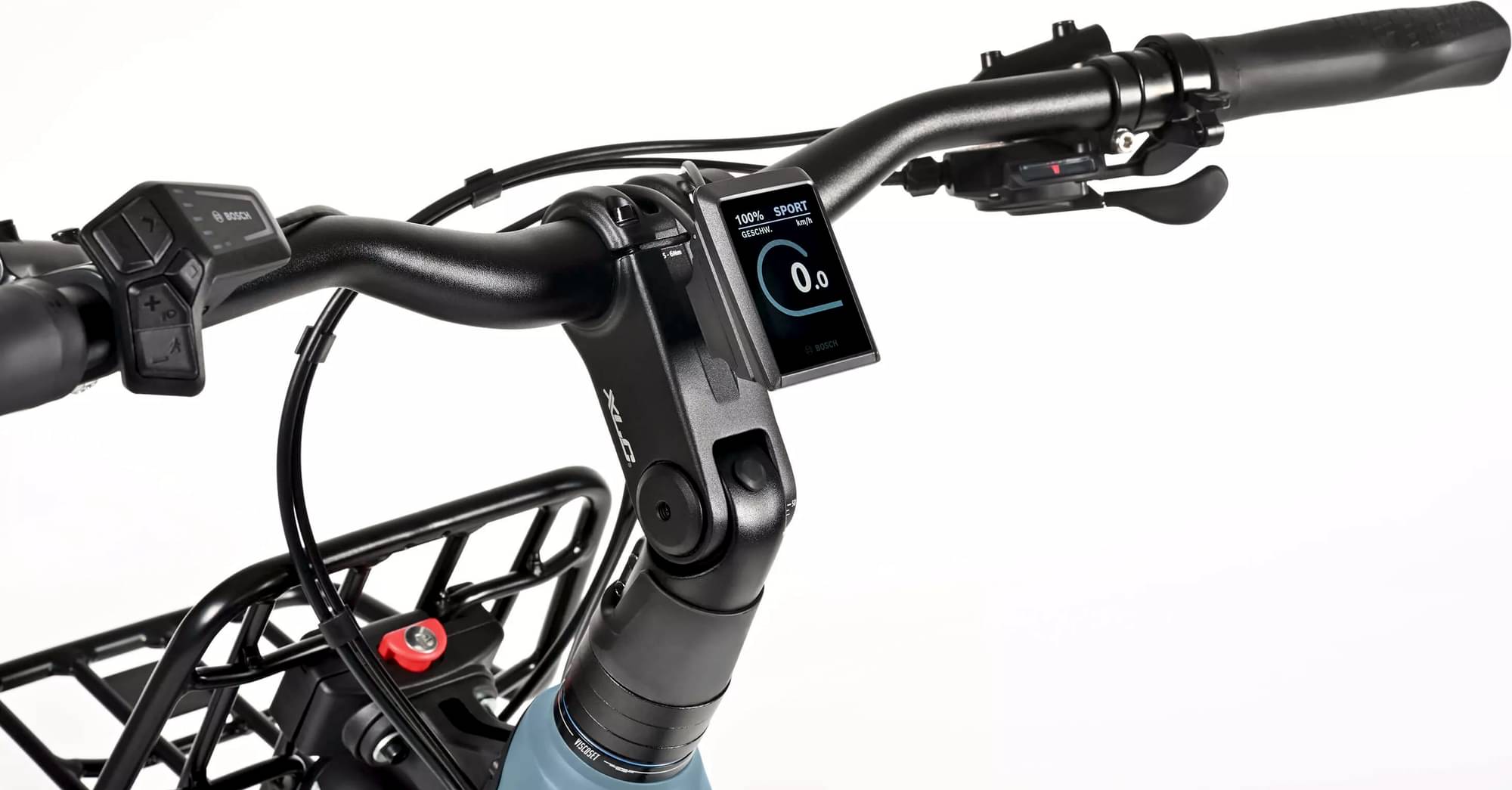

Cockpit
Stem
XLC Adjustable A-Head adjustable, Dia. 31.8 mm

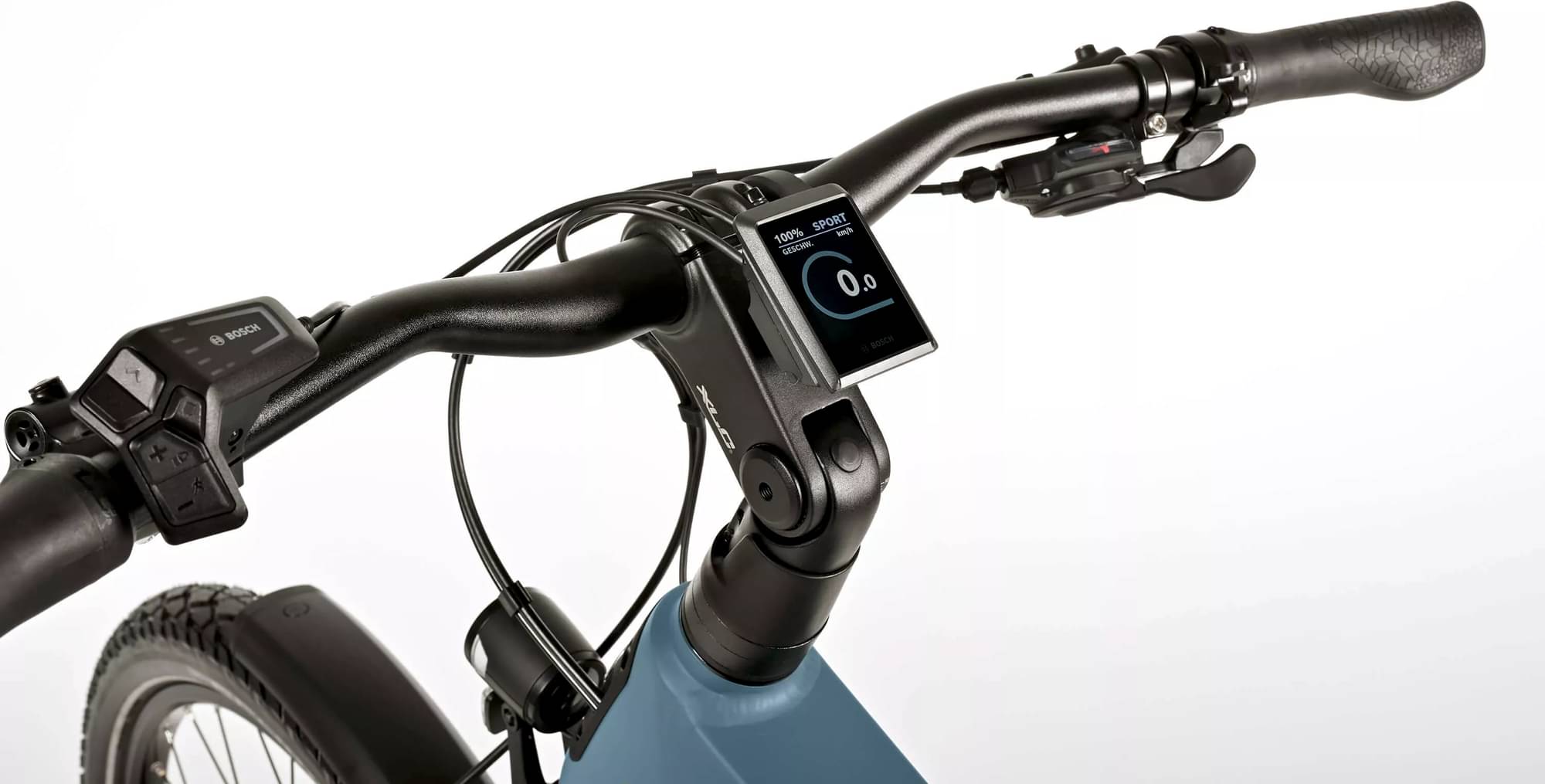

Handlebar
Winora Ergoriser, oversize
Headset
Winora A-Head Tapered

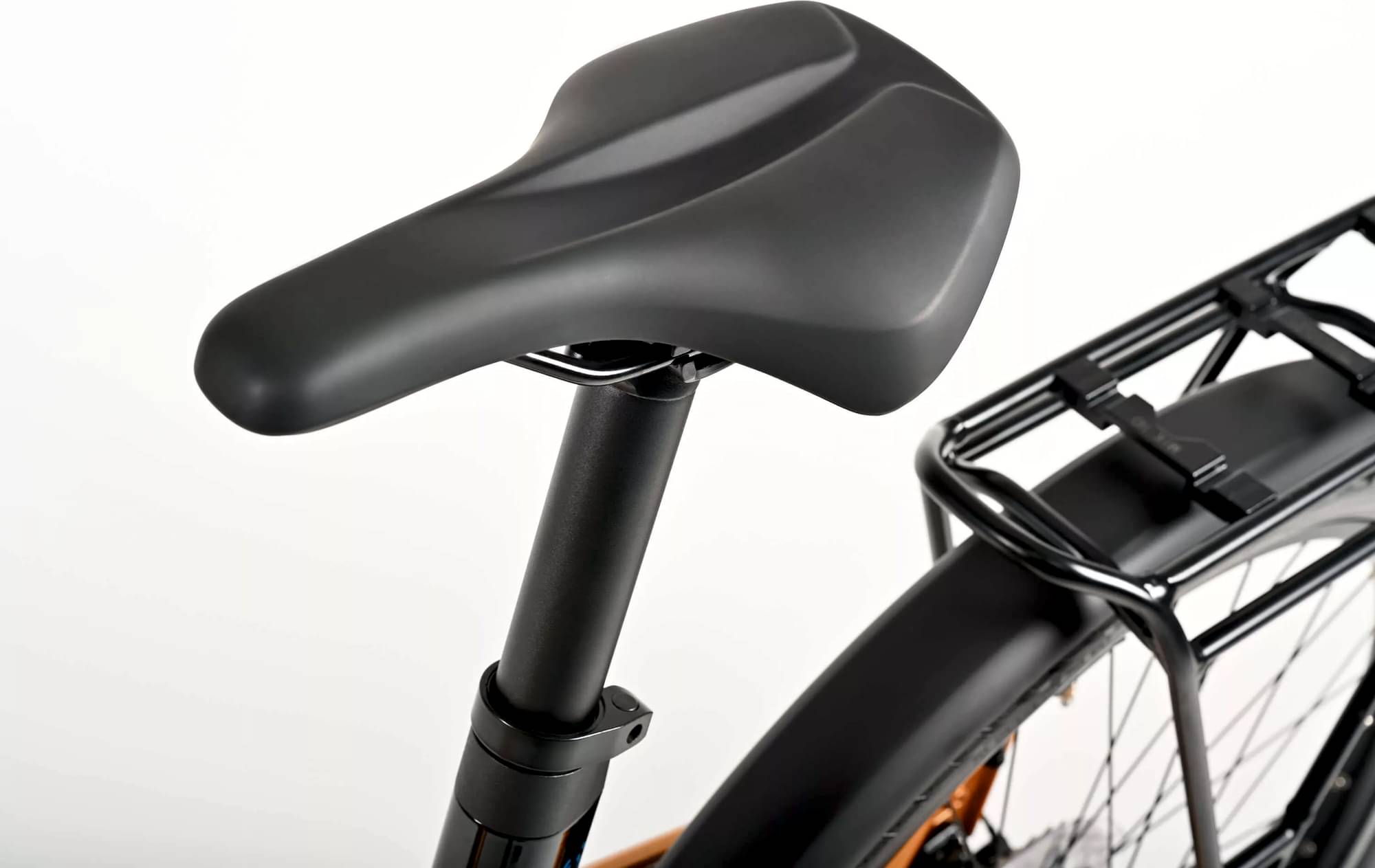

Seat

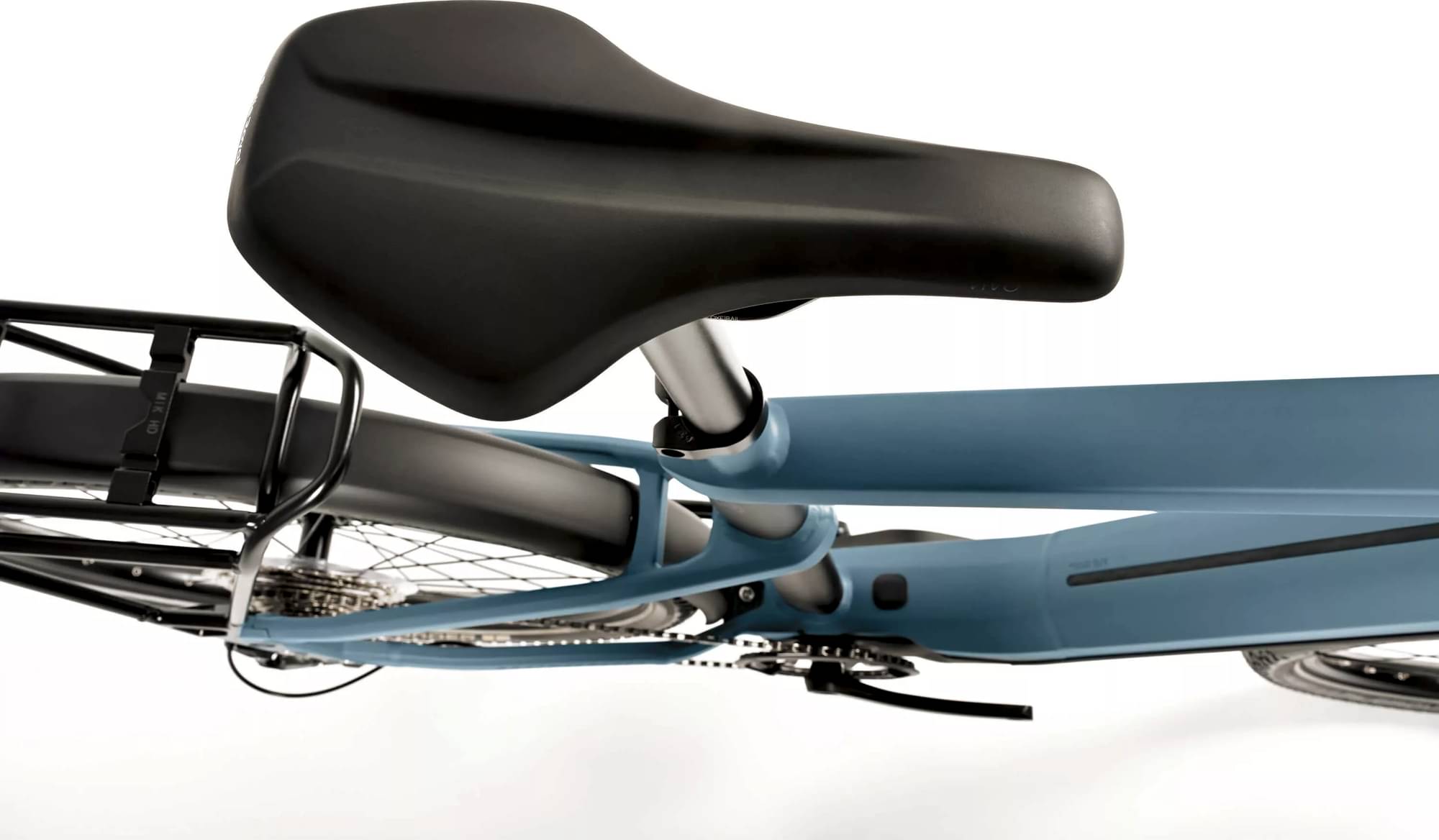

Saddle

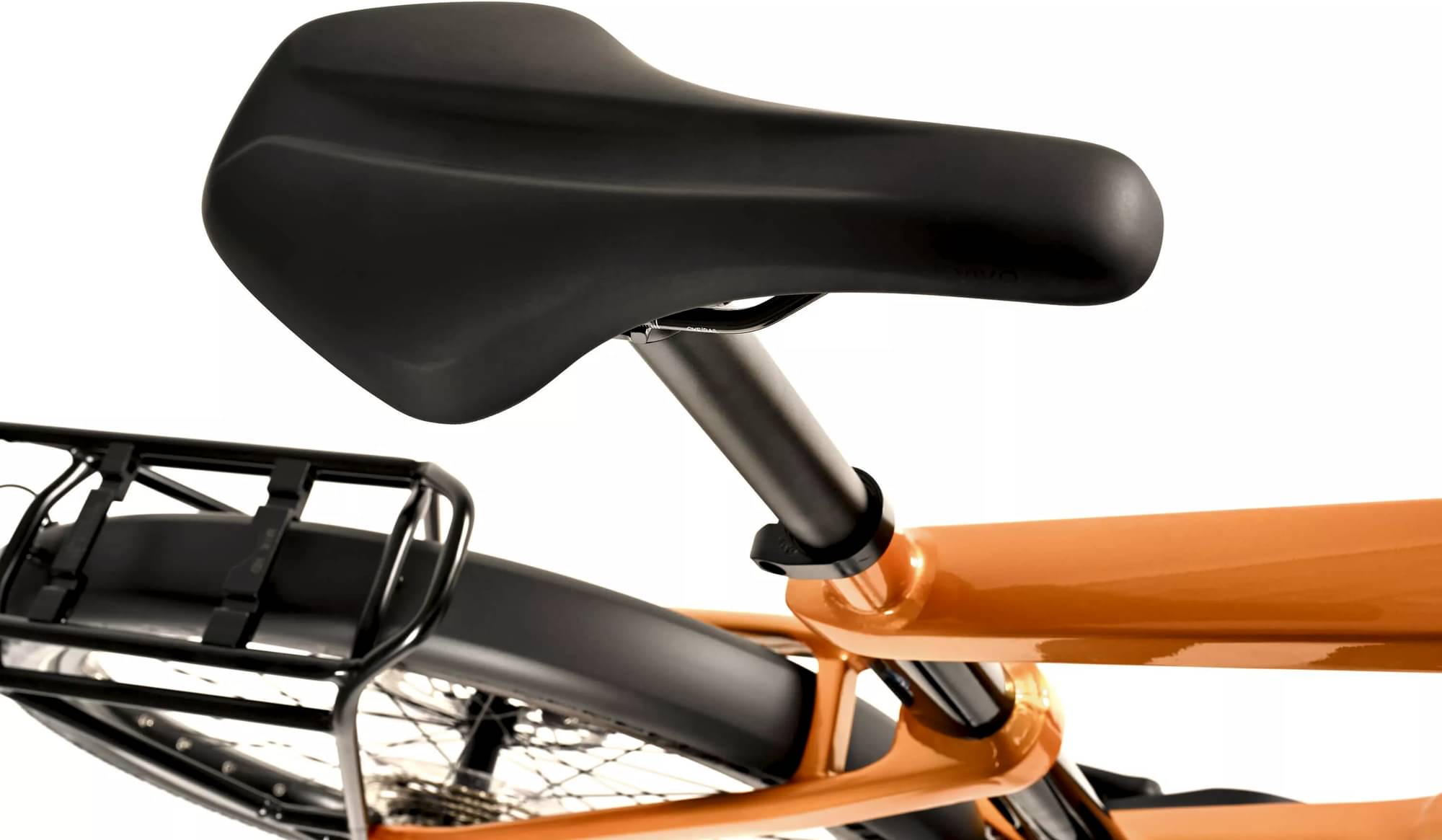

Selle Royal VivoErgo
Seatpost
Winora Non Suspension Patent, Dia. 34.9 mm
Motor & Battery

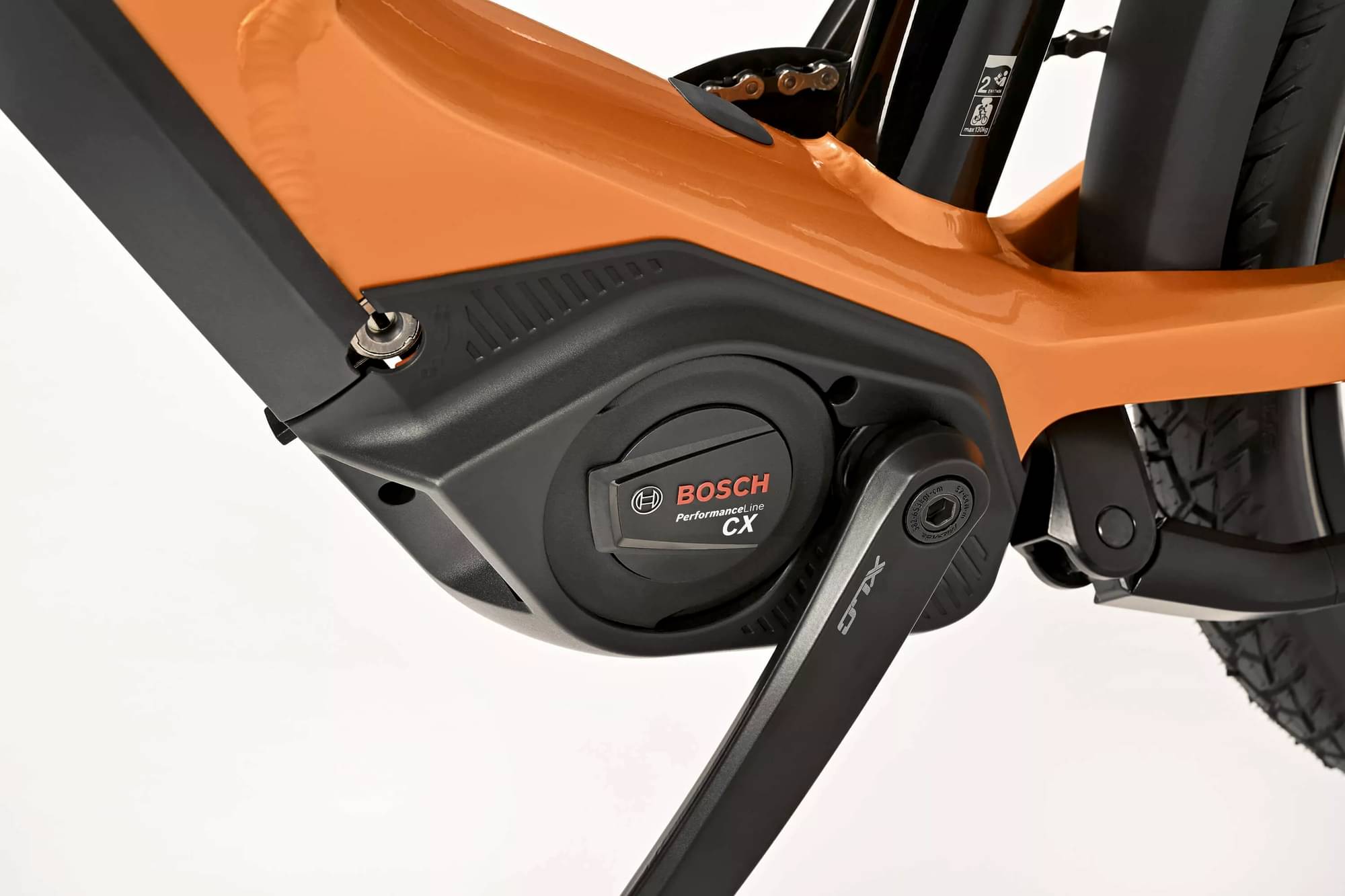

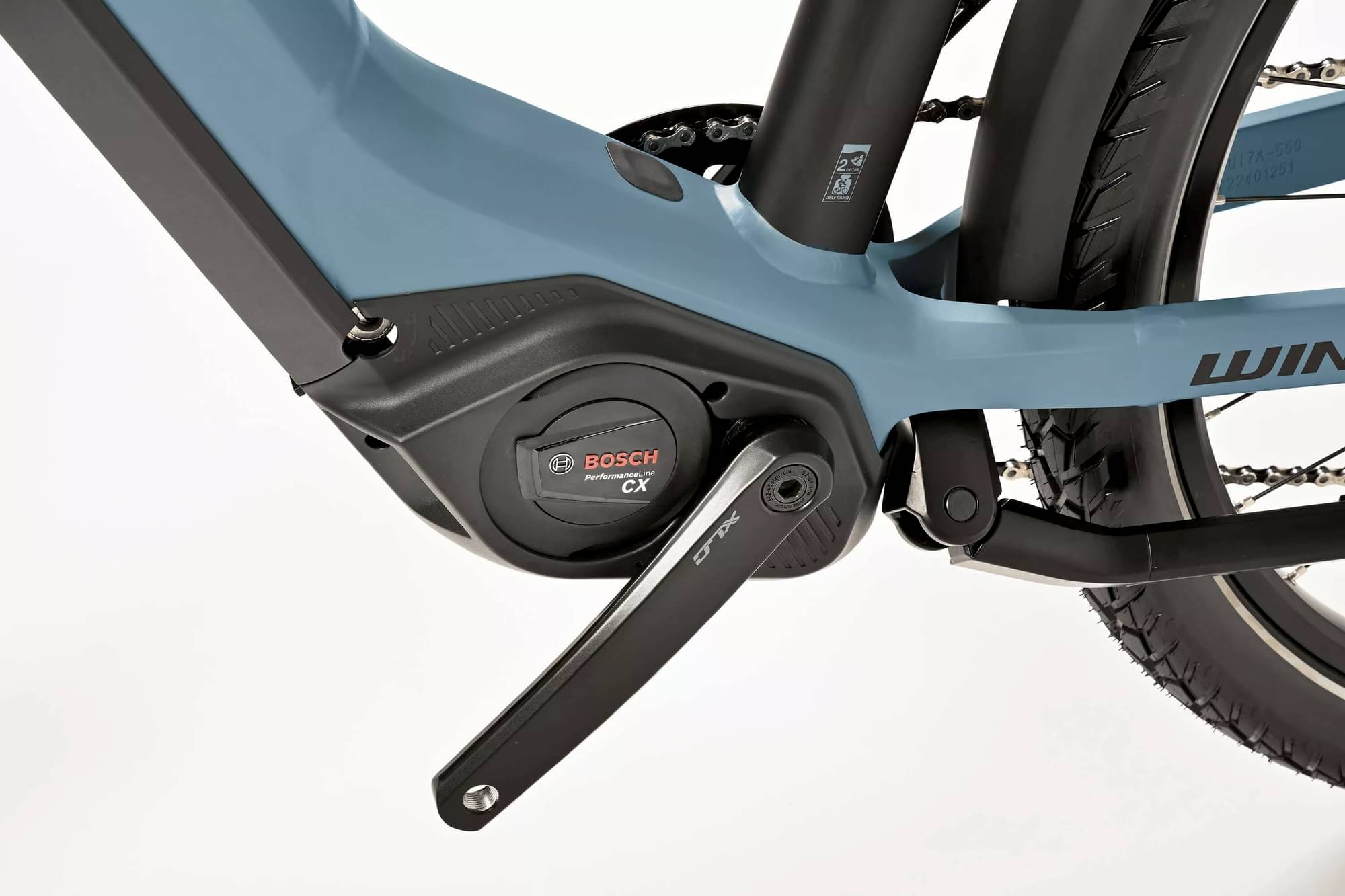

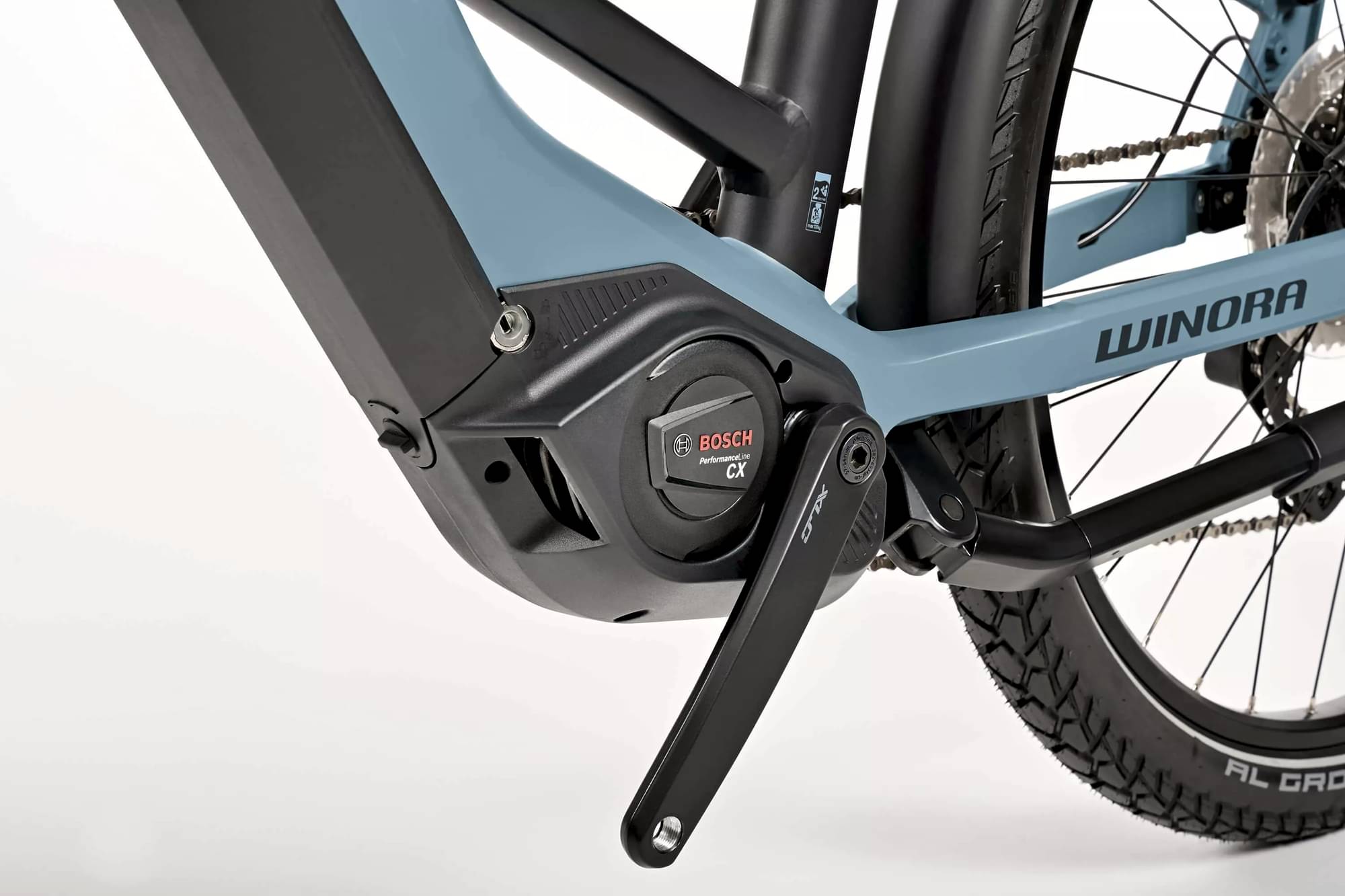

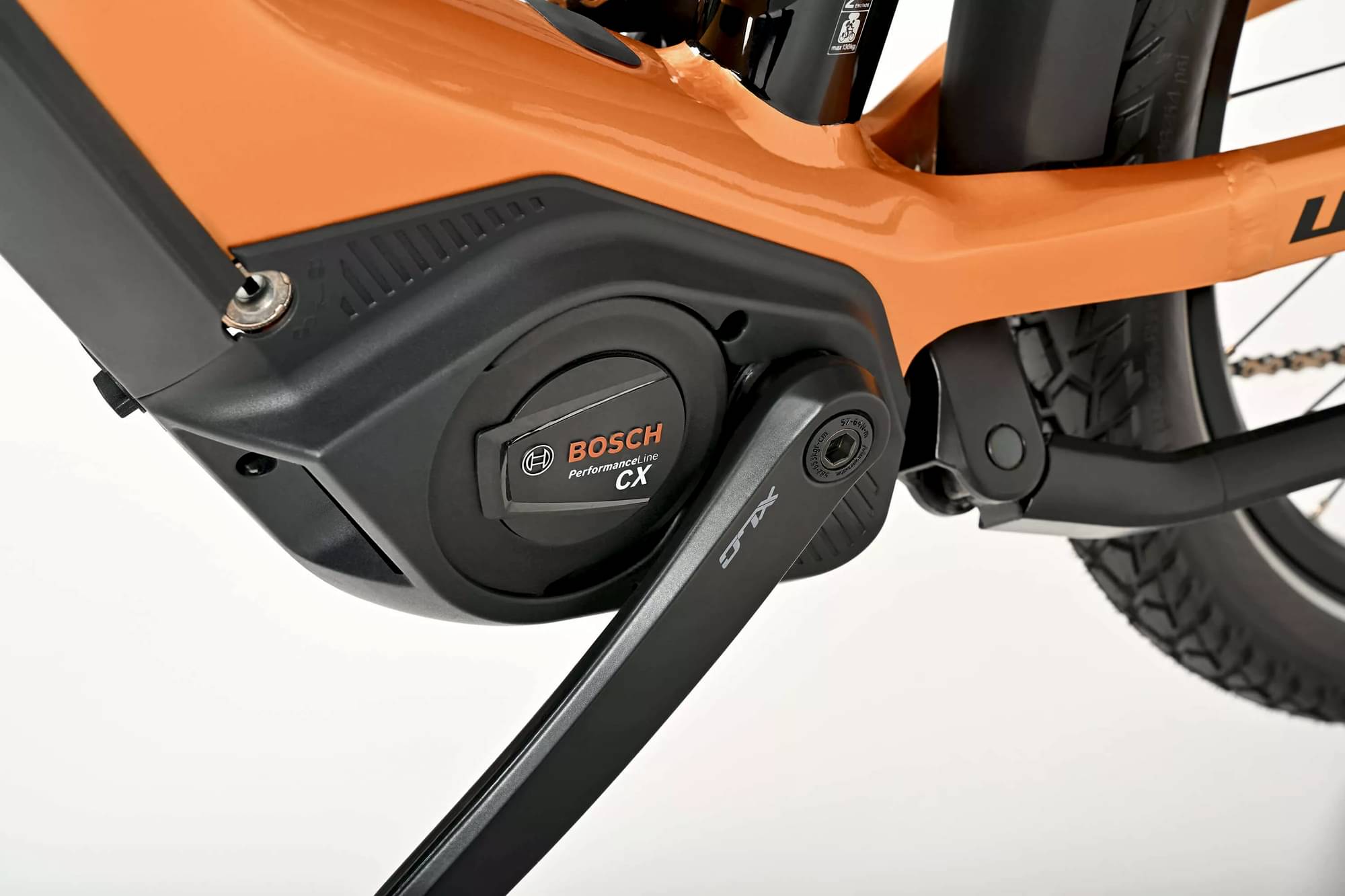

Motor
Bosch
Battery
Bosch Li-ION InTube 750 Wh, Capacity: 750 Wh, Location: Powertube
Charger
Bosch standard charger 4 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 50cm | 55cm | 60cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.408 mm | 1.391 mm | 1.372 mm | 1.354 mm |
| Front Center | 716 mm | 732 mm | 749 mm | 765 mm |
| Rake | 12 mm | 5 mm | 6 mm | 6 mm |
| Trail | 101 mm | 112 mm | 110 mm | 110 mm |
| Stack | 645 mm | 655 mm | 664 mm | 673 mm |
| Reach | 458 mm | 471 mm | 484 mm | 497 mm |
| Top Tube Length | 595 mm | 610 mm | 625 mm | 640 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm | 600 mm |
| Head Tube Angle | 71 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 160 mm | 170 mm | 180 mm | 190 mm |
| Chainstay Length | 472 mm | 472 mm | 472 mm | 472 mm |
| Wheelbase | 1182 mm | 1198 mm | 1215 mm | 1231 mm |
| Bottom Bracket Drop | -60 mm | -60 mm | -60 mm | -60 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 160 cm | 169 cm | 177 cm | 185 cm |
| Rider Max Height | 171 cm | 179 cm | 187 cm | 196 cm |
