Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 80mm -
Fork Suntour XCM
-
Groupset microSHIFT Advent X -
Suspension Hardtail -
Motor Bosch hub-drive -
Battery Bosch Li-ION InTube 625 Wh, Capacity: 625 Wh, Location: Powertube -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
45cm
160cm - 171cm
50cm
169cm - 179cm
55cm
177cm - 187cm
60cm
185cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
High Aluminium Uni

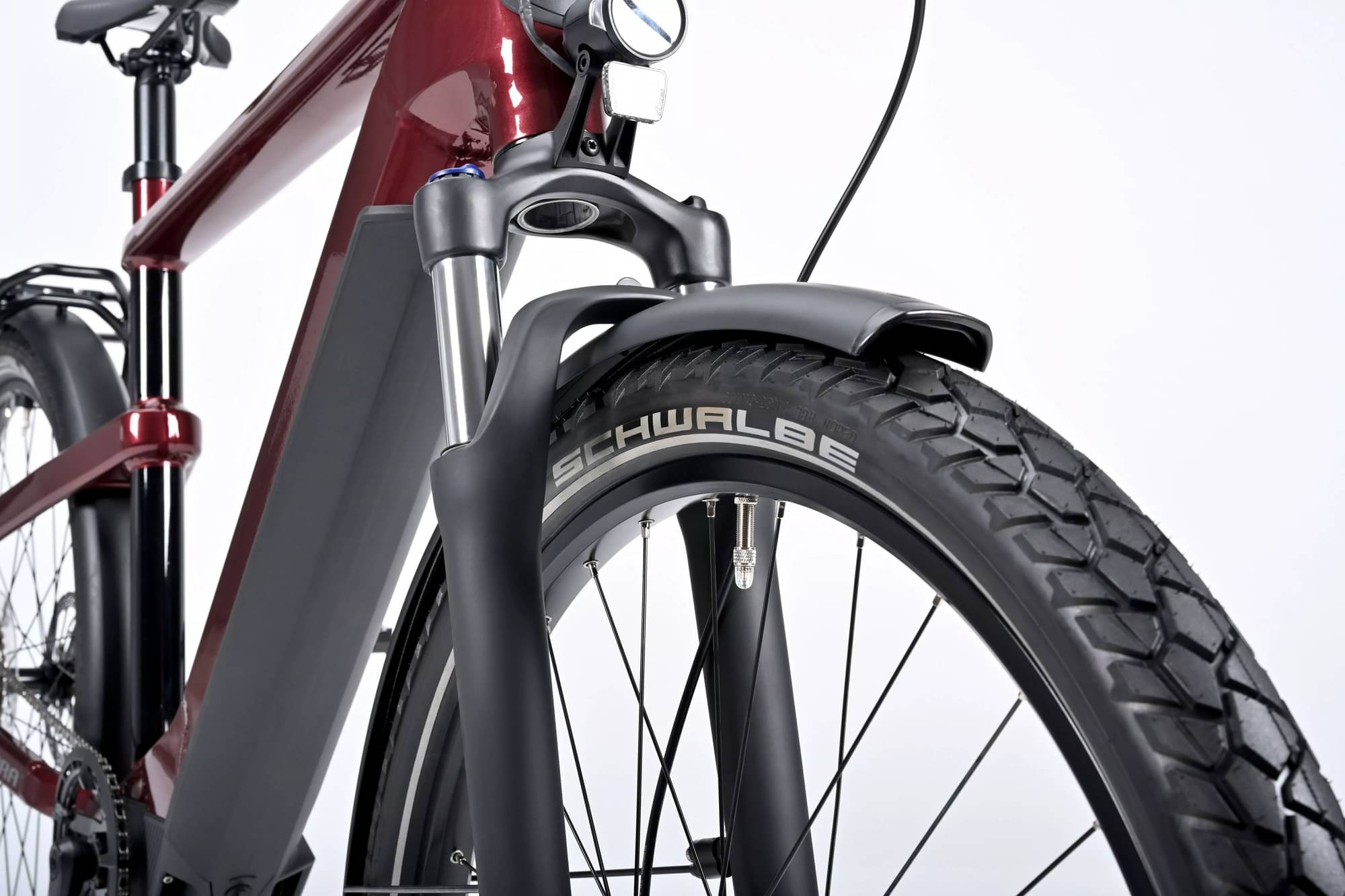

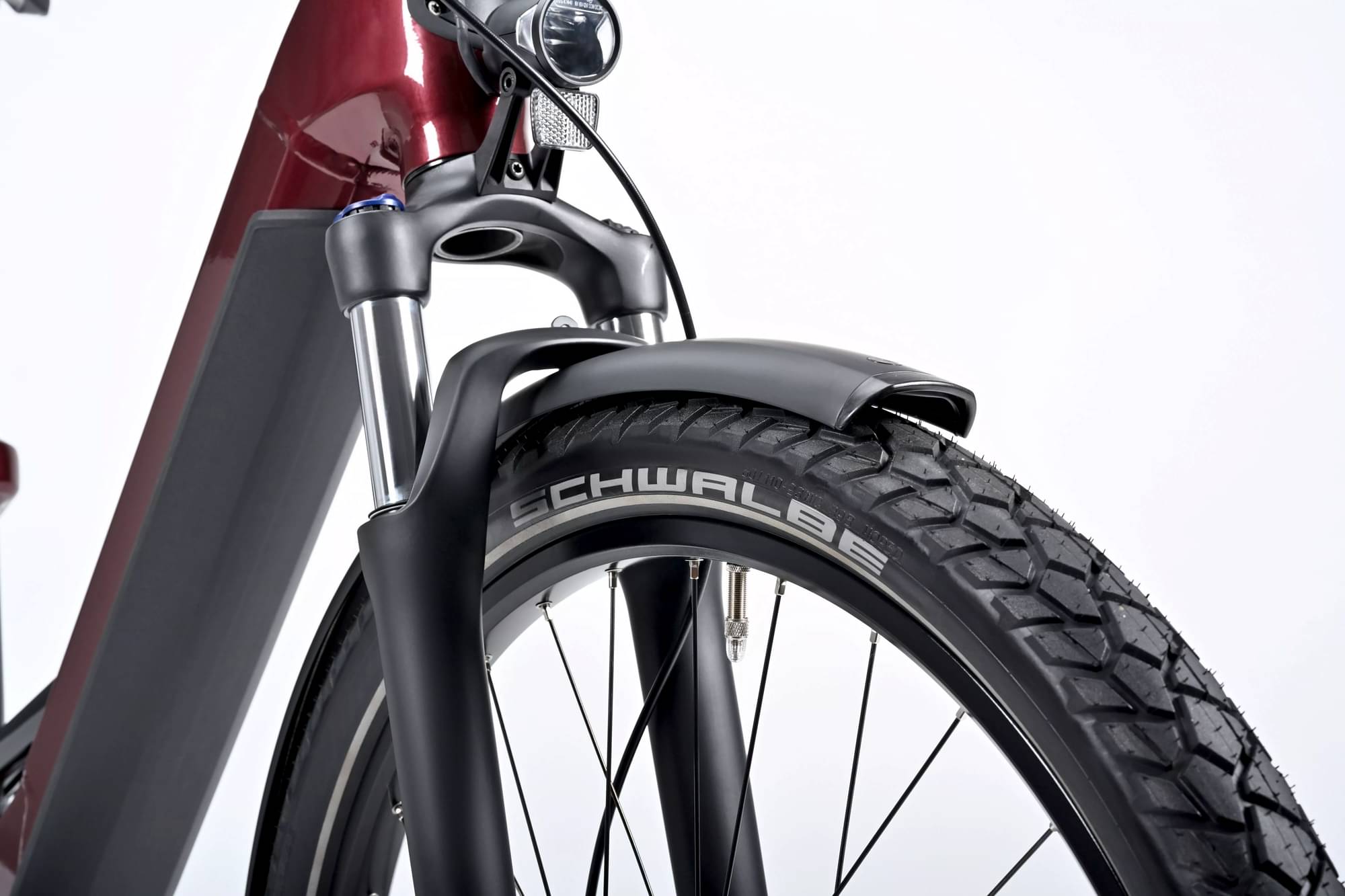

Suspension Fork
Suntour XCM32 ATB NLO DS 80 mm
Drivetrain
Rear Derailleur
MicroSHIFT Advent X RD-M6205M, 10s
Shift Levers
MicroSHIFT Triggershift Advent X SL-M9505-R
Cassette
MicroSHIFT X HG104-10
Crank
Miranda Virage
Bottom Bracket
integrated in the motor
Chain
KMC Chain e10S
Pedals
VP E461
Wheels
Front Hub
Winora alu hub 9 x 100 mm
Rear Hub
Shimano HB-MT400-B 10 x 135 mm
Rims
Schurmann Hollow rim Yak25
Tires
Schwalbe Al Grounder Performance 60-584
Brakes
Brakes
Shimano Hydraulic Disc brake

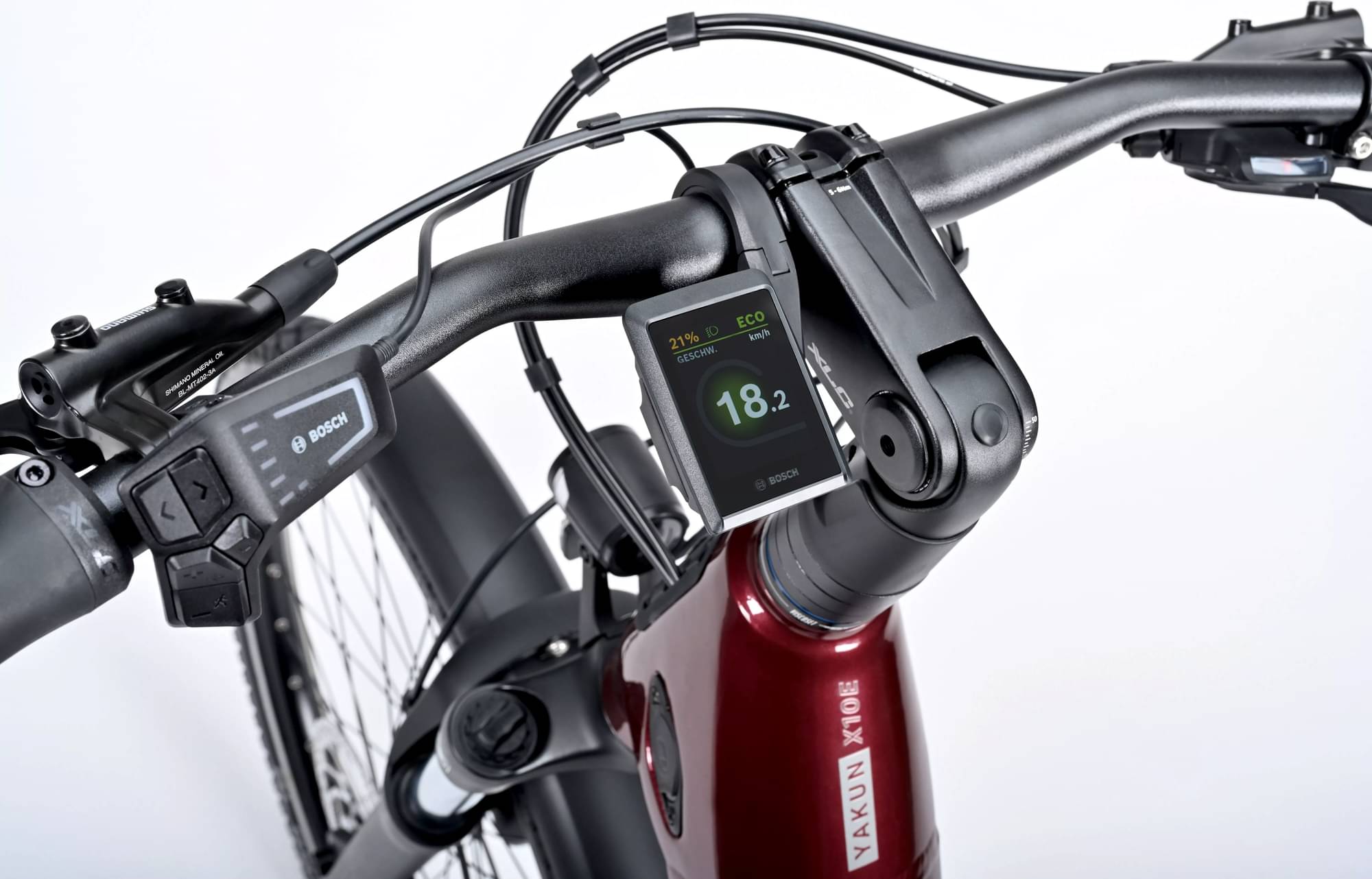

Cockpit
Stem
XLC Adjustable A-Head adjustable, Dia. 31.8 mm
Handlebar
Winora Ergoriser, oversize
Headset
Winora A-Head Tapered

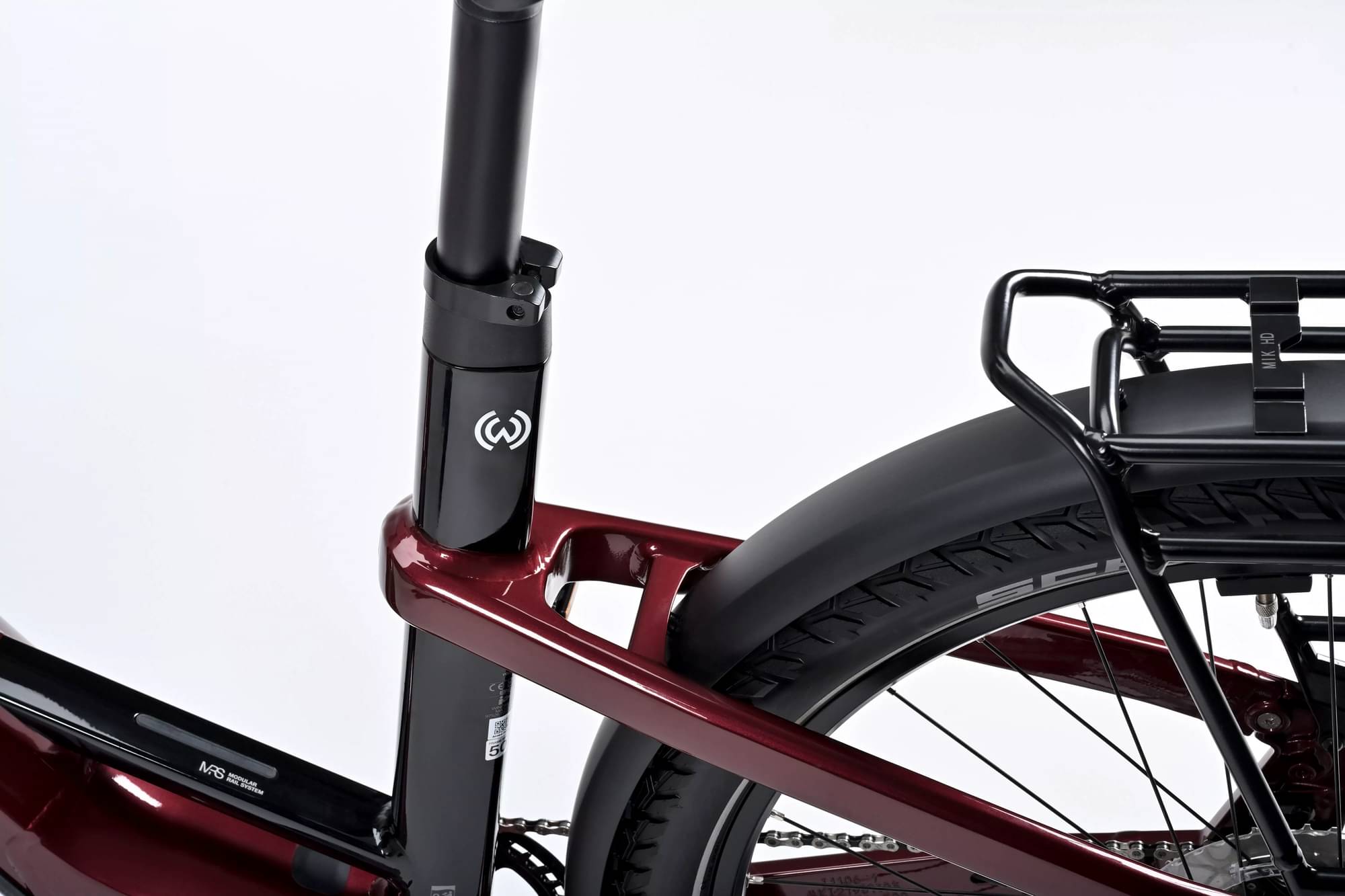

Seat

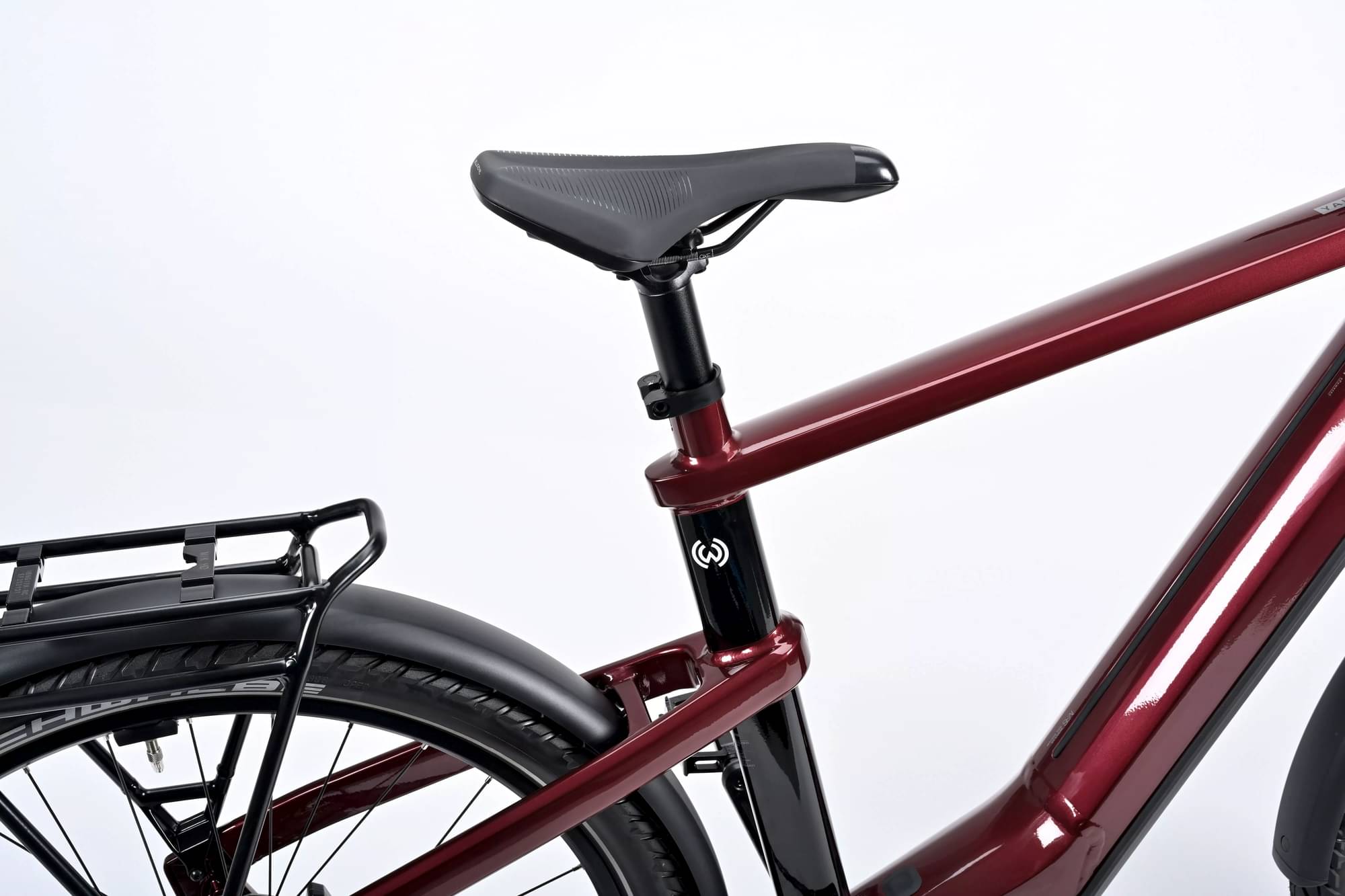

Saddle
Selle Royal Vivo
Seatpost
Winora Non Suspension Patent, Dia. 34.9 mm

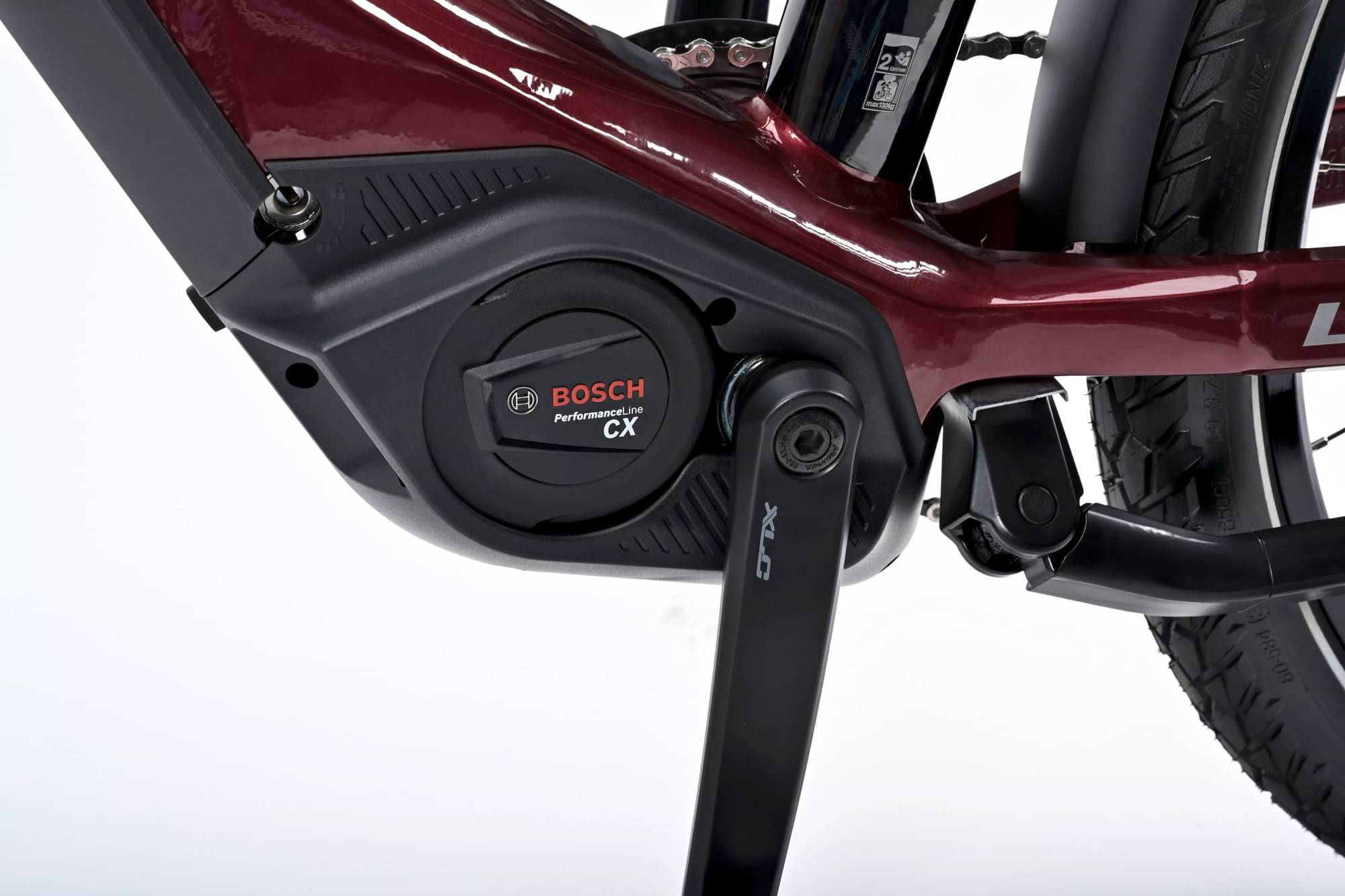

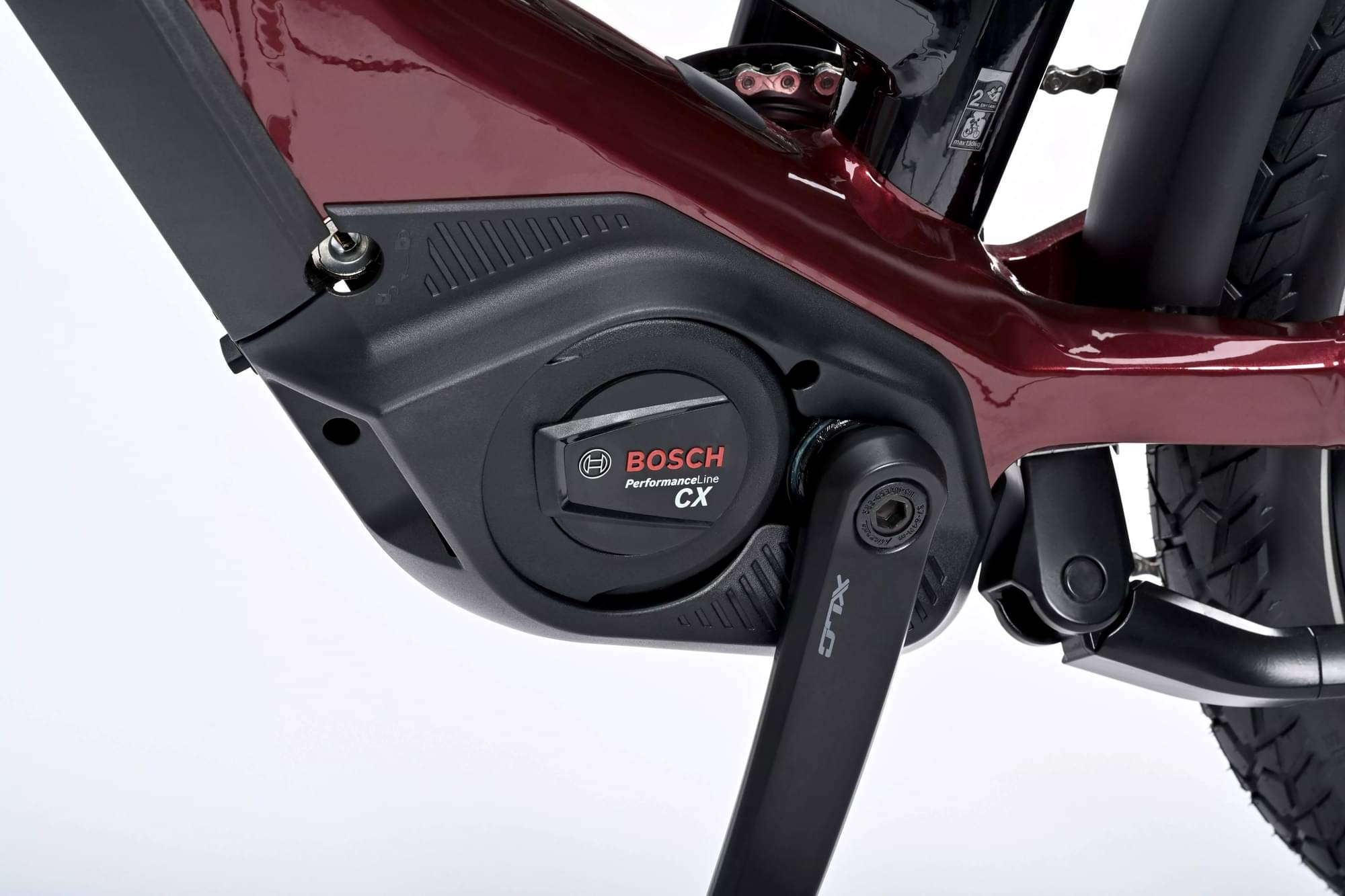

Motor & Battery
Motor
Bosch
Battery
Bosch Li-ION InTube 625 Wh, Capacity: 625 Wh, Location: Powertube
Charger
Bosch quick charger 4 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 50cm | 55cm | 60cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.408 mm | 1.391 mm | 1.372 mm | 1.354 mm |
| Front Center | 716 mm | 732 mm | 749 mm | 765 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 68 mm | 69 mm | 68 mm | 68 mm |
| Stack | 645 mm | 655 mm | 664 mm | 673 mm |
| Reach | 458 mm | 471 mm | 484 mm | 497 mm |
| Top Tube Length | 595 mm | 610 mm | 625 mm | 640 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm | 600 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 160 mm | 170 mm | 180 mm | 190 mm |
| Chainstay Length | 472 mm | 472 mm | 472 mm | 472 mm |
| Wheelbase | 1182 mm | 1198 mm | 1215 mm | 1231 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 160 cm | 169 cm | 177 cm | 185 cm |
| Rider Max Height | 171 cm | 179 cm | 187 cm | 196 cm |
