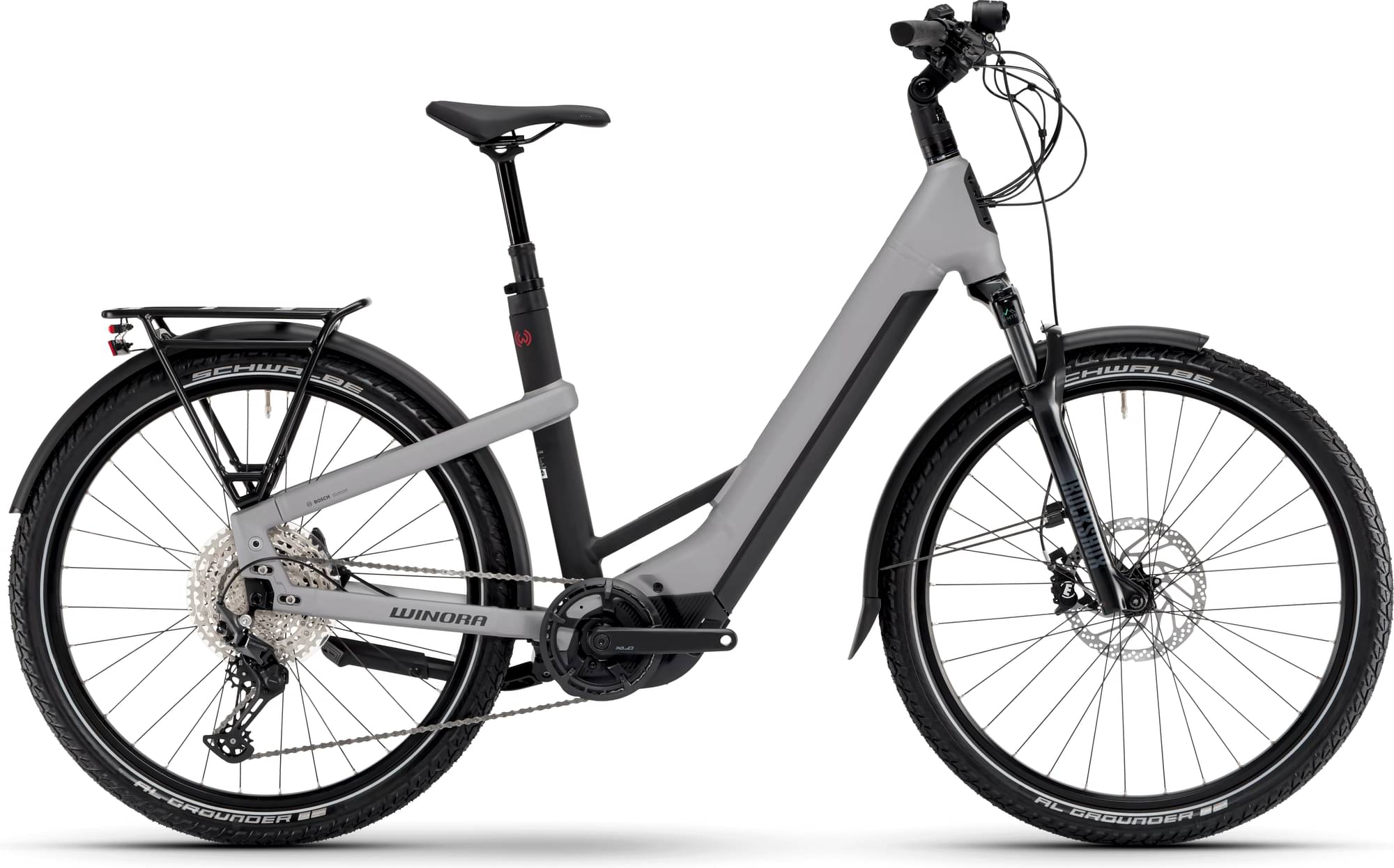

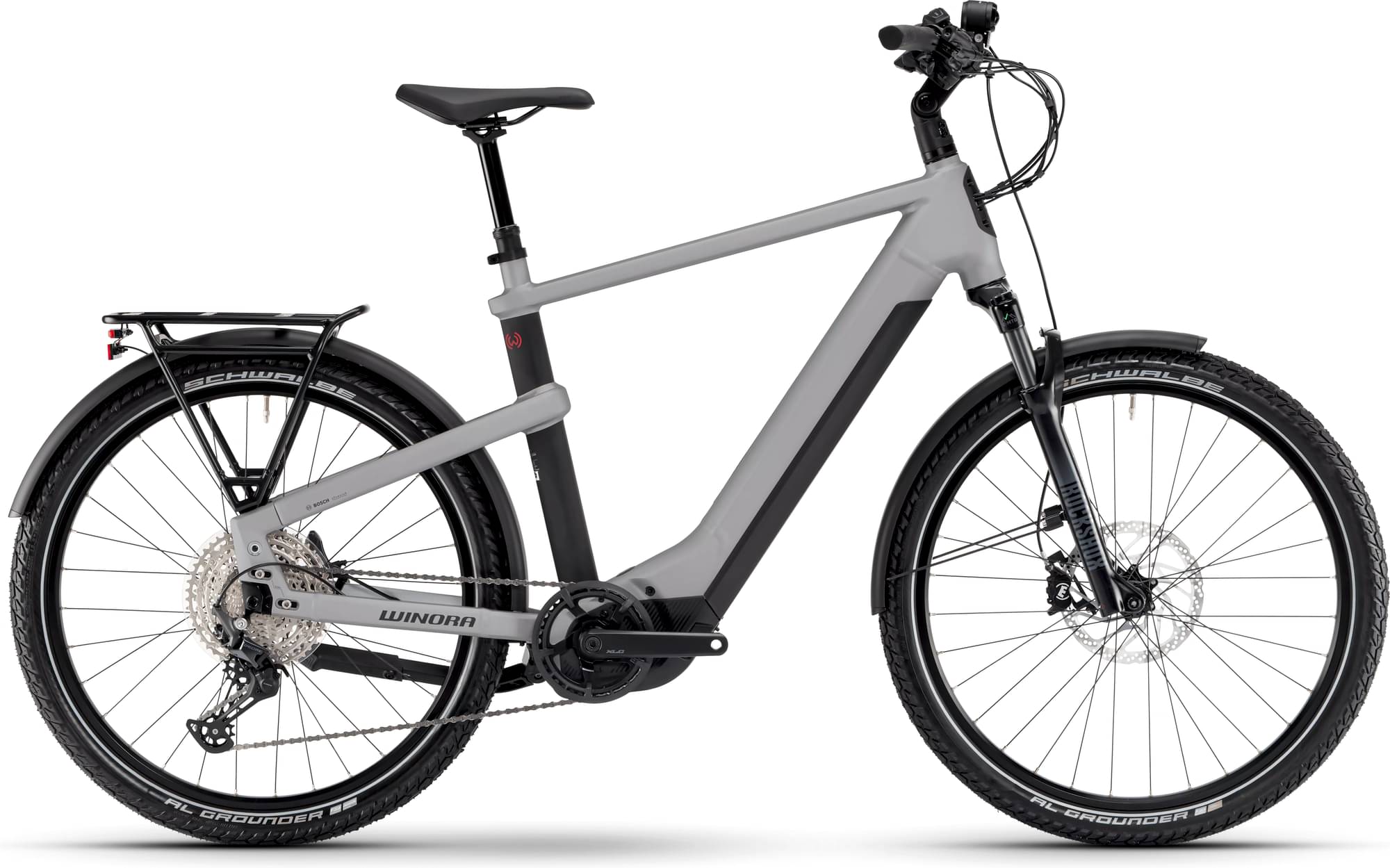

winora Yakun X12 2025
2025 E-bike
Estimate price |
5,234$
Weight | 28.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 80mm -
Fork RockShox Recon Silver RL
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch hub-drive -
Battery Bosch Li-ION InTube 750 Wh, Capacity: 750 Wh, Location: Powertube -
Brakes Magura MT5 Hydraulic Disc
Sizing
Recommended size guide.
45cm
160cm - 171cm
50cm
169cm - 179cm
55cm
177cm - 187cm
60cm
185cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Low Aluminium Low entry

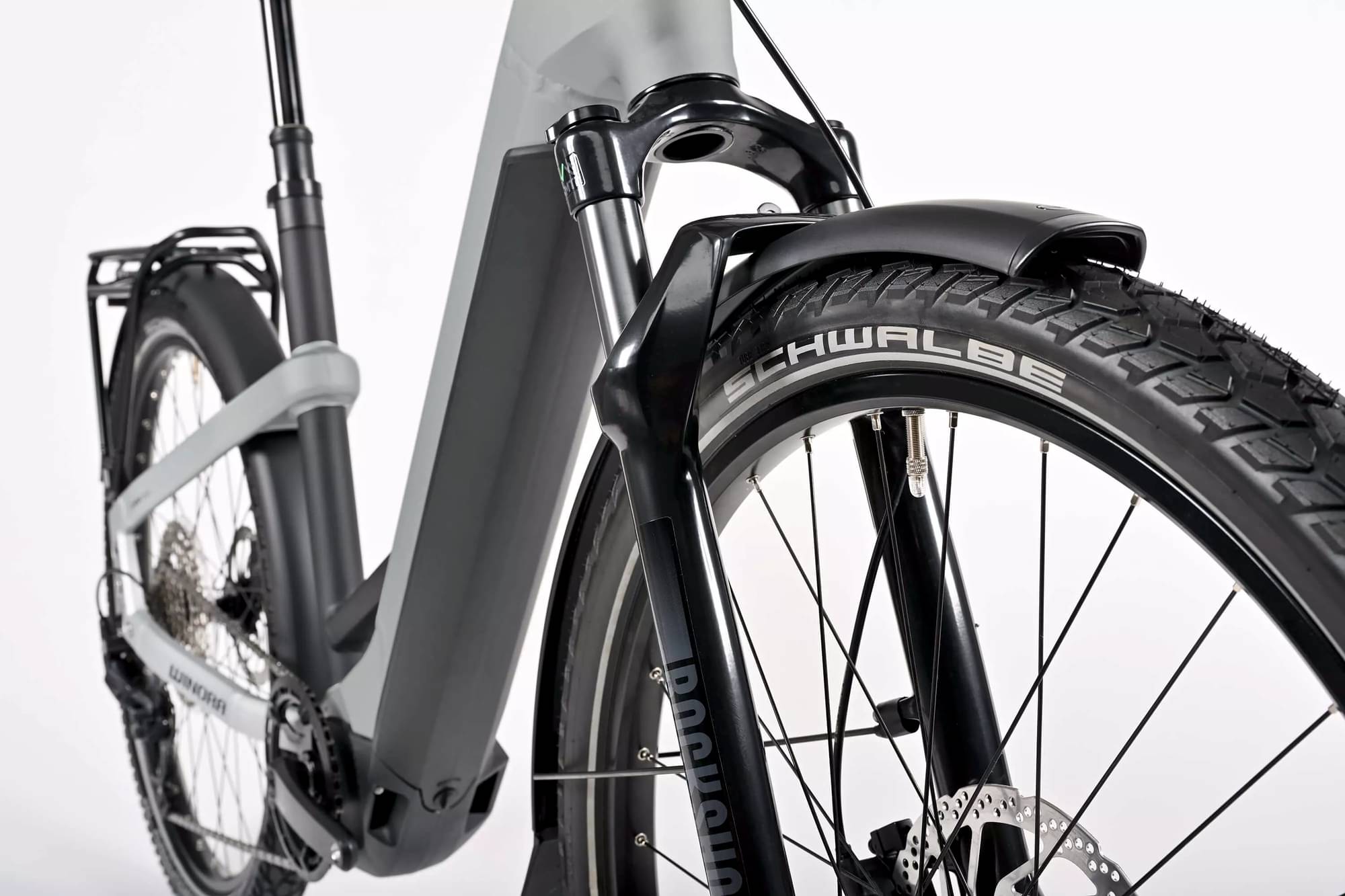

Suspension Fork
Rockshox Recon RL 80 mm

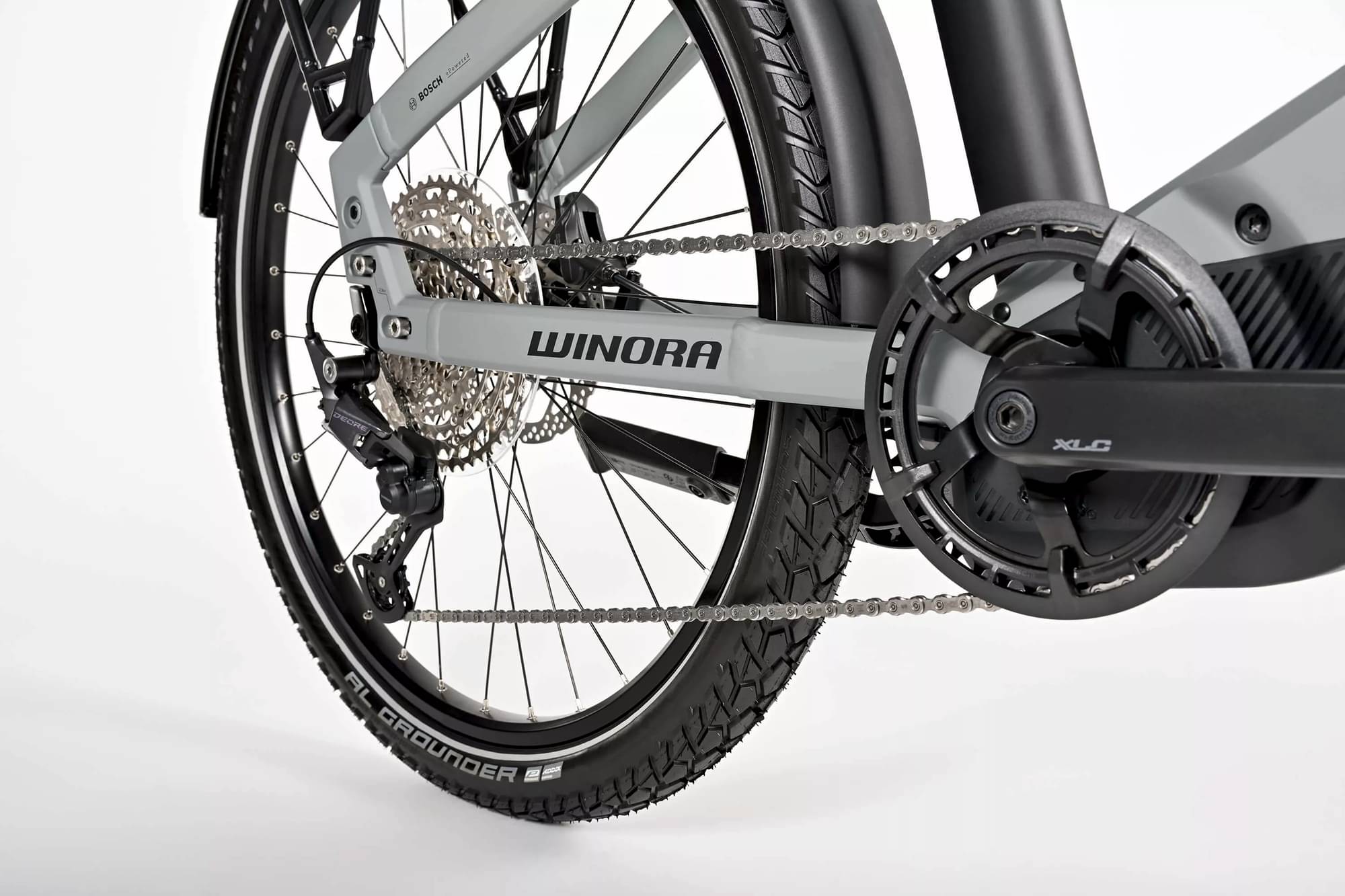

Drivetrain

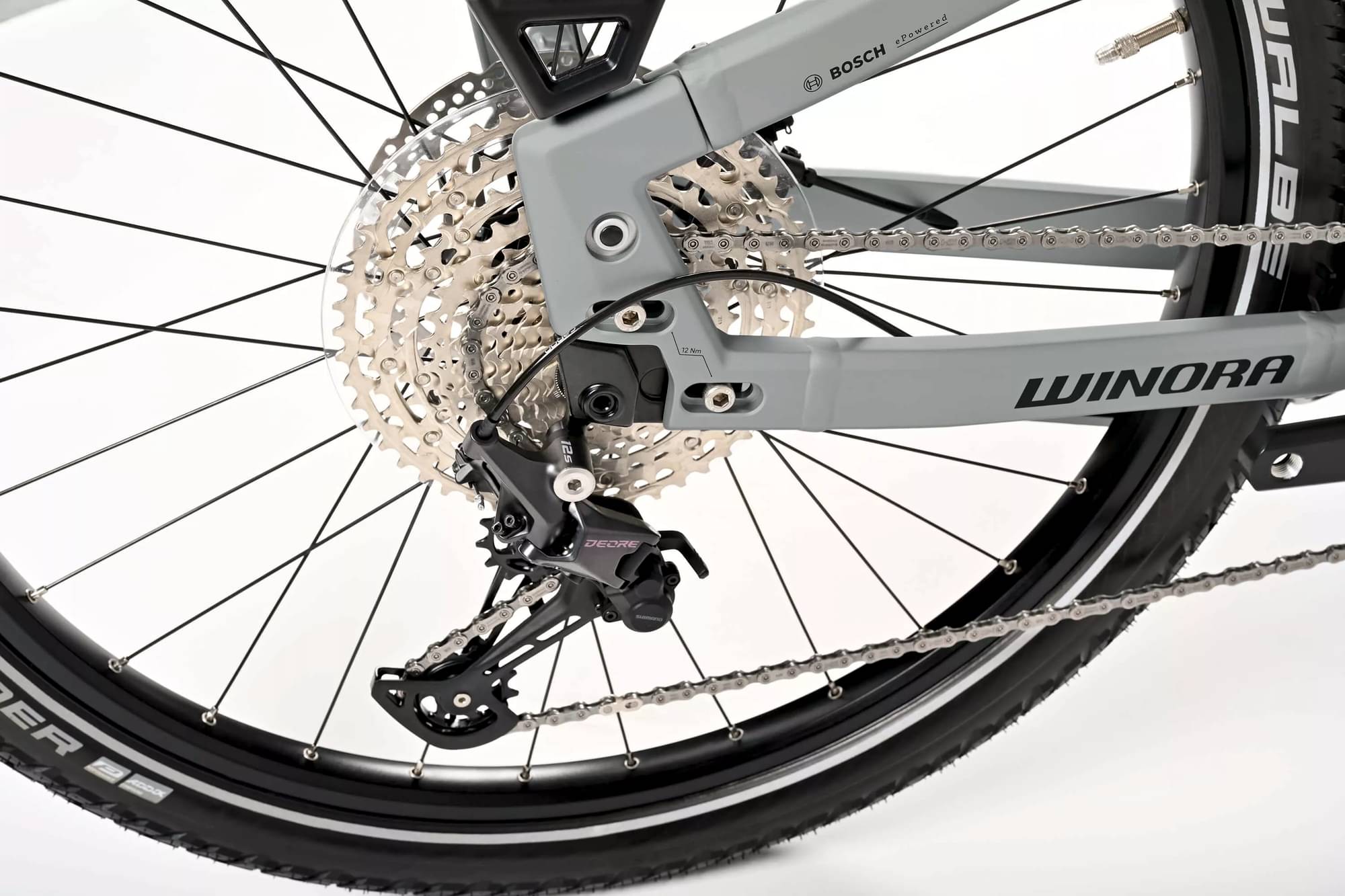

Rear Derailleur
Shimano Deore RD-M6100, 12s
Shift Levers
Shimano Triggershift Deore SL-M6100-R
Cassette
Shimano CS-M6100-12,MICRO SPLINE
Crank
Miranda Virage
Bottom Bracket
integrated in the motor
Chain
Shimano Chain M6100
Pedals
VP 625
Wheels
Front Hub
Shimano HB-TC500 15 x 110 mm
Rear Hub
Shimano HB-MT410 12 x 148 mm
Rims
Schurmann Hollow rim Yak25
Tires
Schwalbe Al Grounder Performance 60-584
Brakes
Brakes
Magura Hydraulic Disc brake MT5, 203 mm

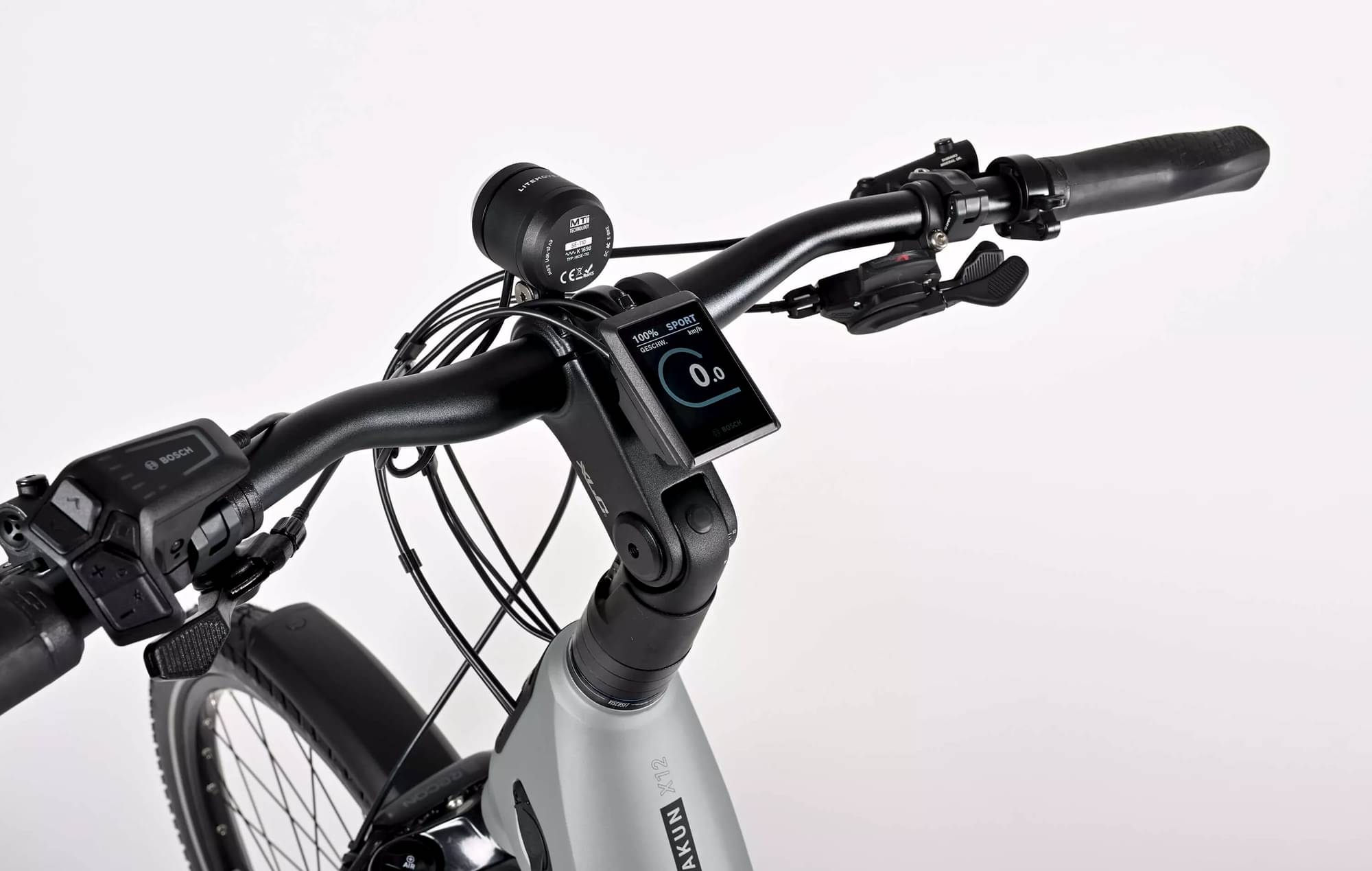

Cockpit
Stem
XLC Adjustable A-Head adjustable, Dia. 31.8 mm
Handlebar
Winora Ergoriser, oversize
Headset
Winora A-Head Tapered
Seat
Saddle
Selle Royal VivoErgo
Seatpost
Limotec Dropperpost Dropper-Post Remote, Teleskop, Dia. 34.9 mm
Motor & Battery

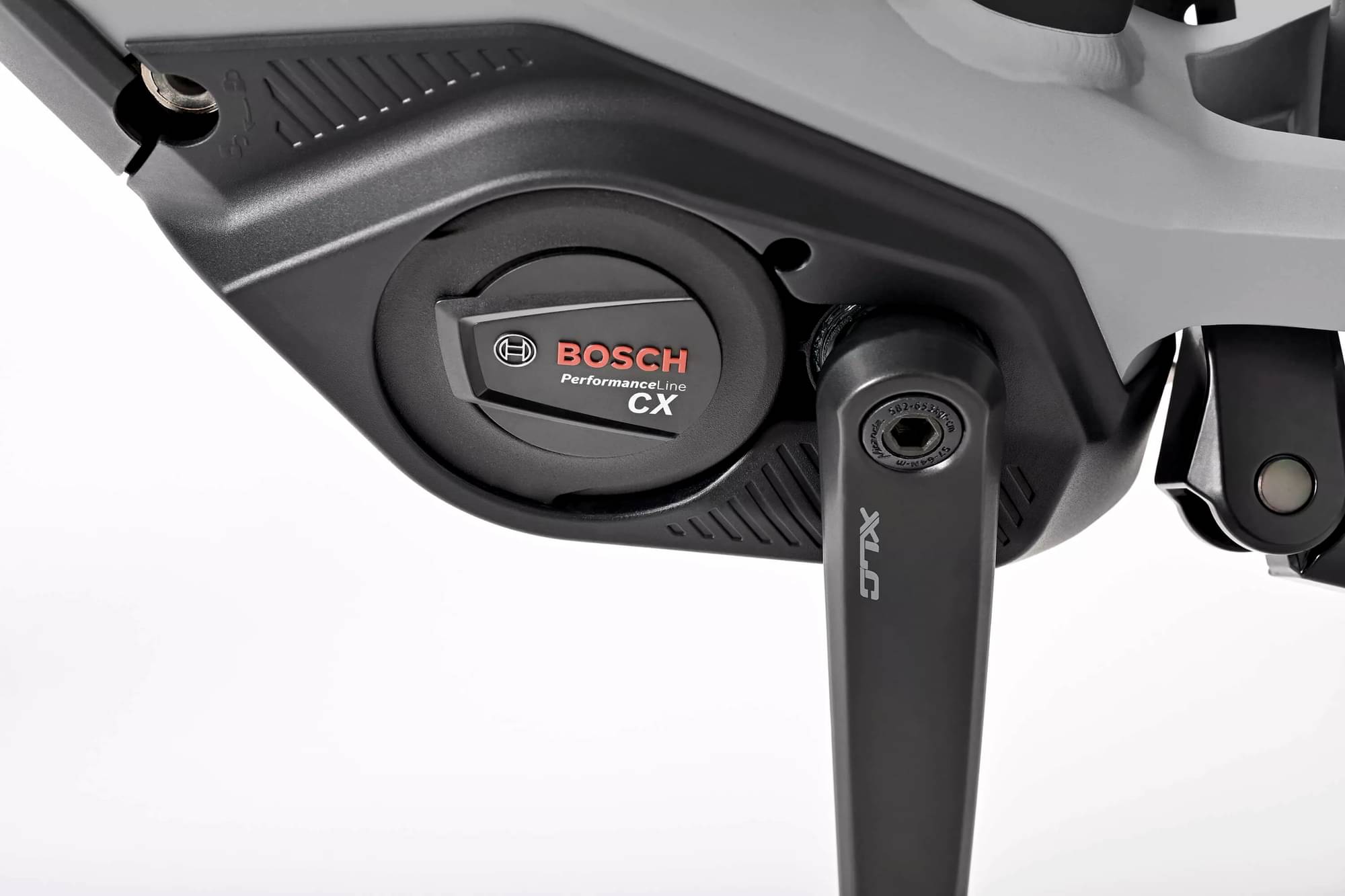

Motor
Bosch
Battery
Bosch Li-ION InTube 750 Wh, Capacity: 750 Wh, Location: Powertube
Charger
Bosch standard charger 4 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 50cm | 55cm | 60cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.408 mm | 1.391 mm | 1.372 mm | 1.354 mm |
| Front Center | 716 mm | 732 mm | 749 mm | 765 mm |
| Rake | 12 mm | 5 mm | 6 mm | 6 mm |
| Trail | 101 mm | 112 mm | 110 mm | 110 mm |
| Stack | 645 mm | 655 mm | 664 mm | 673 mm |
| Reach | 458 mm | 471 mm | 484 mm | 497 mm |
| Top Tube Length | 595 mm | 610 mm | 625 mm | 640 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm | 600 mm |
| Head Tube Angle | 71 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 160 mm | 170 mm | 180 mm | 190 mm |
| Chainstay Length | 472 mm | 472 mm | 472 mm | 472 mm |
| Wheelbase | 1182 mm | 1198 mm | 1215 mm | 1231 mm |
| Bottom Bracket Drop | -60 mm | -60 mm | -60 mm | -60 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 160 cm | 169 cm | 177 cm | 185 cm |
| Rider Max Height | 171 cm | 179 cm | 187 cm | 196 cm |
