Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork RockShox Recon Silver RL
-
Groupset Deore -
Suspension Hardtail -
Motor Yamaha mid-drive -
Battery Yamaha Li-ION InTube 720 Wh, Capacity: 720 Wh, Location: Powertube -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
38cm
158cm - 169cm
45cm
167cm - 179cm
50cm
177cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Low Aluminium Low entry

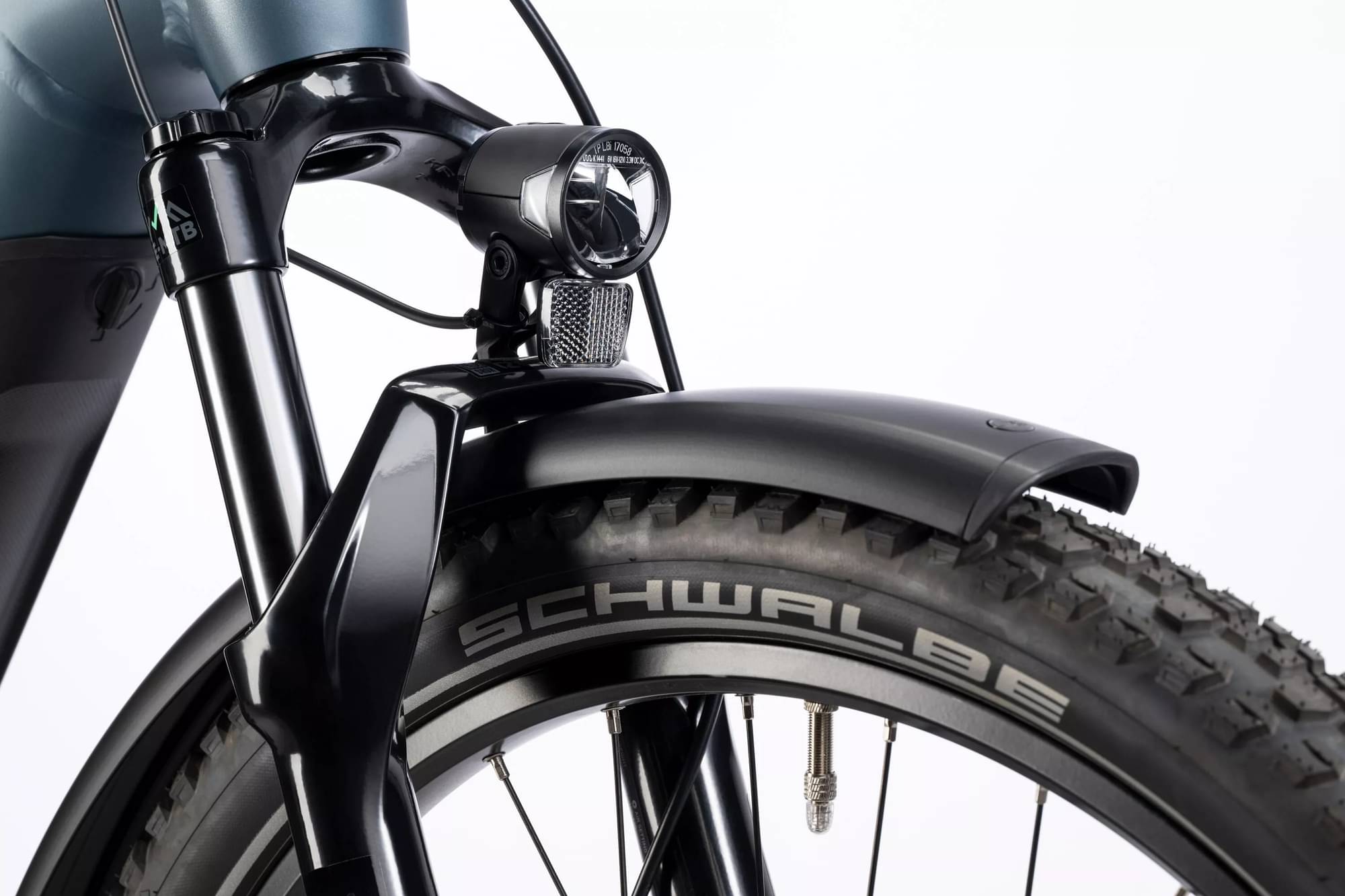

Suspension Fork
Rockshox Recon RL 100 mm

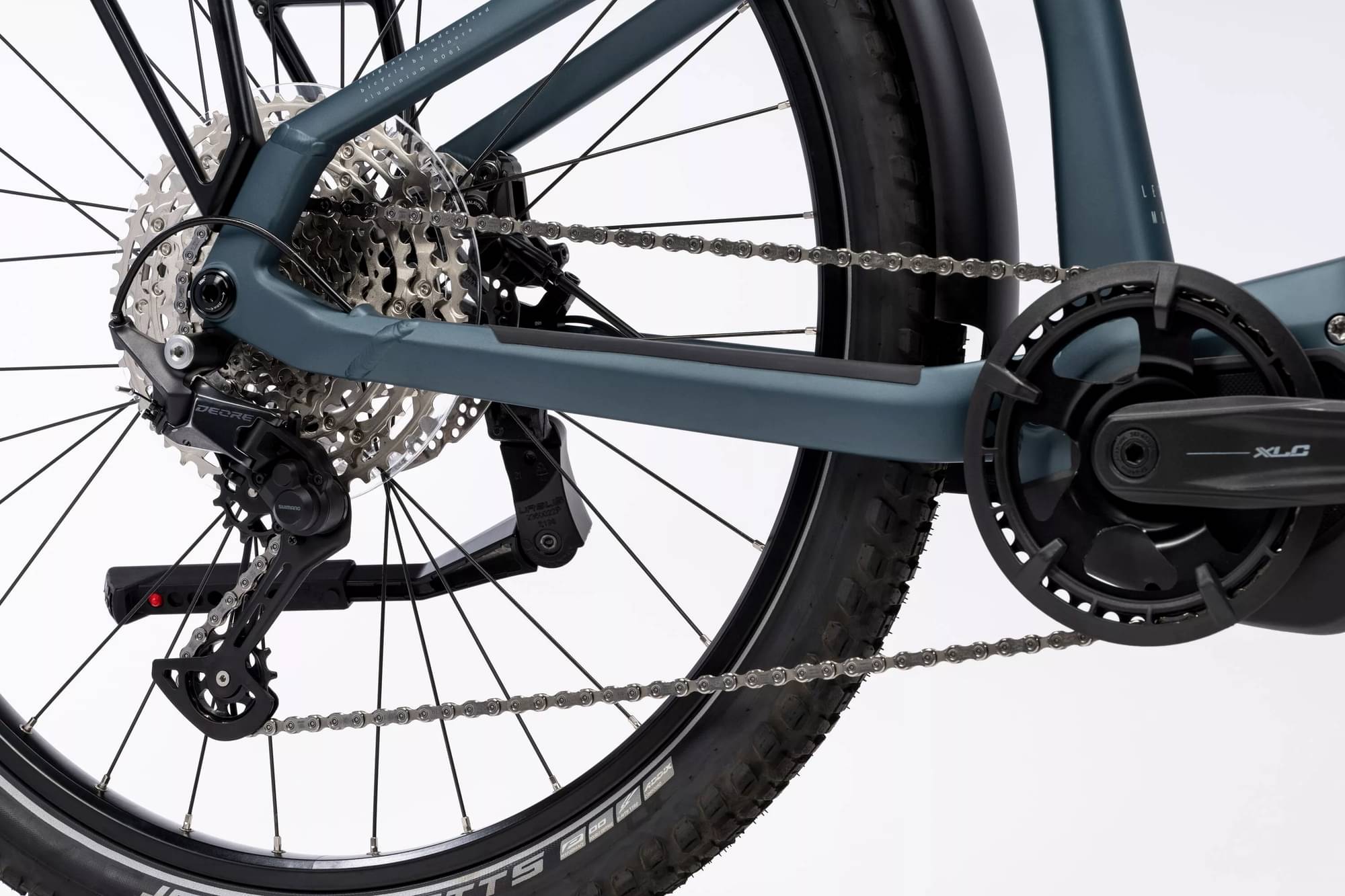

Drivetrain
Rear Derailleur
Shimano Deore RD-M6100, 12s, Shadow+
Shift Levers
Shimano Triggershift Deore SL-M6100-12R, Rapidfire+
Cassette
Shimano Deore CS-M6100-12,MICRO SPLINE
Crank
Miranda Kies ISIS Crankarm 170 mm + Chainring
Chain
Shimano Chain SLX CN-M7100 12s
Pedals
VP VPE-461 MTB Alloy Pedal w. Reflector
Wheels
Front Hub
Shimano HB-TC500-B 15x110 mm, Centerlock
Rear Hub
Shimano HB-MT410-B 12x148 mm, Centerlock
Rims
Schurmann Hollow rim YAK 25 32H with single eyelets
Tires
Schwalbe Johnny Watts REF 60-584
Brakes
Brakes
Shimano Hydraulic Disc brake Deore BR-MT420, 203 mm

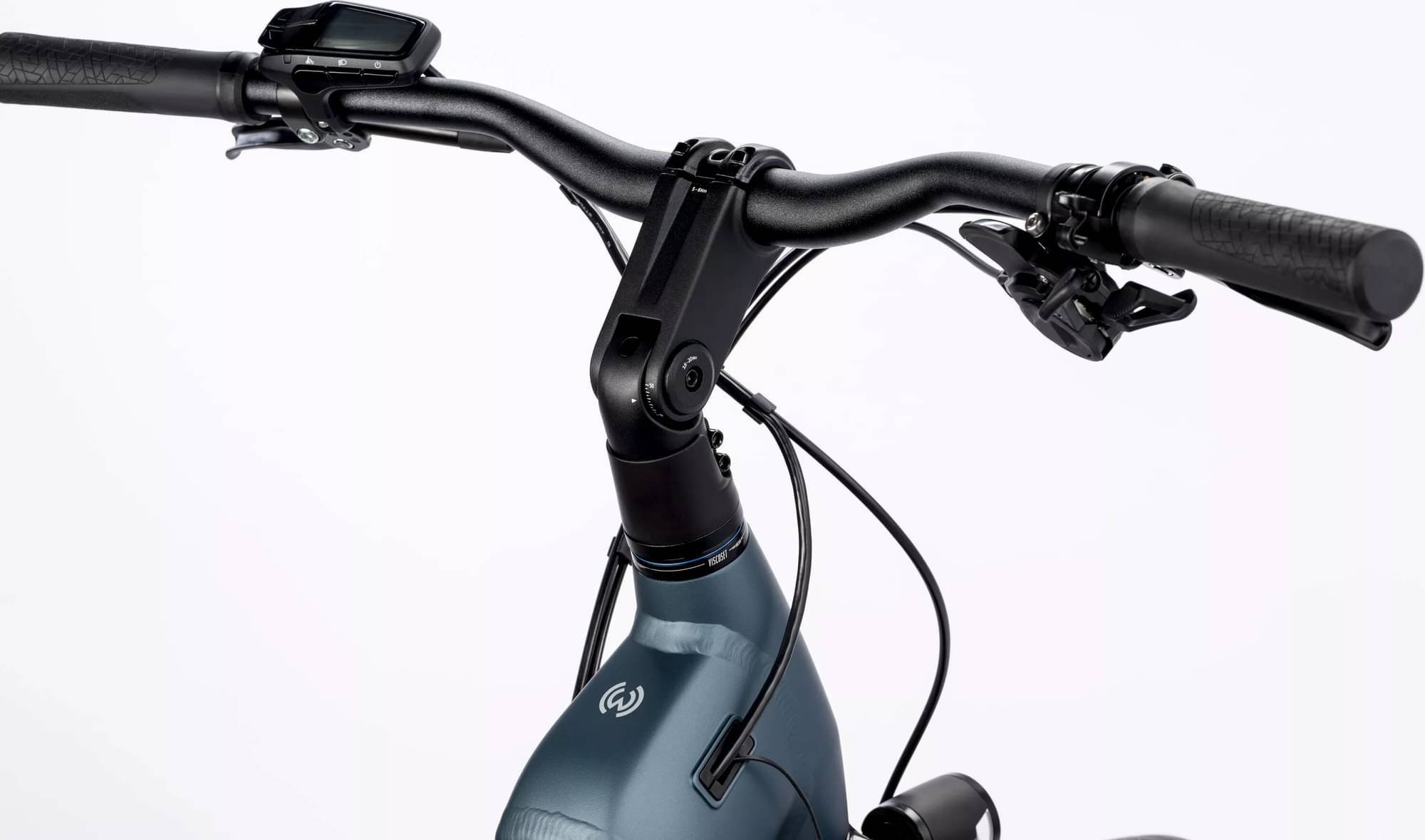

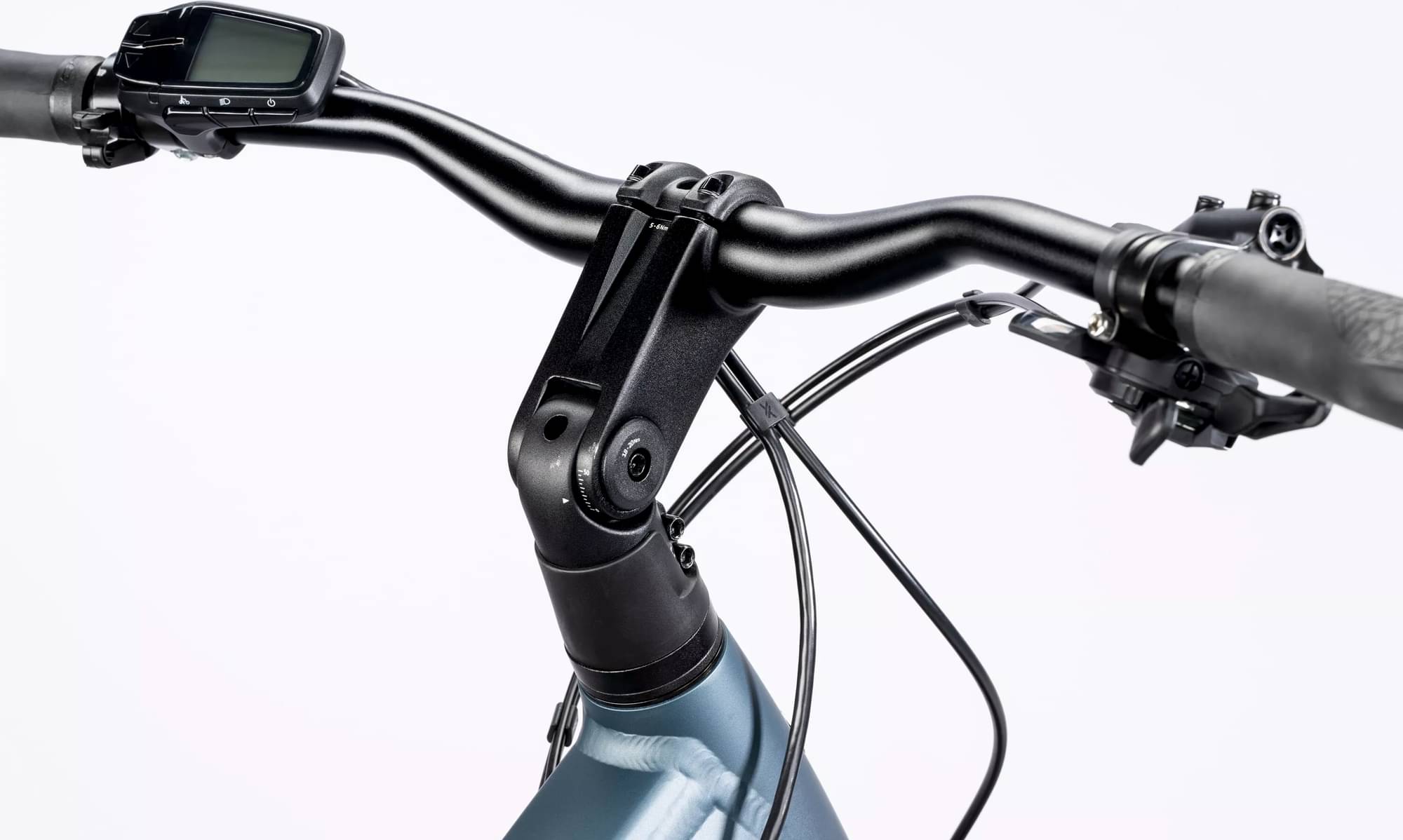

Cockpit
Stem
XLC Adjustable ST99A, Dia. 31.8 mm, L: 80 mm
Handlebar
JD MTB502A Dia. 31.8 mm, Rise: 25 mm
Headset
Cane Creek Viscoset ZS44 + ACROS BlockLock ZS56
Seat
Saddle
Selle Royal Essenza+
Seatpost
JD Non Suspension SP20T.1A, Dia. 34.9 mm, Travel: 400 mm
Motor & Battery

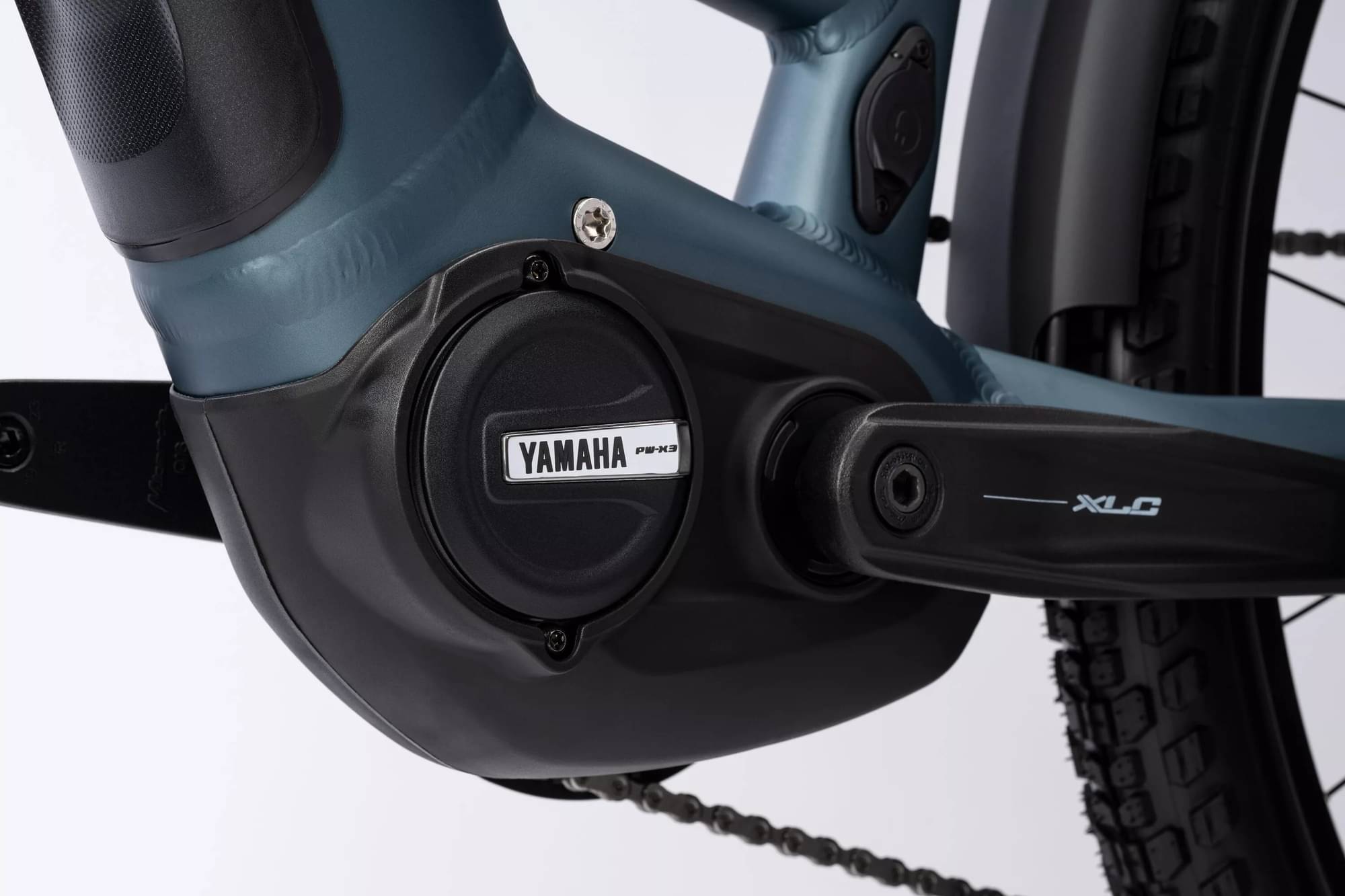

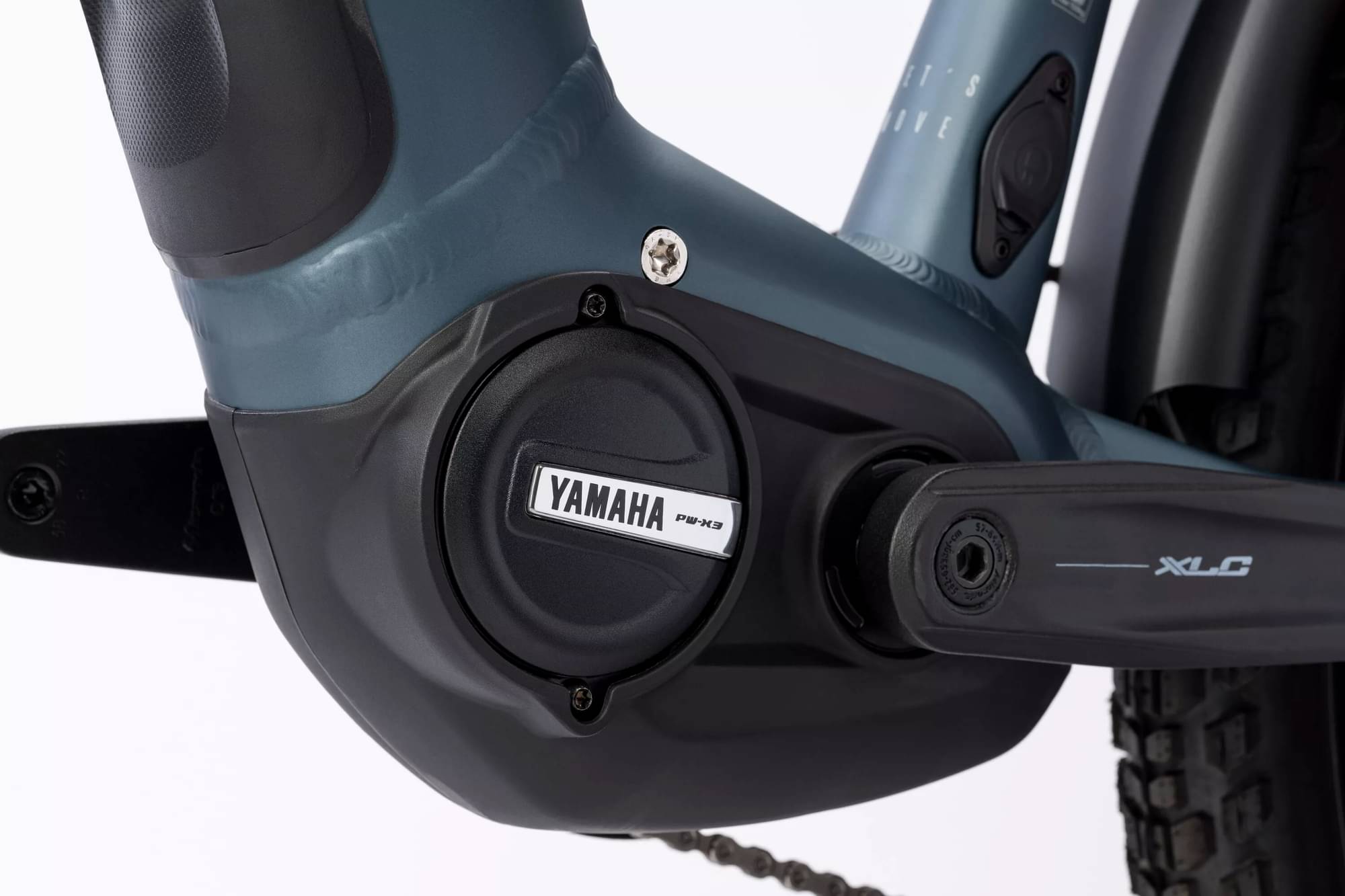

Motor
Yamaha
Battery
Yamaha Li-ION InTube 720 Wh, Capacity: 720 Wh, Location: Powertube
Charger
Yamaha MonoCharger Simplo 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 38cm | 45cm | 50cm |
|---|---|---|---|
| Stack Reach Ratio | 1.565 mm | 1.507 mm | 1.47 mm |
| Front Center | 699 mm | 709 mm | 741 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 80 mm | 90 mm | 89 mm |
| Stack | 659 mm | 663 mm | 682 mm |
| Reach | 421 mm | 440 mm | 464 mm |
| Top Tube Length | 610 mm | 630 mm | 660 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 450 mm | 500 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 150 mm | 155 mm | 175 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1167 mm | 1177 mm | 1209 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 167 cm | 177 cm |
| Rider Max Height | 169 cm | 179 cm | 191 cm |
