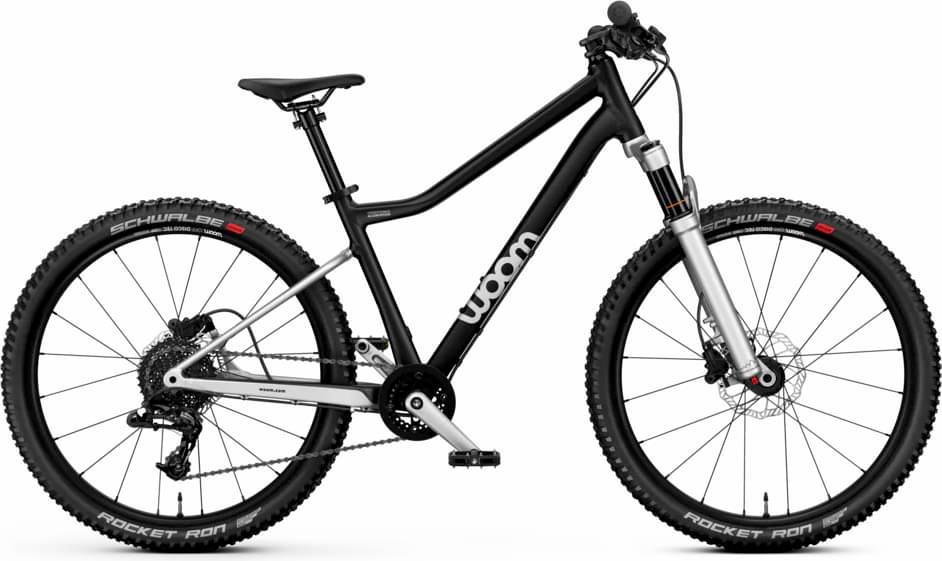

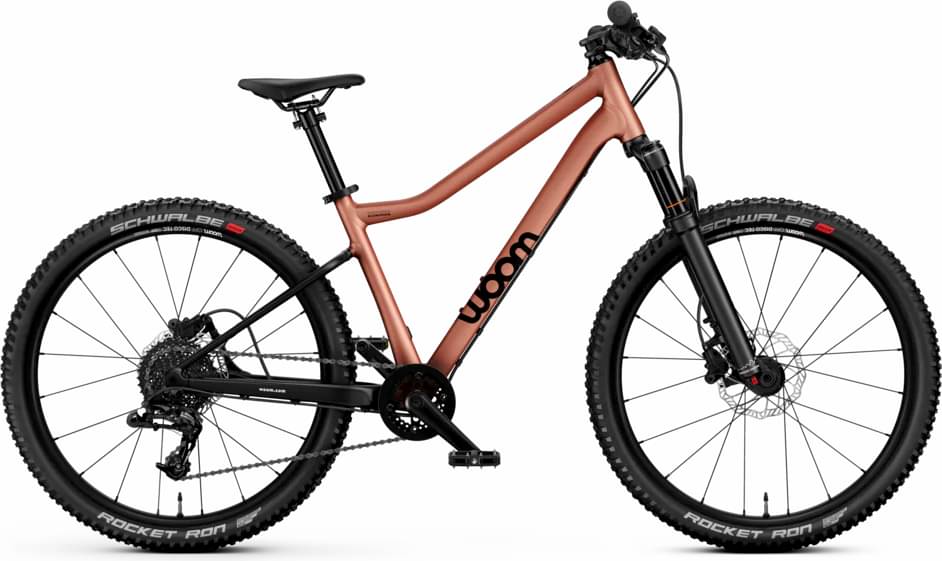

woom OFF AIR 5 2024
2024 Youth
Estimate price |
1,162$
Weight | 10.61 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 80mm -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
One Size
128cm - 145cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Frame material: lightweight, high-quality 6061 T6 aluminum with butted and hydroformed tubes, 24? wheels, Easy-access low top tube to assist dismounting, Long wheelbase and low center of gravity to aid balancing, New, dropper seatpost-ready frame design, Featuring woom-specific molded chainstay protector
Suspension Fork
F1RST hydraulic air suspension fork with 80 mm travel, adjustable compression and rebound damping, plus lock-out, 1 – 1 ?? tapered steerer tube, 100 x 15 mm thru axle, Post mount for disc brake
Wheels
Rims
Tubeless-compatible Alexrims wheelset, Aluminum hubs with sealed industrial bearings, Thru axles for maximum torsional strength (100 x 15 mm front and 135 x 12 mm rear), 20 G14 spokes, double-crossed spoking, Aluminum nipples
Tires
24 x 2.35? Schwalbe Rocket Ron with ADDIX SPEED rubber compound, Quality mountain bike tires with low rolling resistance, maximum grip, good shock absorption and excellent durability, Presta valves, tubeless conversion ready
Brakes
Brakes
Hydraulic disc brakes by Promax, Rotor diameter front/back: 160/160 mm, Ergonomic brake levers designed for children's hands
Cockpit
Stem
Forged aluminum, CNC-machined, Handlebars attached via two clamps, Rise/drop: +/-15° with flip-flop design to adjust handlebar height, Length: 50 mm
Handlebar
Wide, ergonomically adapted and lightweight aluminum bars for more control, Tapered end to fit child’s hand, Sandblasted and silver anodized, Width: 585 mm, Rise: 20 mm
Grips
Child-friendly thanks to small diameter, Single-clamp grip to prevent twisting, Safety zone: extra rubber on palm-facing portion of grip for added comfort, 100% silicone for maximum grip
Headset
Fully integrated 1 – 1 ?? headset, Sealed industrial bearings
Seat
Saddle
Ergonomically designed to fit children's anatomy, Streamlined mountain-bike specific saddle design, Side protection to lean against walls
Seatpost
27.2 x 250 mm, Anodized aluminum seatpost with insertion marks that indicate the minimum insertion depth, Quick-release seatpost clamp
Fit data
Geometry
