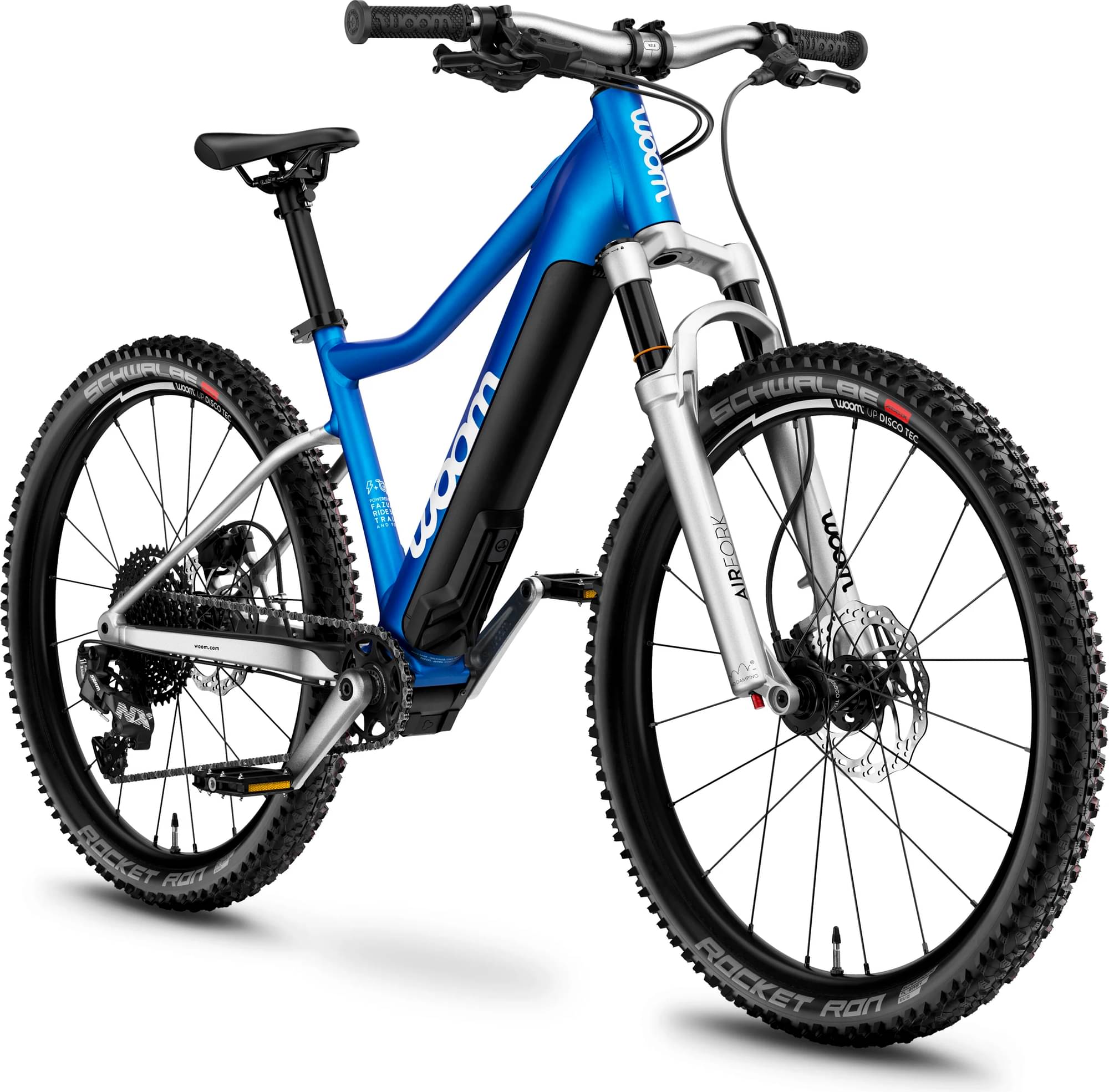

woom UP 5 2024
2024 E-bike
Estimate price |
2,558$
Weight | 15.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 80mm -
Fork RST F1RST
-
Suspension Hardtail -
Motor Fazua 350W 58Nm mid-drive -
Battery Fazua Ride 50 Trail, Up to 350 watt motor output, 250 Wh battery capacity, 58 Nm torque, 25 km/h assistance limit, Three assistance modes, Removable motor and battery unit (3.3 kg), optional down tube cover available from Fazua, Adjustment of various settings using the Fazua Rider app -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
One Size
128cm - 145cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Frame material: lightweight, high-quality 6061 T6 aluminum with butted and hydroformed tubes, 24? wheels, Confidence-inspiring handling: an easy-access low top tube, low center of gravity and long wheelbase provide good balance and make for a fun, safe ride, Dropper-seatpost-compatible, Chainstay protection: hard-wearing plastic protector to prevent damage to paintwork
Suspension Fork
F1RST RST aluminum air-sprung suspension fork, Rebound and compression damping adjustment, plus lockout function, 80 mm travel, 1 1/8?–1? baby taper steerer tube, 100 x 15 mm thru-axle, Post mount for disc brake
Wheels
Rims
Lightweight, tubeless-ready aluminum rims from Alexrims, Aluminum hubs with sealed industrial bearings, Thru-axles for maximum torsional strength (100 x 15 mm front/135 x 12 mm rear), 20 G14 spokes, double-crossed spoking, Aluminum nipples
Tires
24 x 2.35" Schwalbe Rocket Ron, ADDIX SPEED rubber compound and Tubeless Easy technology, Tubeless-ready, Presta valves
Brakes
Brakes
Hydraulic disc brakes by Promax, Rotor diameter front/back: 160/160 mm, Ergonomic brake levers designed for children's hands
Cockpit
Stem
Forged aluminum, CNC-machined, Handlebars attached to stem with two clamps, +/?15° flip-flop design to adjust handlebar height, Length: 50 mm
Handlebar
Wide, lightweight aluminum bars with tapered ends designed for children's hands, Sandblasted and anodized in silver, Width: 585 mm, Rise: 20 mm
Grips
Child-friendly thanks to small diameter, Ultra comfortable thanks to reinforced contact surface for palms, 100% silicone for maximum grip, Lock-on design to eliminate twisting
Headset
Fully integrated 1 1/8?–1? headset, Sealed industrial bearings
Seat
Saddle
MTB-specific saddle, Trail-ready design, Ergonomic and age-appropriate design to fit the rider's pelvis, Side protection for leaning against walls
Seatpost
27.2 x 250 mm, Anodized aluminum seatpost with minimum insertion mark
Motor & Battery
Motor
Fazua Ride 50 Trail, Up to 350 watt motor output, 250 Wh battery capacity, 58 Nm torque, 25 km/h assistance limit, Three assistance modes, Removable motor and battery unit (3.3 kg), optional down tube cover available from Fazua, Adjustment of various settings using the Fazua Rider app
Battery
Fazua Ride 50 Trail, Up to 350 watt motor output, 250 Wh battery capacity, 58 Nm torque, 25 km/h assistance limit, Three assistance modes, Removable motor and battery unit (3.3 kg), optional down tube cover available from Fazua, Adjustment of various settings using the Fazua Rider app
Fit data
Geometry
