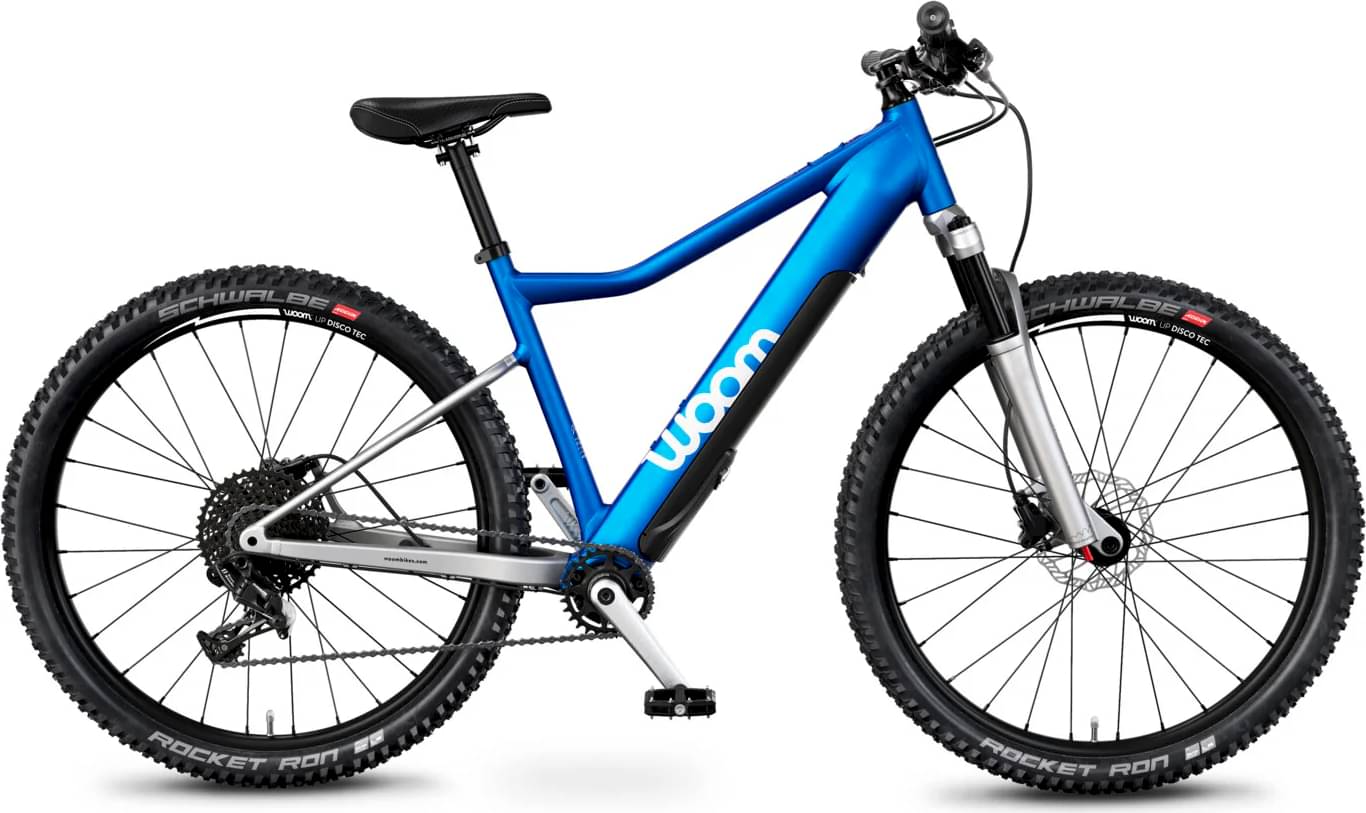

woom UP 6 2024
2024 E-bike
Estimate price |
2,675$
Weight | 16.92 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 90mm -
Suspension Hardtail -
Motor Fazua 250W 55Nm mid-drive -
Battery FAZUA Evation drive system, 250 watt motor output, 250 Wh battery capacity, 55 Nm torque, 12 mph assistance limit, Three support modes, Removable motor and battery unit (7.3 lbs), Pairs with FAZUA Rider app to view bike data including speed, mileage, battery charge, navigation, and more -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
One Size
140cm - 165cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Frame material: lightweight, high-quality 6061 T6 aluminum with butted and hydroformed tubes, 26? wheels, Confidence-inspiring handling: easy-access low top tube, low center of gravity, and long wheelbase
Suspension Fork
Hydraulic air suspension fork with 90 mm travel, adjustable compression and rebound damping, plus lock-out, 1 ?? – 1? baby taper shaft, 100 x 15 mm thru axle, Post mount for disc brake
Wheels
Rims
Superlight woom OFF DISCO TEC double-chamber aluminum rims, Aluminum hubs with sealed industrial bearings, Thru axles for maximum torsional strength (100 x 15 mm front / 135 x 12 mm rear), 28 G14 spokes, triple-crossed lacing, Aluminum nipples
Tires
26 x 2.35? Schwalbe Rocket Ron with ADDIX SPEED rubber compound, Quality MTB tires with low rolling resistance, maximum grip, good shock absorption, and excellent durability, Schrader valves compatible with most standard bike pumps
Brakes
Brakes
Hydraulic disc brakes by Promax, Rotor diameter (front/back): 160/140 mm, Ergonomic brake levers designed for children's hands
Cockpit
Stem
Forged aluminum, CNC-machined, Handlebars attached via two clamps, +/-15° flip-flop design to adjust handlebar height, Length: 50 mm
Handlebar
Wide, ergonomically adapted, and lightweight aluminum bars for more control, Sandblasted and silver anodized, Width: 680 mm, Rise: 20 mm
Grips
Child-friendly thanks to small diameter, 100% silicone for maximum grip, Non-toxic, Screwed-in end plugs
Headset
Fully integrated 1 ?? – 1? headset, Sealed industrial bearings
Seat
Saddle
Ergonomically designed to fit children's biomechanics, Non-toxic, Side protection to lean against walls
Seatpost
27.2 x 300 mm, Anodized aluminum, Marks indicate minimum insertion depth
Motor & Battery
Motor
FAZUA Evation drive system, 250 watt motor output, 250 Wh battery capacity, 55 Nm torque, 12 mph assistance limit, Three support modes, Removable motor and battery unit (7.3 lbs), Pairs with FAZUA Rider app to view bike data including speed, mileage, battery charge, navigation, and more
Battery
FAZUA Evation drive system, 250 watt motor output, 250 Wh battery capacity, 55 Nm torque, 12 mph assistance limit, Three support modes, Removable motor and battery unit (7.3 lbs), Pairs with FAZUA Rider app to view bike data including speed, mileage, battery charge, navigation, and more
Fit data
Geometry
