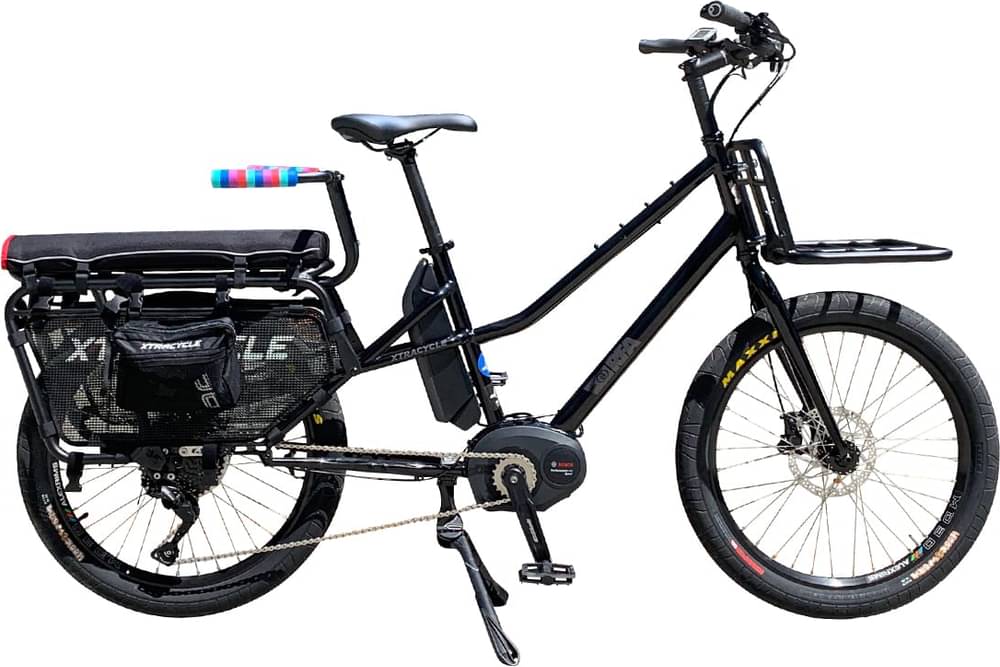

Xtracycle RFA 2019
2019 E-bike
Estimate price |
5,512$
Weight | 29.02 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 24" -
Groupset Deore, FSA -
Suspension Rigid -
Motor Bosch 250W 75Nm mid-drive -
Battery Weight: 6.3 lbs (2.85 kg) (12.6lbs Total with Optional Second PowerPack 500), Brand: Bosch PowerPack 500, Voltage: 36 volts, Amp Hours: 13.4 ah (Optional 26.8ah with Second Battery), Watt Hours: 482.4 wh (Optional 964.8wh with Second Battery), Chemistry: Lithium-ion -
Drivetrain 1 × 10 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Chromoly Steel
Suspension Fork
Rigid Chromoly Steel, 100mm Hub Spacing, 15mm Threaded Thru-Axle with T40 Torx Bolts
Drivetrain
Shift Levers
Shimano Deore SL-T6000 Rapidfire Triggers on Right (Two-Way High, Three-Shift Low)
Cassette
10 Speed 1x10 Shimano Deore RD-M6000 Derailleur with Shadow+, SunRace Fluid Drive Plus Cassette 11-42 Tooth
Crank
FSA CK-762, Aluminum Alloy, 170mm Length Crank Arms, 20 Tooth Chainring with Plastic Guard
Pedals
VP-535, Plastic Platform with Fixed Pins
Wheels
Rims
Alexrims MD30, Double Wall, 30mm Inner Width, 36 Hole, Reinforcement Eyelets
Spokes
Stainless Steel, 14 Gauge, Black with Brass Nipples
Tires
Maxxis Hookworm, 24" x 2.5" (61-507)
Cockpit
Stem
Promax, 60mm or 90mm or 120mm Length, 7° Rise, 31.8mm Clamp Diameter, Two 5mm Spacer, One 10mm Spacer, Three 30mm Spacers
Handlebar
Xtracycle Comfort, Aluminum Alloy, Swept Back, 660mm Length
Grips
Ergon GP1, Ergonomic, Locking, All-Black
Headset
FSA Mallet, External Cups, Straight 1-1/8"
Seat
Saddle
Xtracycle Branded Comfort Saddle
Seatpost
Aluminum Alloy
Motor & Battery
Motor
Weight: 8.8 lbs (3.99 kg), Brand: Bosch Performance Line Speed (Optional Performance Line or Performance Line CX), Type: Mid-Mounted Geared Motor, Nominal Output: 250 watts, Peak Output: 600 watts, Torque: 63 Newton meters
Battery
Weight: 6.3 lbs (2.85 kg) (12.6lbs Total with Optional Second PowerPack 500), Brand: Bosch PowerPack 500, Voltage: 36 volts, Amp Hours: 13.4 ah (Optional 26.8ah with Second Battery), Watt Hours: 482.4 wh (Optional 964.8wh with Second Battery), Chemistry: Lithium-ion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 35cm |
|---|---|
| Wheels | 24" |
| Rider Min Height | 120 cm |
Model Overview
RFA is a Xtracycle E Rfa model. There is 1 e-bike that carries this model name.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Utility e-bikes
Our math shows that the average cost of a dependable Utility e-bike is 3636$. However, even though the average price of an Utility e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
This e-bike was released in 2019 and its price was 5512$. Doing a quick comparison, we notice that RFA price is 51.6% more expensive than the average cost of an Utility e-bike.
Utility e-bikes average weight
Utility e-bikes have an average weight of 34.2 kg (75.4 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
RFA weighs 29.02 kg (63.98 lbs) and is much lighter than the average. In conclusion, the average Utility e-bike weighs 17.85% more than RFA.
Overview of components
Fork material
The fork on this e-bike is made out of steel, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the e-bike.
Wheels size
As for the wheels, Xtracycle RFA 2019, has a 24″ aluminum model. This wheel size is used on bike models like BMX, children, or folding bikes. In conclusion, they are great for flat ground or very easy trails.
Brakes
When you want to stop the bike in time, the brakes are vital. The RFA has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, you could spend a little extra and get a bike that has hydraulic brakes.
