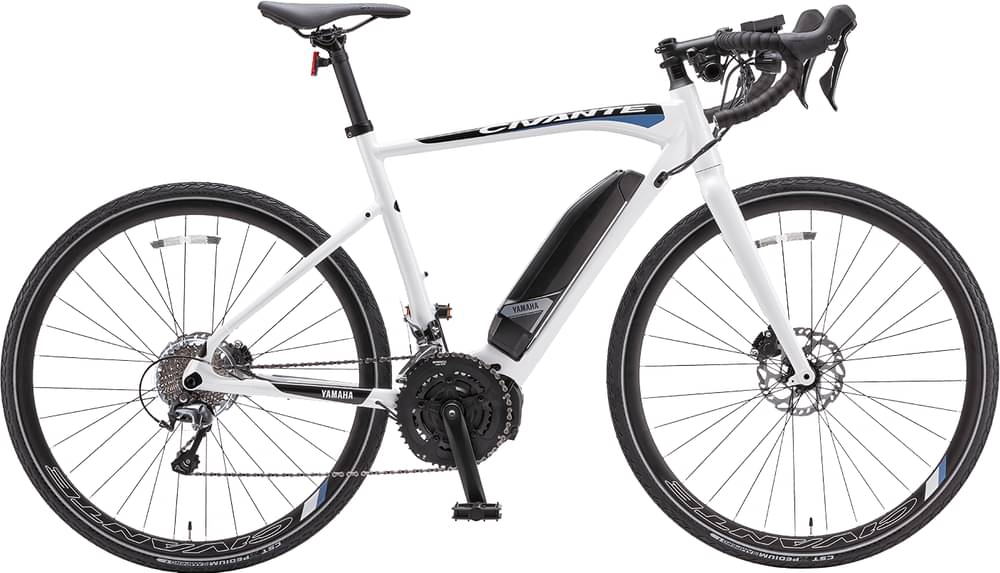

Yamaha Civante 2021
2021 E-bike
Estimate price |
3,399$
Weight | 19.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Tiagra -
Suspension Rigid -
Motor 250W 70Nm hub-drive -
Battery Yamaha 500Wh with Charge-life indicator and Self-diagnosis display. Side-exiting dock station with anti-vibration mounting plate, Weight 6.61lb, 500Wh 36V, 4-hour charge time -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Yamaha hydroformed and butted alluminum tubing, Internal cable/housing routing, Accessory mount, Fender and Rack compatible, 3-bolt motor mount, 12 x 142 rear spacing, Integrated speed sensor harness
Suspension Fork
Alloy, 12mm thru-axle, fender compatible, internal cable housing routed, 1 1/8in steerer
Drivetrain
Rear Derailleur
Shimano Tiagra GS 10-Speed
Front Derailleur
Shimano Tiagra (2 x 10) Braze-on
Shift Levers
Shimano Tiagra Hydraulic Disc Brake Dual Control Lever 2x10
Cassette
Shimano 11/32T
Crank
50/34T E-Ring 110 BCD, Square taper, 165mm (53cm), 170mm (55cm and 58cm)
Chain
KMC e10 Sport
Wheels
Front Hub
Anodized, Centerlock brake mount, front hub 12 x 100 TA, rear hub 12 x 142 Shimano freehub and Yamaha Bicycles Speed Sensor
Rear Hub
Anodized, Centerlock brake mount, front hub 12 x 100 TA, rear hub 12 x 142 Shimano freehub and Yamaha Bicycles Speed Sensor
Rims
700c Alloy aero rim 27mm depth, Rim width: 22.2mm (OUTSIDE) 17mm (INSIDE)
Spokes
Spokes SUS304
Tires
CST XPEDIUM AMPERO 700 x 35c Level-5 Flat Protection Reflective Sidewall approved for eBike use, PV Tube
Brakes
Brakes
Shimano Tiagra Hydraulic Disc 160mm SM-RT68 Centerlock Rotor
Cockpit
Stem
Yamaha Alloy 4-bolt faceplate, 31.8 diameter, 80mm length (53cm, 55cm), 100mm length (58cm)
Handlebar
Alloy drop bar, 31.8mm diameter, 40cm width (53cm), 42cm (55cm and 58cm)
Headset
Integrated headset with 30mm headset spacers
Seat
Saddle
Yamaha Road Plus Cro-Mo Rail
Motor & Battery
Motor
PWSeries SE, Center mount, Square taper spindle, Triple Sensor System with integrated speed sensor as part of rear hub, Weight: 7.71lb, Rated power: 250W (Nominal), 500W (Max), Max torque: 70Nm, Max cadence support: 110rpm, Max speed support: 28mph, Support modes: ECO+, ECO, STANDARD, HIGH
Battery
Yamaha 500Wh with Charge-life indicator and Self-diagnosis display. Side-exiting dock station with anti-vibration mounting plate, Weight 6.61lb, 500Wh 36V, 4-hour charge time
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.42 mm | 1.42 mm |
| Bottom Bracket Height | 275 mm | 275 mm | 275 mm |
| Front Center | 591 mm | 603 mm | 616 mm |
| Rake | 45 mm | 45 mm | 45 mm |
| Trail | 69 mm | 63 mm | 60 mm |
| Stack | 544 mm | 551 mm | 568 mm |
| Reach | 369 mm | 388 mm | 401 mm |
| Top Tube Length | 526 mm | 546 mm | 576 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73 ° |
| Seat Tube Length | 430 mm | 463 mm | 530 mm |
| Head Tube Angle | 71 ° | 72 ° | 72.5 ° |
| Head Tube Length | 130 mm | 135 mm | 150 mm |
| Chainstay Length | 451 mm | 451 mm | 451 mm |
| Wheelbase | 1035 mm | 1047 mm | 1060 mm |
| Bottom Bracket Drop | 61 mm | 61 mm | 61 mm |
| Standover Height | 721 mm | 747 mm | 793 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
Civante is part of the Yamaha E Civante model. 3 e-bikes variations carry this model name so far.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Endurance e-bikes
According to our math, the average price for a trustworthy Endurance e-bike is 3800$. However, you could also get a good Endurance e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2021 for 3399$. Comparing this to the average Endurance e-bike price, we see that the price is 11.8% lower.
Endurance e-bikes average weight
If we make a quick analysis of the average weight of an Endurance e-bike, we get 13.52 kg (29.81 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 19.5 kg (42.99 lbs), the Civante model is much heavier than average. In conclusion, the average Endurance e-bike weighs 44.23% less than Civante.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Civante components
Fork material
When it comes to the fork, this e-bike has an aluminum one, which doesn’t add too much extra weight to the e-bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
The wheels on Civante are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Yamaha Civante is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Yamaha Civante e-bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
