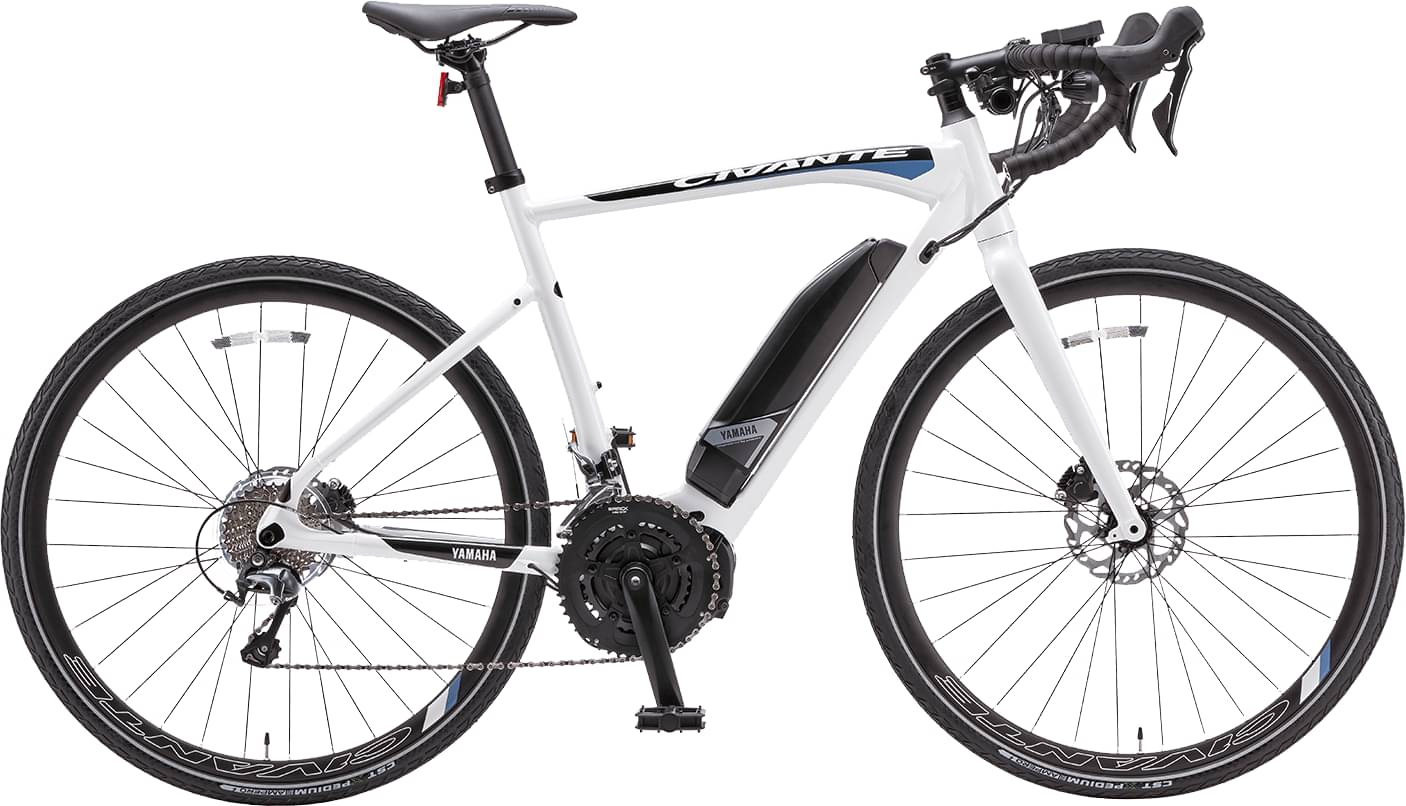

Yamaha Civante 2022
2022 E-bike
Estimate price |
3,399$
Weight | 19.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Groupset Tiagra -
Suspension Rigid -
Motor 250W 70Nm mid-drive -
Battery Yamaha 500Wh with Charge-life indicator and Self-diagnosis display. Side-exiting dock station with anti-vibration mounting plate, Weight 6.61lb, 500Wh 36V, 4-hour charge time -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Yamaha hydroformed and butted alluminum tubing, Internal cable/housing routing, Accessory mount, Fender and Rack compatible, 3-bolt motor mount, 12 x 142 rear spacing, Integrated speed sensor harness
Suspension Fork
Alloy, 12mm thru-axle, fender compatible, internal cable housing routed, 1 1/8in steerer
Drivetrain
Rear Derailleur
Shimano Tiagra GS 10-Speed
Front Derailleur
Shimano Tiagra (2 x 10) Braze-on
Shift Levers
Shimano Tiagra Hydraulic Disc Brake Dual Control Lever 2x10
Cassette
Shimano 11/32T
Crank
50/34T E-Ring 110 BCD, Square taper, 165mm (53cm), 170mm (55cm and 58cm)
Chain
KMC e10 Sport
Wheels
Front Hub
Anodized, Centerlock brake mount, front hub 12 x 100 TA, rear hub 12 x 142 Shimano freehub and Yamaha Bicycles Speed Sensor
Rear Hub
Anodized, Centerlock brake mount, front hub 12 x 100 TA, rear hub 12 x 142 Shimano freehub and Yamaha Bicycles Speed Sensor
Rims
700c Alloy aero rim 27mm depth, Rim width: 22.2mm (OUTSIDE) 17mm (INSIDE)
Spokes
Spokes SUS304
Tires
CST XPEDIUM AMPERO 700 x 35c Level-5 Flat Protection Reflective Sidewall approved for eBike use, PV Tube
Brakes
Brakes
Shimano Tiagra Hydraulic Disc 160mm SM-RT68 Centerlock Rotor
Cockpit
Stem
Yamaha Alloy 4-bolt faceplate, 31.8 diameter, 80mm length (53cm, 55cm), 100mm length (58cm)
Handlebar
Alloy drop bar, 31.8mm diameter, 40cm width (53cm), 42cm (55cm and 58cm)
Headset
Integrated headset with 30mm headset spacers
Seat
Saddle
Yamaha Road Plus Cro-Mo Rail
Seatpost
Alloy 30.9 x 260mm (S), 315mm (M), 350mm (L) with 2-bolt adjustable tilt saddle rail clamp
Motor & Battery
Motor
PWSeries SE, Center mount, Square taper spindle, Triple Sensor System with integrated speed sensor as part of rear hub, Weight: 7.71lb, Rated power: 250W (Nominal), 500W (Max), Max torque: 70Nm, Max cadence support: 110rpm, Max speed support: 28mph, Support modes: ECO+, ECO, STANDARD, HIGH
Battery
Yamaha 500Wh with Charge-life indicator and Self-diagnosis display. Side-exiting dock station with anti-vibration mounting plate, Weight 6.61lb, 500Wh 36V, 4-hour charge time
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.42 mm | 1.42 mm |
| Bottom Bracket Height | 275 mm | 275 mm | 275 mm |
| Front Center | 591 mm | 603 mm | 616 mm |
| Rake | 45 mm | 45 mm | 45 mm |
| Trail | 69 mm | 63 mm | 60 mm |
| Stack | 544 mm | 551 mm | 568 mm |
| Reach | 369 mm | 388 mm | 401 mm |
| Top Tube Length | 526 mm | 546 mm | 576 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73 ° |
| Seat Tube Length | 430 mm | 463 mm | 530 mm |
| Head Tube Angle | 71 ° | 72 ° | 72.5 ° |
| Head Tube Length | 130 mm | 135 mm | 150 mm |
| Chainstay Length | 451 mm | 451 mm | 451 mm |
| Wheelbase | 1035 mm | 1047 mm | 1060 mm |
| Bottom Bracket Drop | 61 mm | 61 mm | 61 mm |
| Standover Height | 721 mm | 747 mm | 793 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
Civante is a Yamaha E Civante model. Yamaha launched 3 e-bikes of this model so far.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Endurance e-bikes
According to our calculations, the average cost of an Endurance e-bike that is reliable is 3800$. However, even though the average price of an Endurance e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
When Yamaha released this model in 2022, its price was 3399$. If we compare this with the average Endurance e-bike cost we notice that the price is 11.8% lower.
Average weight for Endurance e-bikes
The average weight for Endurance e-bikes is 13.52 kg (29.81 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
much heavier than average, Civante has a weight of 19.5 kg (42.99 lbs). In other words, this model is 44.23% heavier than the average Endurance e-bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
The fork is made out of aluminum, so there won’t be much extra weight added to the e-bike. However, they are not so stiff as carbon forks are.
Wheels
As for the wheels, Yamaha Civante 2022, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Yamaha Civante is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
