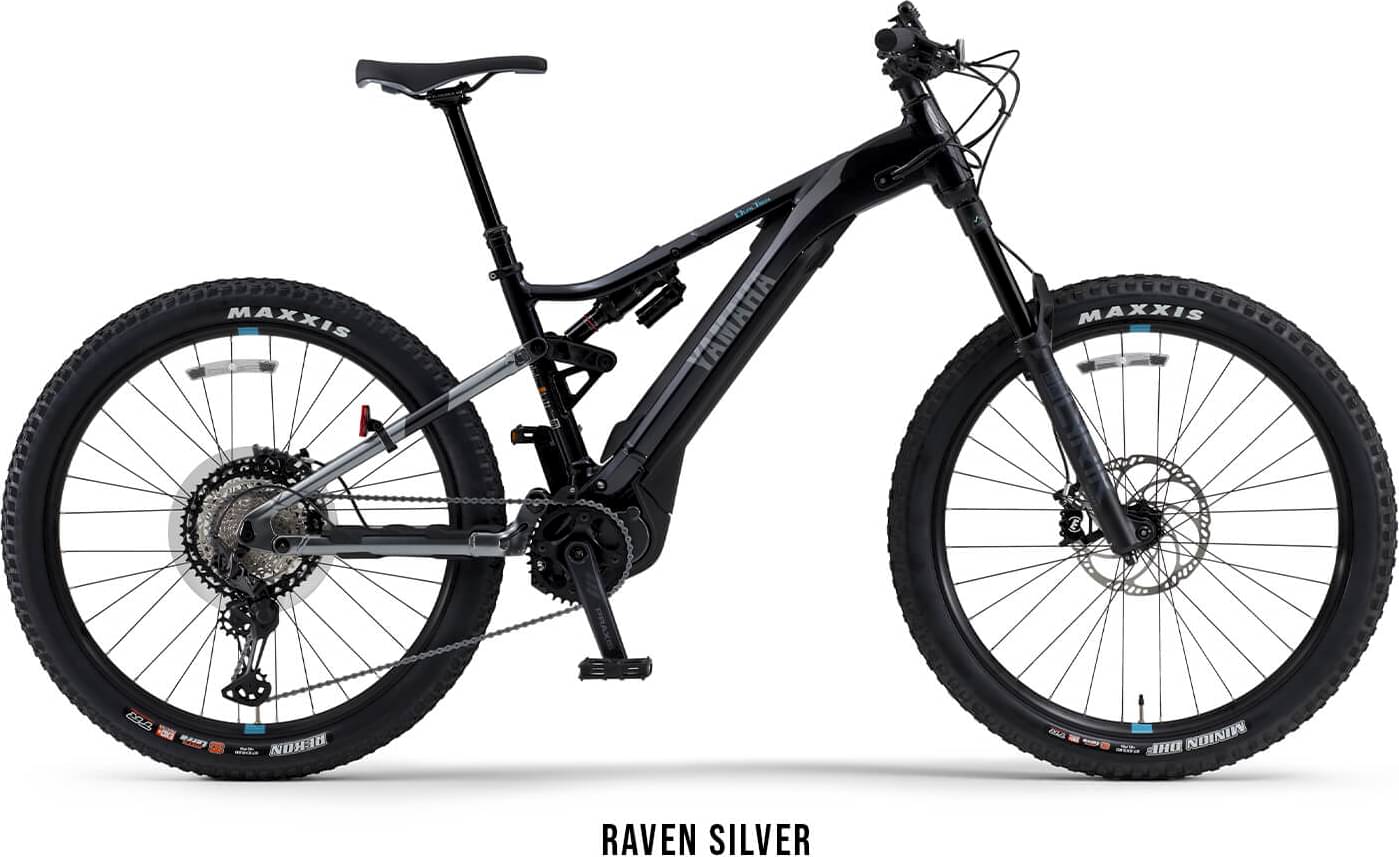

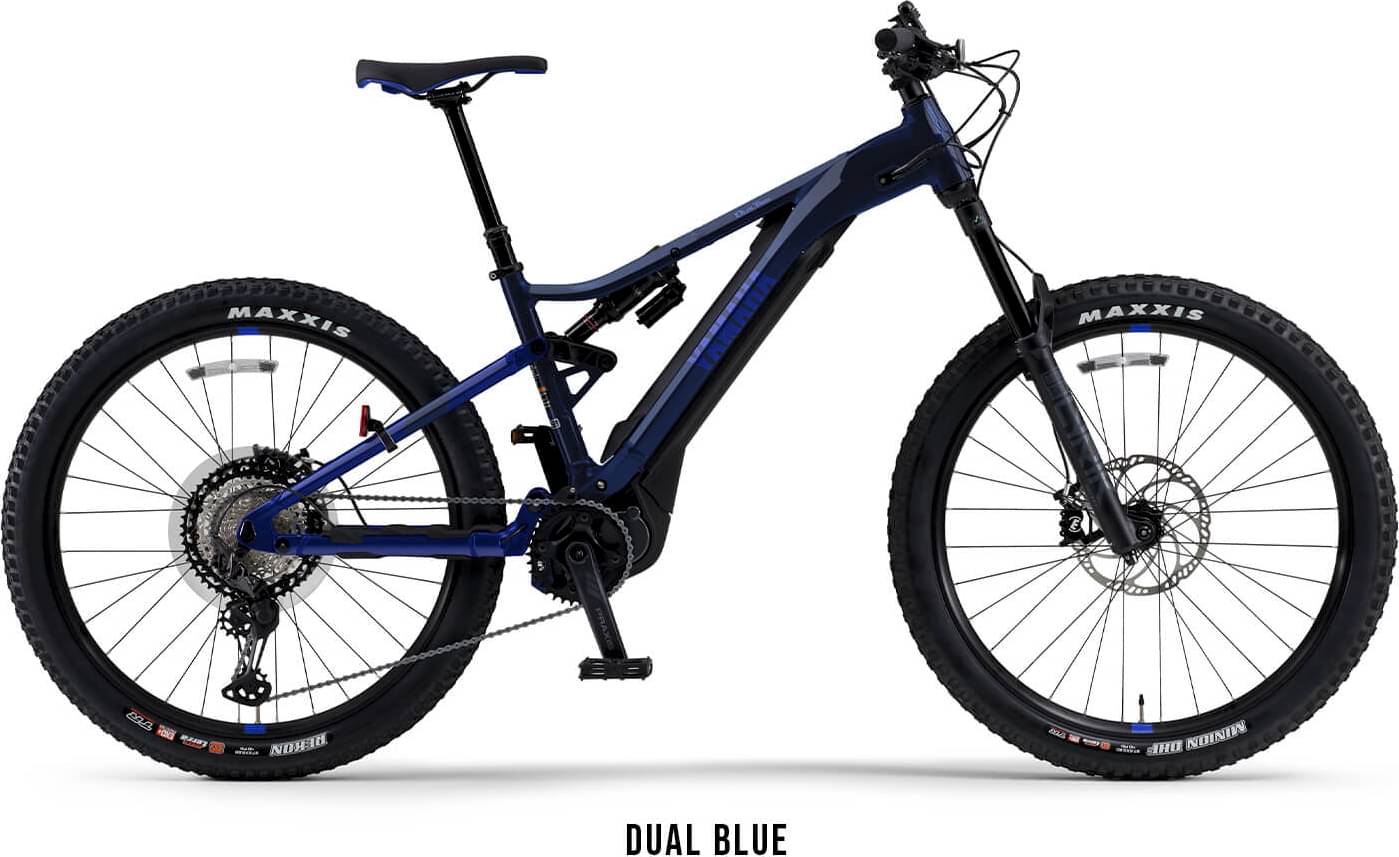

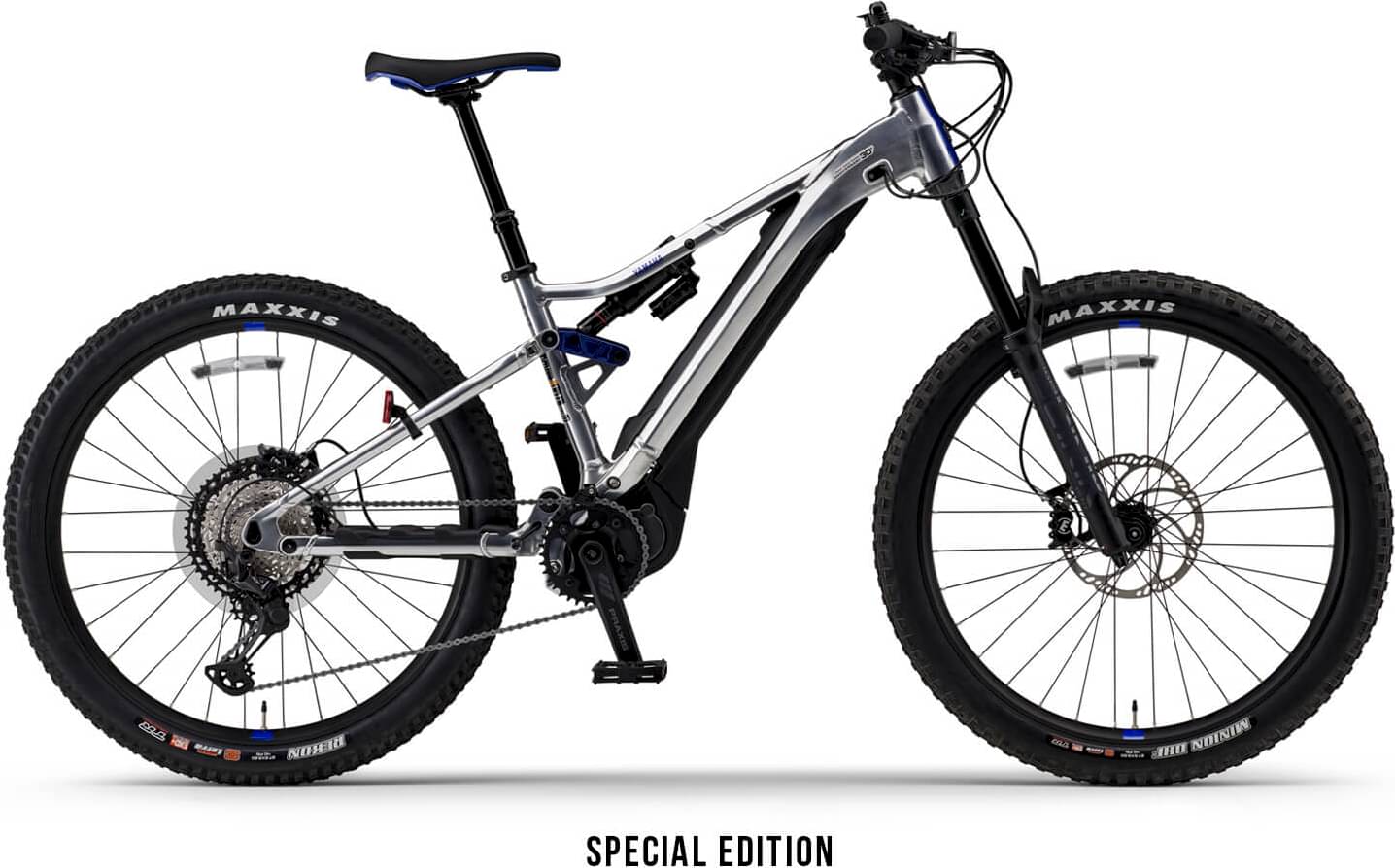

Yamaha YDX-Moro 07 2024
2024 E-bike
Estimate price |
6,399$
Weight | 23.27 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox Lyrik Select
-
Groupset XT -
Suspension Full -
Motor Yamaha 250W 85Nm mid-drive -
Battery Yamaha 500Wh with Charge-life indicator and Self-diagnosis display, Anti-Vibration Mounting Plate, Weight: 6.61 lbs, 500Wh 36V, Re-charge time: 1-hour 80%, 4-hour 100% -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
YAMAHA Dual Twin Frame, Tapered Headtube, Internal cable/housing routing, 2-bolt drive unit mount, 12x148 rear axle spacing, Integrated YAMAHA speed sensor harness
Suspension Fork
ROCKSHOX LYRIK SELECT, 160mm TRAVEL, 35mm Stanchions, Charger RC damper with Low-speed Compression and Reboundadjust, Compatible with RockShox premium short fender, Upgradeable to new Pressure Relief Values via RockShox
Rear Shock
ROCKSHOX SUPER DELUXE SELECT +, Custom tuned for YAMAHA YDX-MORO 07, 150mm travel, 210X55mm DebonAir+ air spring with 15 clicks of rebound adjustment, 2-position compression adjustment
Drivetrain
Rear Derailleur
Shimano XT RD-M8100-SGS
Front Derailleur
N/A
Shift Levers
Shimano XT SL-M8100-R
Cassette
Shimano XT CS-M8100-12, 12-spd (10-51T)
Crank
PRAXIS 36T
Chain
KMC eTURBO EPT 122 links
Wheels
Front Hub
Anodized Alloy, Centerlock brake mount, 15x110mm BOOST+ (front), 12x148mm MicroSpline freehub, Quick Release Thru Axle Type
Rear Hub
Anodized Alloy, Centerlock brake mount, 15x110mm BOOST+ (front), 12x148mm MicroSpline freehub, Quick Release Thru Axle Type
Rims
YAMAHA 27.5+ Alloy, Tubeless tape installed, Width: 46mm (outside) 40mm (inside)
Spokes
14g alloy SUS304
Tires
MAXXIS 27.5X2.6, (F) MINION DHF (R) REKON
Brakes
Brakes
MAGURA MT5 4-PISTON F/R 203MM CENTERLOCK ROTOR (F/R), Single-Finger lever
Cockpit
Stem
Alloy 4-both faceplate, 35.0 diameter, 40mm length
Handlebar
Alloy, 35.0 diameter, 780mm width, 30mm rise
Grips
VELO Single Ring Lock
Headset
Integrated tapered 1 1/8” - 1 1/2” (30mm of spacers)
Seat
Saddle
YAMAHA anti-slip finish with hand rail tail
Seatpost
TRANS-X dropper post 30.9 dia. TRAVEL (S) 125mm (M) 150mm (L) 170m
Motor & Battery
Motor
YAMAHA PW-X3 Class 1 Labeled, Centermount, ISIS Splined Crankarm Spindle, YAMAHA Quad Sensor with Automatic Support and Walk Assist Modes, Rate power: 250W (nominal), 500W (maximum), Max torque: 85Nm, Max speed support: 20MPH, Support Modes: ECO, Standard, High, MTB, Extra-Power, Automatic, Walk Assist
Battery
Yamaha 500Wh with Charge-life indicator and Self-diagnosis display, Anti-Vibration Mounting Plate, Weight: 6.61 lbs, 500Wh 36V, Re-charge time: 1-hour 80%, 4-hour 100%
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.567 mm | 1.43 mm | 1.305 mm |
| Stack | 616 mm | 625 mm | 629 mm |
| Reach | 393 mm | 437 mm | 482 mm |
| Top Tube Length | 572 mm | 619 mm | 666 mm |
| Seat Tube Angle | 70.3 ° | 70.3 ° | 70.3 ° |
| Head Tube Angle | 66.3 ° | 66.3 ° | 66.3 ° |
| Head Tube Length | 110 mm | 120 mm | 125 mm |
| Standover Height | 741 mm | 751 mm | 759 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
