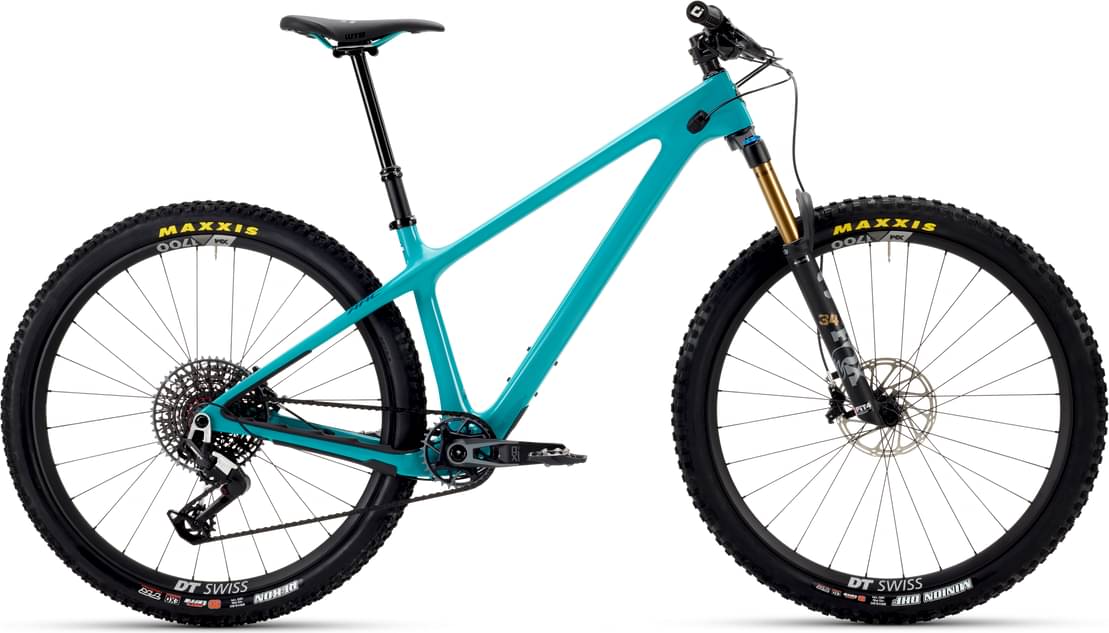

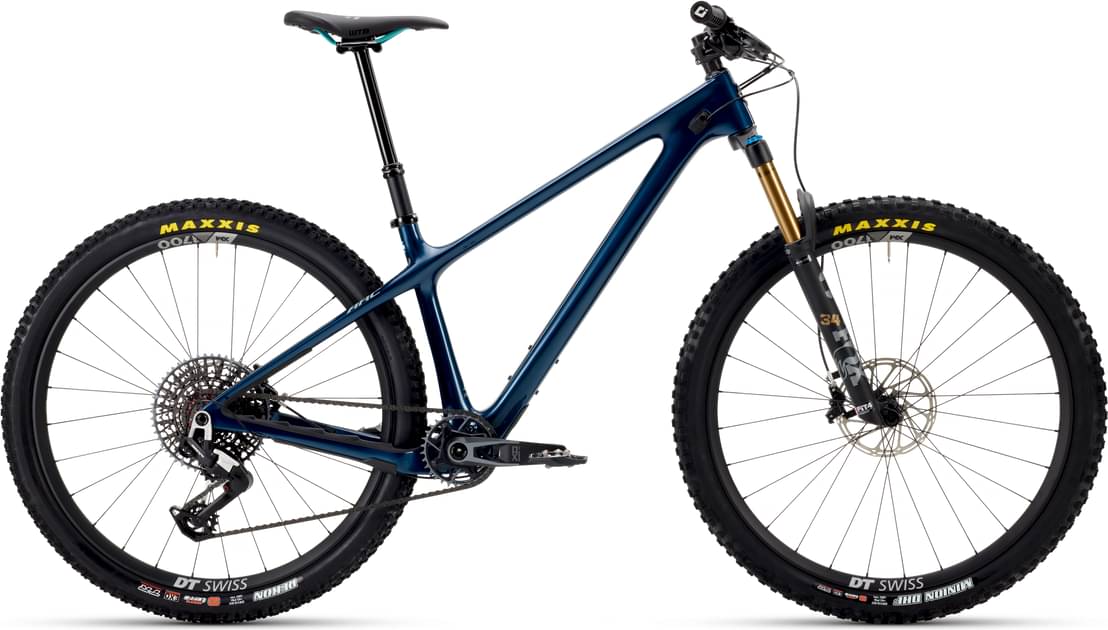

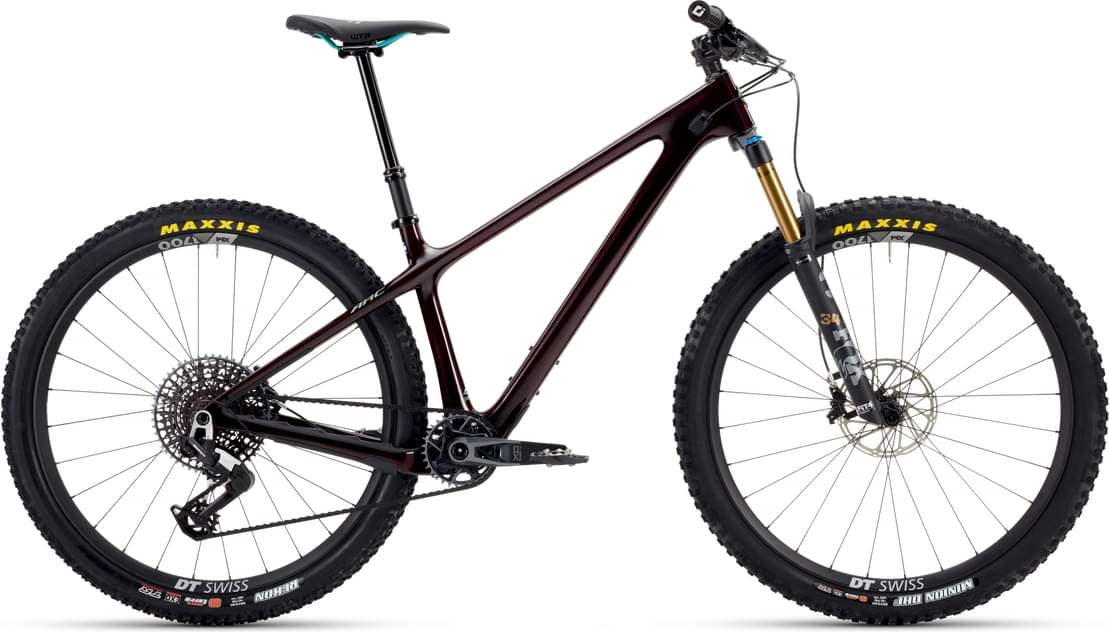

Yeti ARC T2 X0/90 TRANSMISSION 2026
2026 Mountain
Estimate price |
5,500$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 130mm -
Fork Fox Factory Float 34
-
Groupset X0 Eagle Transmission, Eagle 90 Transmission -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes SRAM G2 RSC Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

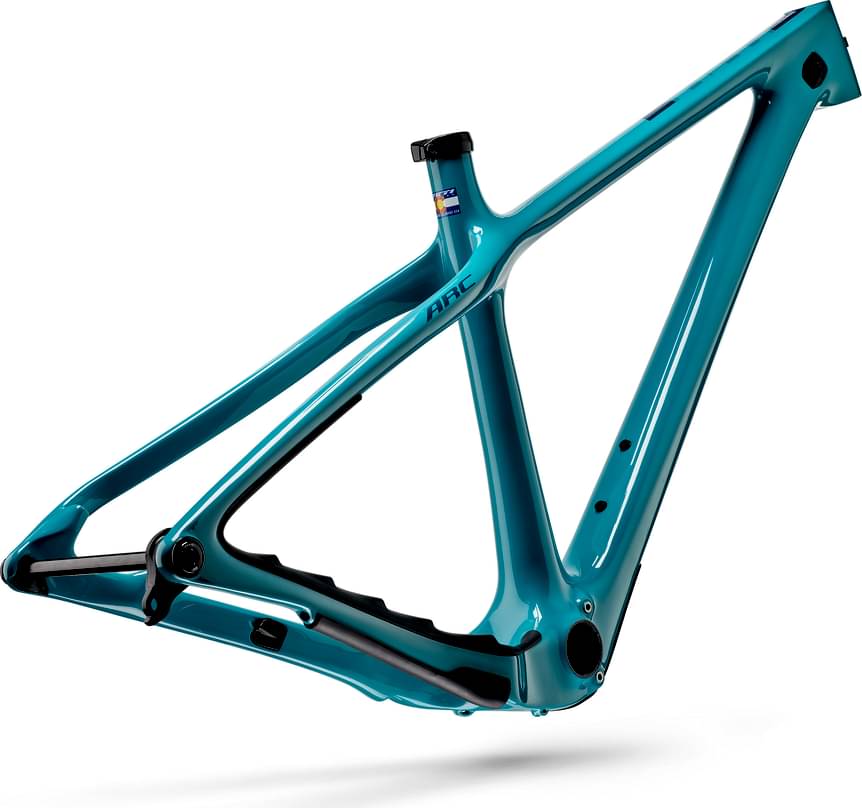

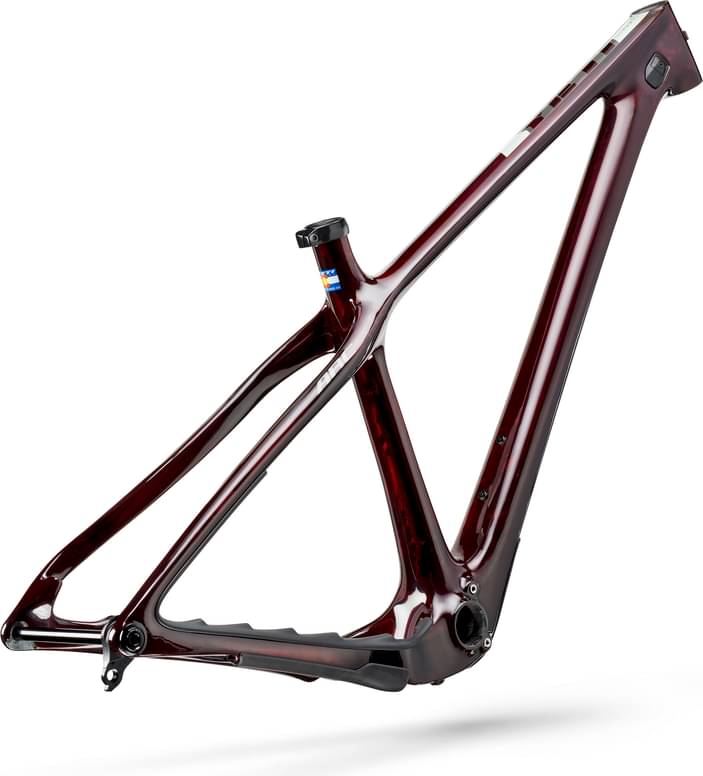

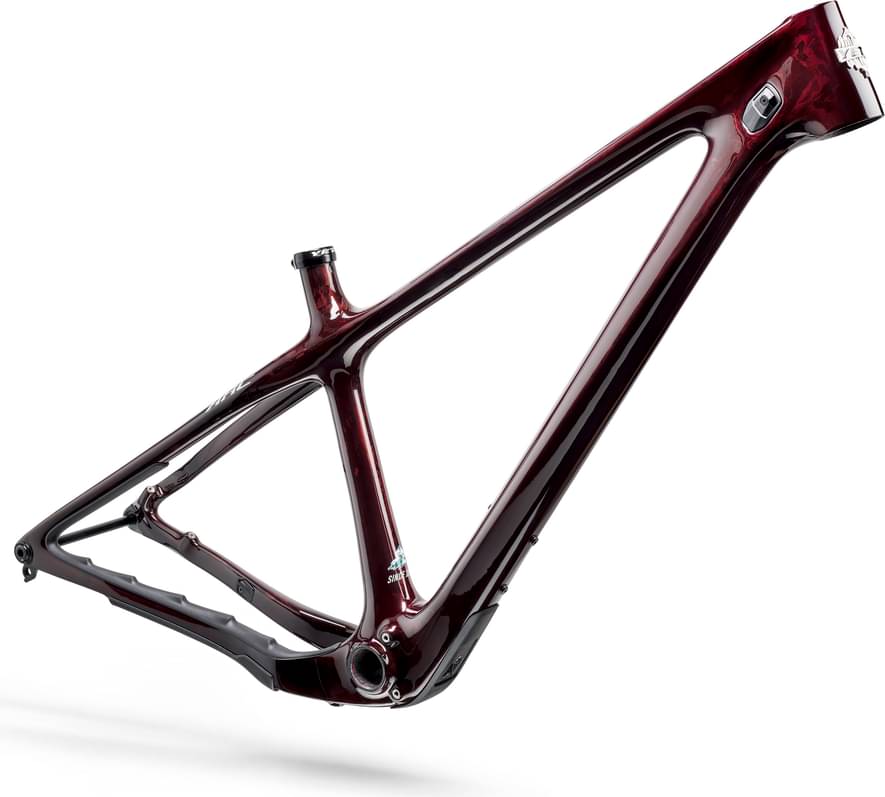

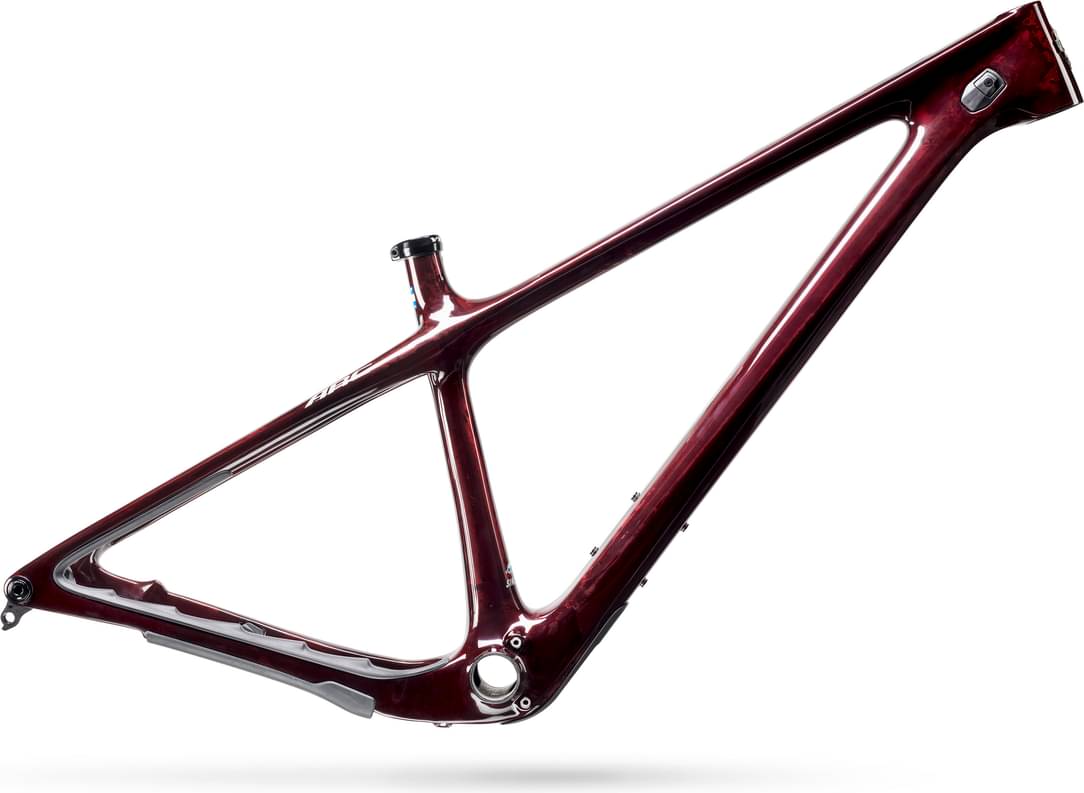

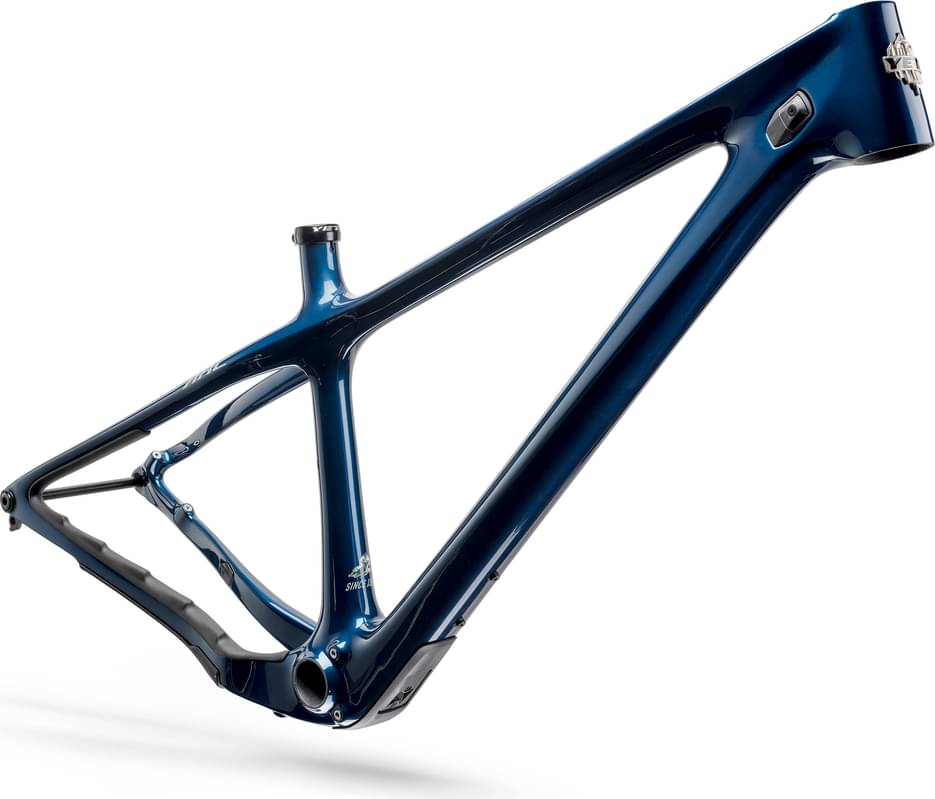

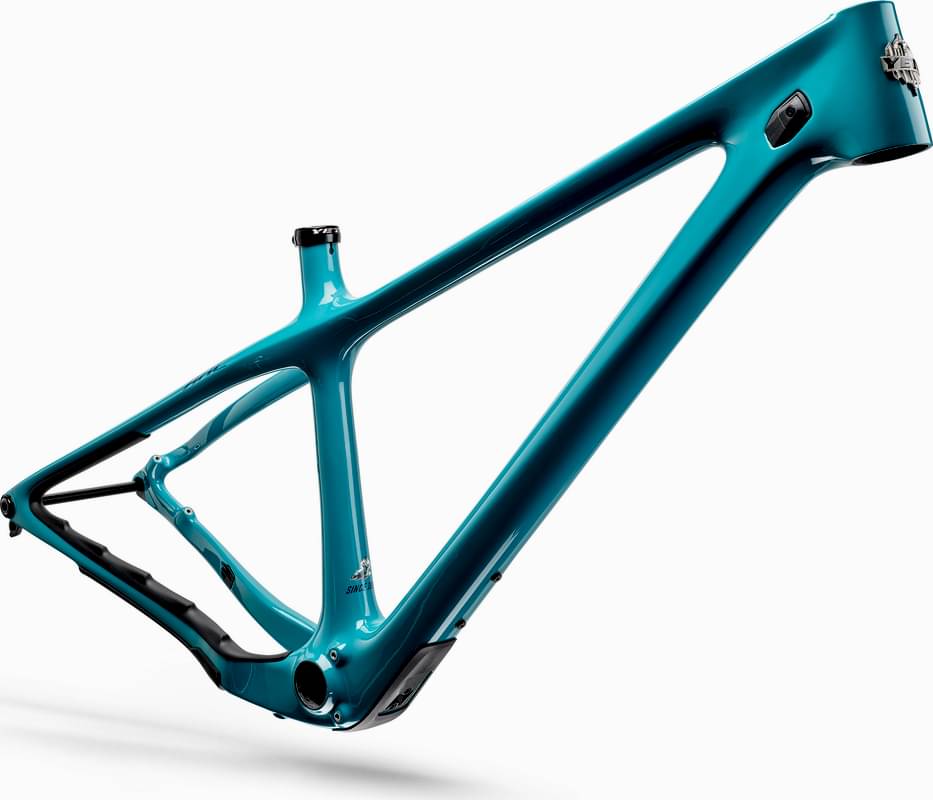

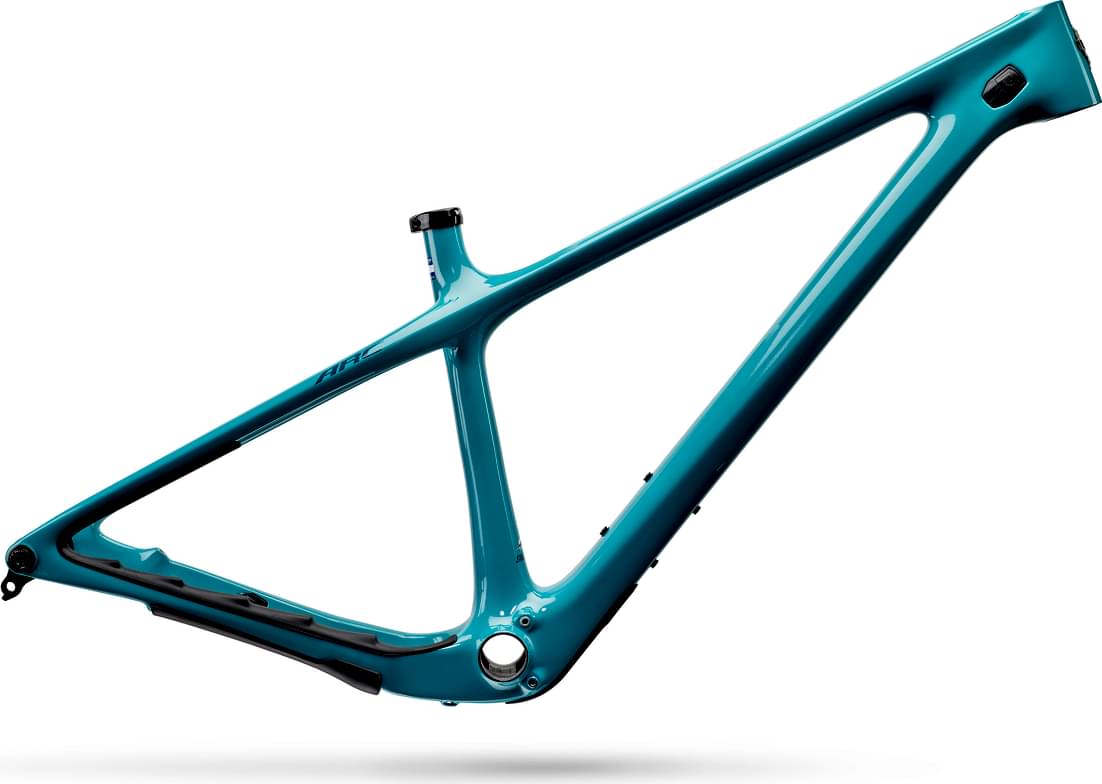

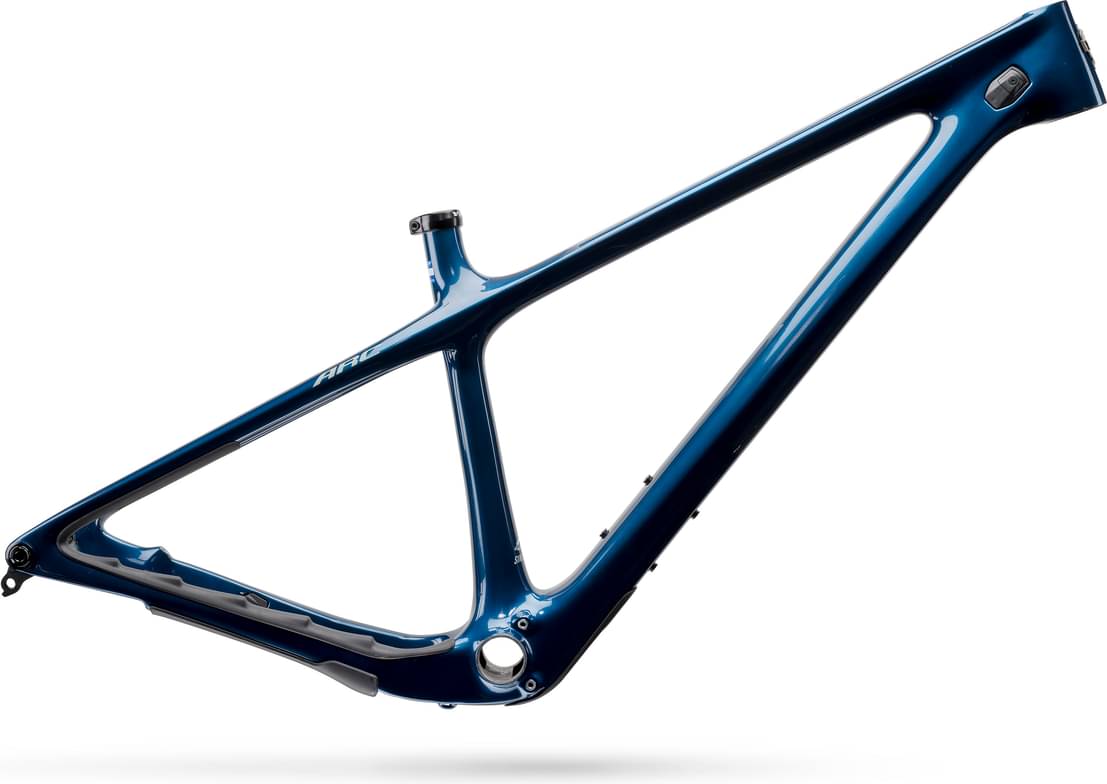

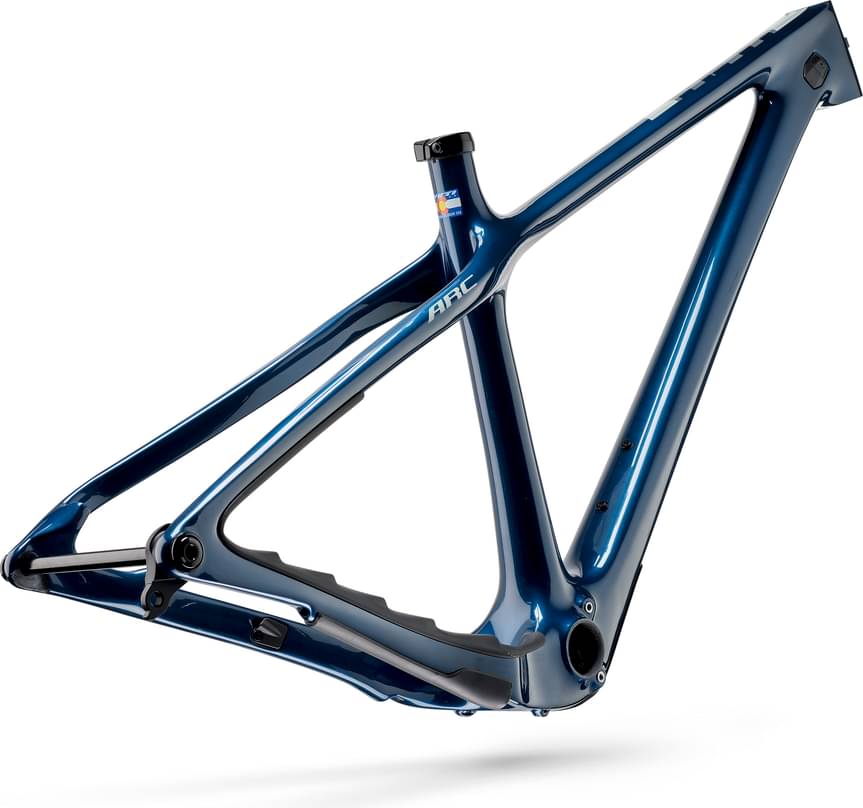

TURQ series carbon fiber frame, Pressfit BB92, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, Universal derailleur hanger (UDH), and axle.
Suspension Fork
FOX FACTORY 34 FIT4/130MM
Drivetrain
Rear Derailleur
SRAM EAGLE 90 TRANSMISSION
Shift Levers
SRAM EAGLE 90 TRANSMISSION
Cassette
SRAM X0 EAGLE TRANSMISSION 10-52
Crank
SRAM X0 EAGLE TRANSMISSION 32T 170MM
Bottom Bracket
SRAM DUB BB92
Chain
SRAM X0 EAGLE TRANSMISSION FLATTOP
Wheels
Rims
DT SWISS XM1700 30MM
Tires
Front: MAXXIS MINION DHF 2.6 EXO, Rear: MAXXIS REKON 2.6 EXO
Brakes
Brakes
SRAM G2 RSC
Cockpit
Stem
BURGTEC ENDURO MK3 35X50MM
Handlebar
YETI CARBON 35X760MM
Grips
ODI ELITE PRO
Headset
CANE CREEK 40 INTEGRATED
Seat
Saddle
WTB SILVERADO CUSTOM
Seatpost
FOX TRANSFER 31.6MM / SM: 175MM, MD-XL: 200MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.504 mm | 1.436 mm | 1.387 mm | 1.335 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm | 310 mm |
| Front Center | 710.5 mm | 738.5 mm | 761.2 mm | 790.1 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 105 mm | 105 mm | 105 mm | 105 mm |
| Stack | 631.7 mm | 638.9 mm | 645.1 mm | 654.3 mm |
| Reach | 420 mm | 445 mm | 465 mm | 490 mm |
| Top Tube Length | 577.4 mm | 604.3 mm | 626 mm | 653.4 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 380 mm | 410 mm | 450 mm | 495 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 95 mm | 102.9 mm | 109.6 mm | 119.6 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1143 mm | 1171 mm | 1194 mm | 1223 mm |
| Bottom Bracket Drop | 64 mm | 64 mm | 64 mm | 64 mm |
| Standover Height | 723 mm | 722 mm | 720 mm | 720 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
