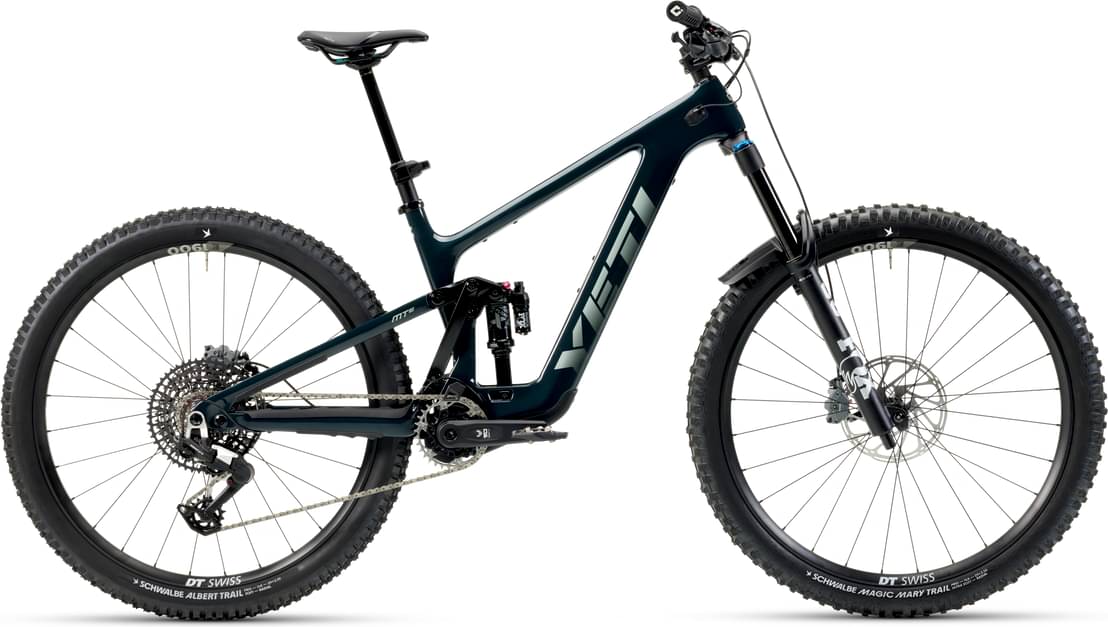

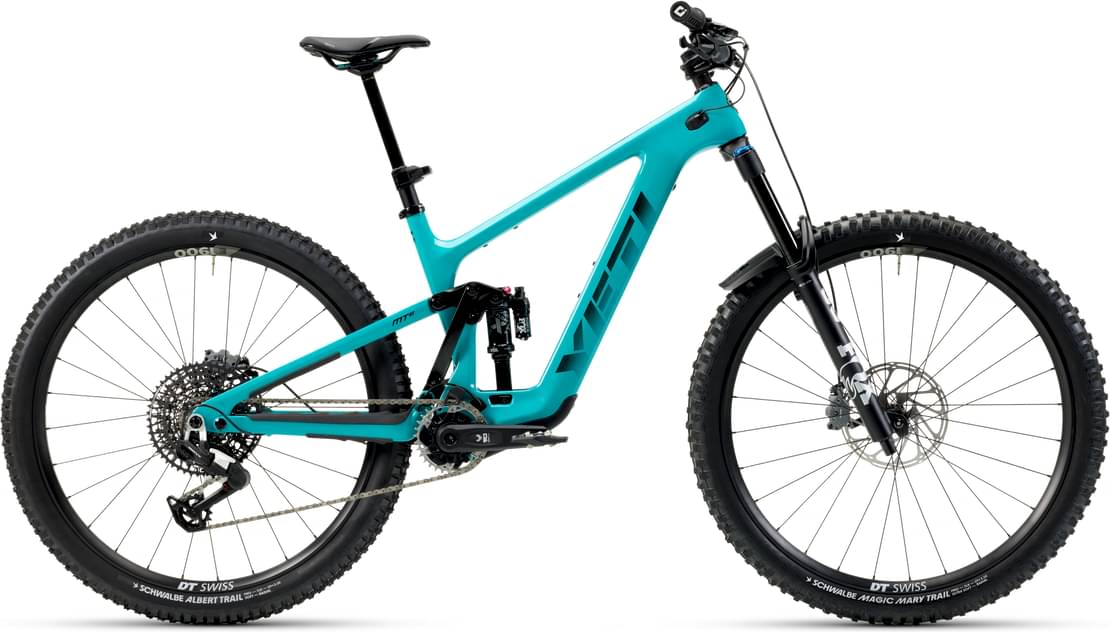

Yeti MTe C2 90 TRANSMISSION 2026
2026 E-bike
Estimate price |
9,850$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Travel Rear 145mm -
Fork Fox Performance Float 36
-
Groupset SRAM -
Suspension Full -
Motor TQ hub-drive -
Battery TQ 580Wh -
Drivetrain 1 × 12 -
Brakes SRAM Maven Bronze Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

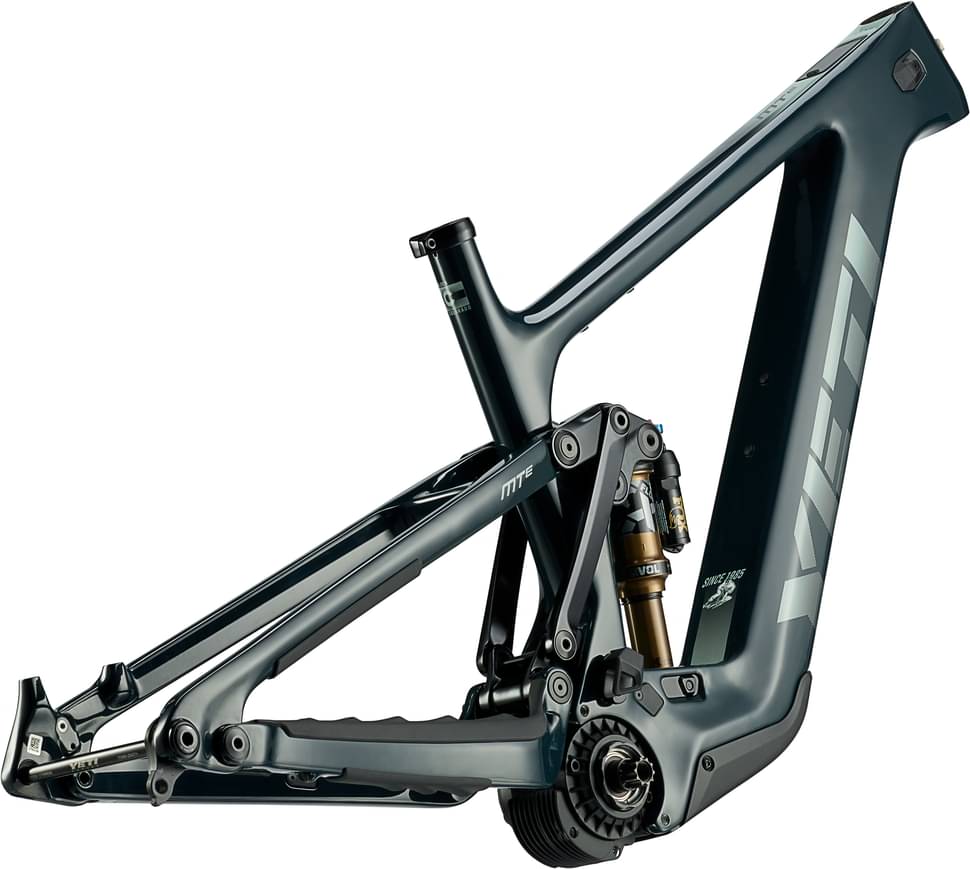

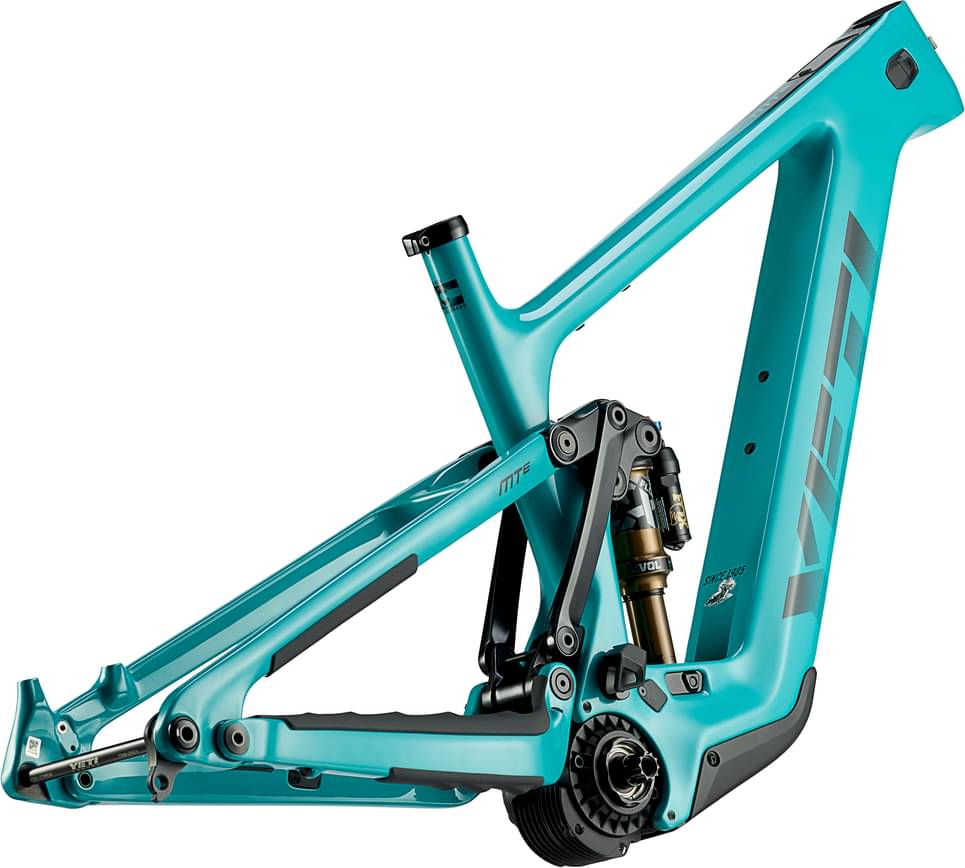

TURQ Series carbon fiber frame, configurable cable ports, 148mm x 12mm BOOST dropouts, universal deraileur hanger compatibility.
Suspension Fork
FOX PERFORMANCE 36/160MM
Rear Shock
FOX PERFORMANCE FLOAT X
Drivetrain
Rear Derailleur
SRAM E90 TRANSMISSION
Shift Levers
SRAM E90 TRANSMISSION
Cassette
SRAM GX EAGLE TRANSMISSION 10-52
Crank
SRAM E90 32T 160MM
Chain
SRAM GX EAGLE TRANSMISSION FLATTOP
Wheels
Rims
DT SWISS E1900 30MM
Tires
Front: SCHWALBE MAGIC MARY TRAIL PRO 2.5 RADIAL ULTRA SOFT, Rear: SCHWALBE ALBERT TRAIL PRO 2.5 RADIAL SOFT
Brakes
Brakes
SRAM MAVEN BRONZE
Cockpit
Stem
BURGTEC ENDURO MK3 35X50MM
Handlebar
YETI CARBON E-ROUTING 35X800MM
Grips
ODI ELITE PRO
Headset
CANE CREEK 40
Seat
Saddle
WTB SOLANO CHROMOLY
Seatpost
SRAM REVERB AXS 31.6MM / SM: 150MM, MD: 175MM LG-XL: 200MM
Motor & Battery
Motor
TQ HPR 60
Battery
TQ 580Wh
Charger
TQ 4A CHARGER
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.359 mm | 1.323 mm | 1.277 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm | 342 mm |
| Front Center | 764 mm | 799 mm | 824 mm | 854 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 131 mm | 131 mm | 131 mm | 131 mm |
| Stack | 615 mm | 625 mm | 635 mm | 645 mm |
| Reach | 430 mm | 460 mm | 480 mm | 505 mm |
| Top Tube Length | 572 mm | 604 mm | 627 mm | 654 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 390 mm | 420 mm | 440 mm | 460 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 93 mm | 104 mm | 115 mm | 126 mm |
| Chainstay Length | 449 mm | 449 mm | 449 mm | 449 mm |
| Wheelbase | 1213 mm | 1248 mm | 1273 mm | 1303 mm |
| Bottom Bracket Drop | 32 mm | 32 mm | 32 mm | 32 mm |
| Standover Height | 722 mm | 742 mm | 742 mm | 742 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
