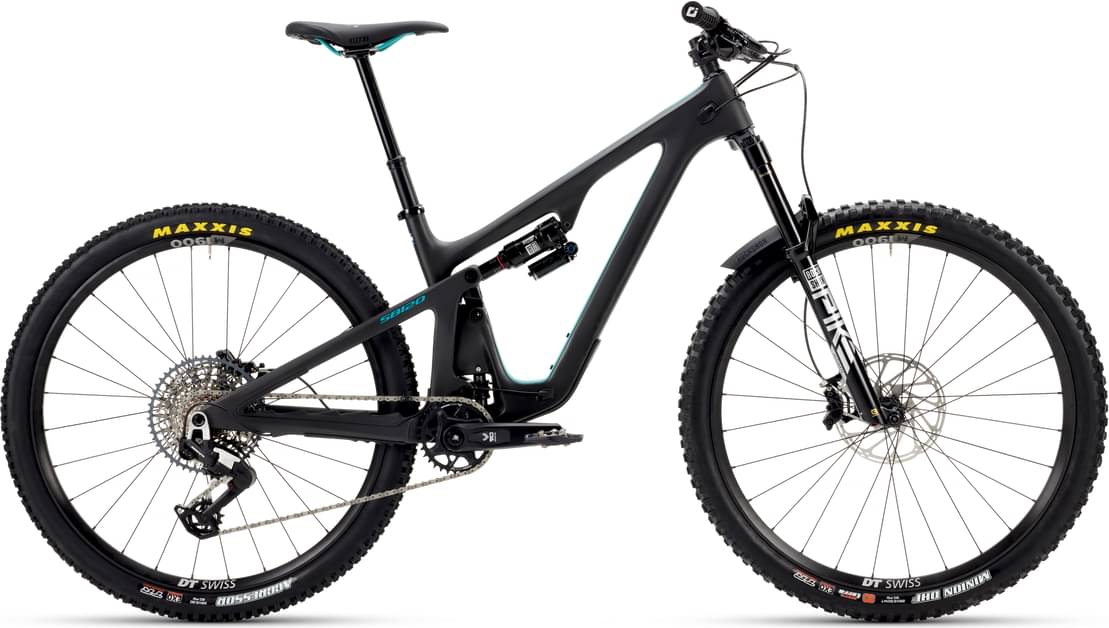

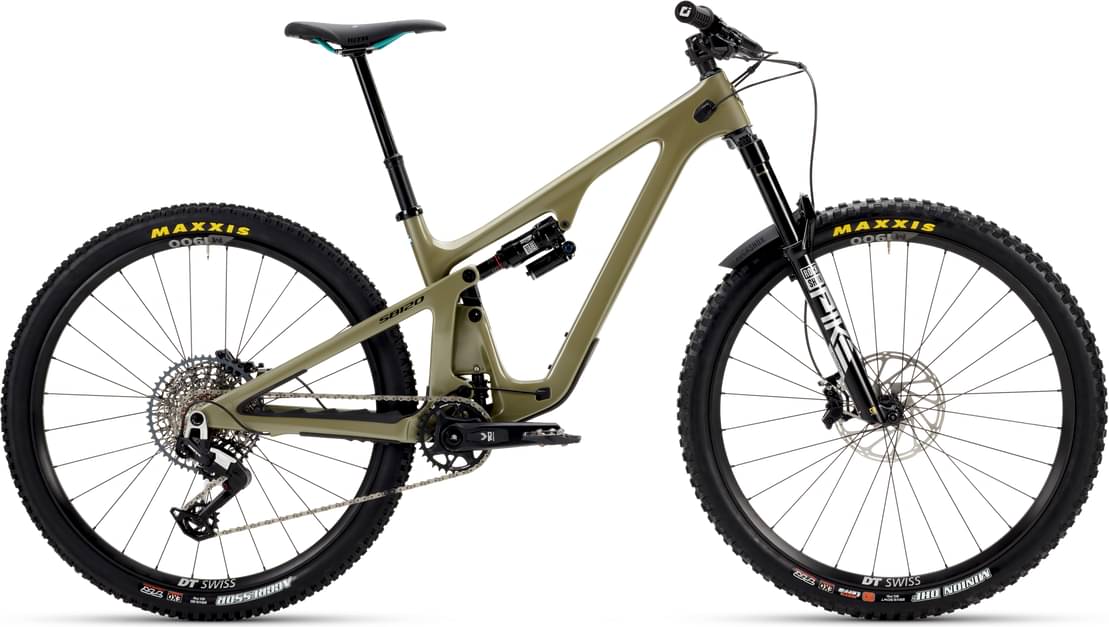

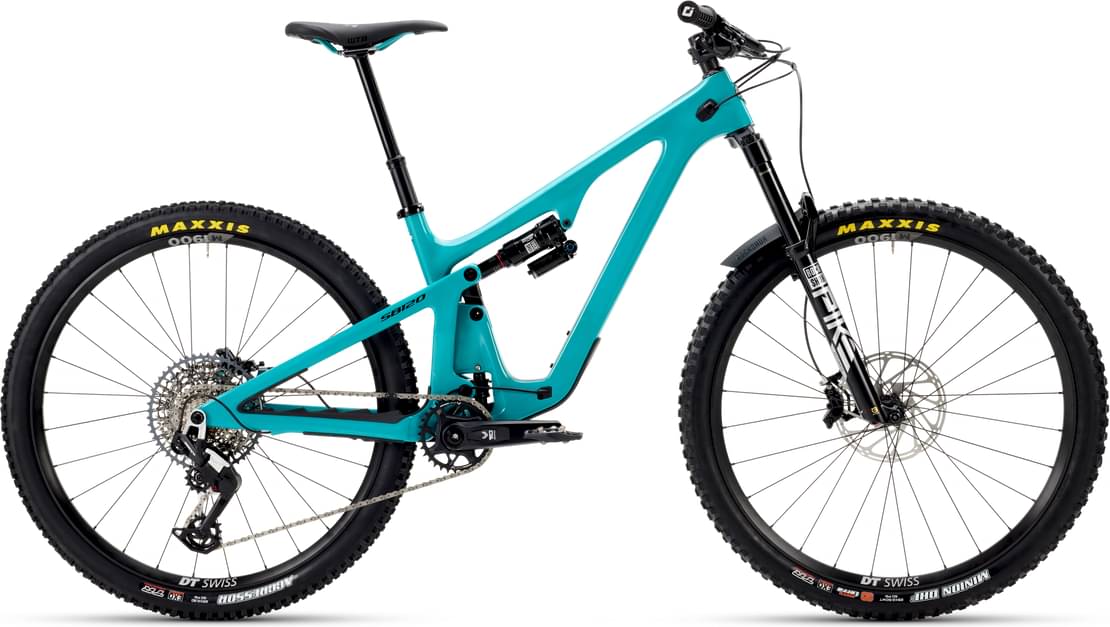

Yeti SB120 LR C2 90 TRANSMISSION 2026
2026 Mountain
Estimate price |
6,400$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 140mm -
Travel Rear 120mm -
Fork RockShox Pike Ultimate
-
Groupset Eagle 90 Transmission -
Suspension Full -
Drivetrain 1 × 12 -
Brakes SRAM Code R Hydraulic Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame

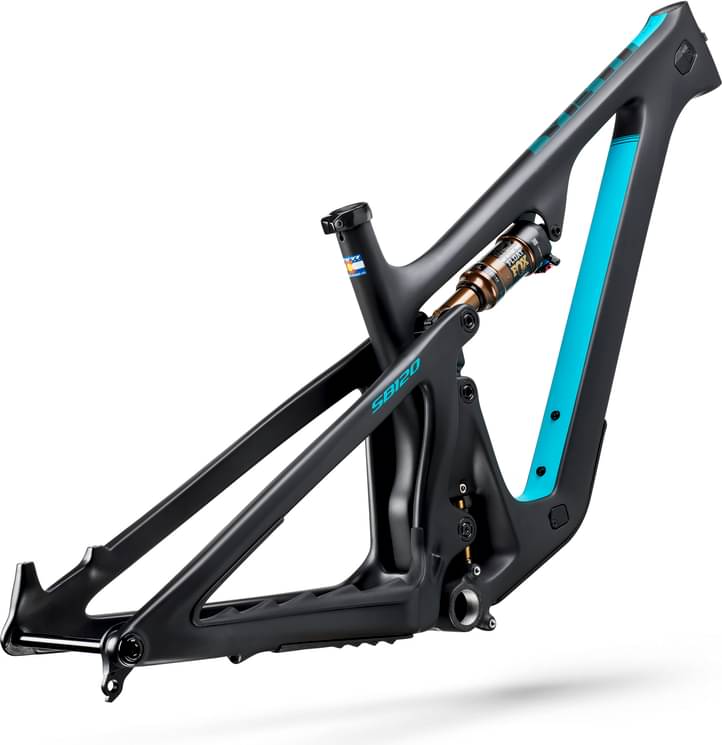

Frame

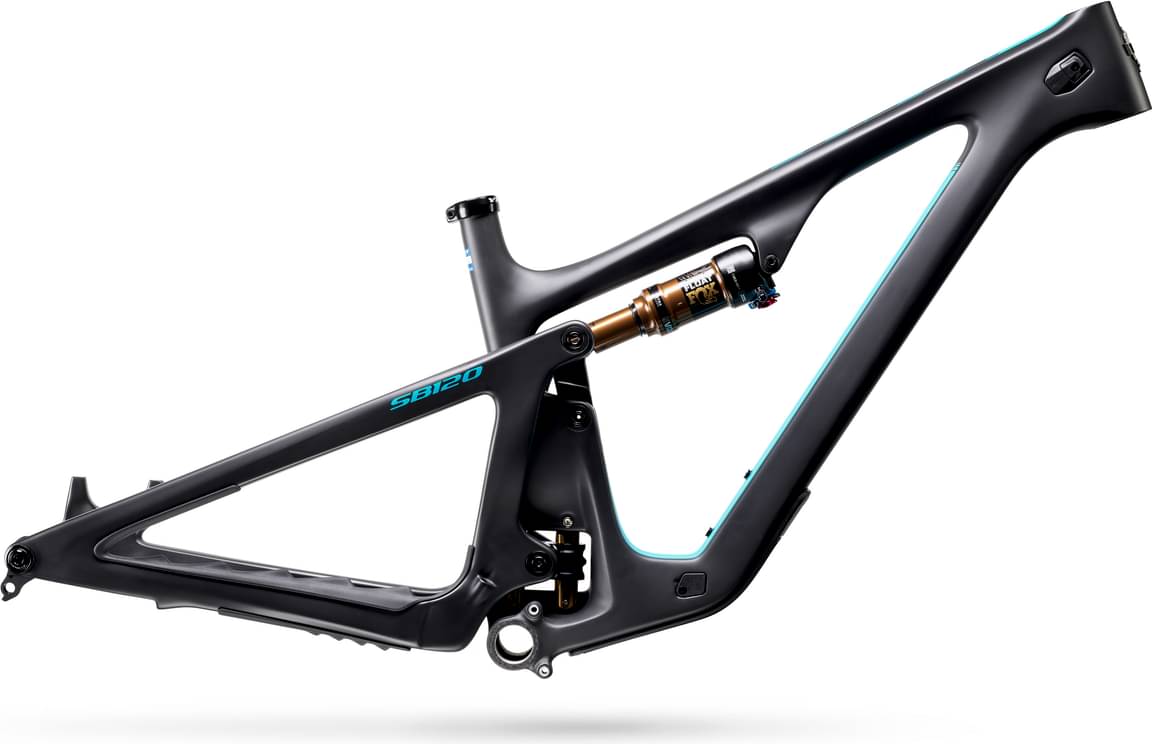

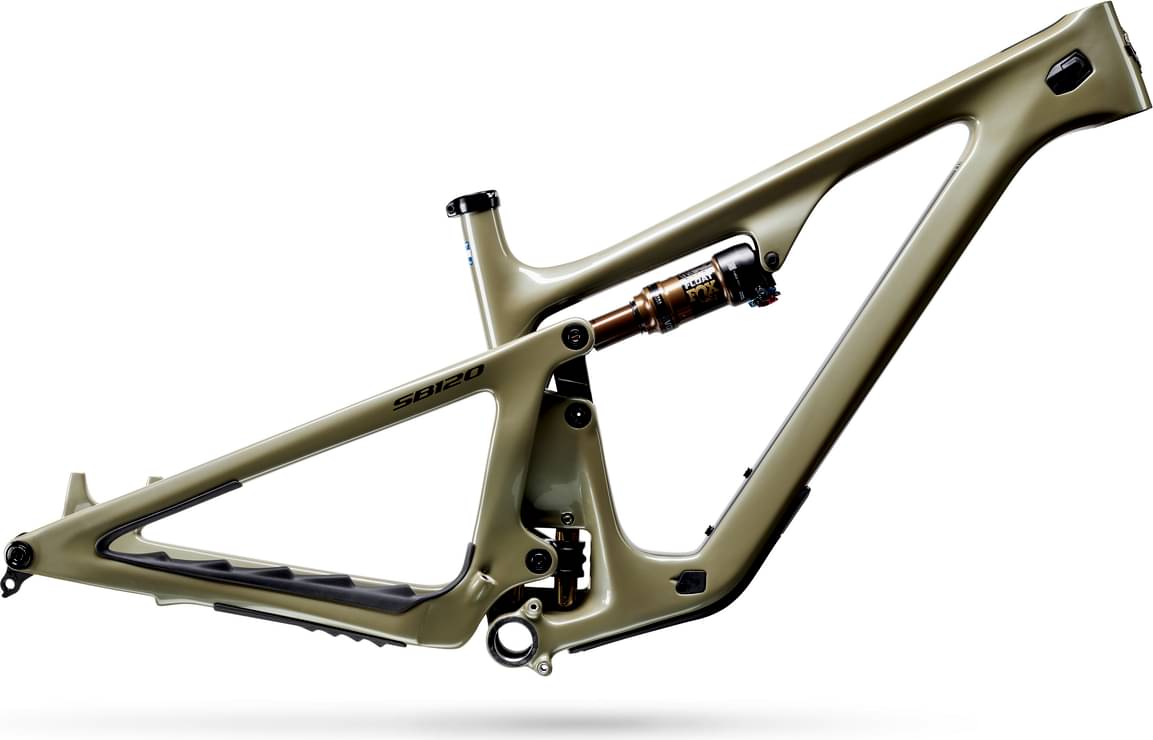

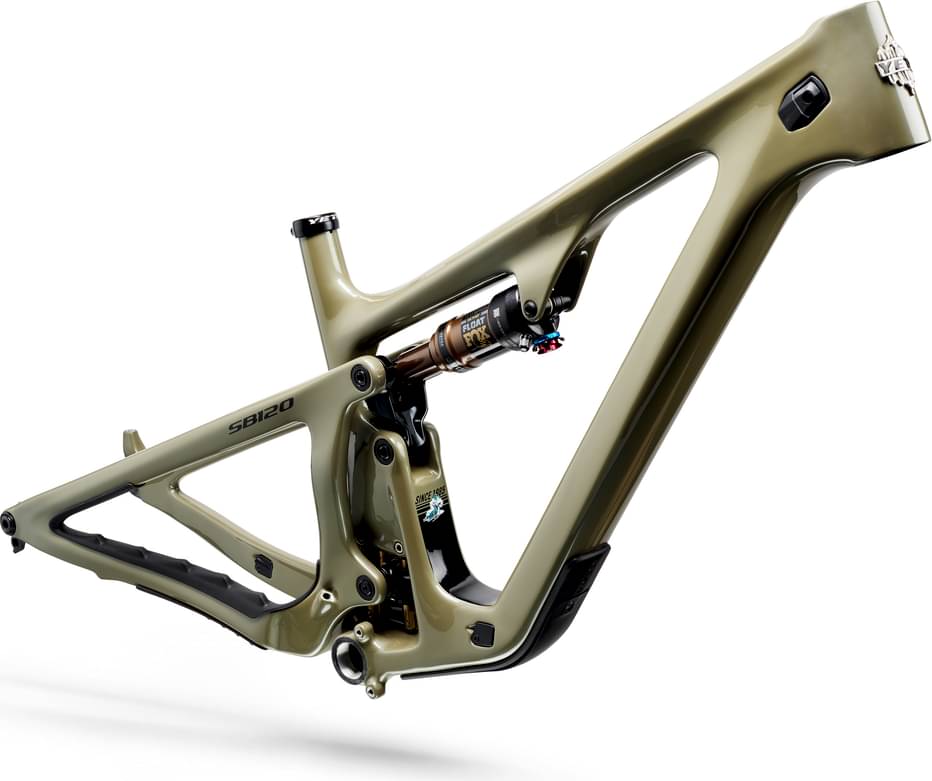

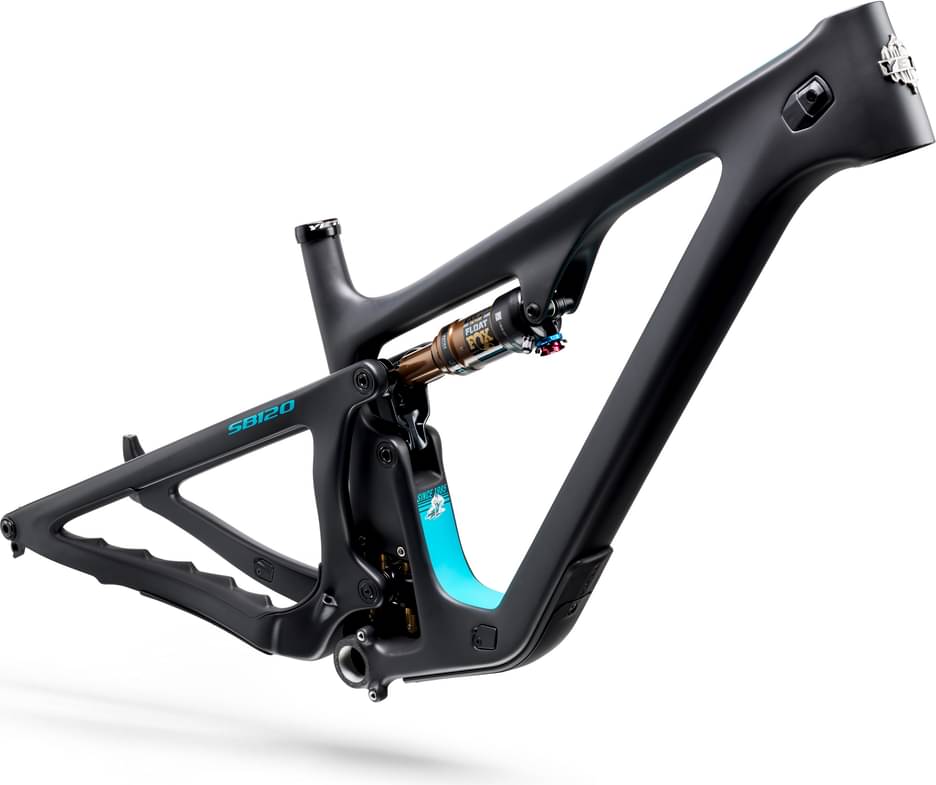

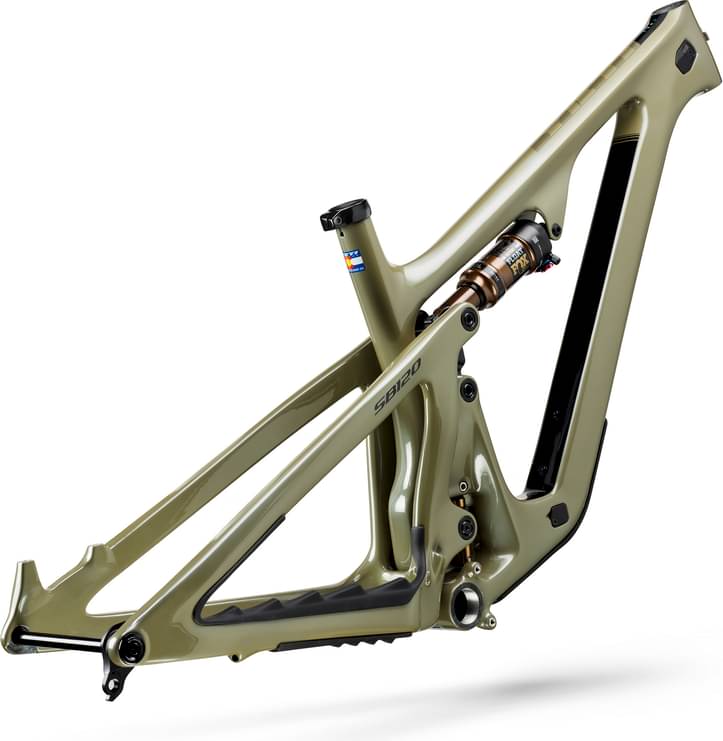

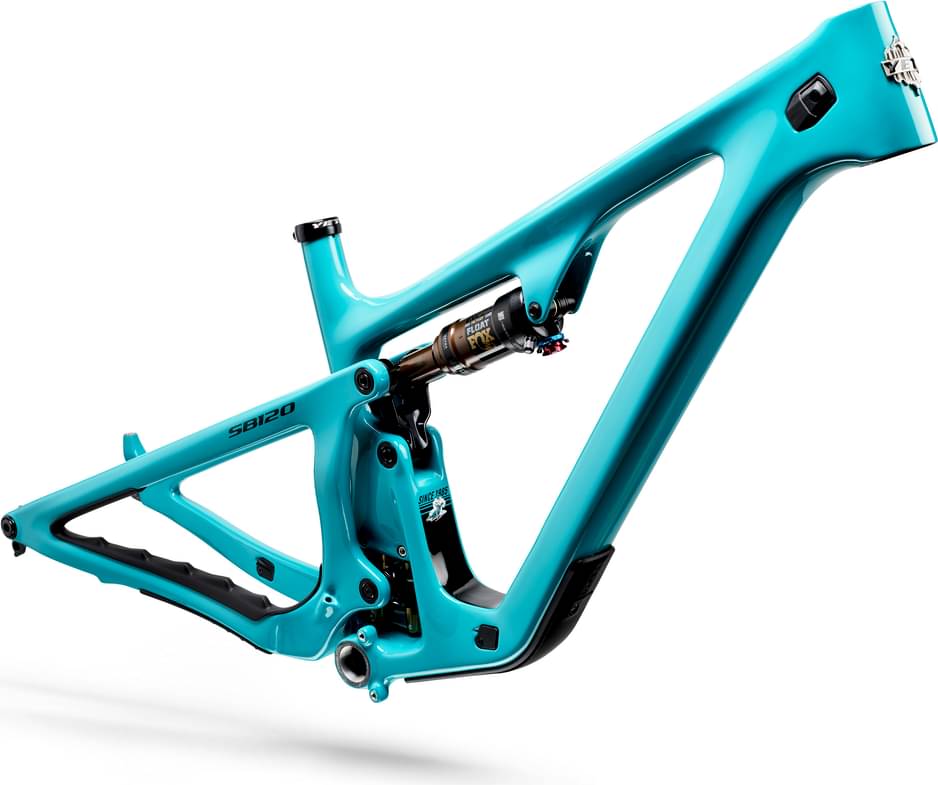

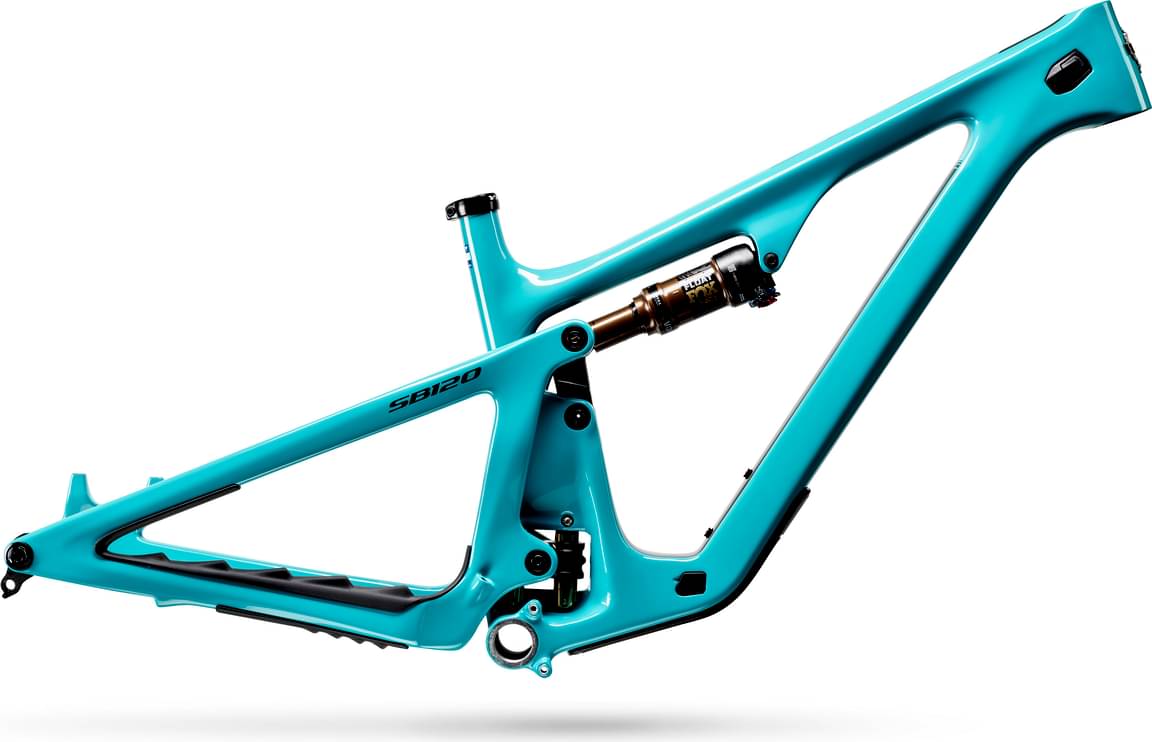

C/Series carbon fiber frame, Switch Infinity suspension technology, Threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle.
Suspension Fork
ROCK SHOX PIKE ULTIMATE/140MM
Rear Shock
ROCK SHOX SUPER DELUXE ULTIMATE
Drivetrain
Rear Derailleur
SRAM EAGLE 90 TRANSMISSION
Shift Levers
SRAM EAGLE 90 TRANSMISSION
Cassette
SRAM GX EAGLE TRANSMISSION 10-52
Crank
SRAM EAGLE 90 TRANSMISSION 30T 170MM
Bottom Bracket
SRAM DUB BSA 73
Chain
SRAM GX EAGLE TRANSMISSION FLATTOP
Wheels
Rims
DT SWISS M1900 30MM
Tires
Front: MAXXIS MINION DHF 2.5 EXO, Rear: MAXXIS AGGRESSOR 2.3 EXO
Brakes
Brakes
SRAM CODE R
Cockpit
Stem
BURGTEC ENDURO MK3 35X50MM
Handlebar
BURGTEC RIDE WIDE ALLOY ENDURO 35X780MM
Grips
ODI ELITE PRO
Headset
CANE CREEK 40 INTEGRATED
Seat
Saddle
WTB SILVERADO CUSTOM
Seatpost
ONEUP DROPPER POST 31.6MM / XS-SM: 150MM, MD: 180MM, LG: 210MM, XL-XXL: 240MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.546 mm | 1.45 mm | 1.365 mm | 1.328 mm | 1.284 mm | 1.285 mm |
| Bottom Bracket Height | 335 mm | 337 mm | 337 mm | 337 mm | 337 mm | 337 mm |
| Front Center | 692 mm | 725 mm | 757 mm | 781 mm | 810 mm | 834 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 114 mm | 114 mm | 115 mm | 115 mm | 115 mm | 116 mm |
| Stack | 606 mm | 612 mm | 617 mm | 627 mm | 638 mm | 658 mm |
| Reach | 392 mm | 422 mm | 452 mm | 472 mm | 497 mm | 512 mm |
| Top Tube Length | 541 mm | 573 mm | 604 mm | 626 mm | 654 mm | 673 mm |
| Seat Tube Angle | 76.1 ° | 76.2 ° | 76.2 ° | 76.2 ° | 76.2 ° | 76.2 ° |
| Seat Tube Length | 345 mm | 365 mm | 400 mm | 440 mm | 470 mm | 485 mm |
| Head Tube Angle | 66.2 ° | 66.2 ° | 66.2 ° | 66.2 ° | 66.2 ° | 66.2 ° |
| Head Tube Length | 92 mm | 98 mm | 104 mm | 115 mm | 126 mm | 147 mm |
| Chainstay Length | 433 mm | 435 mm | 437 mm | 439 mm | 441 mm | 443 mm |
| Wheelbase | 1125 mm | 1160 mm | 1194 mm | 1220 mm | 1252 mm | 1277 mm |
| Bottom Bracket Drop | 39 mm | 37 mm | 37 mm | 37 mm | 37 mm | 37 mm |
| Standover Height | 708 mm | 712 mm | 717 mm | 721 mm | 723 mm | 728 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
