Bike details
Overview
Key information split into simple groups.

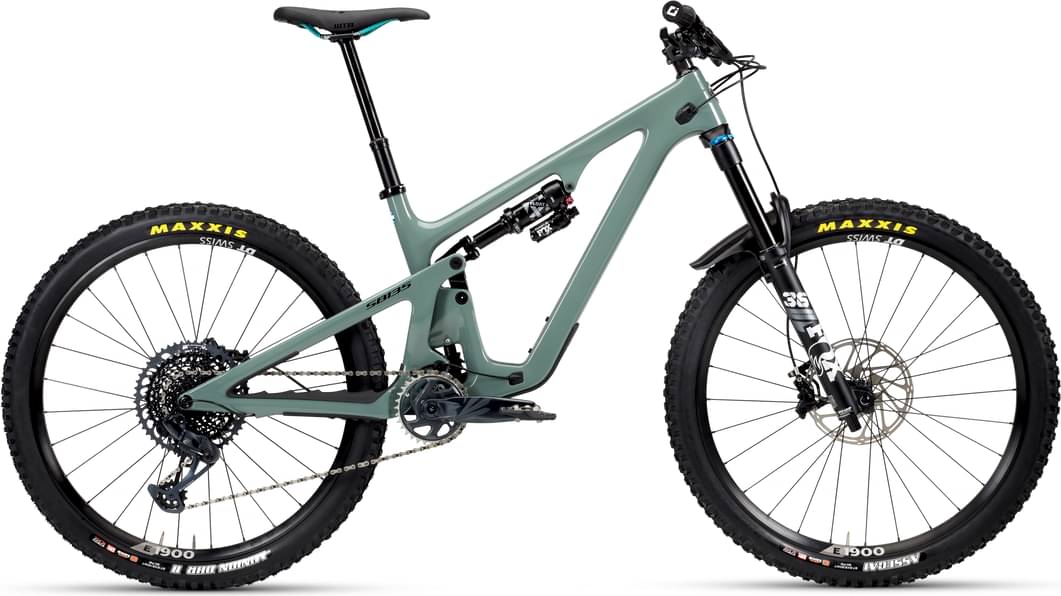

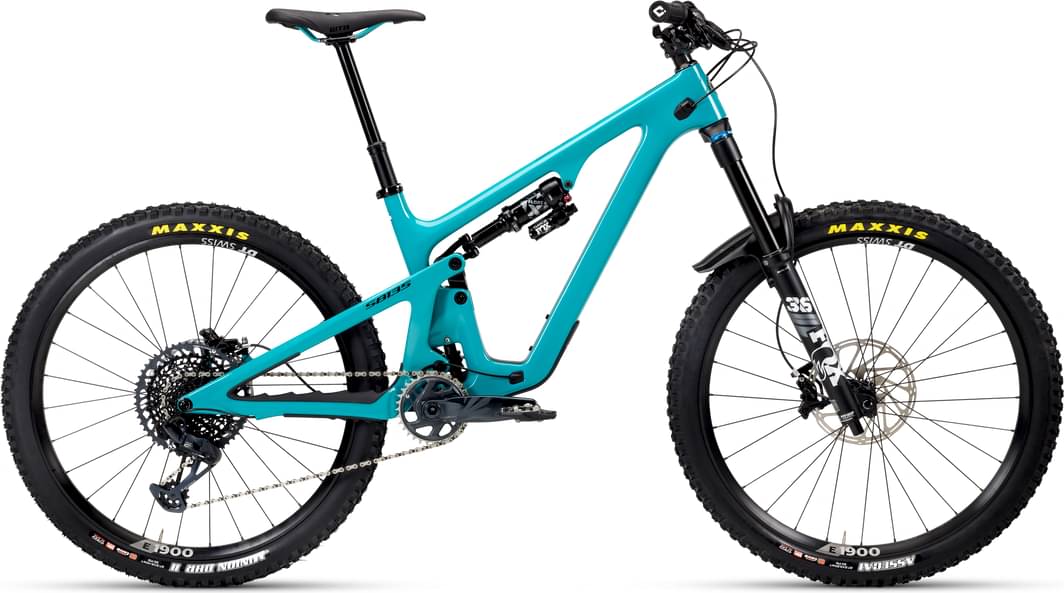

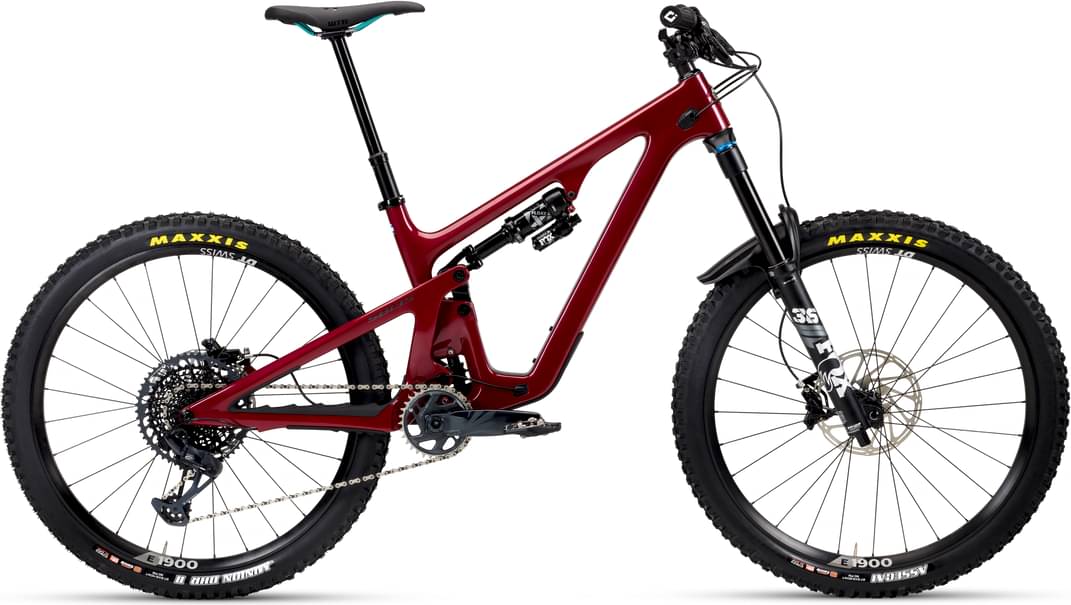

Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Fork Fox Performance Float 36
-
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame

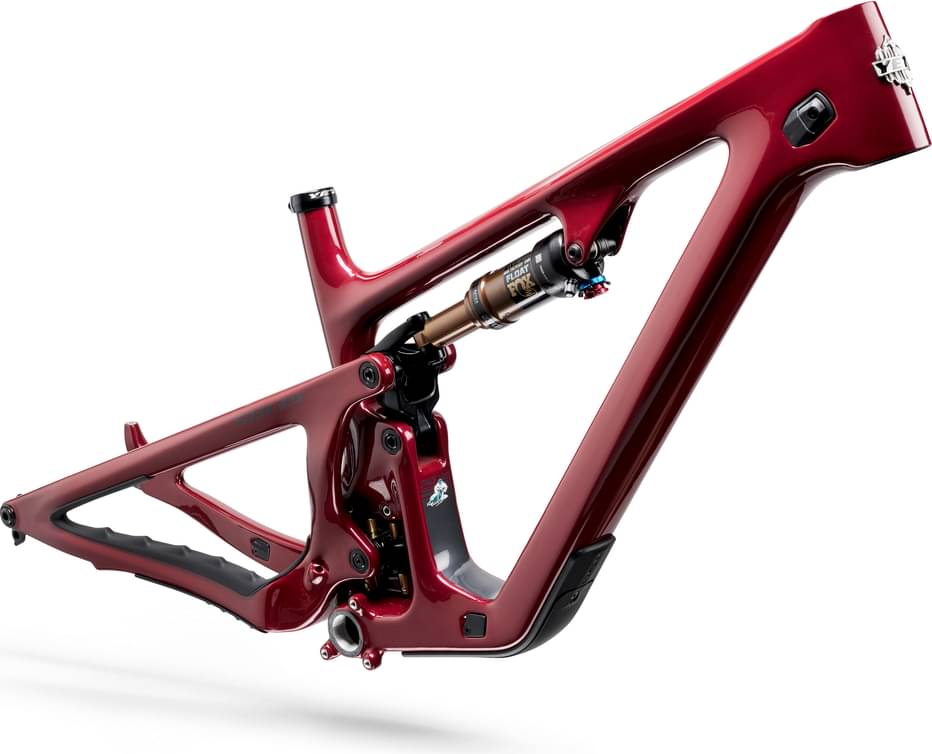

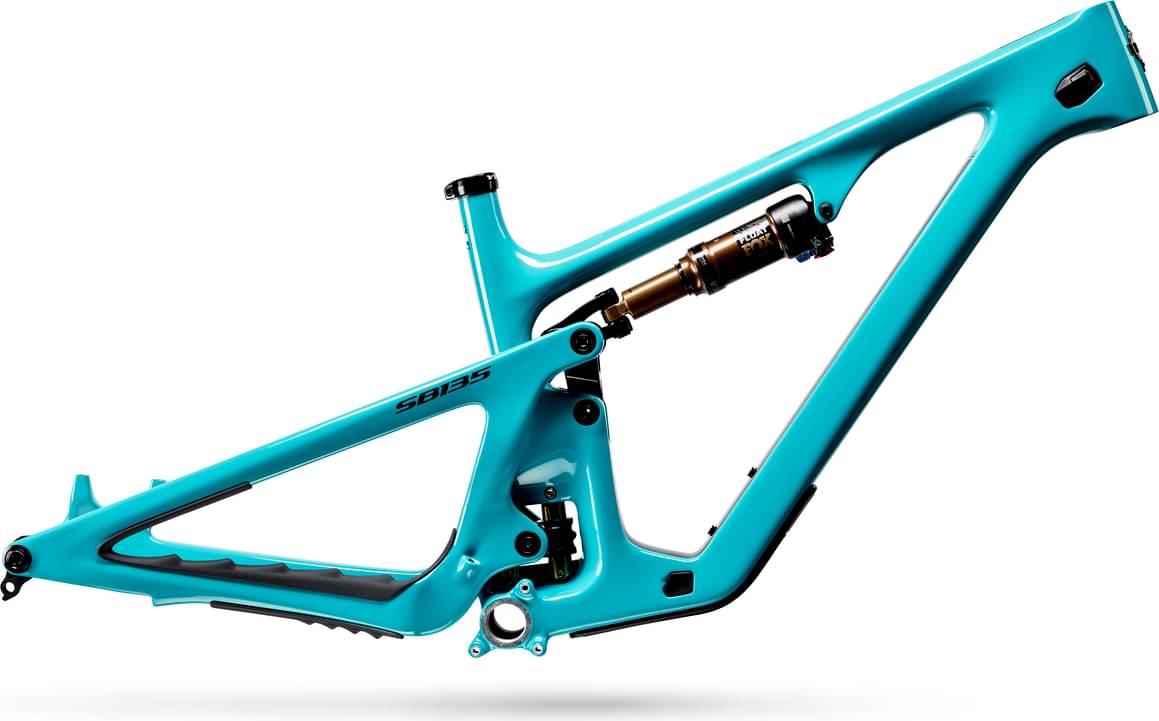

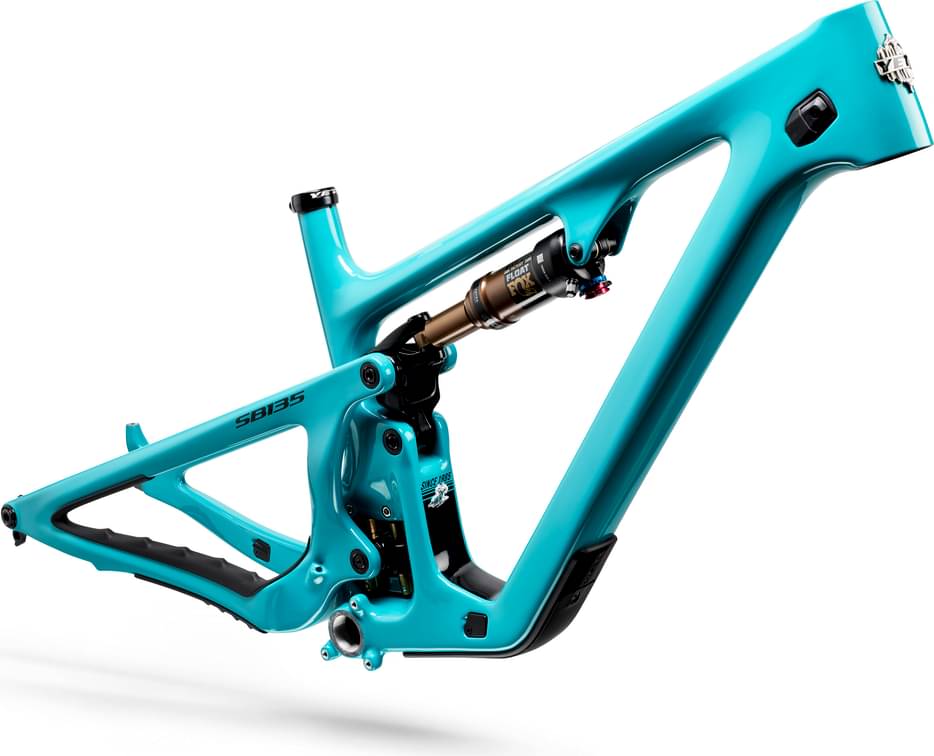

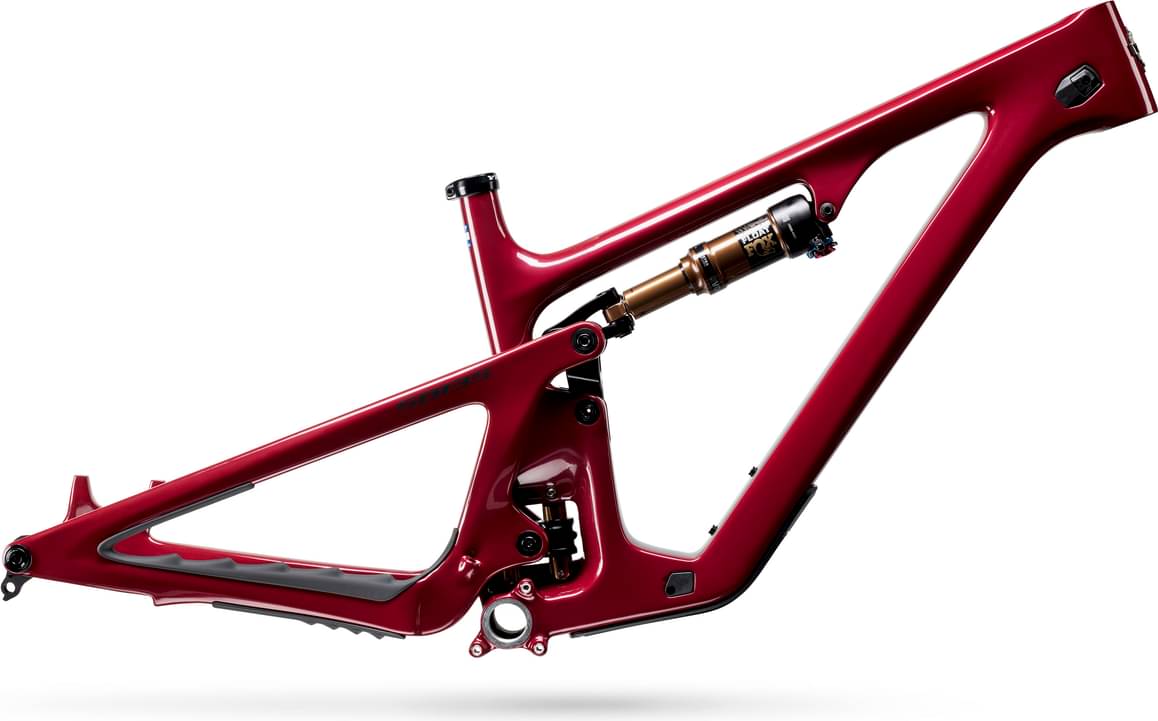

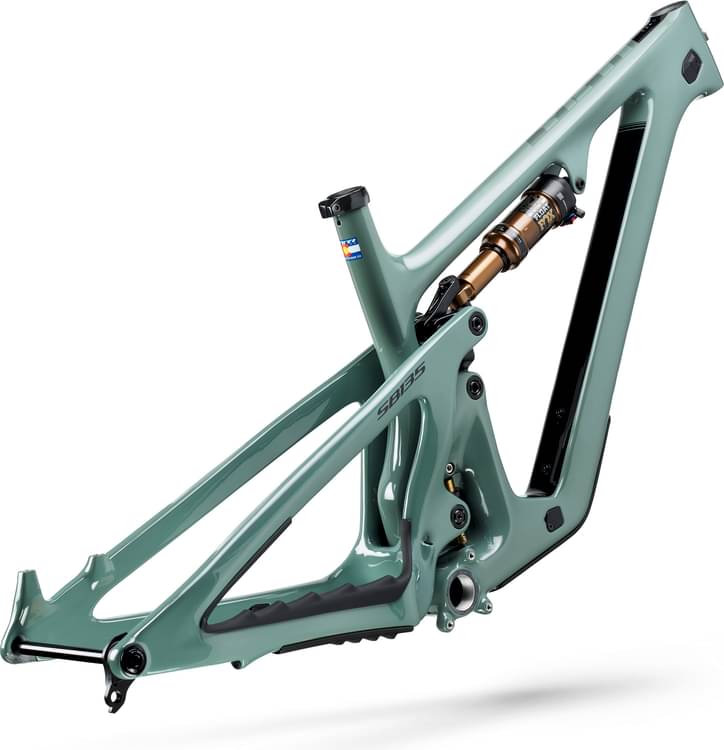

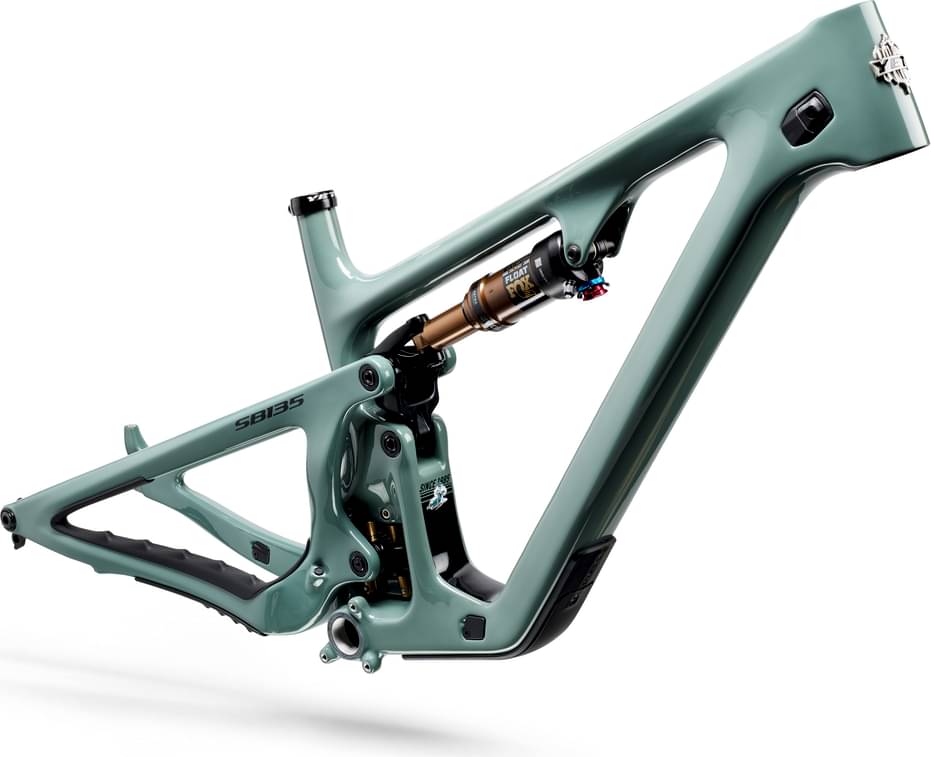

Frame

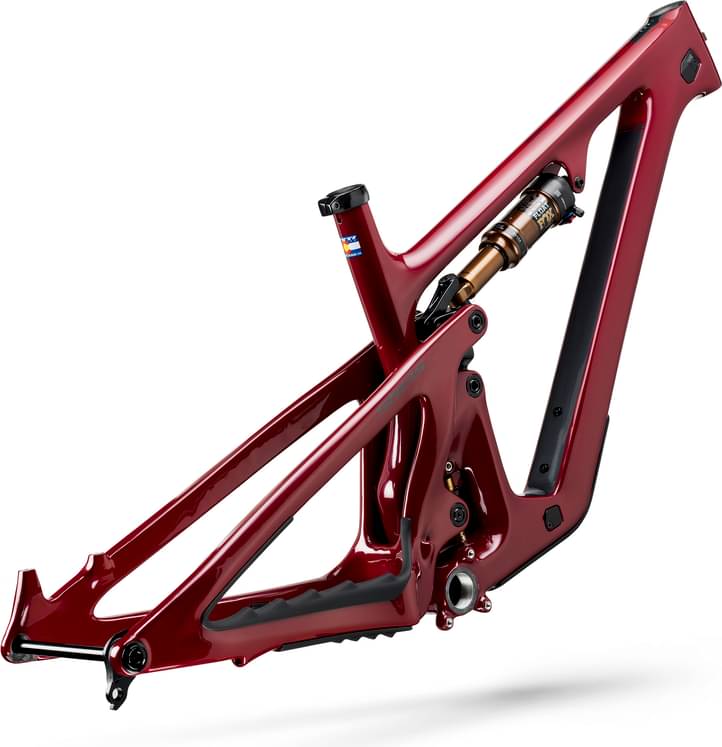

C/Series carbon fiber frame, Switch Infinity suspension technology, Threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle.
Suspension Fork
FOX PERFORMANCE 36/160MM
Rear Shock
FOX PERFORMANCE FLOAT X
Drivetrain
Rear Derailleur
SRAM GX EAGLE
Shift Levers
SRAM GX EAGLE
Cassette
SRAM GX EAGLE 1275 10-52
Crank
SRAM GX EAGLE 30T 170MM
Bottom Bracket
SRAM DUB BSA 73
Chain
SRAM GX EAGLE
Wheels
Rims
RACEFACE ARC OFFSET 30MM/DT SWISS 350
Tires
Front: MAXXIS ASSEGAI 2.5 EXO+, Rear: MAXXIS MINION DHR II 2.4 DD
Brakes
Brakes
SRAM CODE R
Cockpit
Stem
BURGTEC ENDURO MK3 35X50MM
Handlebar
BURGTEC RIDE WIDE ALLOY ENDURO 35X780MM
Grips
ODI ELITE PRO
Headset
CANE CREEK 40 INTEGRATED
Seat
Saddle
SILVERADO CUSTOM
Seatpost
ONEUP DROPPER POST 31.6MM / XS-SM: 150MM, MD: 180MM, LG-XL: 210MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.319 mm | 1.284 mm | 1.24 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm |
| Front Center | 770 mm | 794 mm | 824 mm |
| Rake | 37 mm | 37 mm | 37 mm |
| Trail | 124 mm | 124 mm | 124 mm |
| Stack | 600 mm | 610 mm | 620 mm |
| Reach | 455 mm | 475 mm | 500 mm |
| Top Tube Length | 599 mm | 621 mm | 649 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.4 ° |
| Seat Tube Length | 400 mm | 440 mm | 470 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 107 mm | 118 mm | 129 mm |
| Chainstay Length | 433 mm | 435 mm | 437 mm |
| Wheelbase | 1203 mm | 1229 mm | 1261 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm |
| Standover Height | 718 mm | 721 mm | 725 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
