Bike details
Overview
Key information split into simple groups.

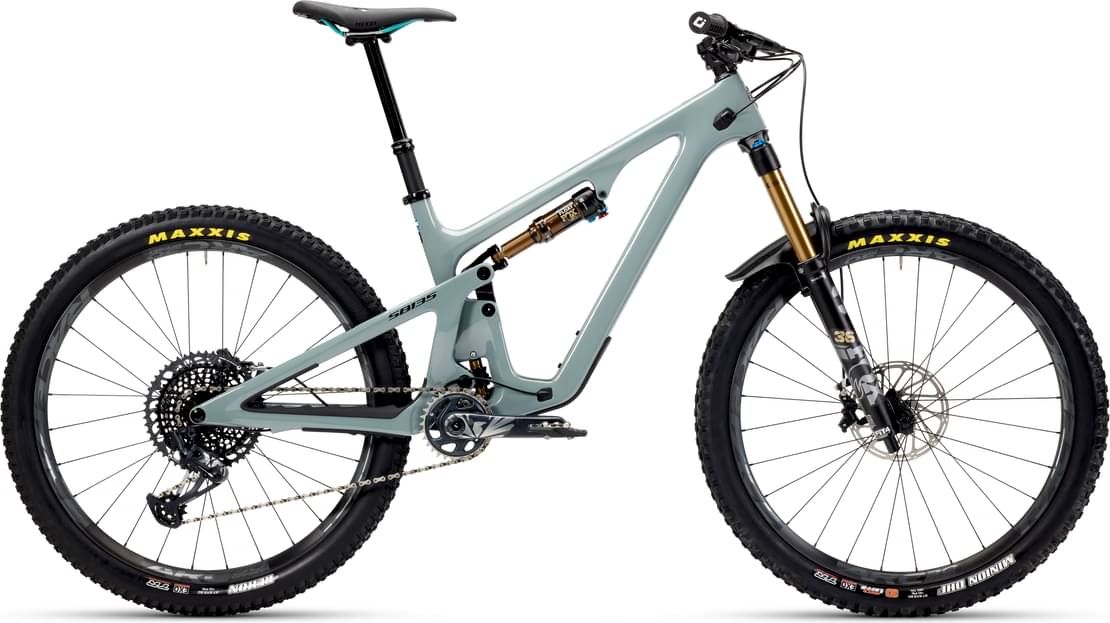

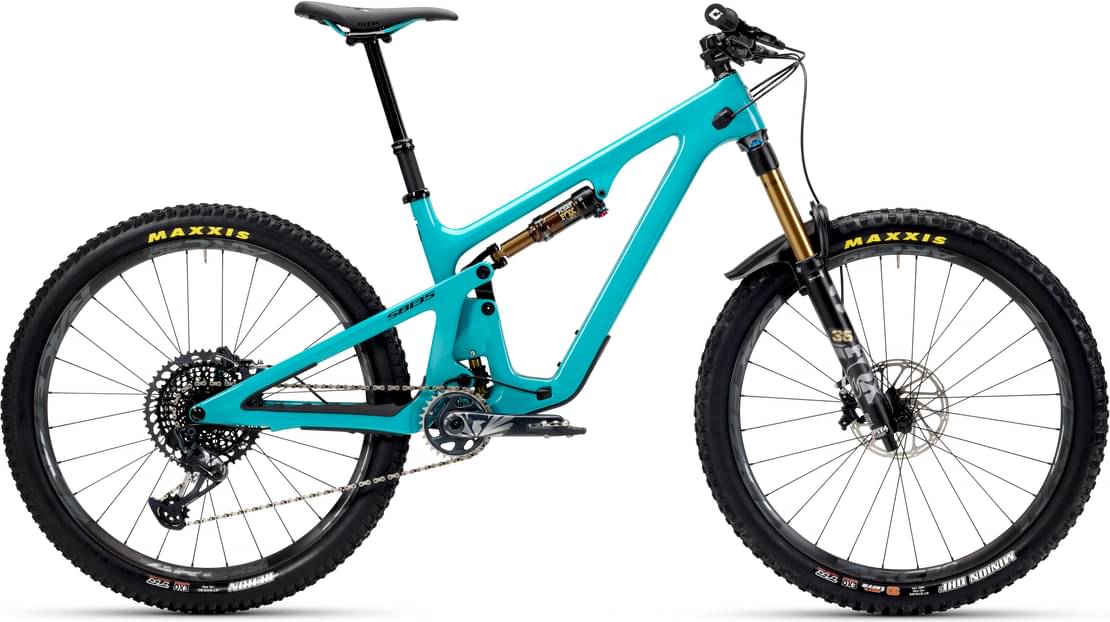

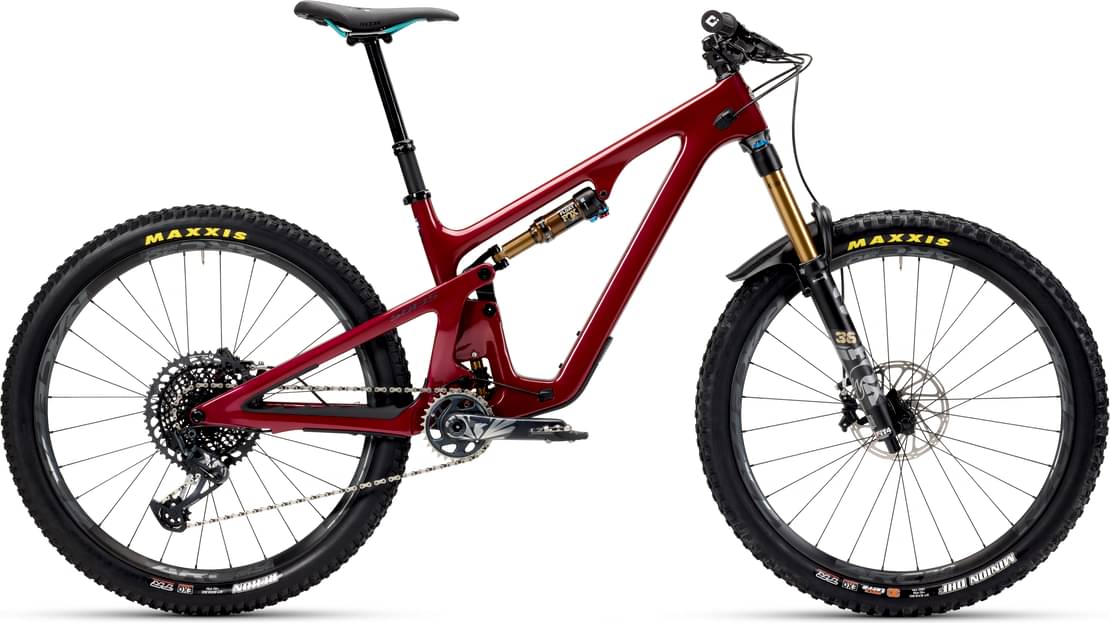

Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Fork Fox Factory Float 36
-
Groupset X01 Eagle, X1 -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components

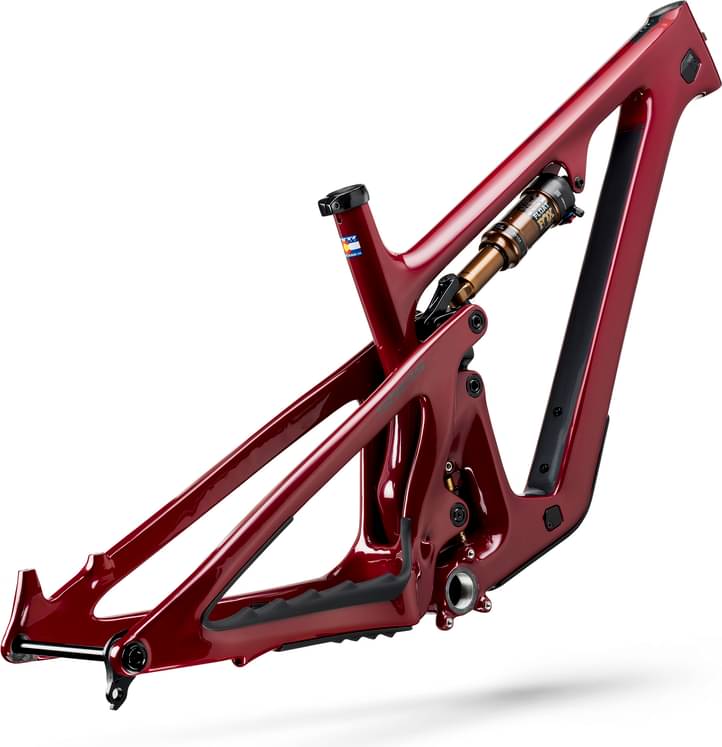

Frame
Frame

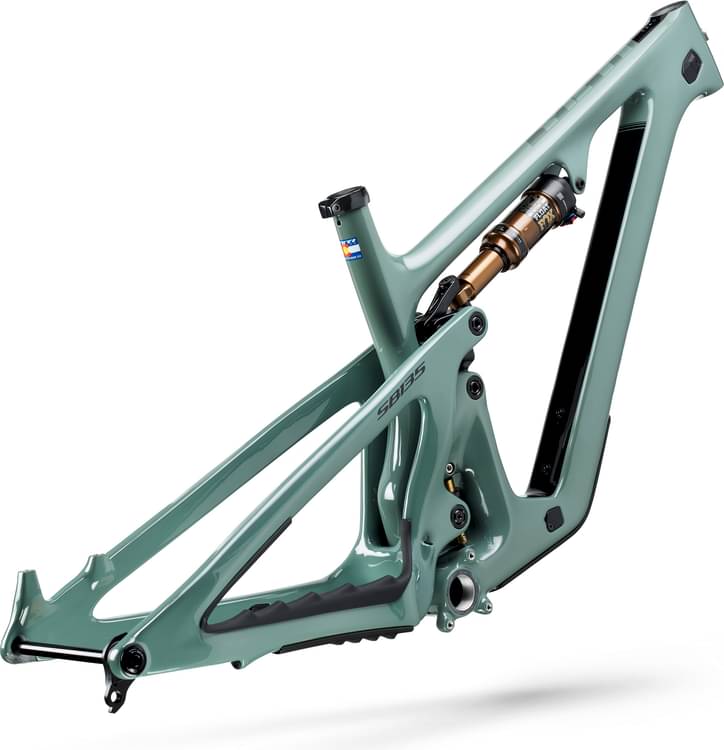

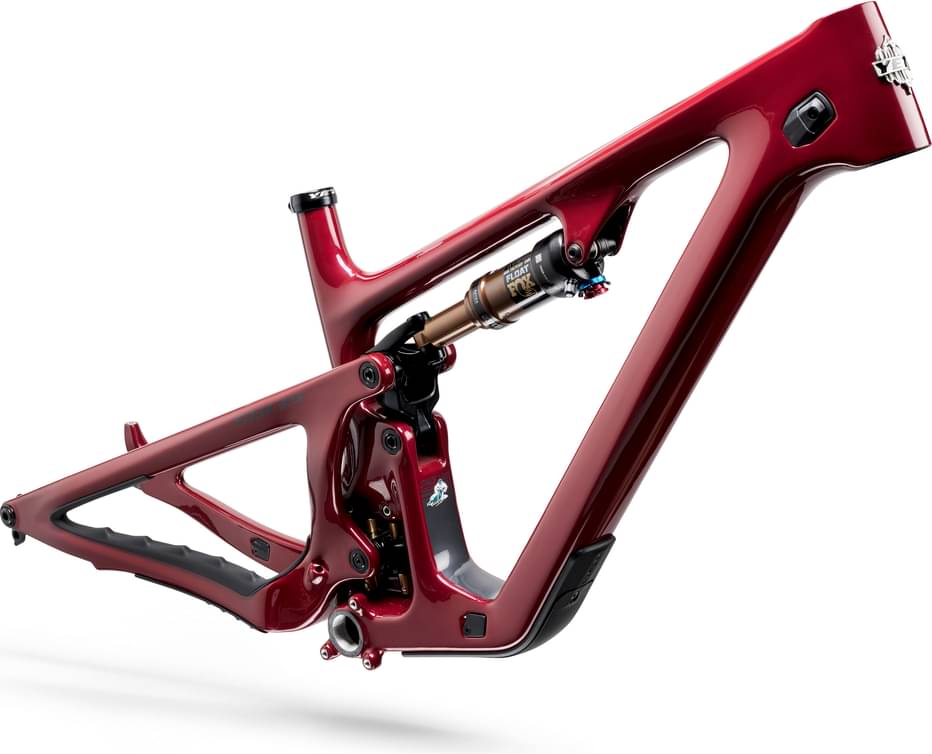

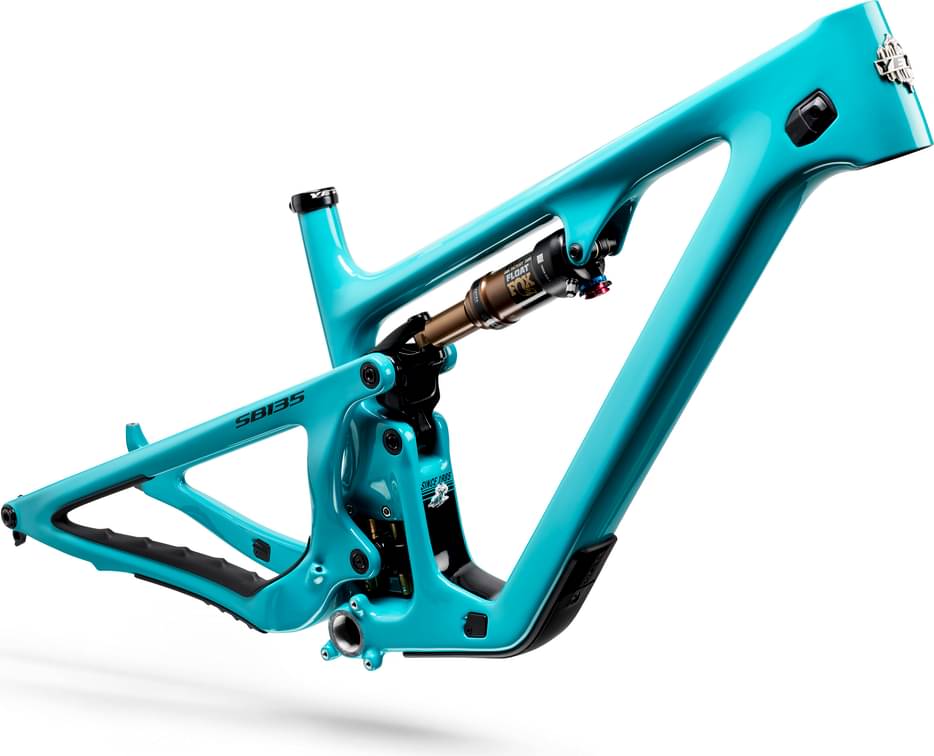

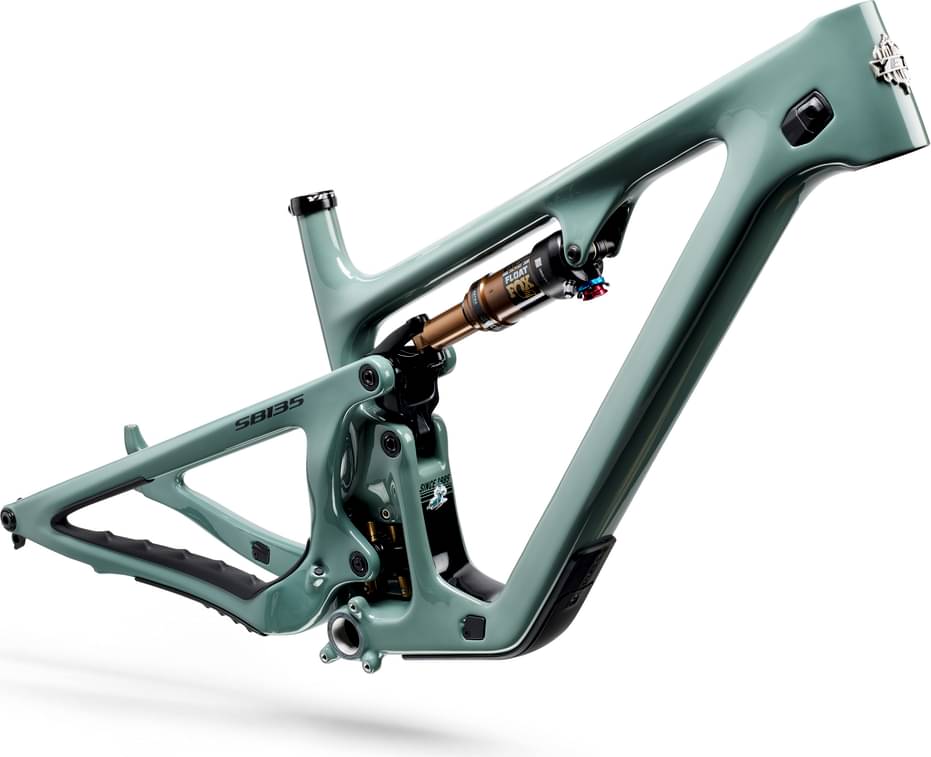

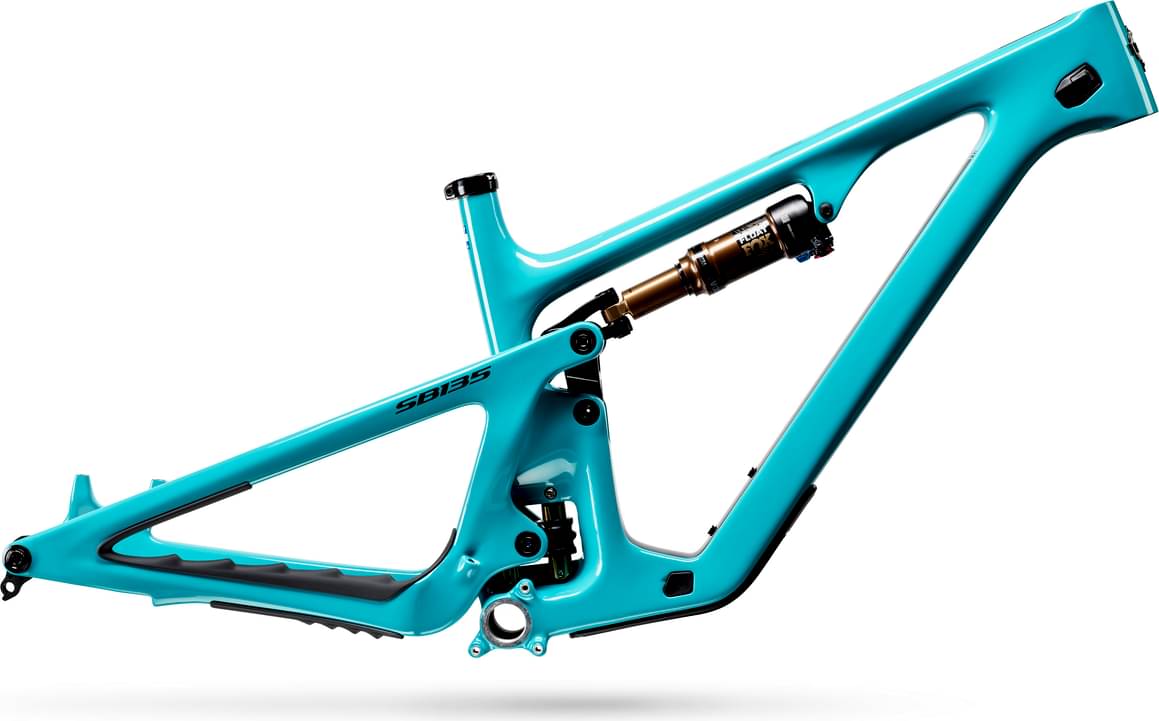

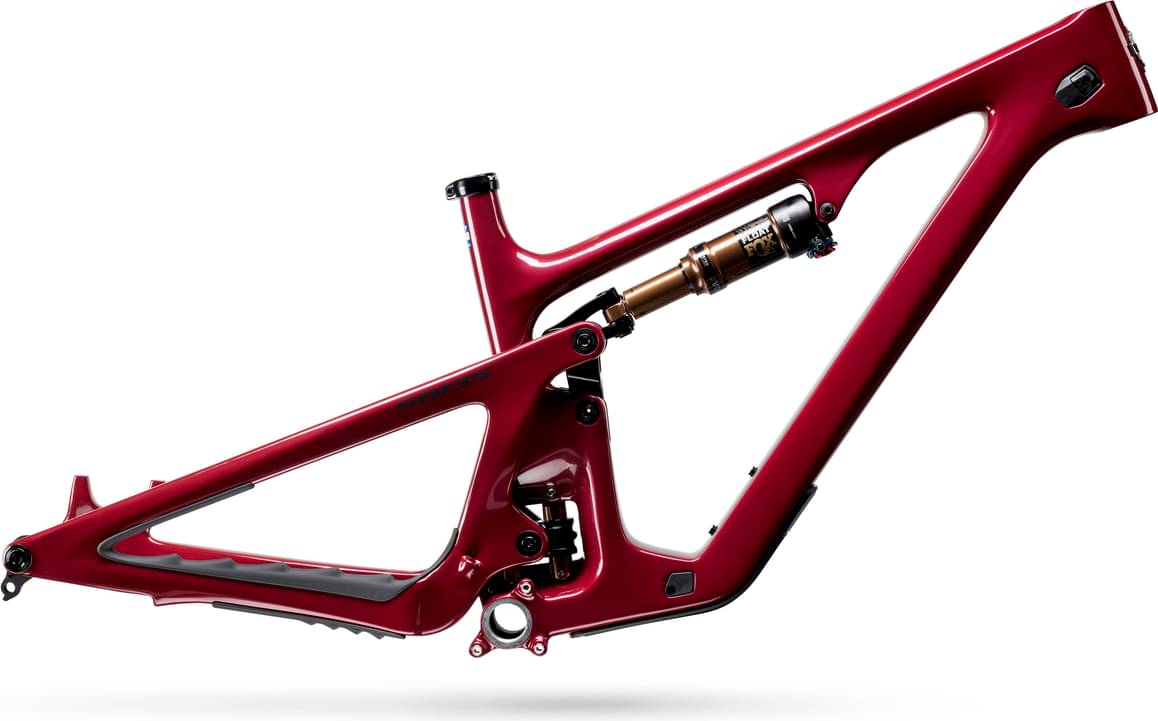

TURQ Series carbon fiber frame, Switch Infinity V2 suspension technology, Threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle.
Suspension Fork
FOX FACTORY 36 FIT4/150MM
Rear Shock
FOX FACTORY FLOAT
Drivetrain
Rear Derailleur
SRAM X01 EAGLE
Shift Levers
SRAM X01 EAGLE
Cassette
SRAM X01 EAGLE 1295 10-52
Crank
SRAM X1 EAGLE CARBON 30T 170MM
Bottom Bracket
SRAM DUB BSA 73
Chain
SRAM GX EAGLE
Wheels
Rims
RACEFACE ARC OFFSET 30MM/DT SWISS 350
Tires
Front: MAXXIS MINION DHF 2.6 EXO, Rear: MAXXIS REKON 2.6 EXO
Brakes
Brakes
SRAM G2 RSC
Cockpit
Stem
BURGTEC ENDURO MK3 35X50MM
Handlebar
YETI CARBON 35X760MM
Grips
ODI ELITE PRO
Headset
CANE CREEK 40 INTEGRATED
Seat
Saddle
SILVERADO CUSTOM
Seatpost
FOX TRANSFER 31.6MM / XS: 125MM, SM: 150MM, MD: 175MM, LG-XL: 200MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.458 mm | 1.377 mm | 1.298 mm | 1.265 mm | 1.222 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm | 337 mm | 337 mm |
| Front Center | 699 mm | 733 mm | 766 mm | 790 mm | 820 mm |
| Rake | 38 mm | 37 mm | 38 mm | 38 mm | 39 mm |
| Trail | 120 mm | 122 mm | 121 mm | 121 mm | 120 mm |
| Stack | 583 mm | 592 mm | 597 mm | 606 mm | 616 mm |
| Reach | 400 mm | 430 mm | 460 mm | 479 mm | 504 mm |
| Top Tube Length | 534 mm | 566 mm | 598 mm | 620 mm | 647 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° | 76.9 ° |
| Seat Tube Length | 345 mm | 365 mm | 400 mm | 440 mm | 470 mm |
| Head Tube Angle | 65.5 ° | 65.4 ° | 65.4 ° | 65.4 ° | 65.4 ° |
| Head Tube Length | 92 mm | 101 mm | 107 mm | 118 mm | 129 mm |
| Chainstay Length | 429 mm | 431 mm | 433 mm | 435 mm | 437 mm |
| Wheelbase | 1128 mm | 1164 mm | 1199 mm | 1225 mm | 1257 mm |
| Bottom Bracket Drop | 18 mm | 18 mm | 18 mm | 18 mm | 18 mm |
| Standover Height | 675 mm | 678 mm | 714 mm | 718 mm | 722 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
