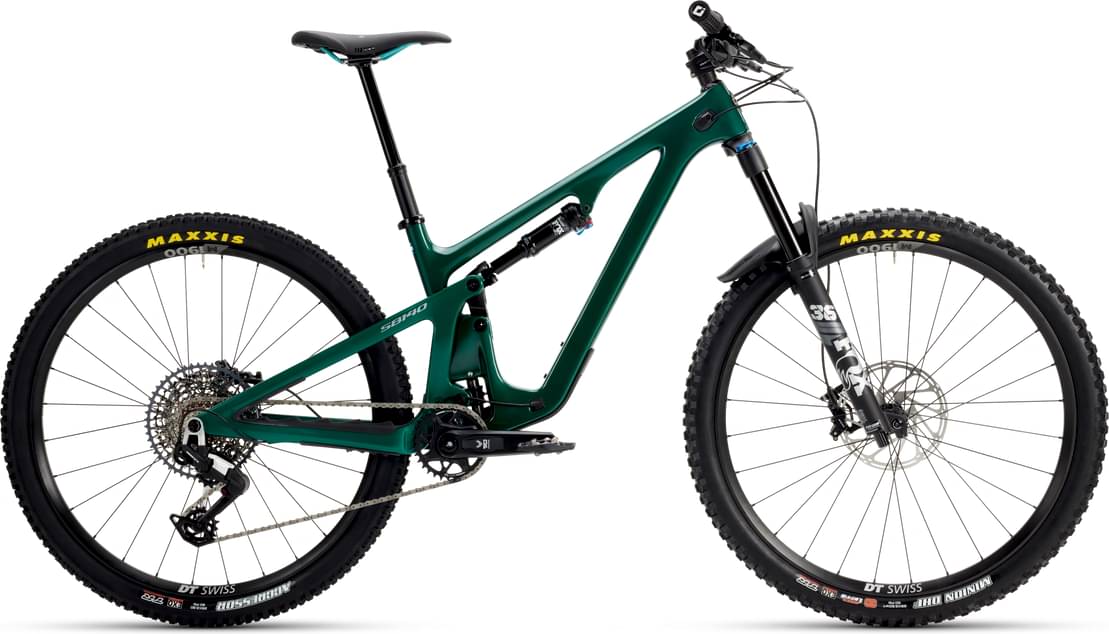

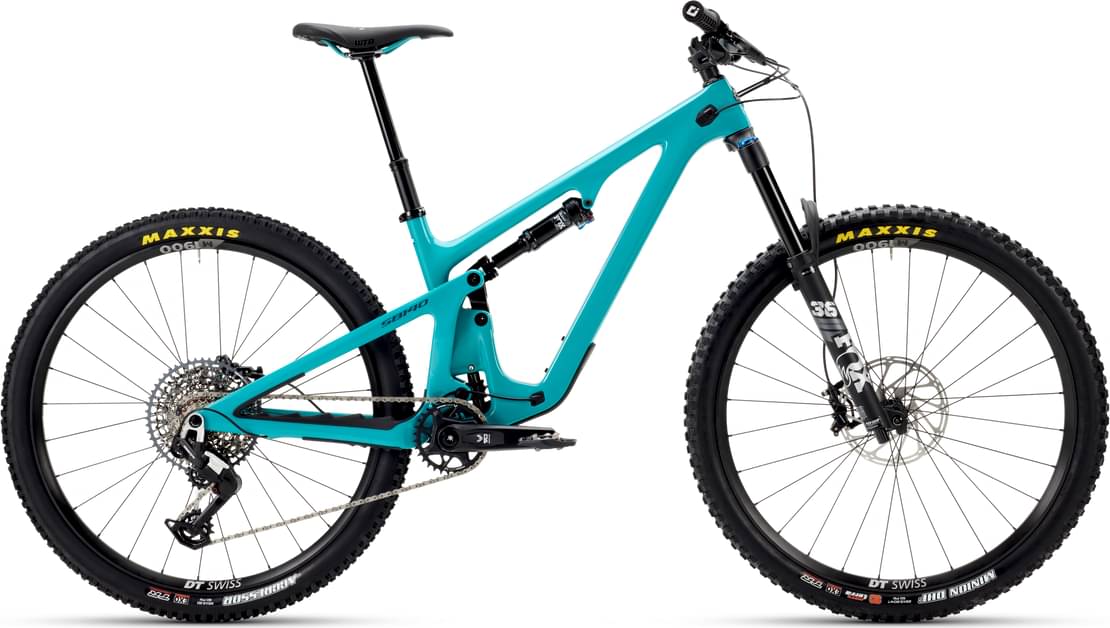

Yeti SB140 C2 90 TRANSMISSION 2026
2026 Mountain
Estimate price |
5,800$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Performance Float 36
-
Groupset Eagle 90 Transmission -
Suspension Full -
Drivetrain 1 × 12 -
Brakes SRAM G2 R Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

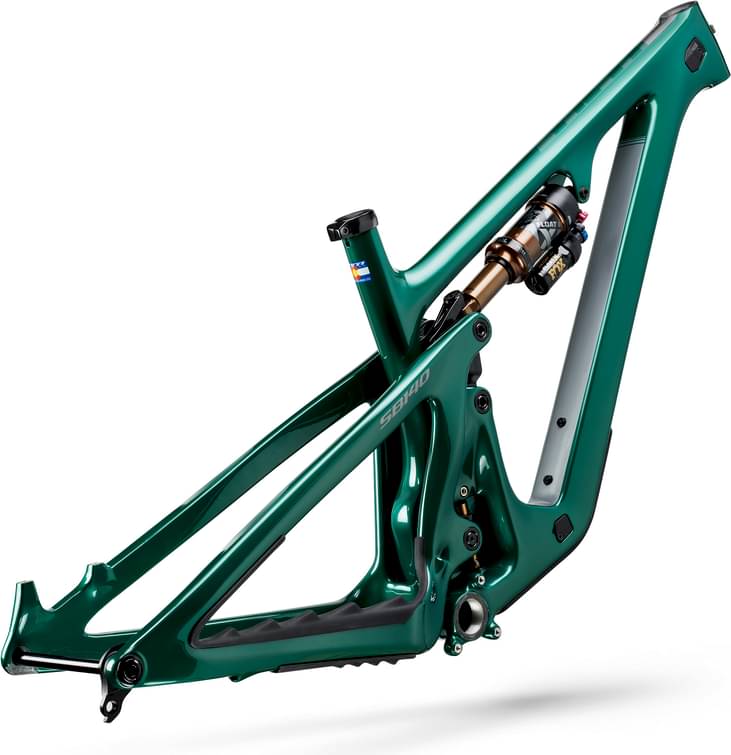

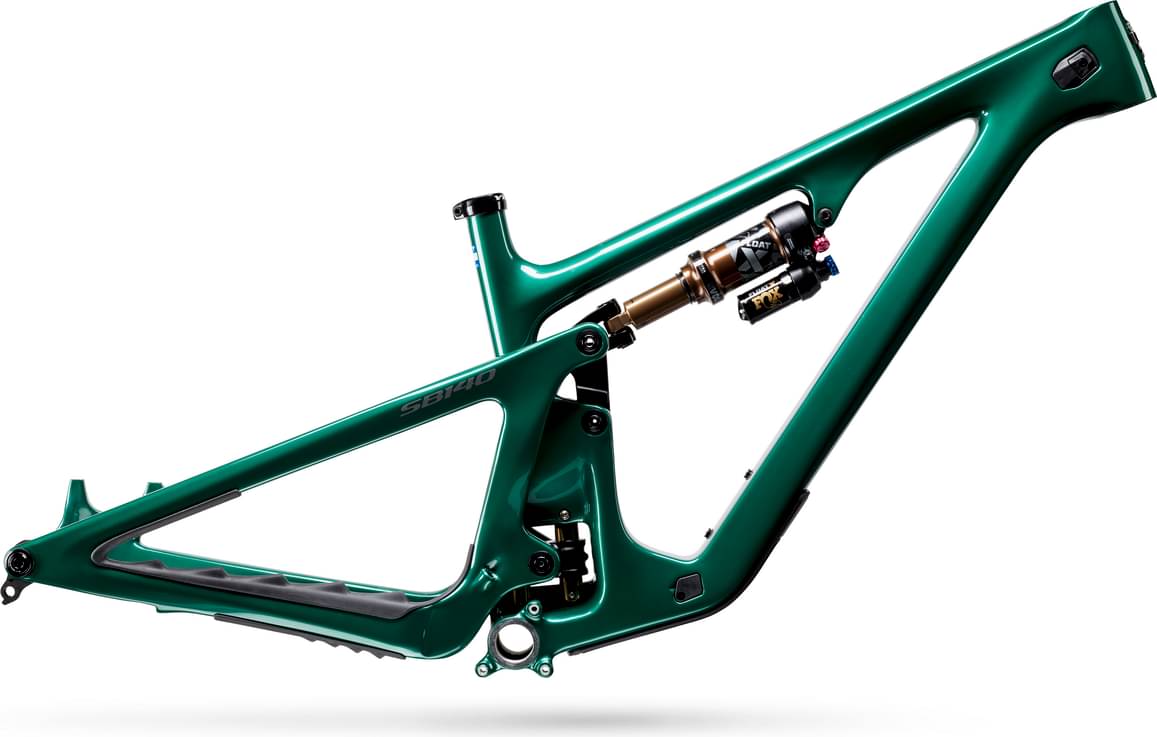

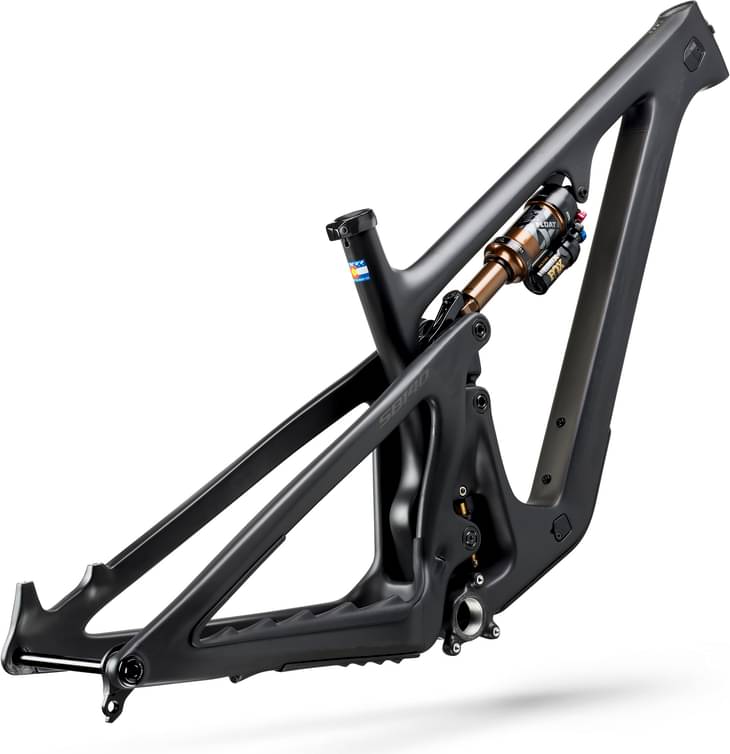

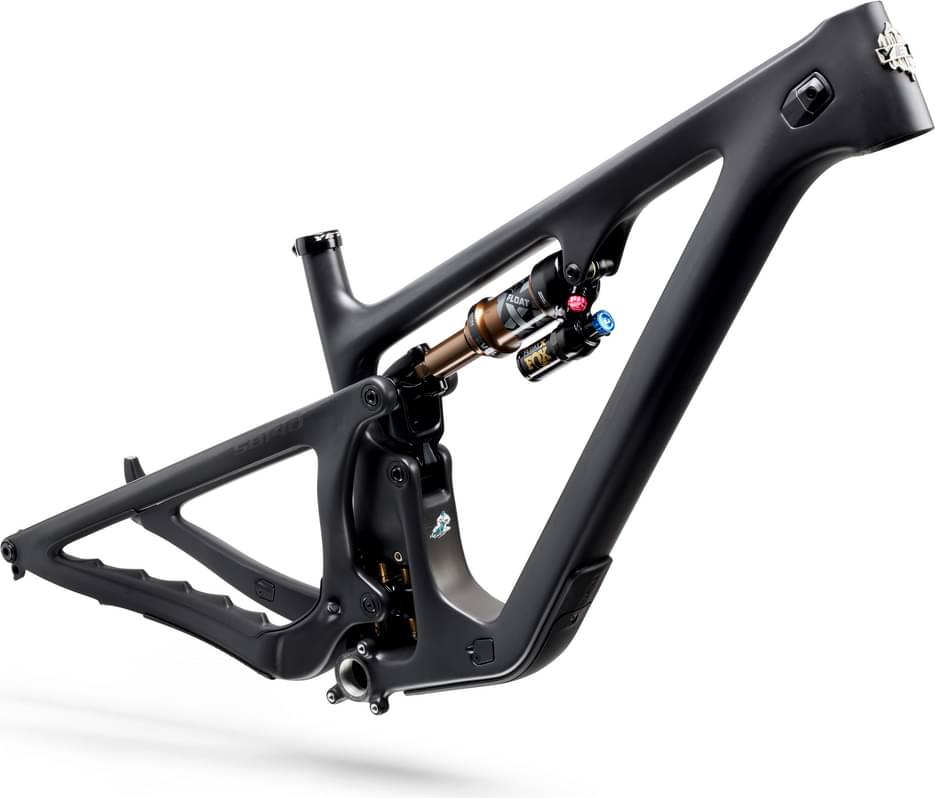

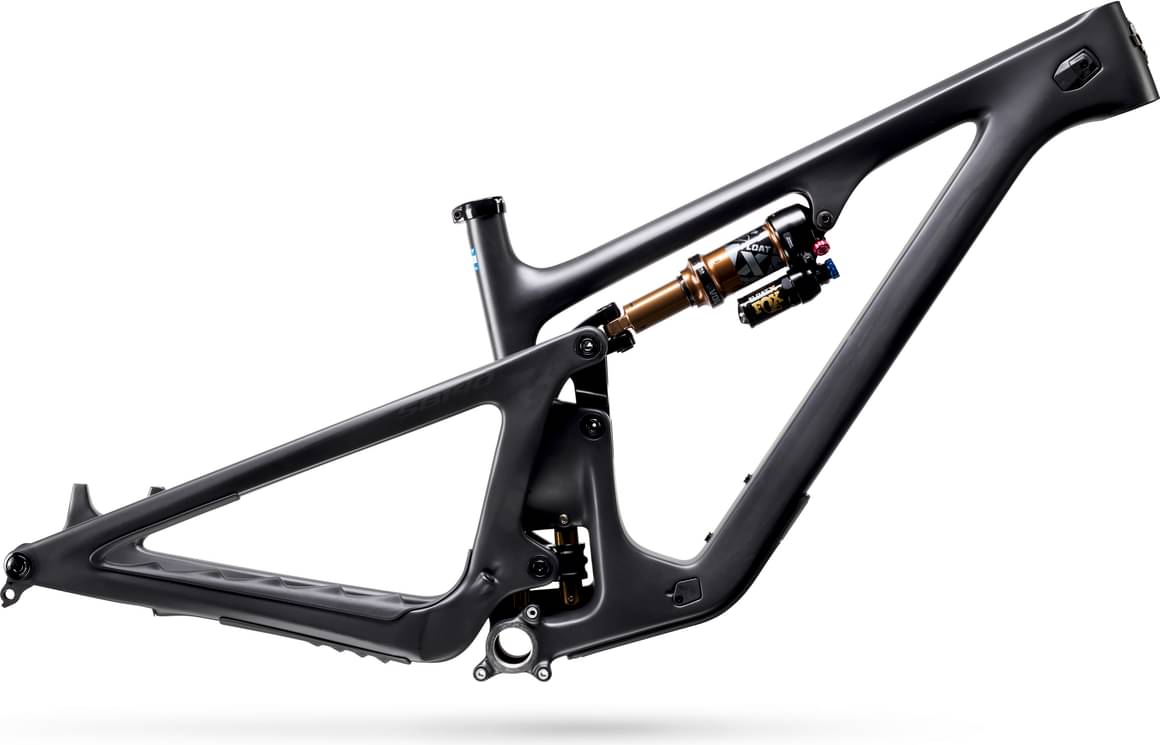

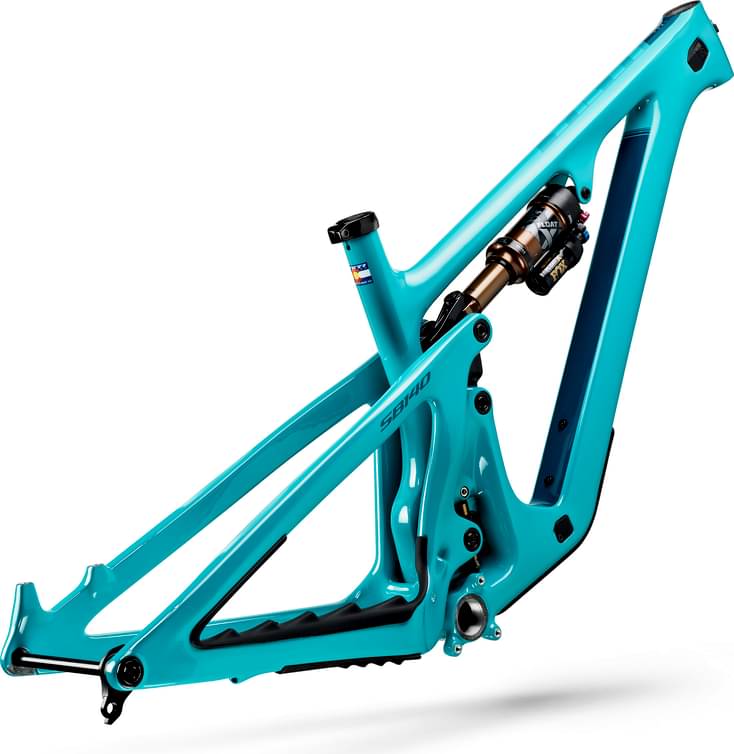

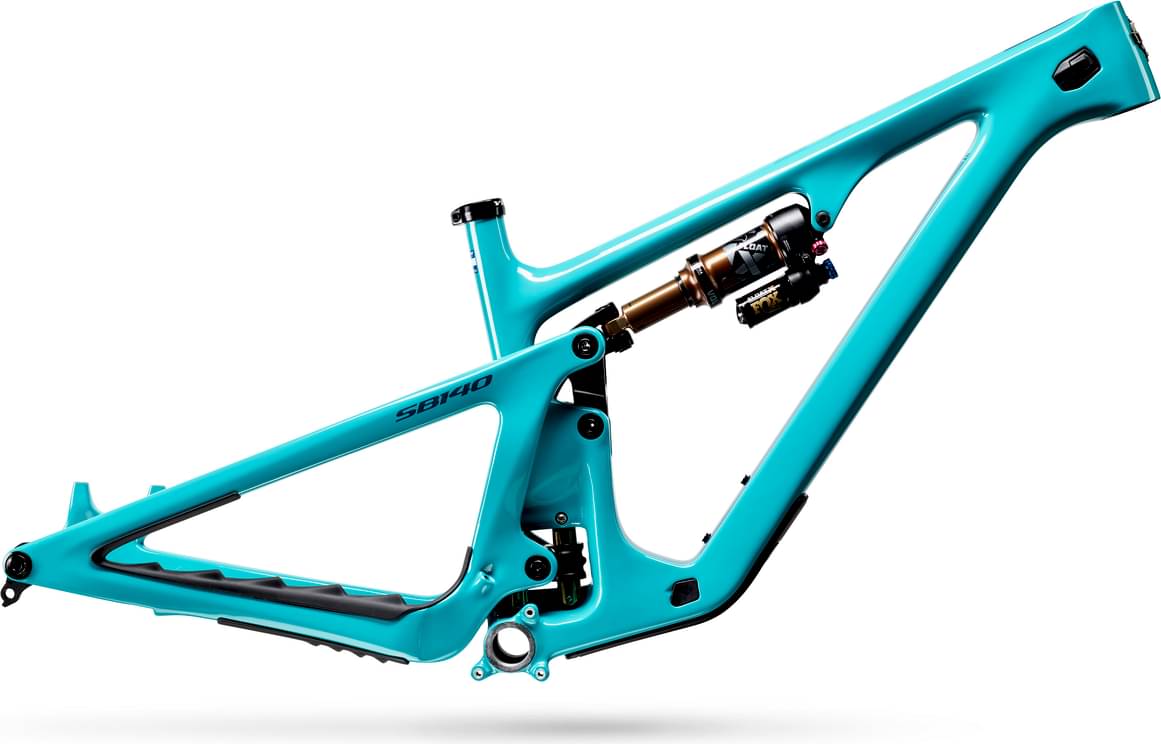

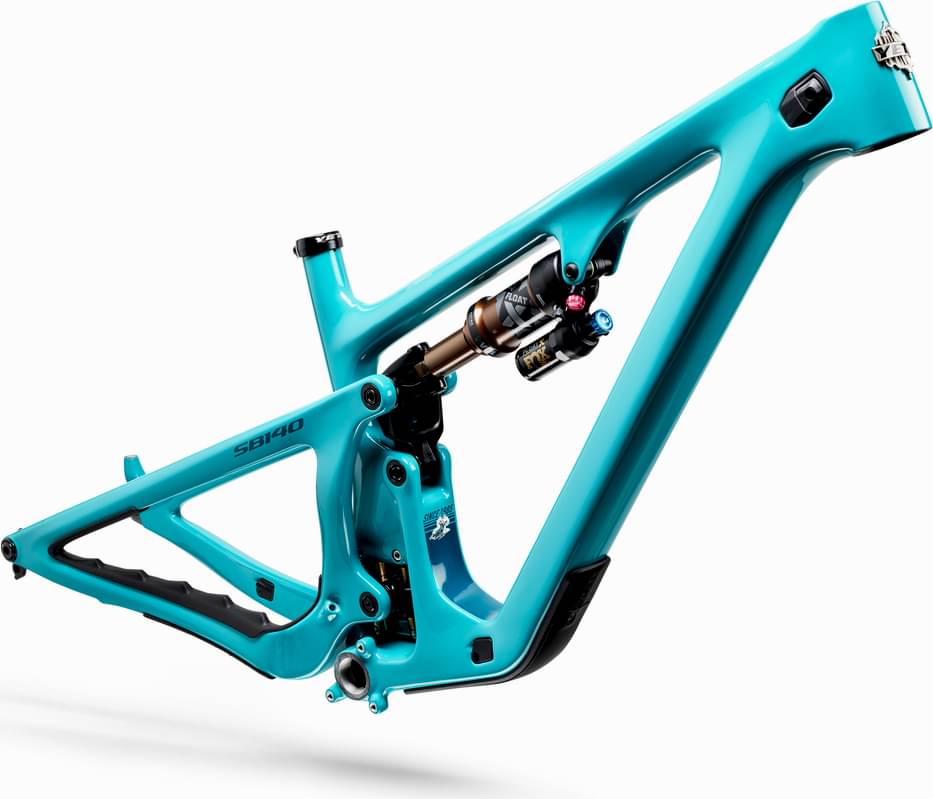

C/Series carbon fiber frame, Switch Infinity suspension technology, Threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle.
Suspension Fork
FOX PERFORMANCE 36/150MM
Rear Shock
FOX PERFORMANCE FLOAT DPS
Drivetrain
Rear Derailleur
SRAM EAGLE 90 TRANSMISSION
Shift Levers
SRAM EAGLE 90 TRANSMISSION
Cassette
SRAM GX EAGLE TRANSMISSION 10-52
Crank
SRAM EAGLE 90 TRANSMISSION 30T 170MM
Bottom Bracket
SRAM DUB BSA 73
Chain
SRAM GX EAGLE TRANSMISSION FLATTOP
Wheels
Rims
DT SWISS M1900 30MM
Tires
Front: MAXXIS MINION DHF 2.5 EXO, Rear: MAXXIS AGGRESSOR 2.3 EXO
Brakes
Brakes
SRAM G2 R
Cockpit
Stem
BURGTEC ENDURO MK3 35X50MM
Handlebar
BURGTEC RIDE WIDE ALLOY ENDURO 35X780MM
Grips
ODI ELITE PRO
Headset
CANE CREEK 40 INTEGRATED
Seat
Saddle
WTB SILVERADO CUSTOM
Seatpost
ONEUP DROPPER POST 31.6MM / SM: 150MM, MD: 180MM, LG: 210MM, XL-XXL: 240MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.411 mm | 1.327 mm | 1.28 mm | 1.237 mm | 1.24 mm |
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm | 339 mm | 339 mm |
| Front Center | 748 mm | 779 mm | 802 mm | 831 mm | 856 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 122 mm | 123 mm | 121 mm | 122 mm | 121 mm |
| Stack | 614 mm | 617 mm | 621 mm | 631 mm | 651 mm |
| Reach | 435 mm | 465 mm | 485 mm | 510 mm | 525 mm |
| Top Tube Length | 571 mm | 602 mm | 623 mm | 650 | 670 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 77.5 ° | 77.4 ° | 77.4 ° |
| Seat Tube Length | 365 mm | 400 mm | 440 mm | 470 mm | 485 mm |
| Head Tube Angle | 65.4 ° | 65.4 ° | 65.4 ° | 65.4 ° | 65.4 ° |
| Head Tube Length | 92 mm | 95 mm | 100 mm | 112 mm | 134 mm |
| Chainstay Length | 436 mm | 438 mm | 440 mm | 442 mm | 444 mm |
| Wheelbase | 1184 mm | 1217 mm | 1242 mm | 1273 mm | 1300 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 722 mm | 729 mm | 733 mm | 735 mm | 740 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
