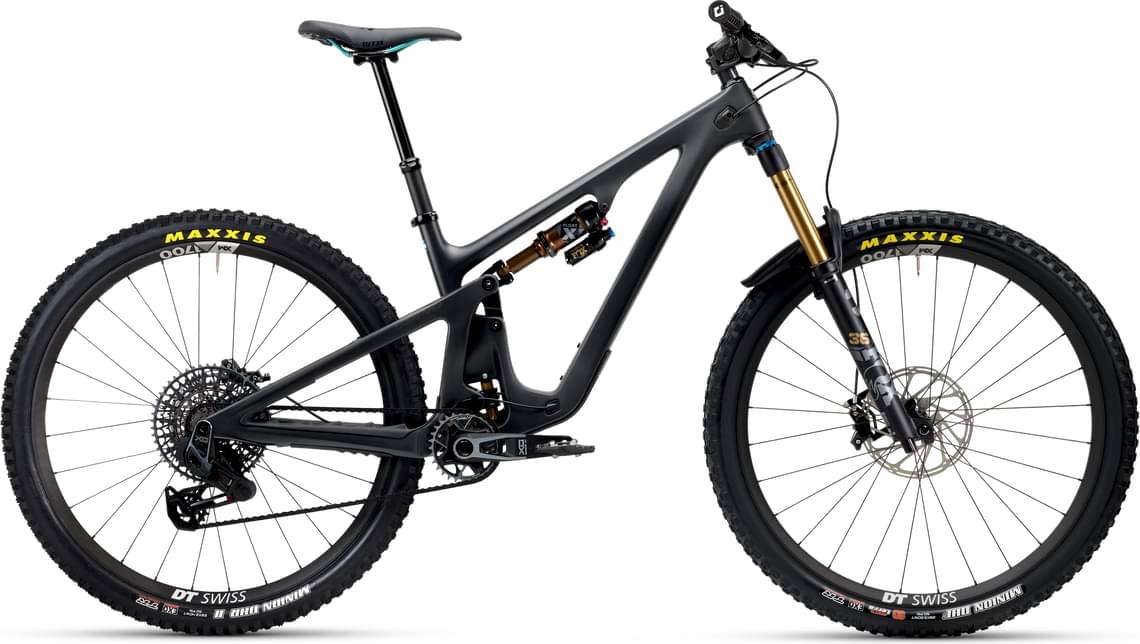

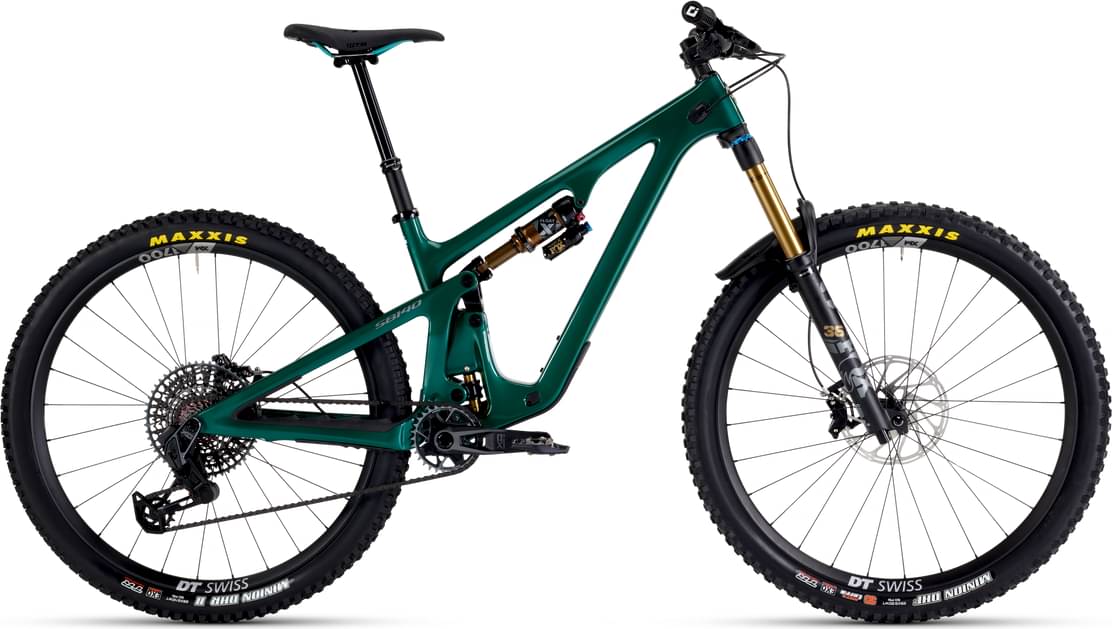

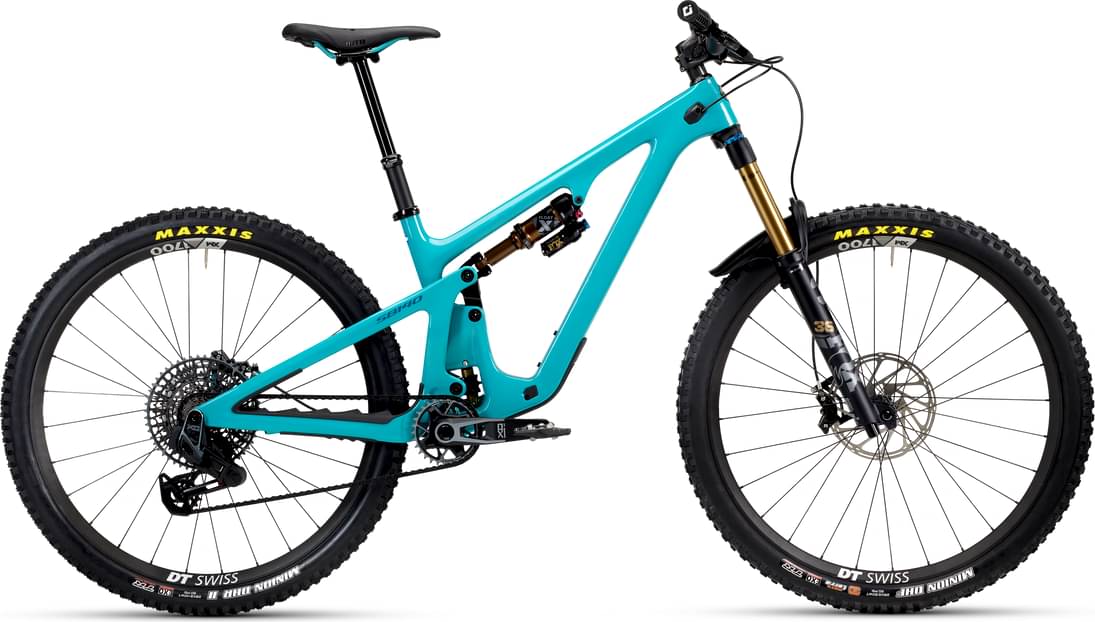

Yeti SB140 LR T3 X0 AXS TRANSMISSION 2025
2025 Mountain
Estimate price |
9,000$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset X0 Eagle Transmission, Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes SRAM Code RSC Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame

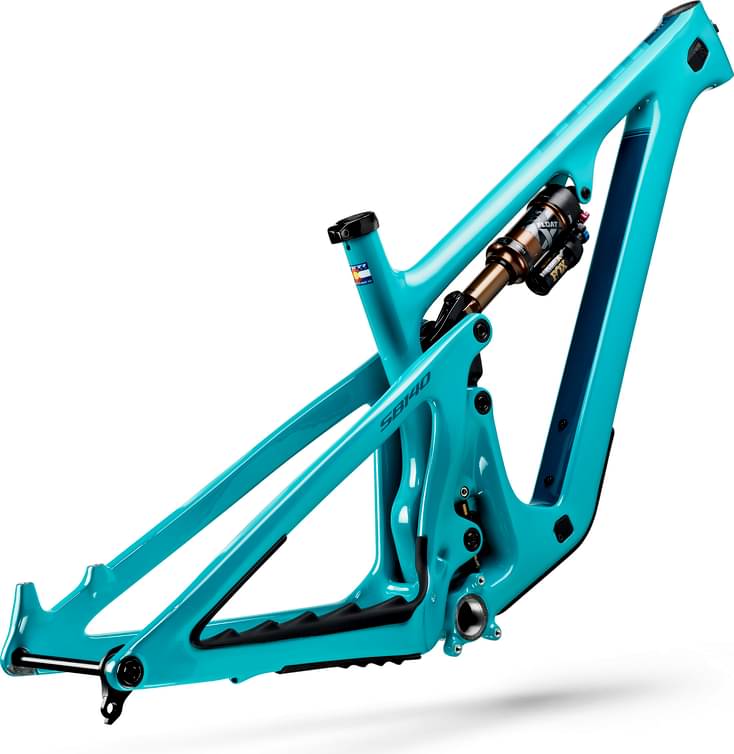

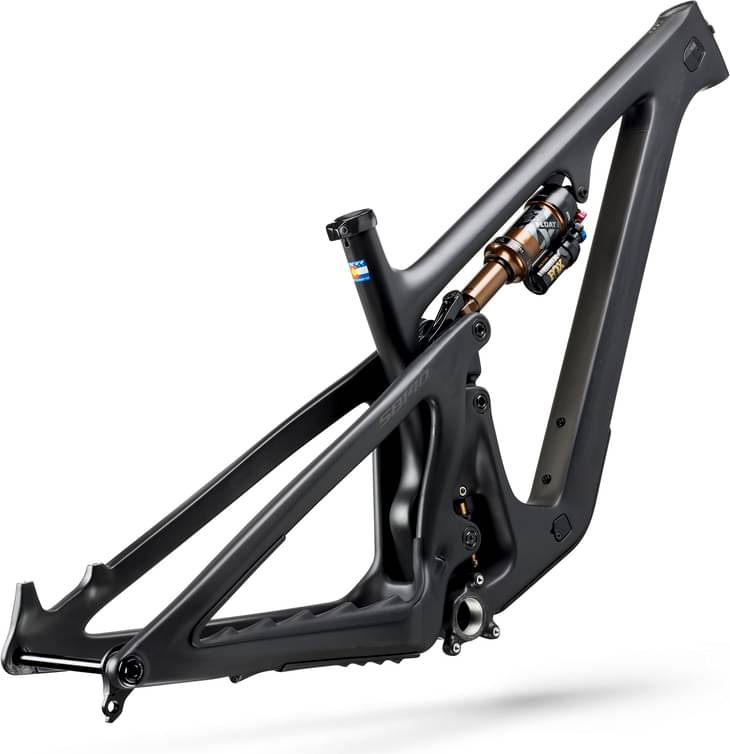

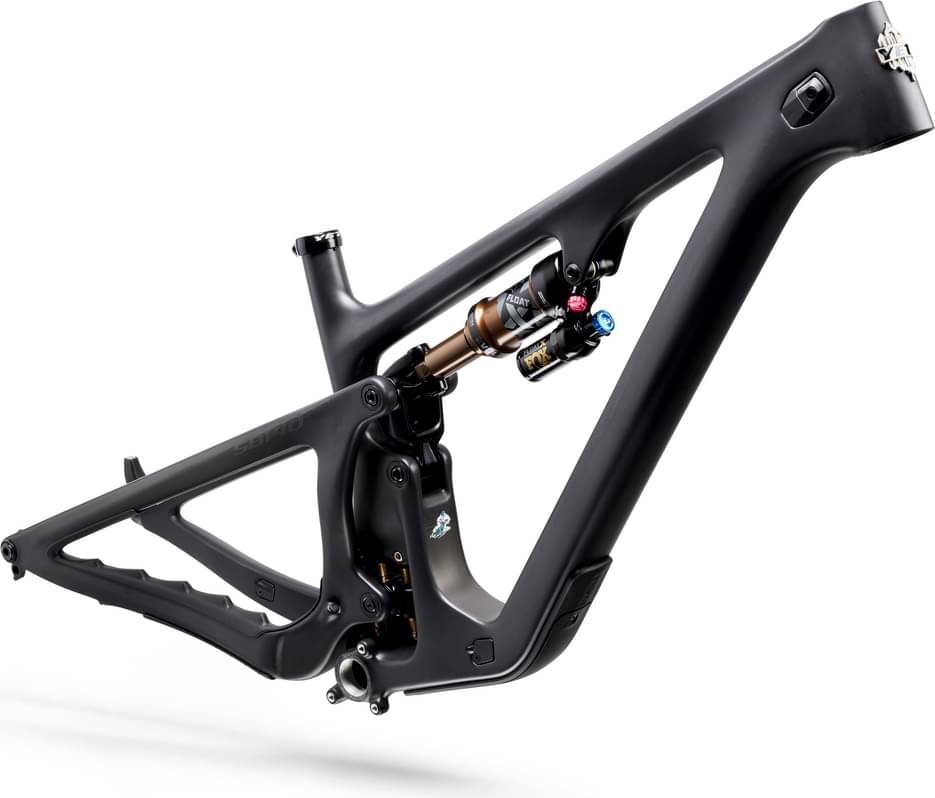

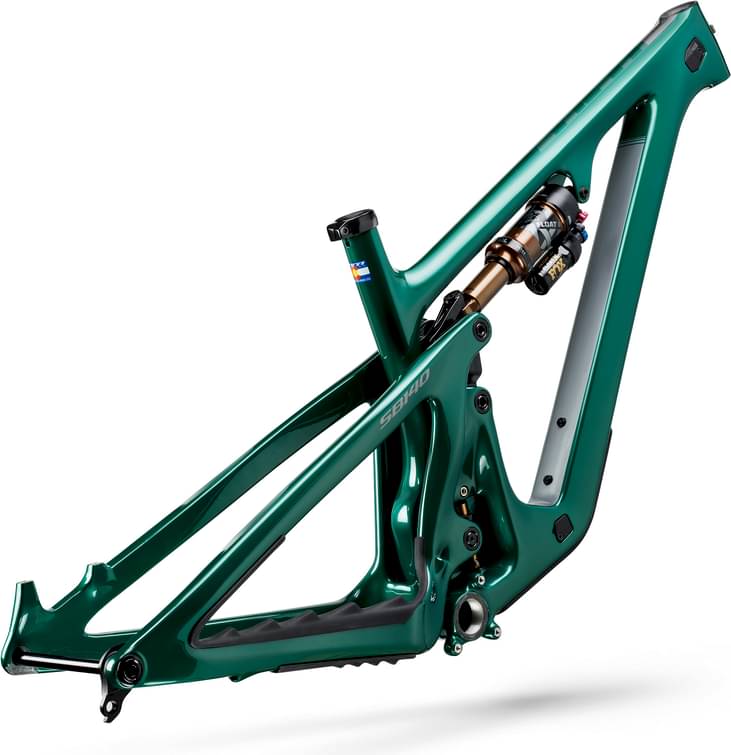

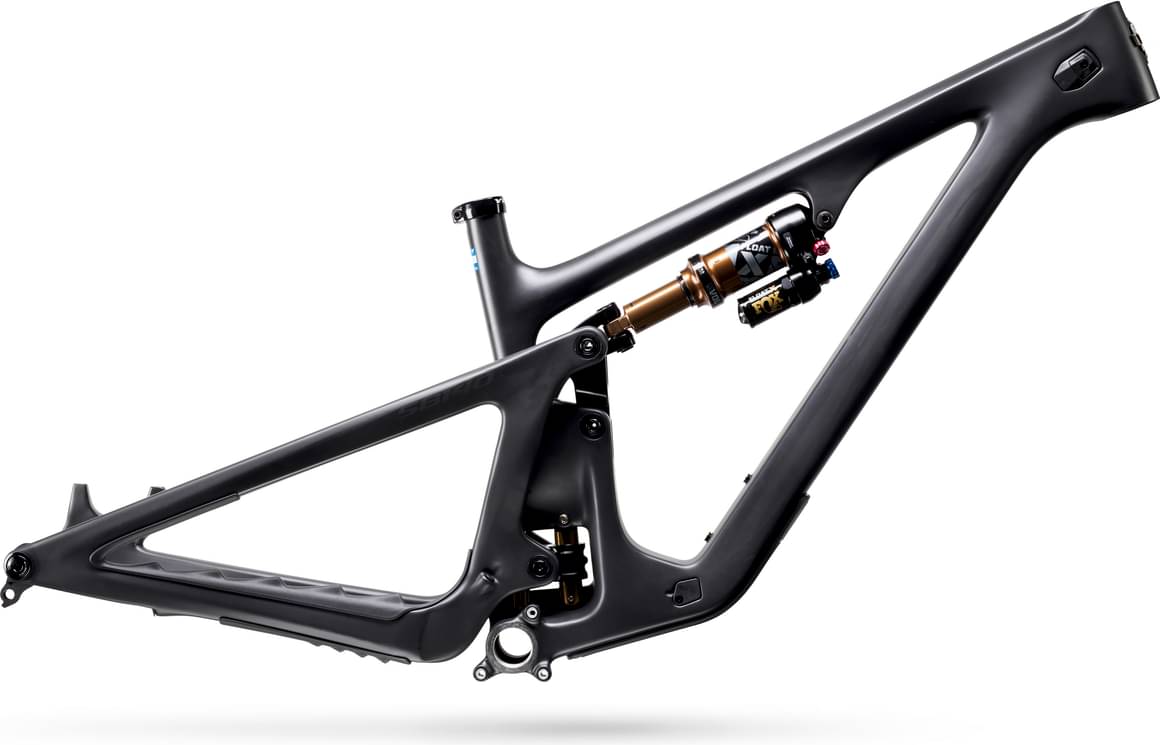

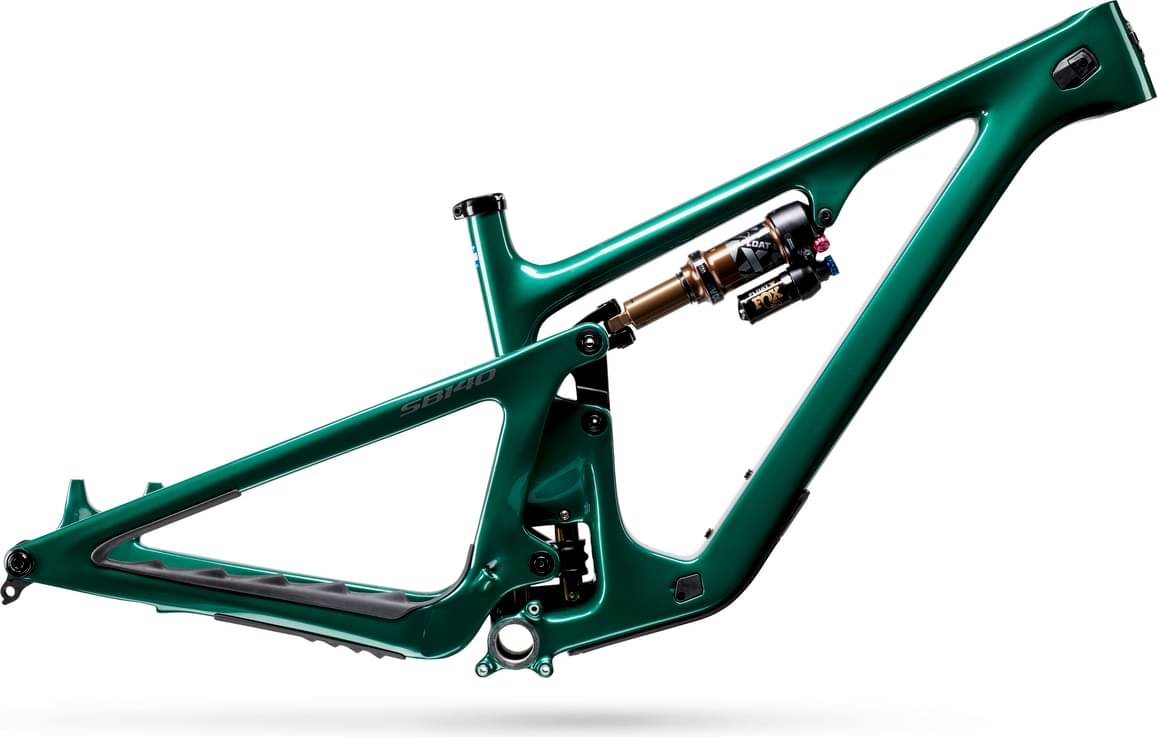

Frame

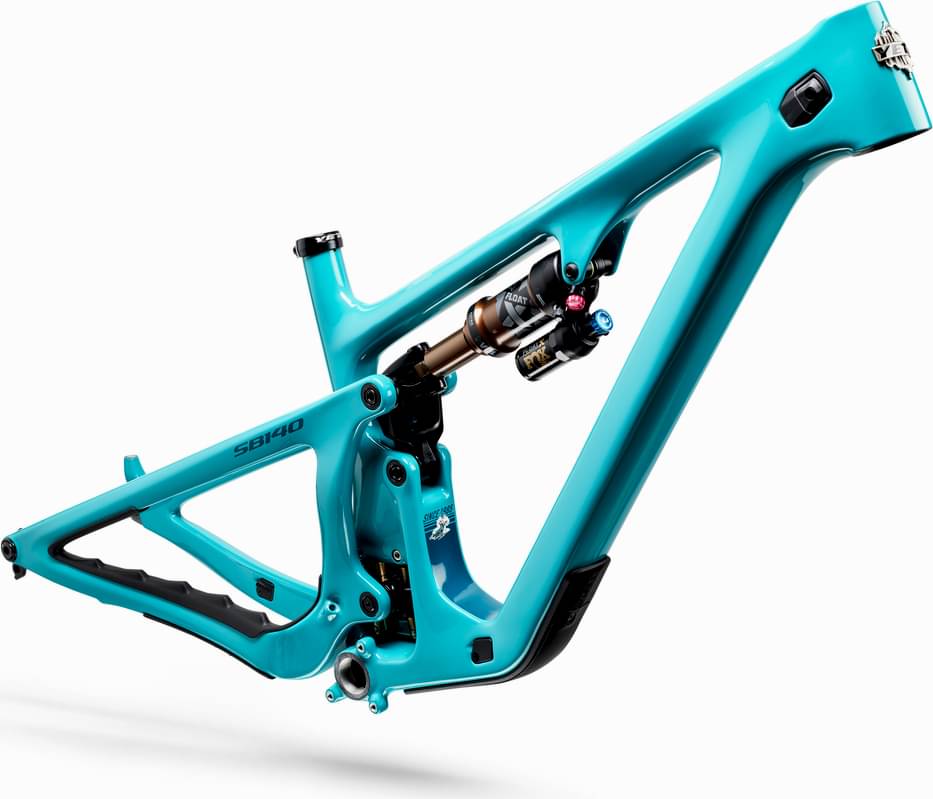

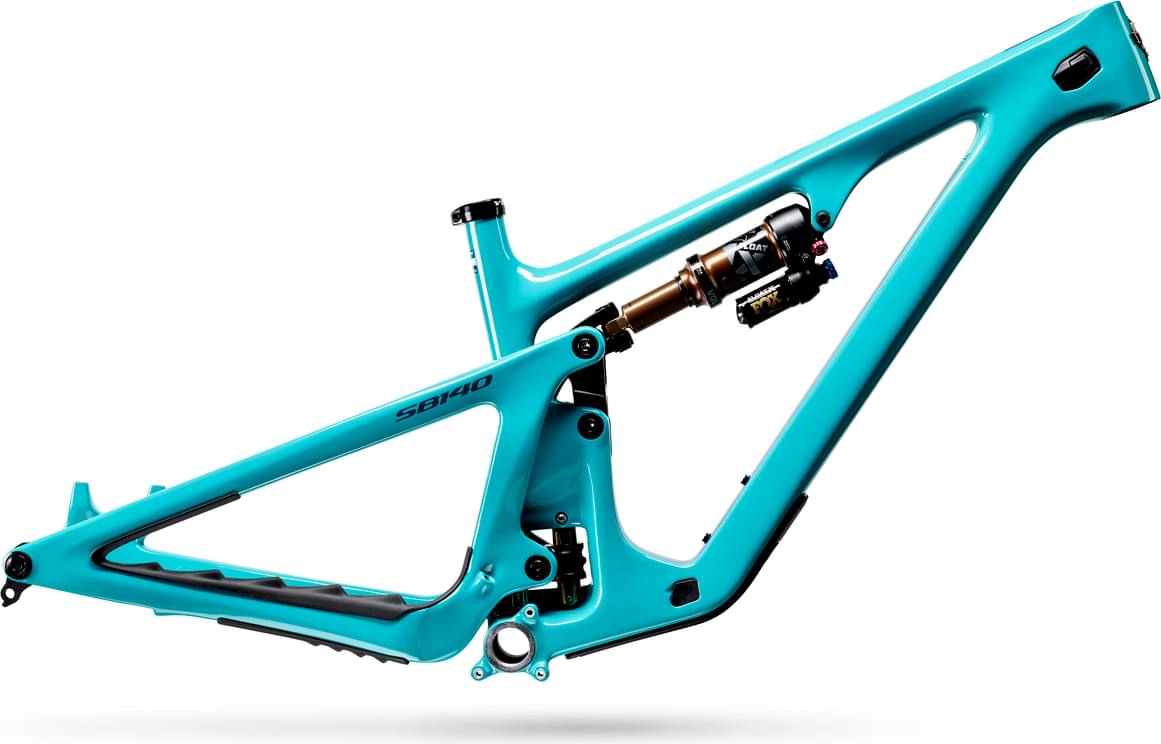

TURQ Series carbon fiber frame, Switch Infinity V2 suspension technology, Threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle.
Suspension Fork
FOX FACTORY 36 GRIP X2/160MM
Rear Shock
FOX FACTORY FLOAT X
Drivetrain
Rear Derailleur
SRAM X0 EAGLE AXS TRANSMISSION
Shift Levers
SRAM AXS POD CONTROLLER
Cassette
SRAM X0 EAGLE TRANSMISSION 10-52
Crank
SRAM X0 EAGLE TRANSMISSION 30T 170MM
Bottom Bracket
SRAM DUB BSA 73
Chain
SRAM X0 EAGLE TRANSMISSION FLATTOP
Wheels
Rims
DT SWISS XM1700 30MM
Tires
Front: MAXXIS MINION DHF 2.5 EXO, Rear: MAXXIS MINION DHR II 2.4 EXO
Brakes
Brakes
SRAM CODE RSC
Cockpit
Stem
BURGTEC ENDURO MK3 35X50MM
Handlebar
YETI CARBON 35X800MM 35MM RISE
Grips
ODI ELITE PRO
Headset
CANE CREEK 40 INTEGRATED
Seat
Saddle
WTB SILVERADO CUSTOM
Seatpost
FOX TRANSFER 31.6MM / SM: 150MM, MD: 175MM, LG-XXL: 200MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.435 mm | 1.348 mm | 1.302 mm | 1.257 mm | 1.26 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm | 342 mm | 342 mm |
| Front Center | 752 mm | 783 mm | 806 mm | 835 mm | 860 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 124 mm | 125 mm | 124 mm | 125 mm | 124 mm |
| Stack | 617 mm | 620 mm | 625 mm | 635 mm | 655 mm |
| Reach | 430 mm | 460 mm | 480 mm | 505 mm | 520 mm |
| Top Tube Length | 573 mm | 603 mm | 624 mm | 652 mm | 671 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 365 mm | 400 mm | 440 mm | 470 mm | 485 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 92 mm | 95 mm | 100 mm | 112 mm | 134 mm |
| Chainstay Length | 436 mm | 438 mm | 440 mm | 442 mm | 444 mm |
| Wheelbase | 1188 mm | 1221 mm | 1246 mm | 1277 mm | 1304 mm |
| Bottom Bracket Drop | 32 mm | 32 mm | 32 mm | 32 mm | 32 mm |
| Standover Height | 726 mm | 733 mm | 737 mm | 739 mm | 744 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
