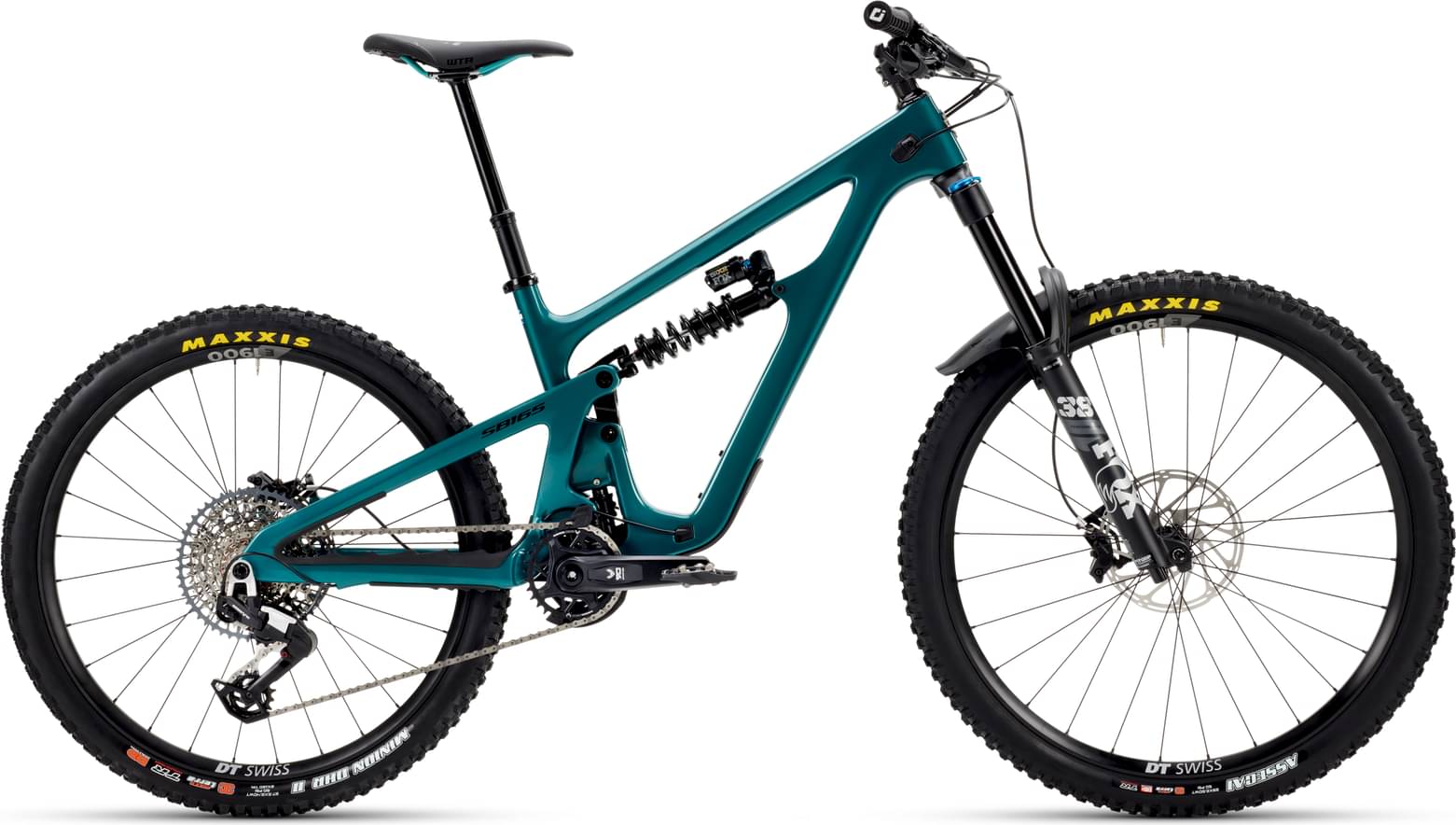

Yeti SB165 C2 90 TRANSMISSION 2026
2026 Mountain
Estimate price |
6,200$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 165mm -
Fork Fox Performance Float 38
-
Groupset Eagle 90 Transmission -
Suspension Full -
Drivetrain 1 × 12 -
Brakes SRAM Code R Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C/Series carbon fiber frame, Switch Infinity suspension technology, threaded bottom bracket, fully enclosed internal cable routing, 148mm x 12mm BOOST dropouts, universal derailleur hanger (UDH) and axle.
Suspension Fork
FOX PERFORMANCE 38/170MM
Rear Shock
FOX FACTORY DHX2 2 POS LEVER / SM: 400#, MD: 450#, LG: 500#, XL: 550#
Drivetrain
Rear Derailleur
SRAM EAGLE 90 TRANSMISSION
Shift Levers
SRAM EAGLE 90 TRANSMISSION
Cassette
SRAM GX EAGLE TRANSMISSION 10-52
Crank
SRAM EAGLE 90 TRANSMISSION 30T 170MM
Bottom Bracket
SRAM DUB BSA 73
Chain
SRAM GX EAGLE TRANSMISSION FLATTOP
Wheels
Rims
DT SWISS E1900 30MM
Tires
Front: MAXXIS ASSEGAI 2.5 EXO+, Rear: MAXXIS MINION DHR II 2.4 DD
Brakes
Brakes
SRAM CODE R
Cockpit
Stem
BURGTEC ENDURO MK3 35X50MM
Handlebar
BURGTEC RIDE WIDE ALLOY ENDURO 35X780MM 35MM RISE
Grips
ODI ELITE PRO
Headset
CANE CREEK 40 INTEGRATED
Seat
Saddle
WTB SILVERADO CUSTOM
Seatpost
ONEUP DROPPER POST 31.6MM / SM: 150MM, MD: 180MM, LG: 210MM, XL-XXL: 240MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.442 mm | 1.359 mm | 1.313 mm | 1.267 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 774 mm | 807 mm | 829 mm | 859 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 136 mm | 136 mm | 136 mm | 136 mm |
| Stack | 620 mm | 625 mm | 630 mm | 640 mm |
| Reach | 430 mm | 460 mm | 480 mm | 505 mm |
| Top Tube Length | 573 mm | 604 mm | 625 mm | 653 mm |
| Seat Tube Angle | 76.8 ° | 76.9 ° | 76.9 ° | 76.9 ° |
| Seat Tube Length | 365 mm | 400 mm | 440 mm | 470 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 95 mm | 101 mm | 107 mm | 118 mm |
| Chainstay Length | 433 mm | 435 mm | 437 mm | 439 mm |
| Wheelbase | 1207 mm | 1242 mm | 1266 mm | 1298 mm |
| Bottom Bracket Drop | 29 mm | 29 mm | 29 mm | 29 mm |
| Standover Height | 730 mm | 738 mm | 744 mm | 750 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
