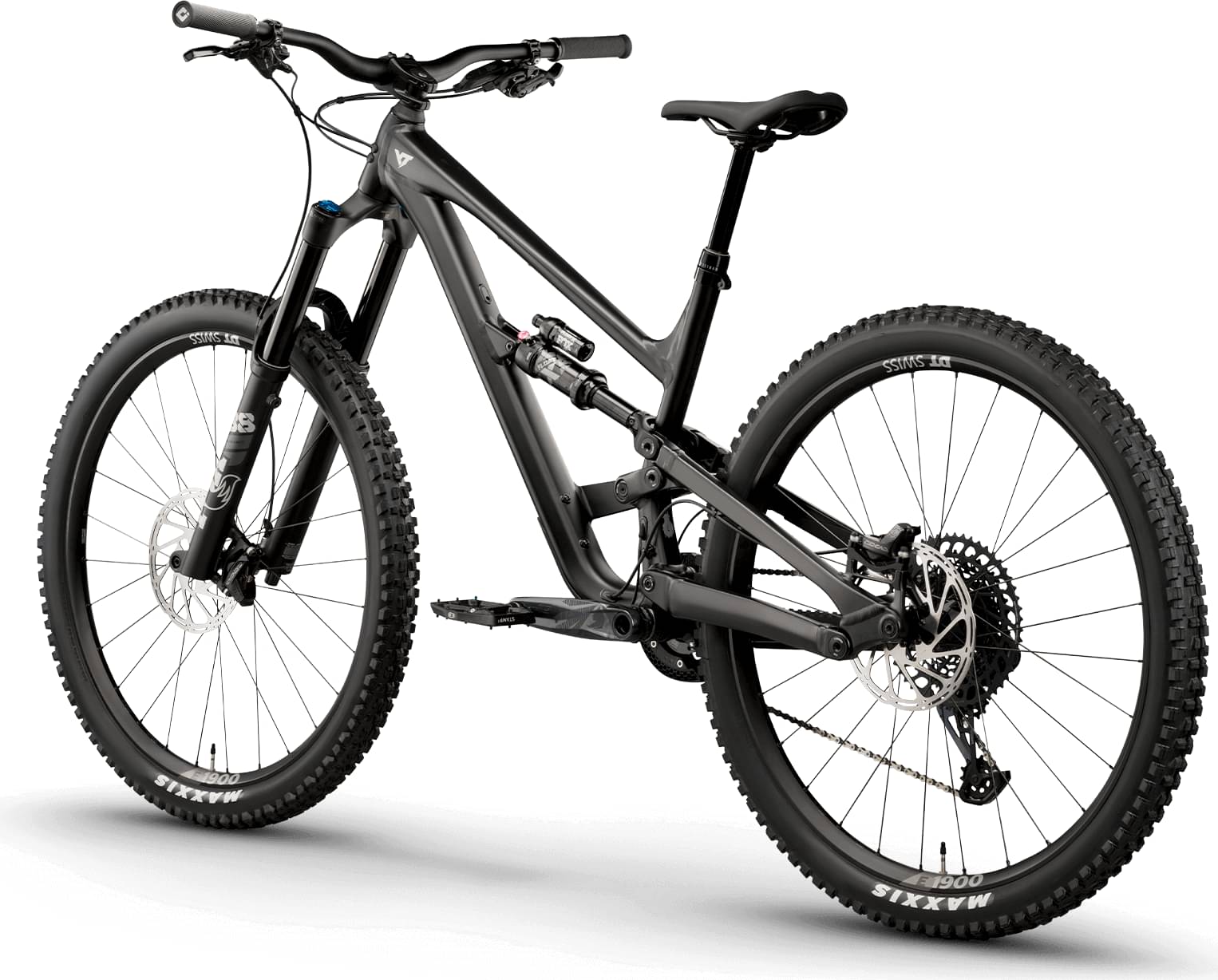

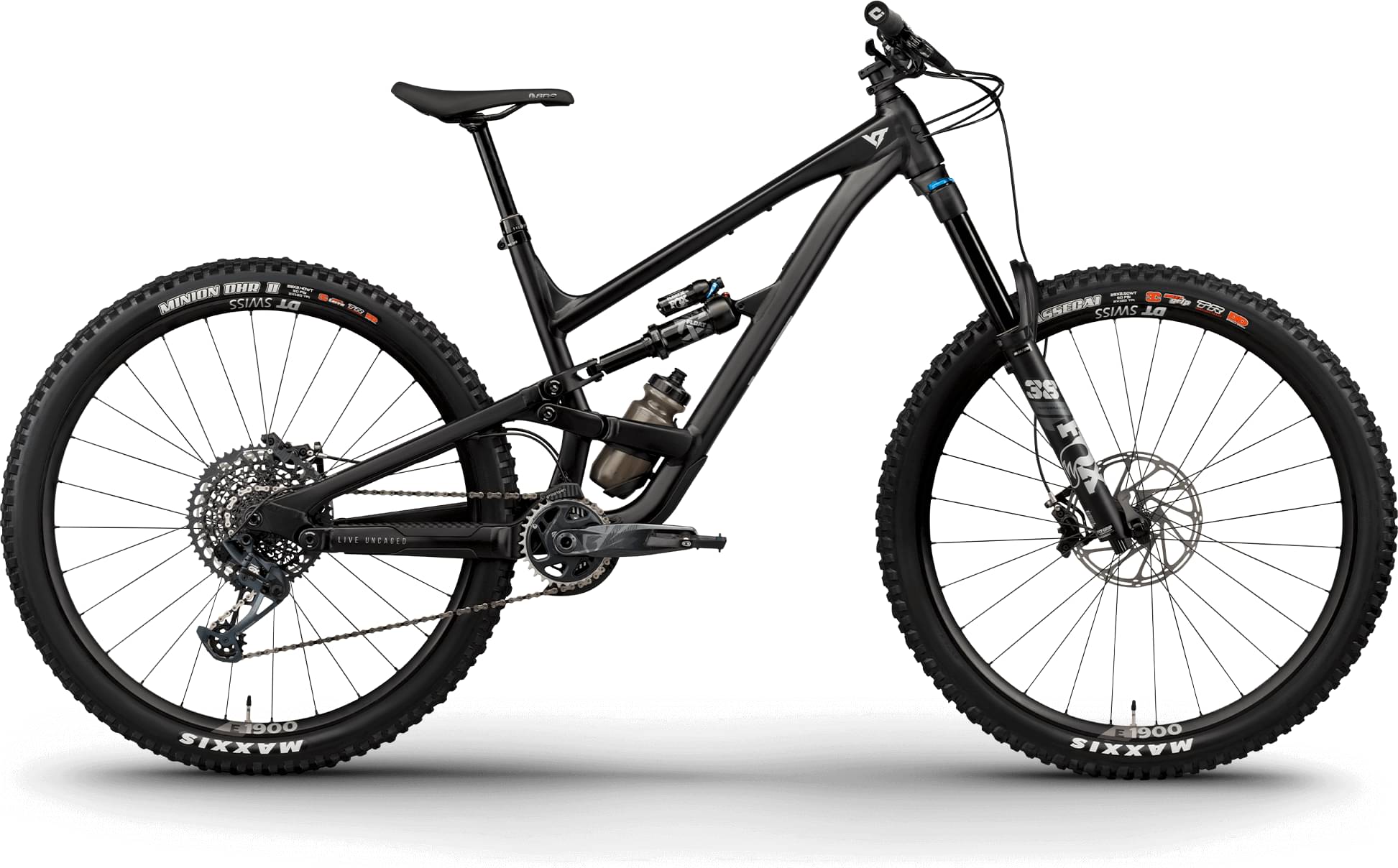

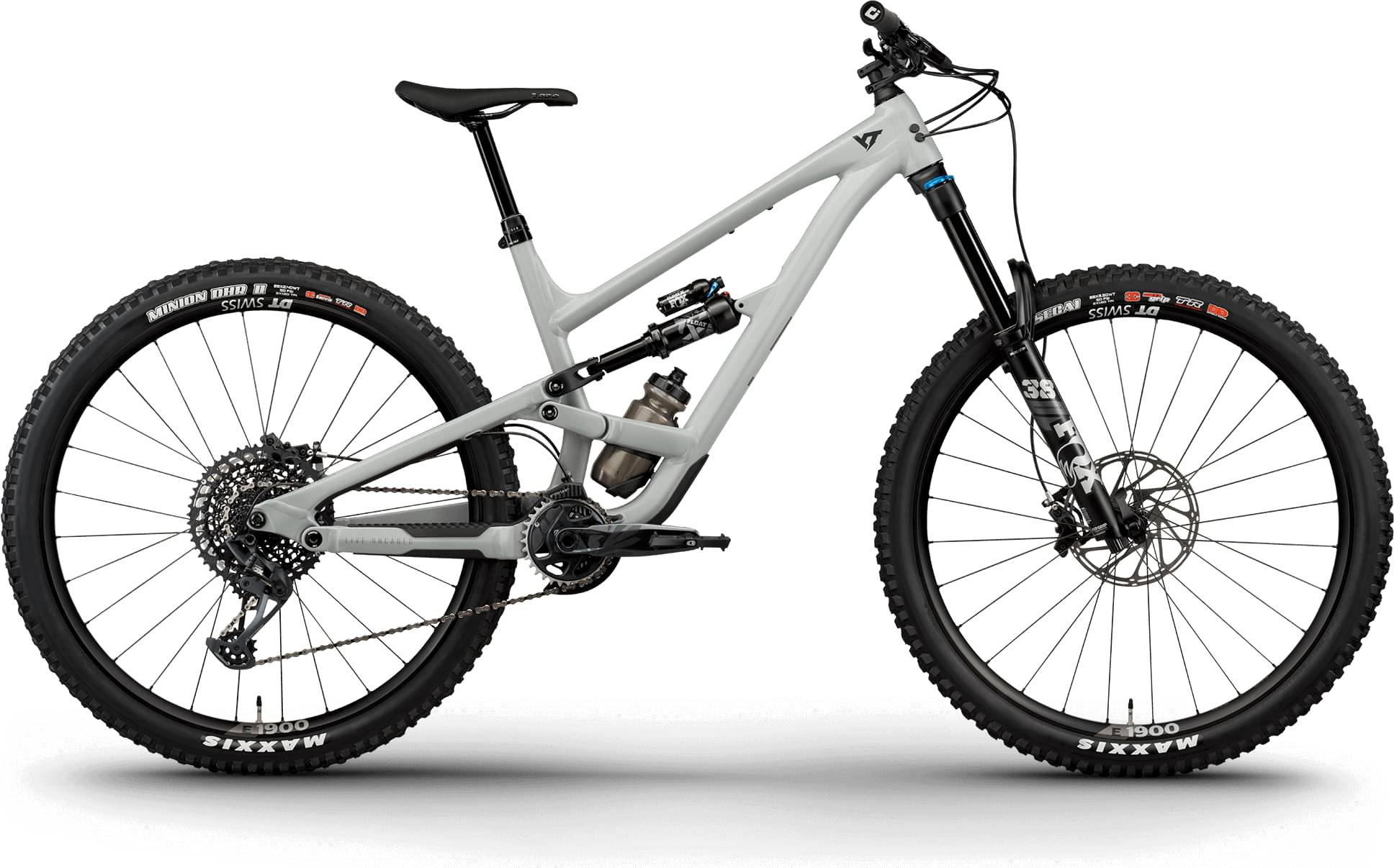

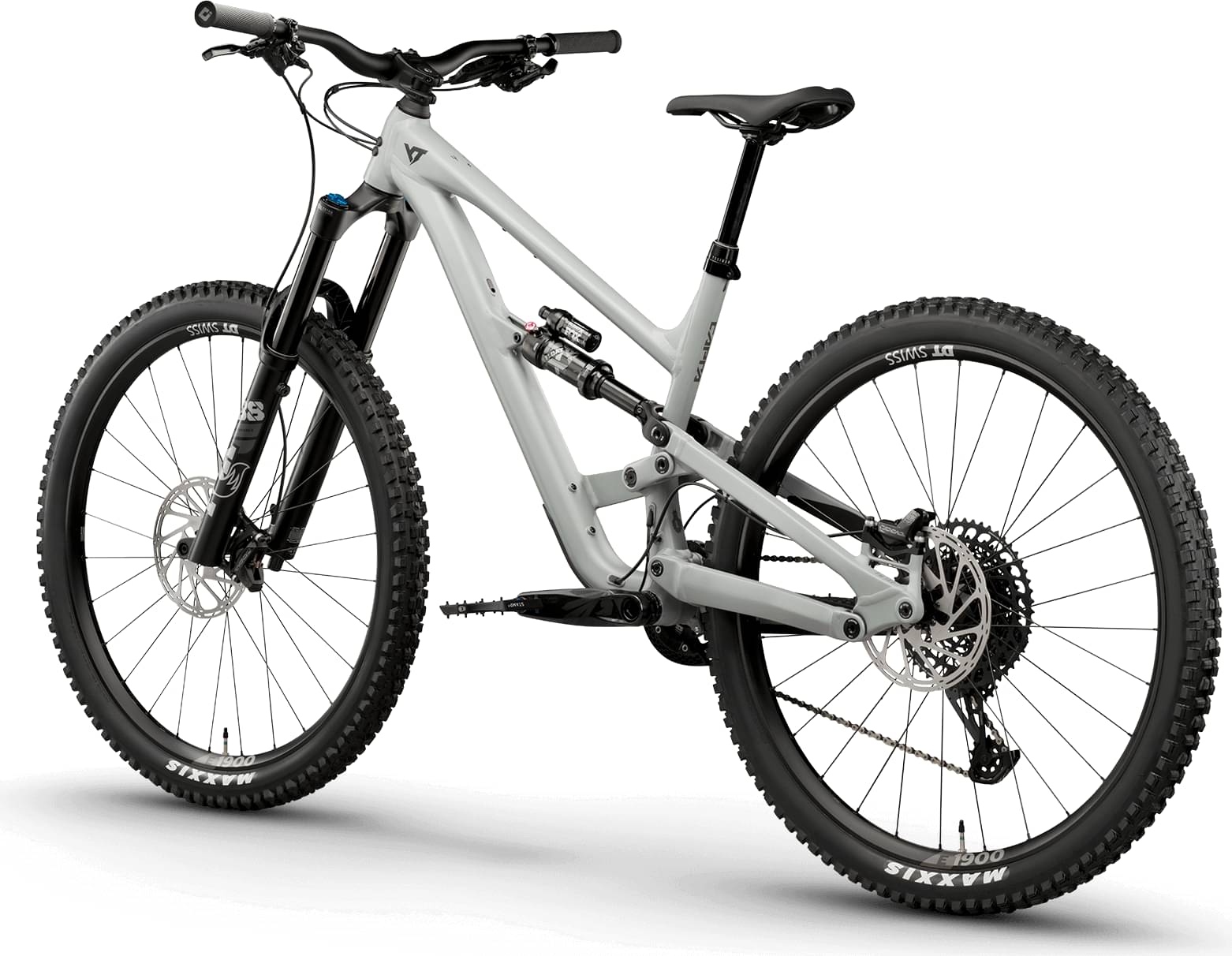

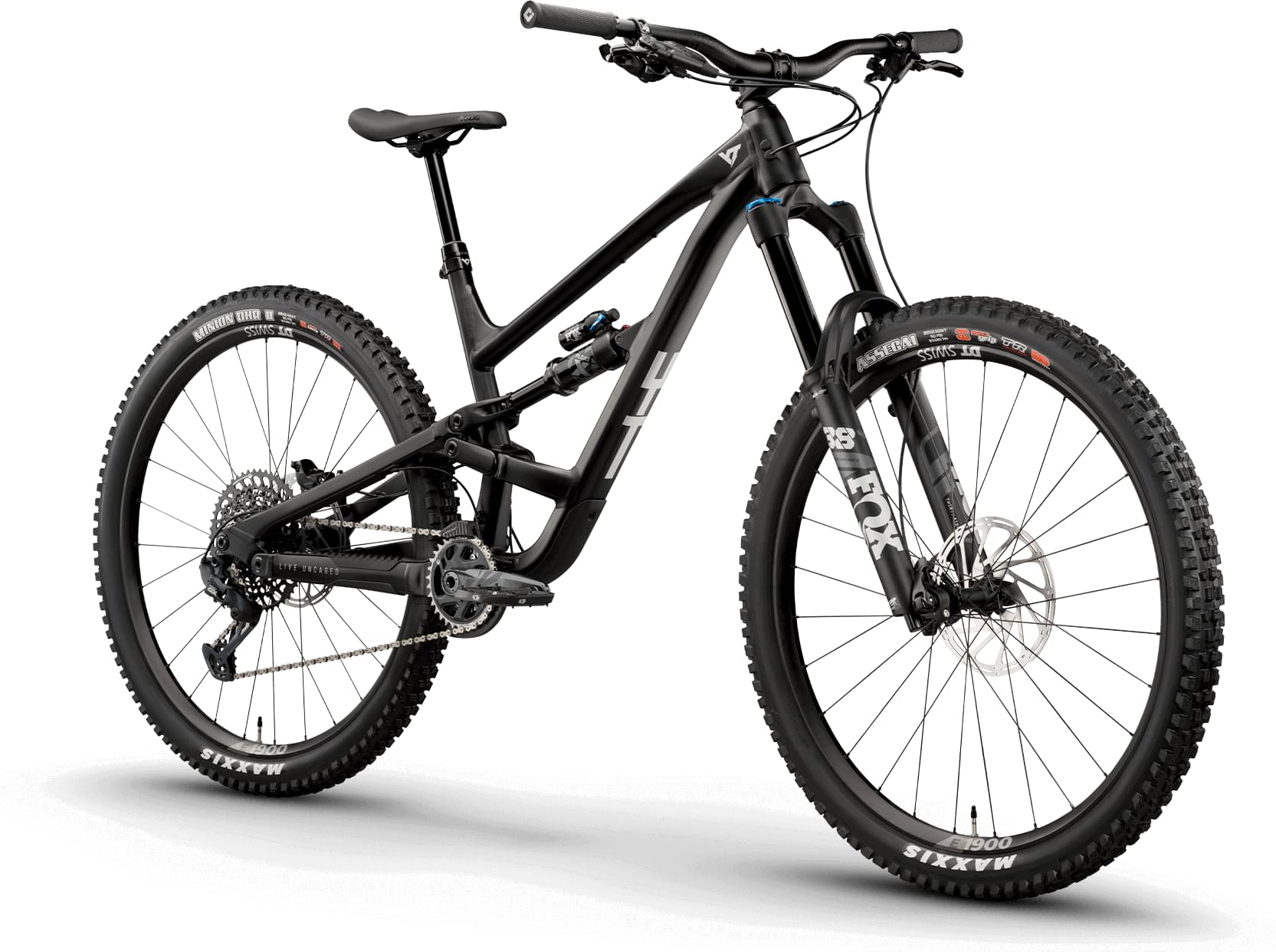

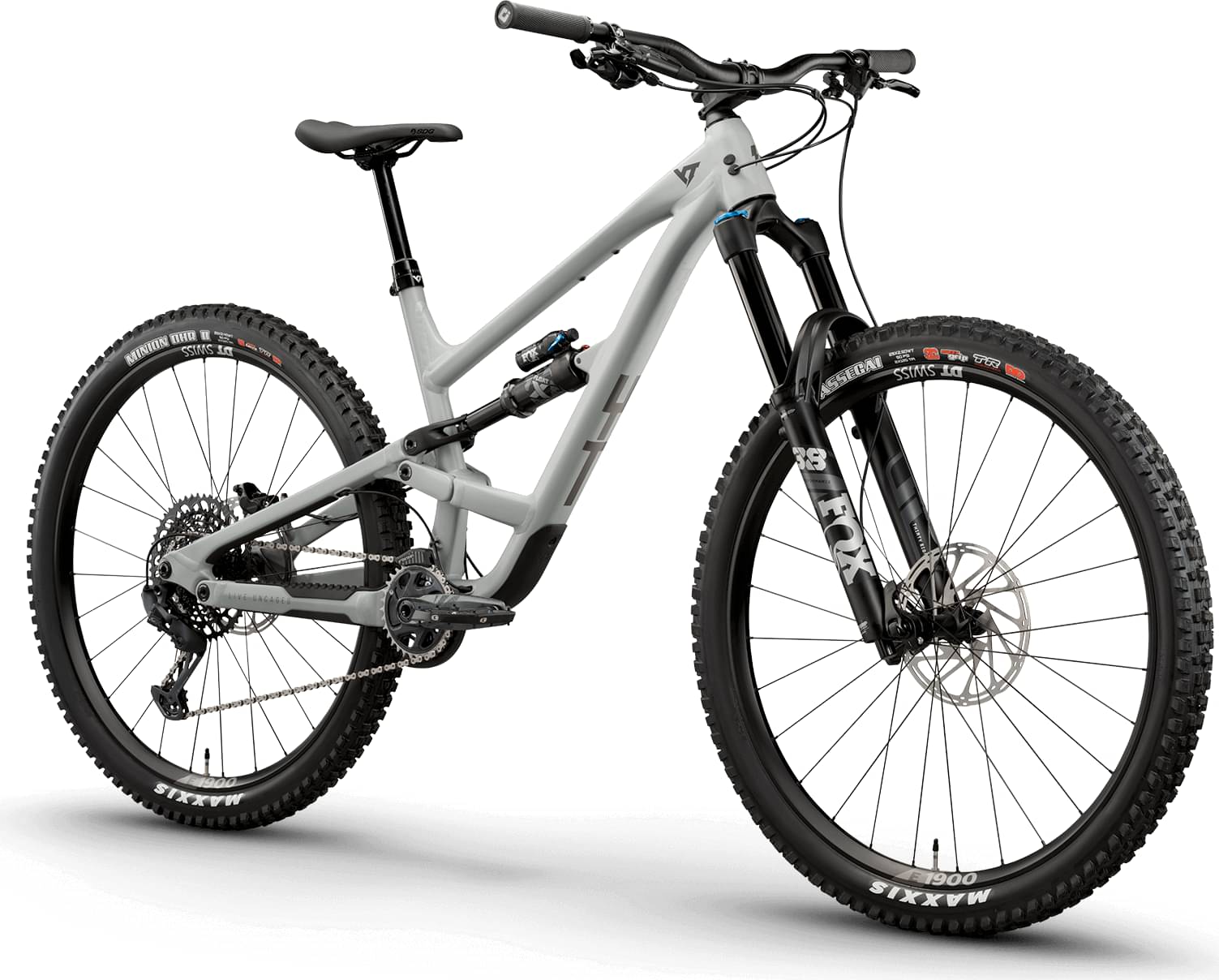

yt Industries Capra CORE 2 29 2024
2024 Mountain
Estimate price |
3,838$
Weight | 16.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 170mm -
Travel Rear 165mm -
Fork Fox Performance Float 38
-
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 166cm
MD
163cm - 176cm
LG
173cm - 185cm
XL
182cm - 194cm
XXL
191cm - 202cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
FOX 38 FLOAT PERFORMANCE, 29“ | 170 mm Travel | 110 x 15 mm Axle | 44 mm Offset | Grip Damper, 3-way Adjustable Low-Speed Compression and Rebound, Air Pressure
Rear Shock
FOX FLOAT X PERFORMANCE, Shock Length: 230 mm | Shock Stroke: 65 mm ? 165 mm Travel | Custom Tune | 2-way Adjustable Low-Speed Compression, Adjustable Rebound and Air Pressure
Drivetrain
Rear Derailleur
SRAM GX EAGLE, 12-speed
Shift Levers
SRAM GX EAGLE, 12-speed
Cassette
SRAM GX EAGLE, 10-52T | 12-speed
Crank
SRAM GX EAGLE, Crank Arm Length 170 mm | 32T
Bottom Bracket
SRAM DUB BSA, BB DUB BSA 73 MTB
Wheels
Rims
DT SWISS E1900, Front: 29’’ 30 mm I 110 x 15 mm I 6-Bolt |, Rear: 29’’ 30 mm | 148 x 12 mm I Ratchet LN | 6-Bolt | XD
Tires
FRONT: MAXXIS ASSEGAI I HINTEN: MAXXIS MINION DHR II, Front: 29’’ x 2.5 WT I 3C MaxxGrip I Double Down I TR |, Rear: 29’’ x 2.4 WT | 3C MaxxTerra | Double Down | TR
Brakes
Brakes
SRAM CODE R, Rotor CENTERLINE Ø front 200 mm / rear 200 mm
Cockpit
Stem
RENTHAL AL6061, Length 50 mm | 35 mm Clamp | Rise 0°
Handlebar
RENTHAL AL2014, Width 800 mm | Rise 20 mm ( Frame Size S-M) I Rise 30 mm (Frame Size L-XXL) | 7° Back Sweep | 5° Up Sweep | Black
Grips
ODI ELITE MOTION V2.1, Lock On
Headset
ACROS AZX-576, ZS44 ZS56 | High Cap | 2 Spacer 5mm
Seat
Saddle
SDG BEL AIR 3.0, YT Custom | Width 140 mm I Lux-Alloy Rail
Seatpost
YT POSTMAN V2, Ø 31,6mmI MMX-Remote | Adjustable drop 25/10/5mm | 125 mm (S) I 150 mm (M) | 170 mm (L) | 170 mm (XL) | 200mm (XXL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.479 mm | 1.432 mm | 1.371 mm | 1.333 mm | 1.298 mm |
| Bottom Bracket Height | 351 mm | 351 mm | 351 mm | 351 mm | 351 mm |
| Front Center | 766 mm | 790 mm | 810 mm | 834 mm | 859 mm |
| Rake | 38 mm | 38 mm | 38 mm | 37 mm | 38 mm |
| Trail | 140 mm | 140 mm | 140 mm | 141 mm | 140 mm |
| Stack | 627 mm | 636 mm | 636 mm | 645 mm | 654 mm |
| Reach | 424 mm | 444 mm | 464 mm | 484 mm | 504 mm |
| Top Tube Length | 564 mm | 587 mm | 607 mm | 630 mm | 653 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 77.4 ° | 77.4 ° | 77.3 ° |
| Seat Tube Length | 395 mm | 420 mm | 445 mm | 470 mm | 495 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 110 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 438 mm | 438 mm |
| Wheelbase | 1199 mm | 1223 mm | 1243 mm | 1272 mm | 1297 mm |
| Bottom Bracket Drop | 12 mm | 12 mm | 12 mm | 12 mm | 12 mm |
| Standover Height | 743 mm | 735 mm | 733 mm | 744 mm | 741 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 163 cm | 173 cm | 182 cm | 191 cm |
| Rider Max Height | 166 cm | 176 cm | 185 cm | 194 cm | 202 cm |
