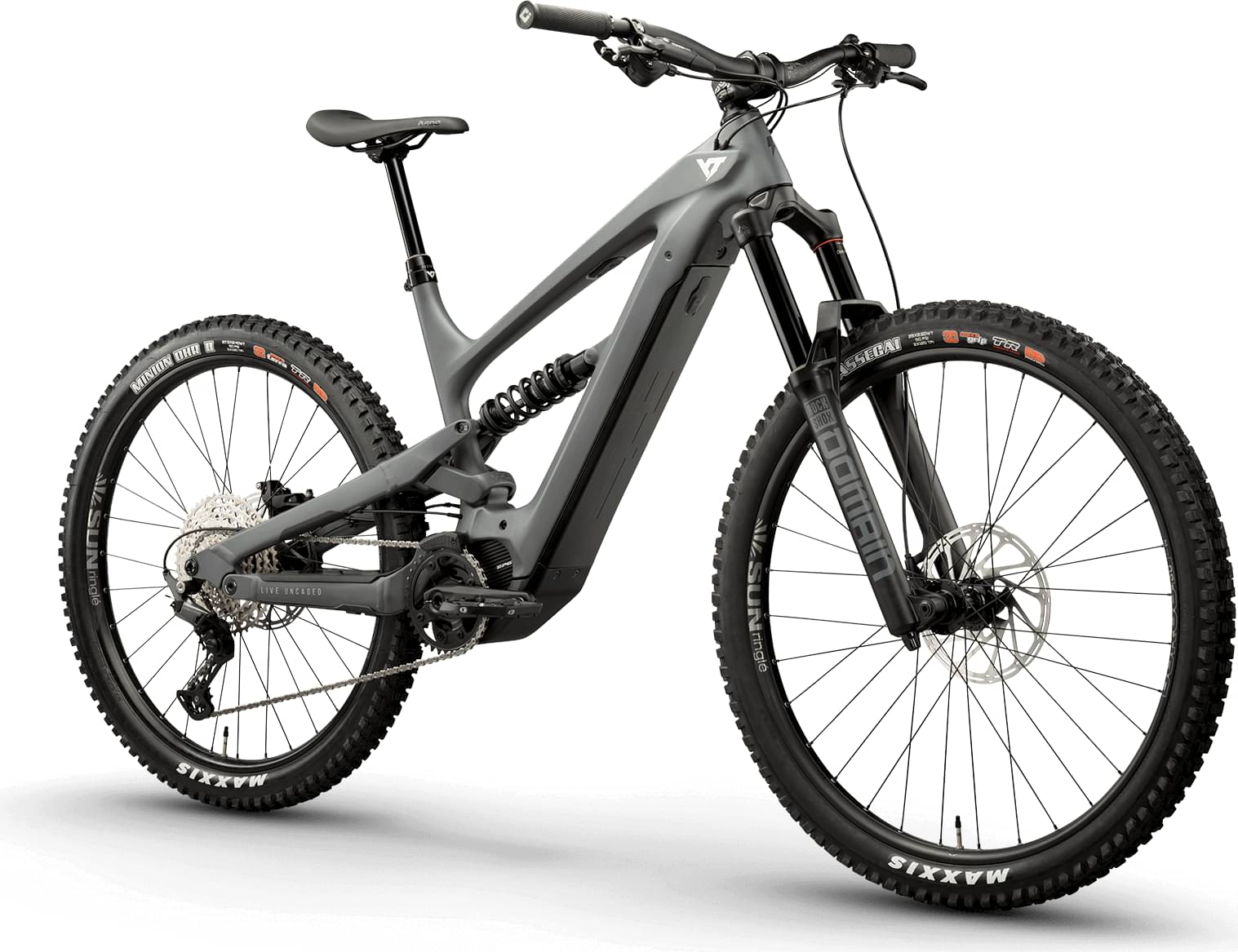

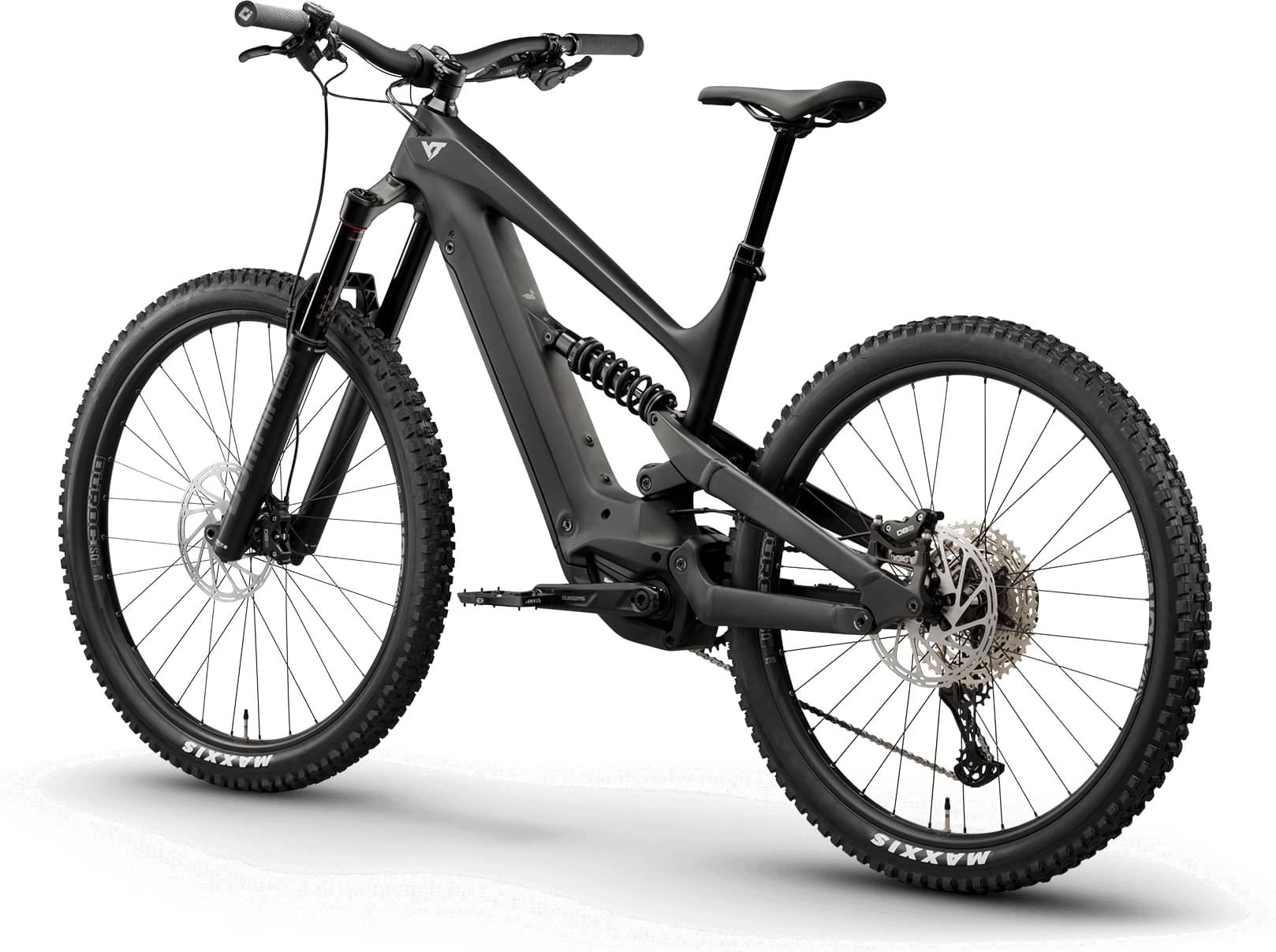

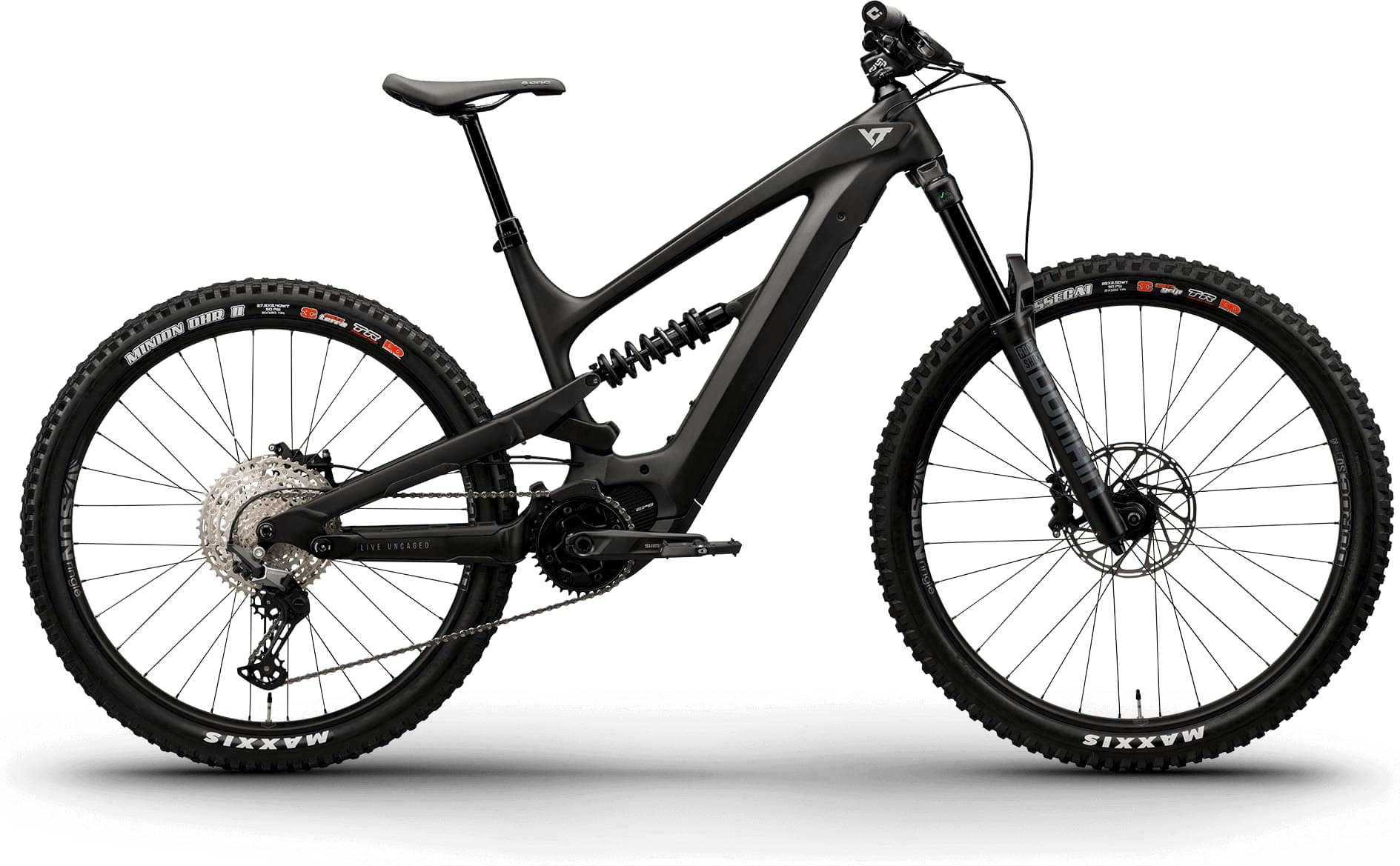

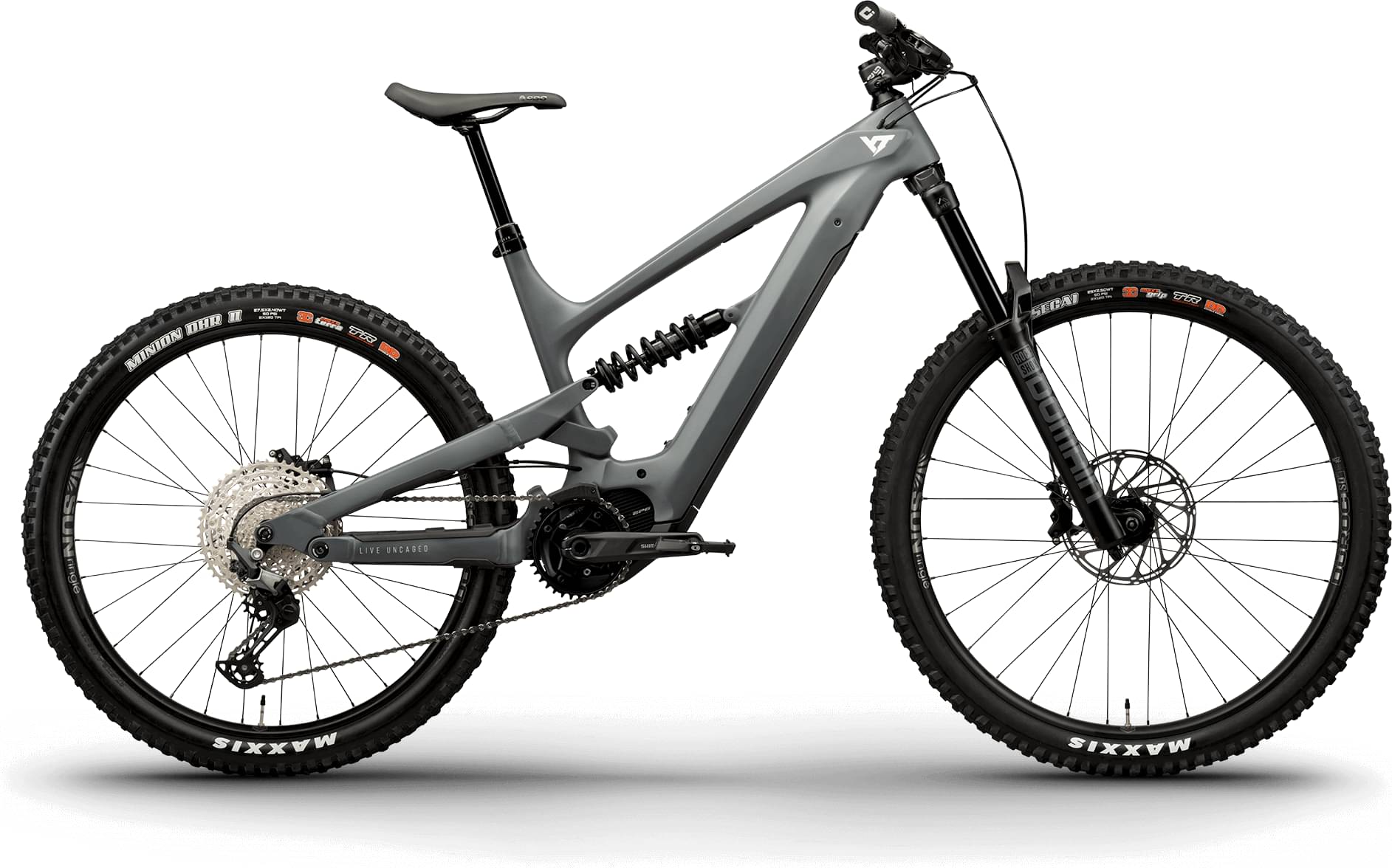

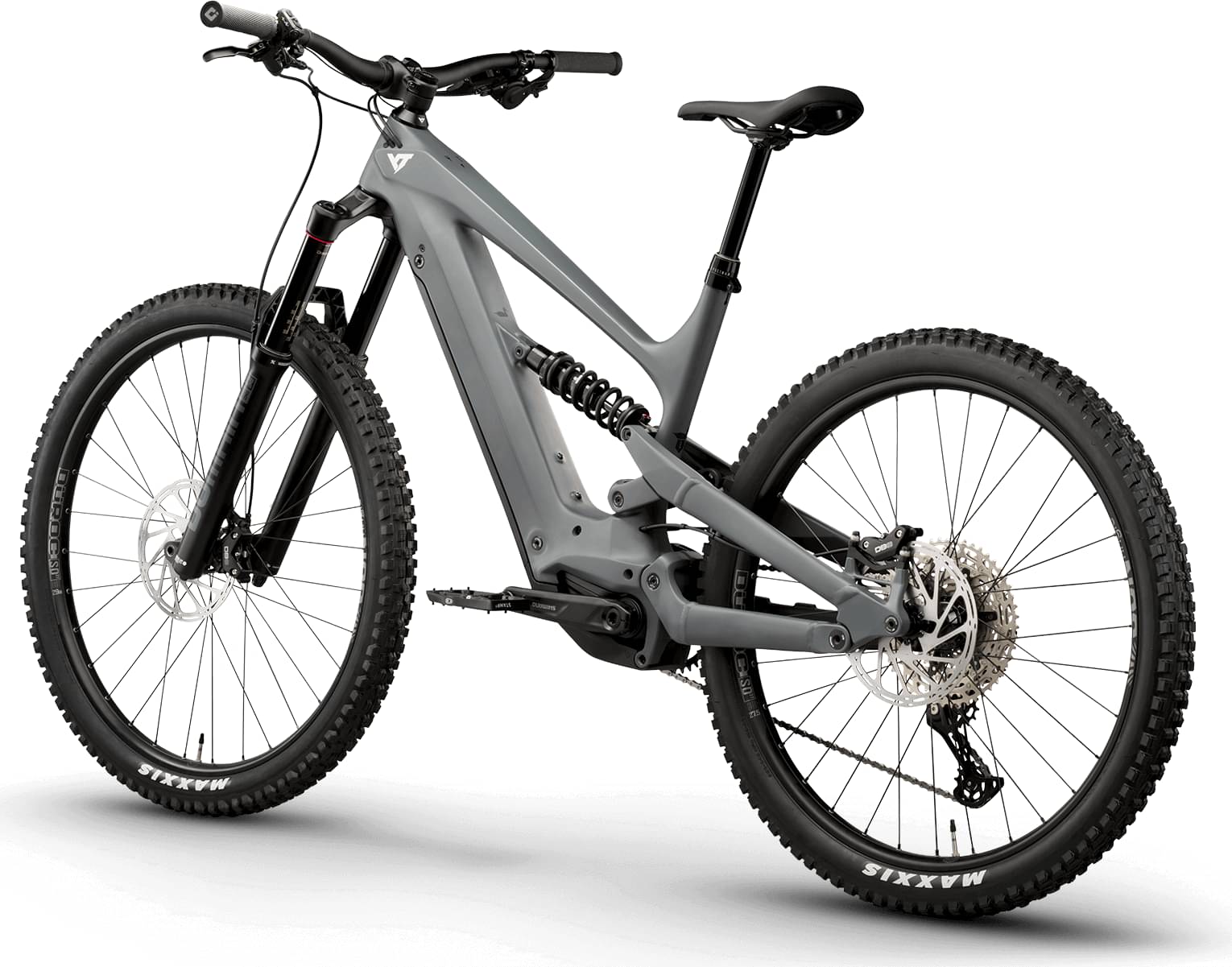

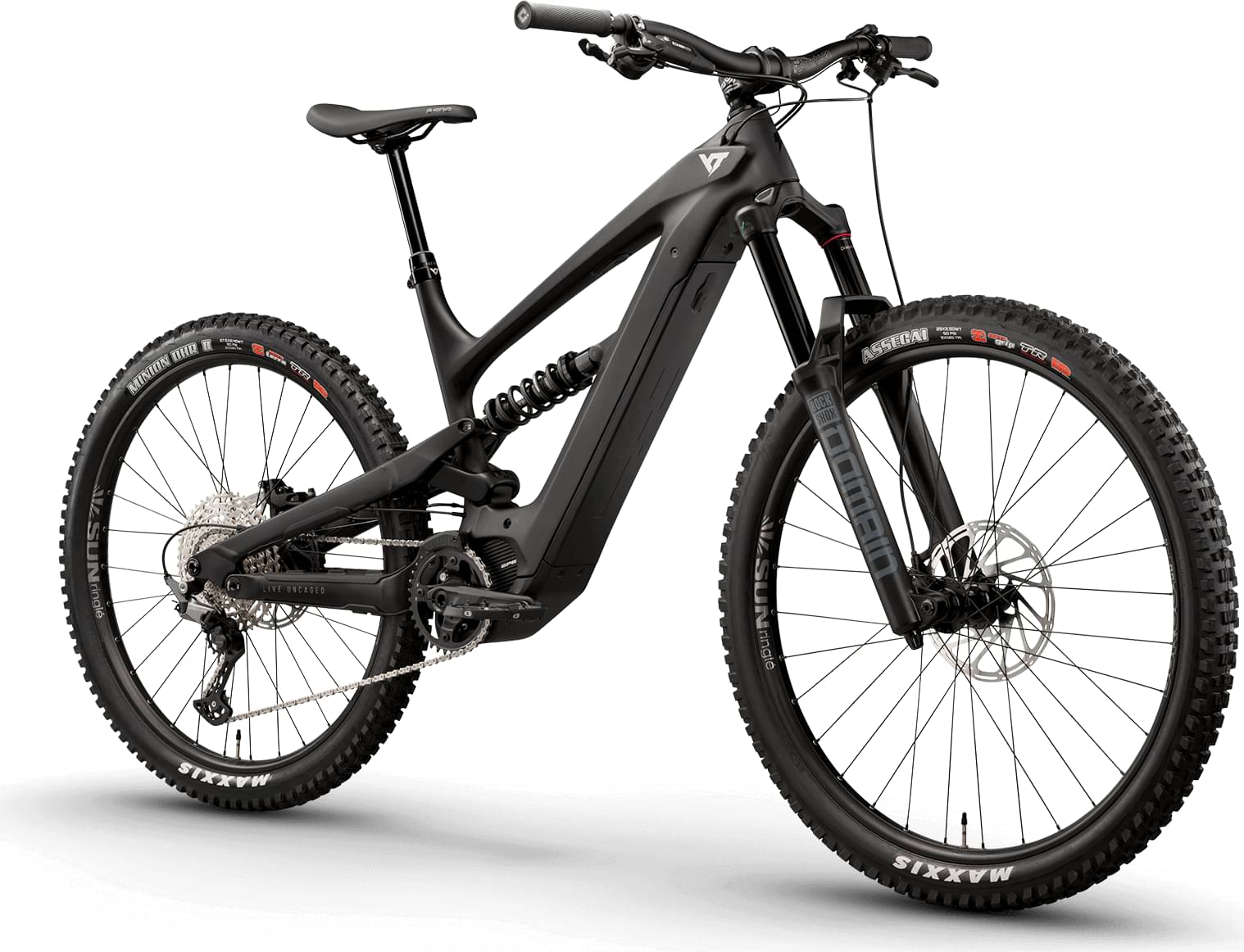

yt Industries Decoy CORE 1 MX 2024
2024 E-bike
Estimate price |
5,816$
Weight | 24.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 165mm -
Fork RockShox Domain
-
Groupset Deore -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery SMP YT CUSTOM, Removable | 540 Wh Capacity | 36 V | 4A Charger -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 165cm
MD
163cm - 174cm
LG
171cm - 183cm
XL
180cm - 192cm
XXL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
ROCKSHOX DOMAIN R, 29“ | 170 mm | DebonAir | 15x110 mm | 44 mm Offset
Rear Shock
ROCKSHOX DLX COIL SELECT, 230 x 65 mm | Rebound L | Compression L1, 300 lbs (S) I 350 (M+L) I 400 (XL) I 450 (XXL)
Drivetrain
Rear Derailleur
SHIMANO DEORE RD-M6100, 12-Speed | Shadow+
Shift Levers
SHIMANO DEORE SL-M6100-R, 2-Speed | Rapidfire Plus | 2-Way-Release
Cassette
SHIMANO DEORE CS-M6100, 10-51T | 12-Speed I Hyperglide+
Crank
SHIMANO FC-EM600, 160mm
Chain Guide
E13 e*SPEC Plus, 2-Bolt | 34-38T | Compact Slider
Wheels
Rims
SUNRINGLE Duroc SD 37 Comp, Aluminum Rims, Front: 29’’ 32 mm I 110 x 15 mm I 6-Bolt, Rear: 27.5“ | 32 mm | 148 x 12 mm I 6-Bolt I Microspline
Tires
FRONT: MAXXIS ASSEGAI I REAR: MAXXIS MINION DHR II, Front: 29’’ x 2.5 WT I 3C Maxx Grip I Double Down I TR, Rear: 27,5’’ x 2.4 WT | 3C MaxxTerra I Double Down | TR
Brakes
Brakes
SRAM DB8, Maxima Mineral Oil | CENTERLINE 200 mm I 200 mm
Cockpit
Stem
E13 Base 35, 50 mm | 0 Rise | 6061 AL | Black
Handlebar
E13 Base 35, Width 800 mm | Rise 35 mm | 9° Back Sweep | 5° Up Sweep | 6061 AL | Black
Grips
ODI ELITE MOTION V2.1, Lock On
Headset
ACROS AZX-260, Block Lock I High Cap I 2 Spacer 5mm I Flat capset
Seat
Saddle
SDG BEL AIR V3 MAX, YT Custom | Width 140 mm I Lux-Alloy Rail
Seatpost
YT POSTMAN V2, Ø 31,6mmI MMX-Remote | Adjustable drop 25/10/5mm | 125 mm (S) I 150 mm (M) | 170 mm (L) | 200 mm (XL) | 230mm (XXL)
Motor & Battery
Motor
SHIMANO STEPS DU-EP6, Torque 85 NM | Power 250 W I E-TUBE PROJECT APP
Battery
SMP YT CUSTOM, Removable | 540 Wh Capacity | 36 V | 4A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.526 mm | 1.466 mm | 1.41 mm | 1.371 mm | 1.333 mm |
| Bottom Bracket Height | 352 mm | 352 mm | 352 mm | 352 mm | 352 mm |
| Front Center | 749 mm | 771 mm | 793 mm | 817 mm | 842 mm |
| Rake | 45 mm | 45 mm | 45 mm | 44 mm | 45 mm |
| Trail | 129 mm | 129 mm | 129 mm | 130 mm | 129 mm |
| Stack | 624 mm | 629 mm | 633 mm | 643 mm | 652 mm |
| Reach | 409 mm | 429 mm | 449 mm | 469 mm | 489 mm |
| Top Tube Length | 569 mm | 591 mm | 612 mm | 635 mm | 658 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 400 mm | 420 mm | 445 mm | 470 mm | 495 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 95 mm | 100 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1191 mm | 1213 mm | 1235 mm | 1259 mm | 1284 mm |
| Bottom Bracket Drop | 16 mm | 16 mm | 16 mm | 16 mm | 16 mm |
| Standover Height | 752 mm | 738 mm | 724 mm | 714 mm | 702 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 163 cm | 171 cm | 180 cm | 189 cm |
| Rider Max Height | 165 cm | 174 cm | 183 cm | 192 cm | 200 cm |
