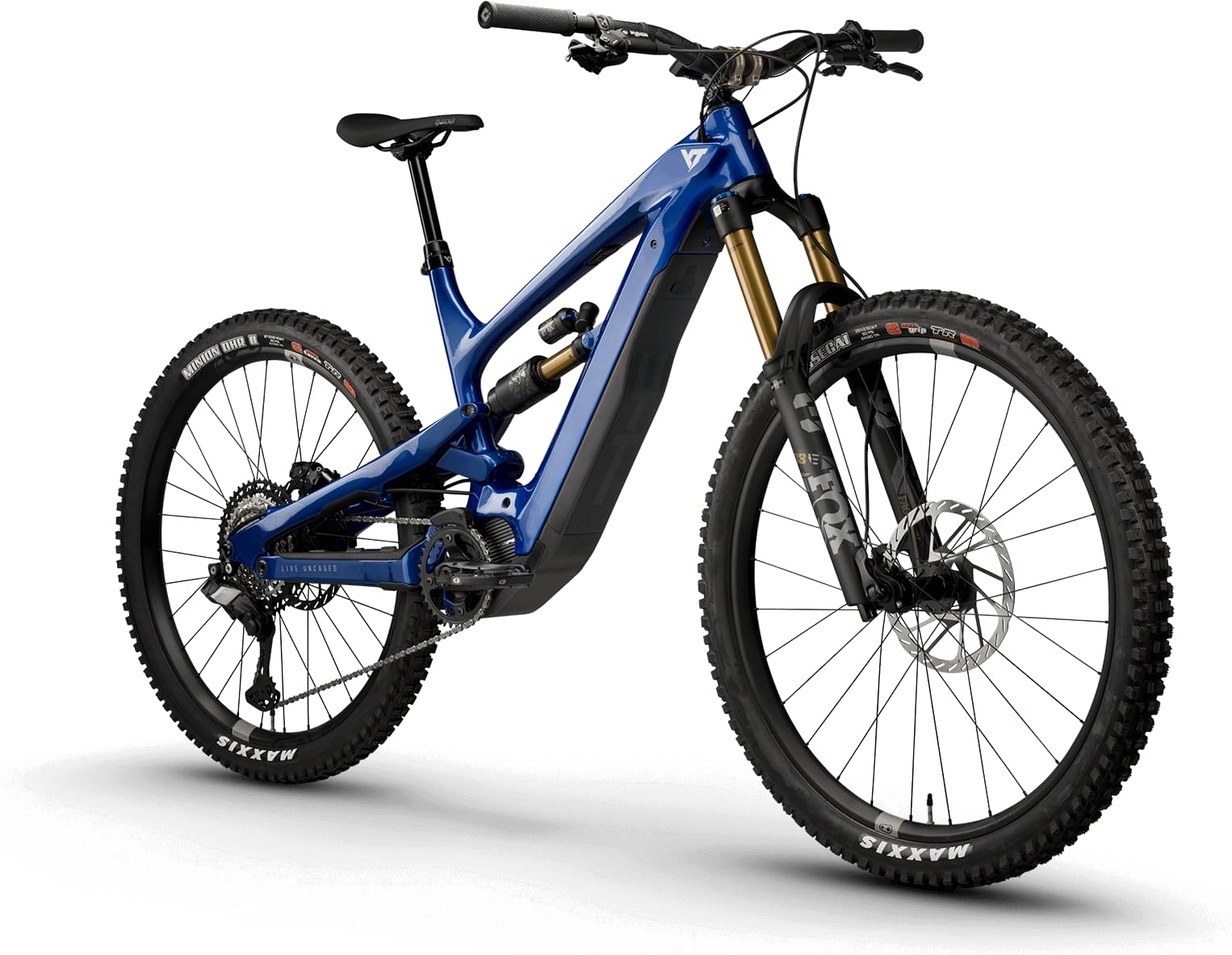

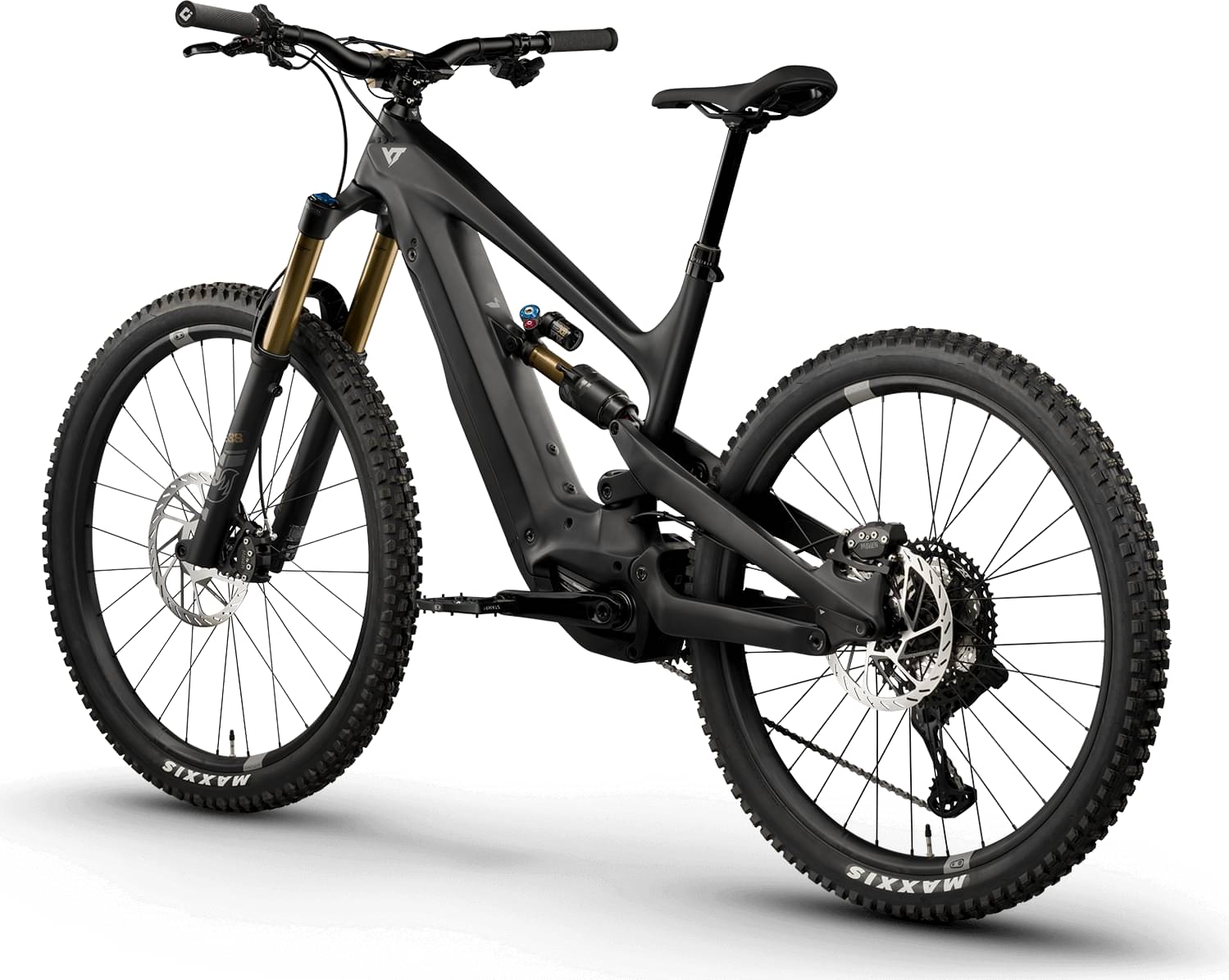

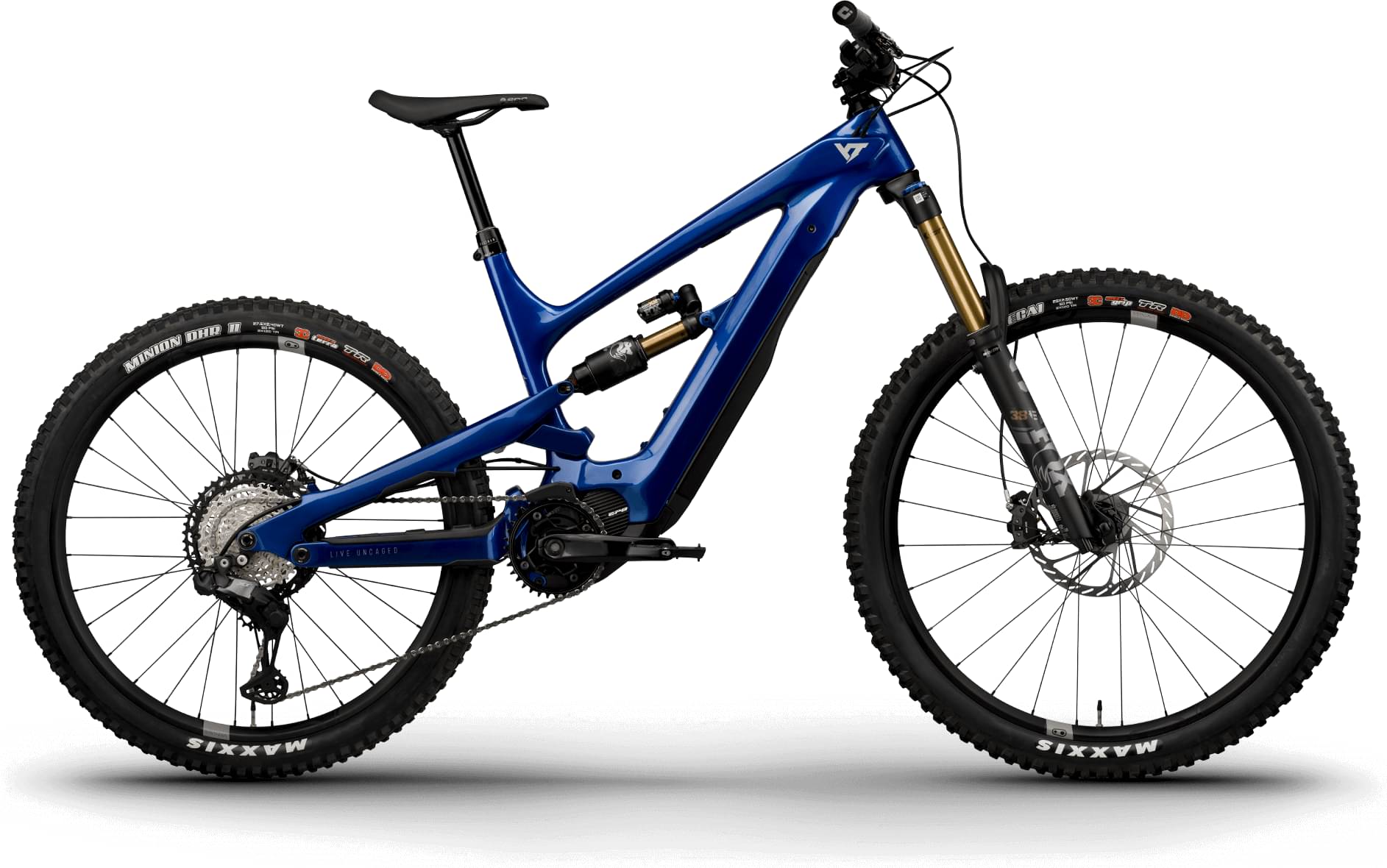

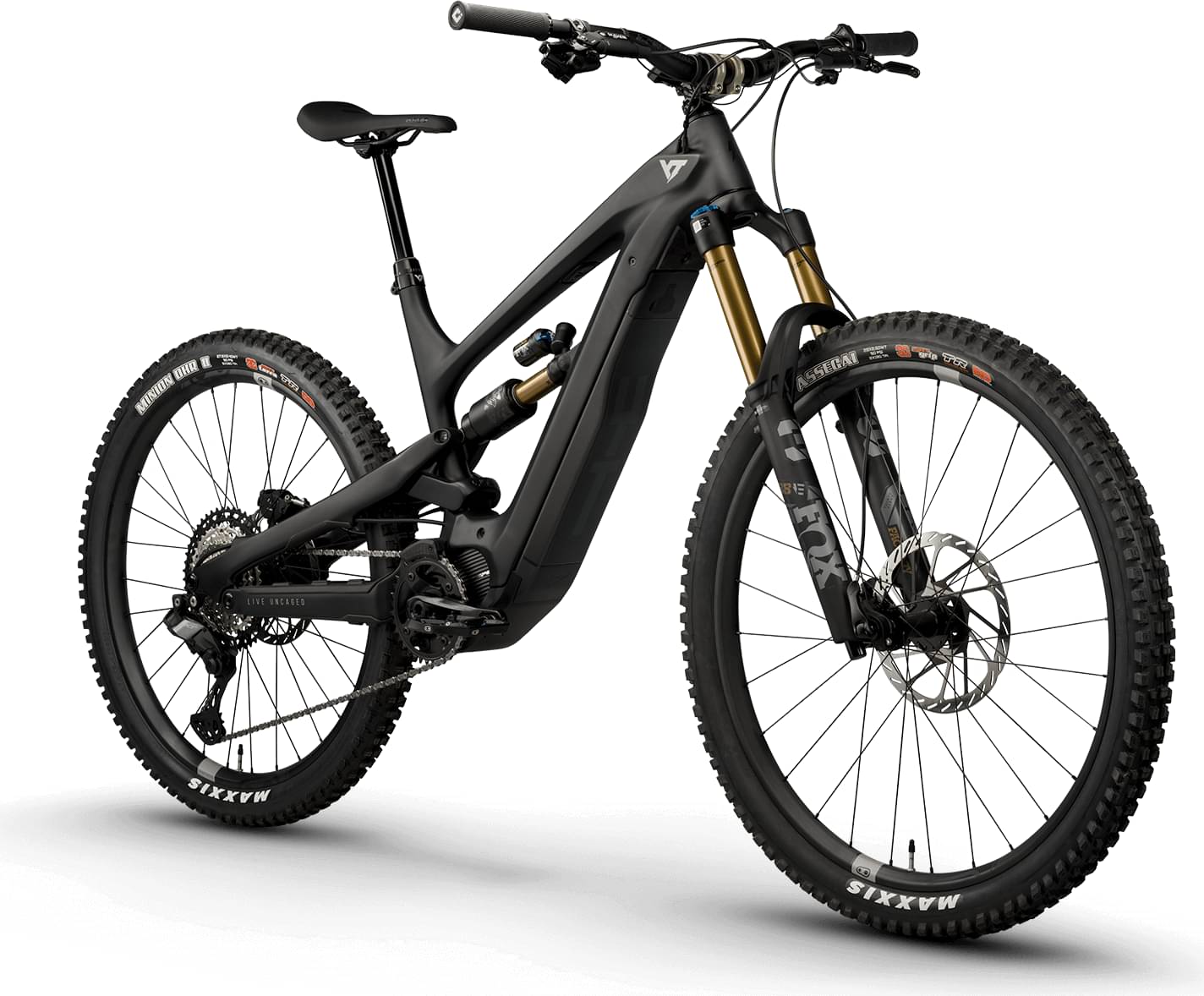

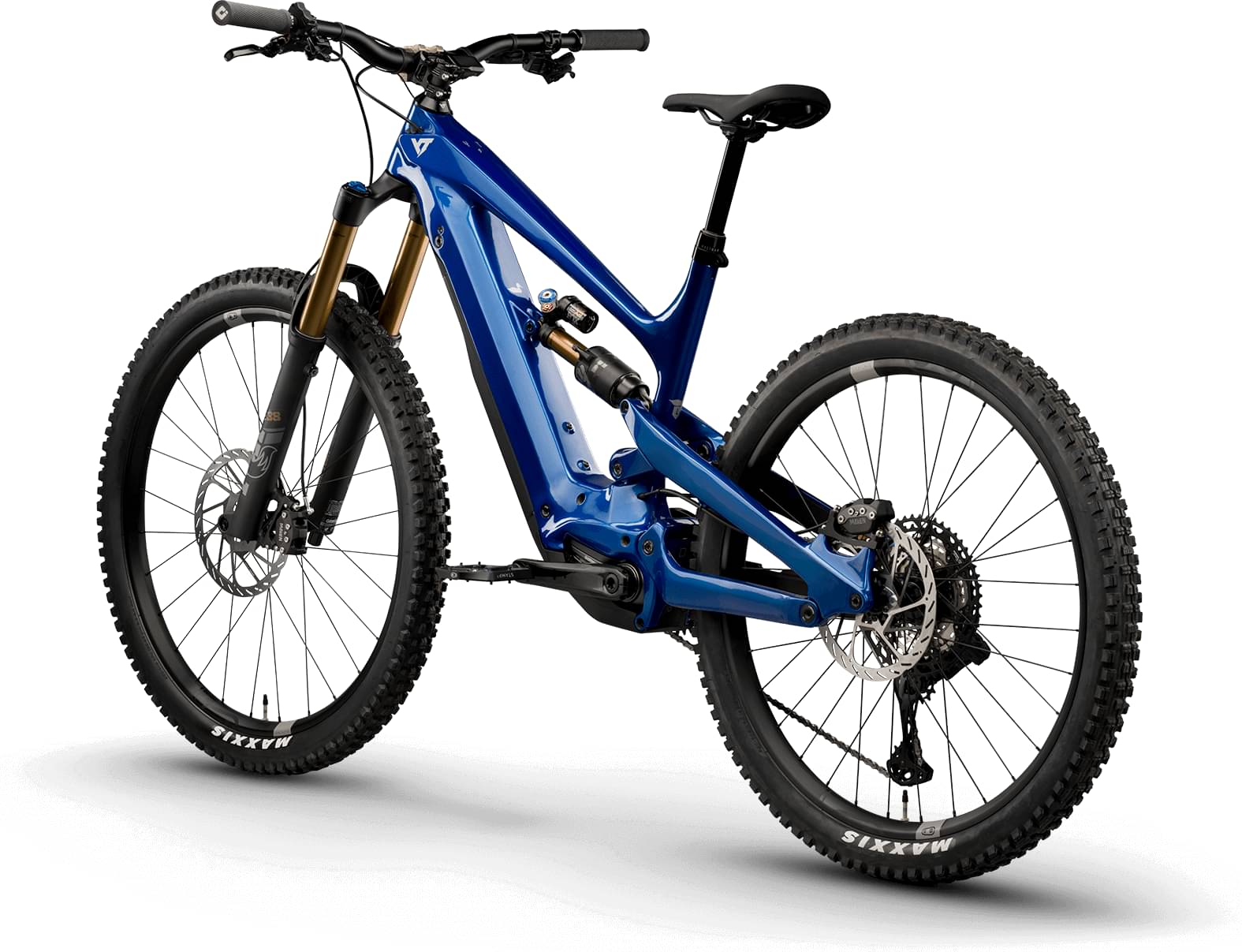

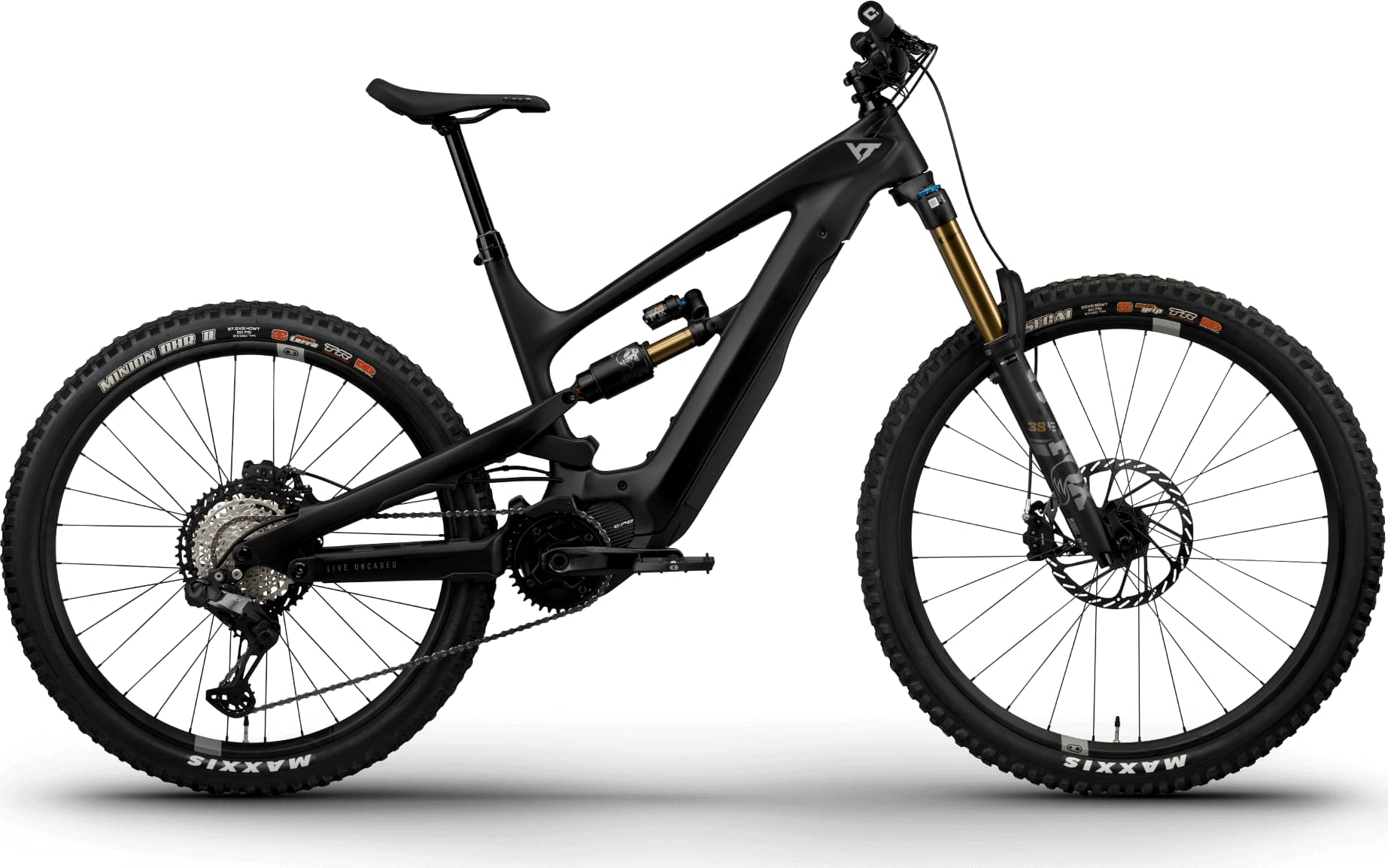

yt Industries Decoy CORE 5 CF MX 2024
2024 E-bike
Estimate price |
9,306$
Weight | 23.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 165mm -
Fork Fox Factory Float 38
-
Groupset XT Di2 -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery SMP YT CUSTOM, Removable | 720 Wh Capacity | 36 V | 4A Charger -
Drivetrain 1 × 12 Electronic -
Brakes SRAM Maven Silver Hydraulic Disc
Sizing
Recommended size guide.
MD
163cm - 174cm
LG
171cm - 183cm
XL
180cm - 192cm
XXL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
FOX 38 FLOAT FACTORY E-OPTIMIZED, 29“ | 170 mm | GRIP X2 | 15mm QR x110mm | 51mm Offset
Rear Shock
FOX FLOAT X2 FACTORY, 230 x 65 mm | 2pos-Adjust | Custom Tune | 0 Spacer
Drivetrain
Rear Derailleur
SHIMANO XT RD-M8150 Di2, 12-Speed | Di2 | Free Shift | Shadow+
Shift Levers
SHIMANO XT SL-M8150-R Di2, 12-Speed | Di2 | Free Shift | Rapidfire Plus
Cassette
SHIMANO XT CS-M8100, 10-51T | 12-Speed I Hyperglide+
Crank
SHIMANO XT FC-EM900, 160mm
Bottom Bracket
BSA, 73mm, threaded
Chain Guide
E13 e*SPEC Plus, 2-Bolt | 34-38T | Compact Slider
Wheels
Rims
CRANKBROTHERS Synthesis Alloy E-MTB, Front: Aluminum Rim 29“ | Inner Width 31,5 mm | Front Hub 110 x 15 mm, Rear: Aluminum Rim 27,5“ | Inner Width 31,5 mm | Rear Hub 148 x 12 mm | Freehub I9 1/1 Microspline
Tires
FRONT: MAXXIS ASSEGAI I REAR: MAXXIS MINION DHR II, Front: 29’’ x 2.5 WT I 3C Maxx Grip I Double Down I TR, Rear: 27,5’’ x 2.4 WT | 3C MaxxTerra I Double Down | TR
Brakes
Brakes
SRAM MAVEN SILVER, Rotor HS2 Ø front 220 mm / rear 200 mm | Sintered pads
Cockpit
Stem
RENTHAL APEX 35, Length 50 mm | 35 mm Clamp | Rise +/-6°
Handlebar
RENTHAL FATBAR 35, Width 800 mm | Rise 30 mm | 7° Back Sweep | 5° Up Sweep
Grips
ODI ELITE MOTION V2.1, Lock On
Headset
ACROS AZX-260, Block Lock I High Cap I 2 Spacer 5mm I Flat capset
Seat
Saddle
SDG BEL AIR V3 MAX, YT Custom | Width 140 mm I Lux-Alloy Rail
Seatpost
YT POSTMAN V2, Ø 31,6mmI MMX-Remote | Adjustable drop 25/10/5mm | 125 mm (S) I 150 mm (M) | 170 mm (L) | 200 mm (XL) | 230mm (XXL)
Motor & Battery
Motor
SHIMANO EP801, Torque 85 NM | Power 250 W I E-TUBE PROJECT APP
Battery
SMP YT CUSTOM, Removable | 720 Wh Capacity | 36 V | 4A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL | XXL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.466 mm | 1.41 mm | 1.371 mm | 1.333 mm |
| Bottom Bracket Height | 352 mm | 352 mm | 352 mm | 352 mm |
| Front Center | 771 mm | 793 mm | 817 mm | 842 mm |
| Rake | 45 mm | 45 mm | 44 mm | 45 mm |
| Trail | 129 mm | 129 mm | 130 mm | 129 mm |
| Stack | 629 mm | 633 mm | 643 mm | 652 mm |
| Reach | 429 mm | 449 mm | 469 mm | 489 mm |
| Top Tube Length | 591 mm | 612 mm | 635 mm | 658 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 420 mm | 445 mm | 470 mm | 495 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 100 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1213 mm | 1235 mm | 1259 mm | 1284 mm |
| Bottom Bracket Drop | 16 mm | 16 mm | 16 mm | 16 mm |
| Standover Height | 738 mm | 724 mm | 714 mm | 702 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 163 cm | 171 cm | 180 cm | 189 cm |
| Rider Max Height | 174 cm | 183 cm | 192 cm | 200 cm |
