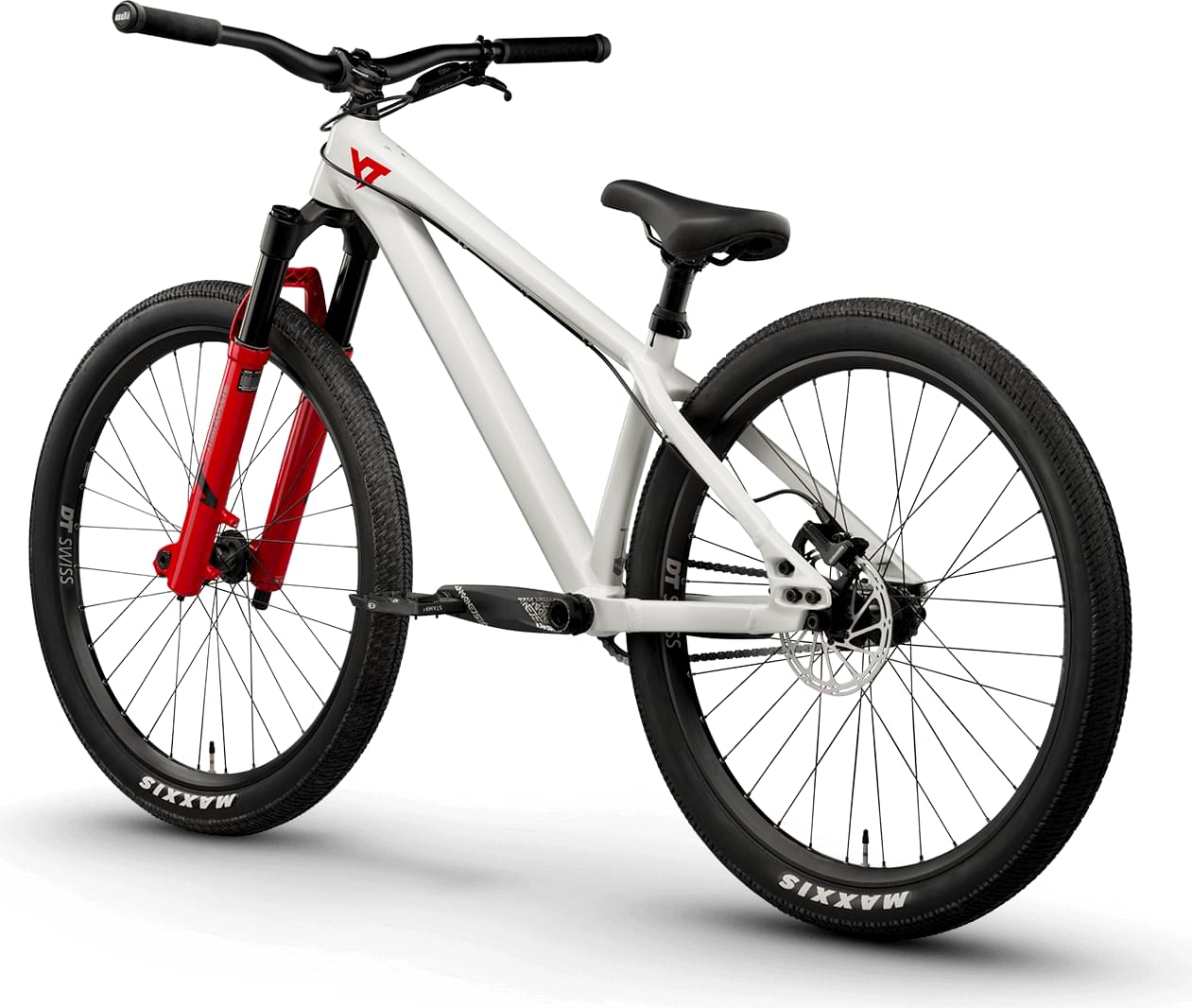

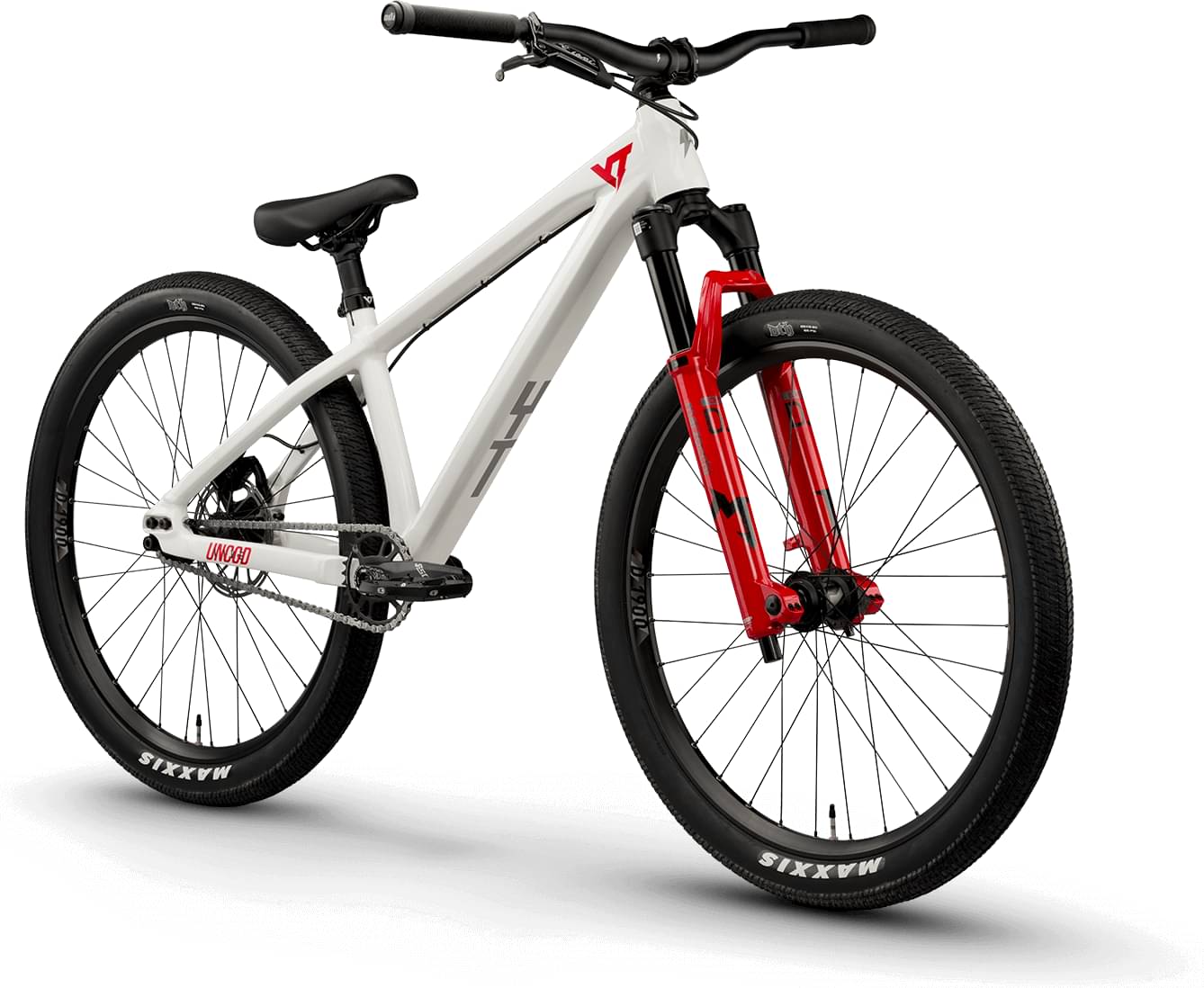

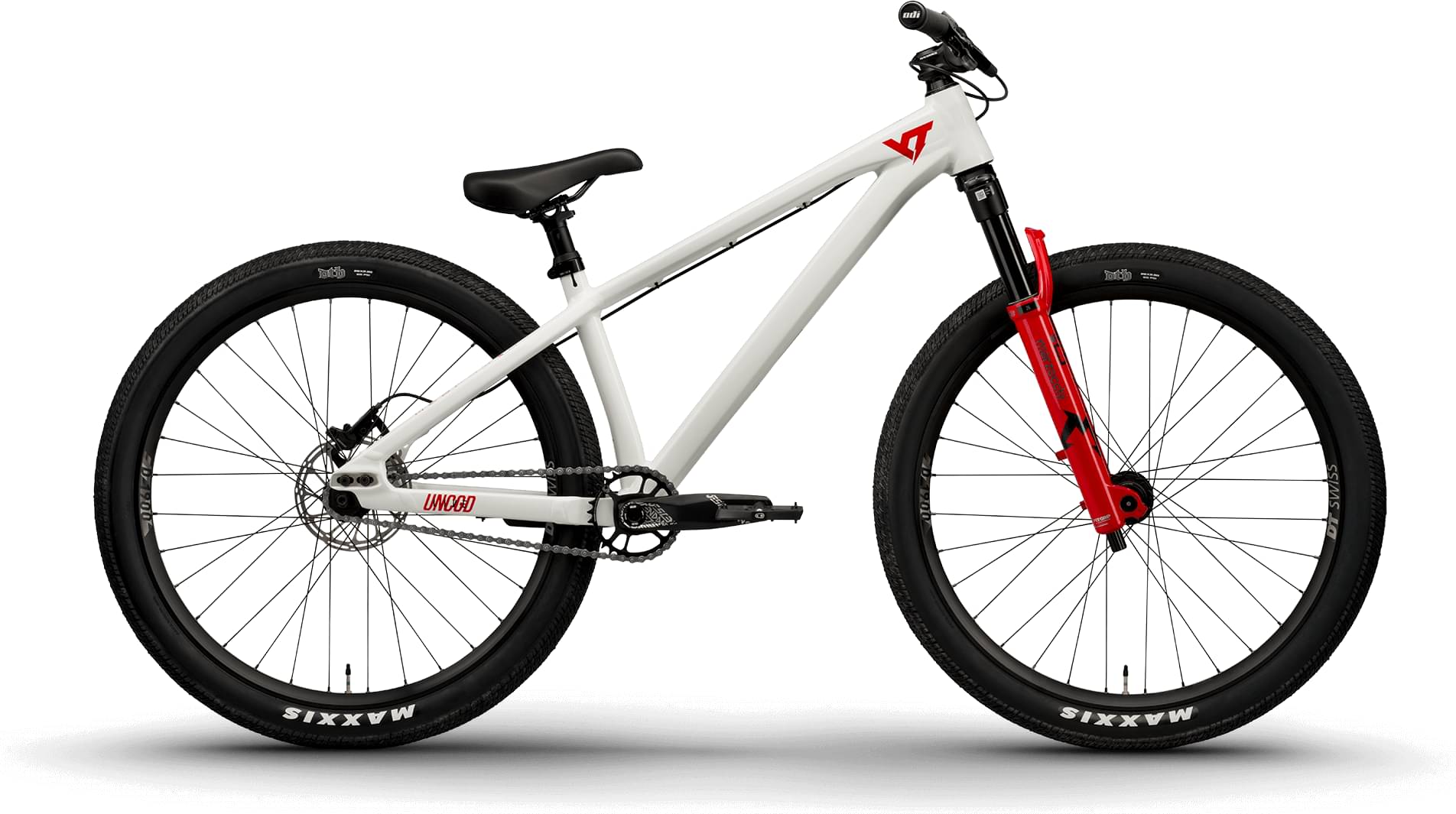

yt Industries Dirtlove CORE 2 AL 26 2024
2024 Mountain
Estimate price |
1,628$
Weight | 11.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Marzocchi Bomber DJ
-
Groupset Truvativ Descendant -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
Regular
150cm - 185cm
Long
183cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
MARZOCCHI BOMBER DJ, 26“ | 100mm | Sweep Adjust I Gloss Red I 20 mm QR x 100 mm | 37mm Offset
Drivetrain
Crank
SRAM DESCENDANT 6K, Crank Arm Length 165 mm | 30T | DUB
Chain
KMC, Z1 Wide I Snap-On
Wheels
Rims
DT SWISS D1900, Front: 26’’ I 30 mm | 110 x 20 mm | Rear: 26’’ I 30 mm | 135 x 10 mm | Ratchet LN
Tires
MAXXIS DTH, Tire Size 26“ x 2.3
Brakes
Brakes
SRAM LEVEL T, Rotor CENTERLINE Ø 160 mm
Cockpit
Stem
RACE FACE AEFFECT R 35, Length 40 mm | Rise 0°
Handlebar
YT HANDLEBAR, 760 mm | 8° Back | 6° Up | 30 mm Rise | Black
Grips
ODI SLX LONGNECK, Push-On | 160mm
Headset
CANE CREEK SERIES 10, ZS44 ZS56 | Spacer 2 x 5 mm, 1 x 10 mm
Seat
Saddle
YT SADDLE, YT Custom Design | Width 135 mm
Seatpost
YT SEATPOST, 30.9 mm I 200 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | Regular | Long |
|---|---|---|
| Stack Reach Ratio | 1.373 mm | 1.326 mm |
| Bottom Bracket Height | 317 mm | 317 mm |
| Front Center | 662 mm | 692 mm |
| Rake | 41 mm | 41 mm |
| Stack | 563 mm | 577 mm |
| Reach | 410 mm | 435 mm |
| Top Tube Length | 583 mm | 612 mm |
| Seat Tube Angle | 72.9 ° | 72.9 ° |
| Seat Tube Length | 340 mm | 340 mm |
| Head Tube Angle | 69 ° | 69 ° |
| Head Tube Length | 110 mm | 125 mm |
| Chainstay Length | 389 mm | 400 mm |
| Wheelbase | 1050 mm | 1091 mm |
| Bottom Bracket Drop | 22 mm | 22 mm |
| Standover Height | 678 mm | 677 mm |
| Wheels | 20" | 20" |
| Rider Min Height | 150 cm | 183 cm |
| Rider Max Height | 185 cm | 200 cm |
