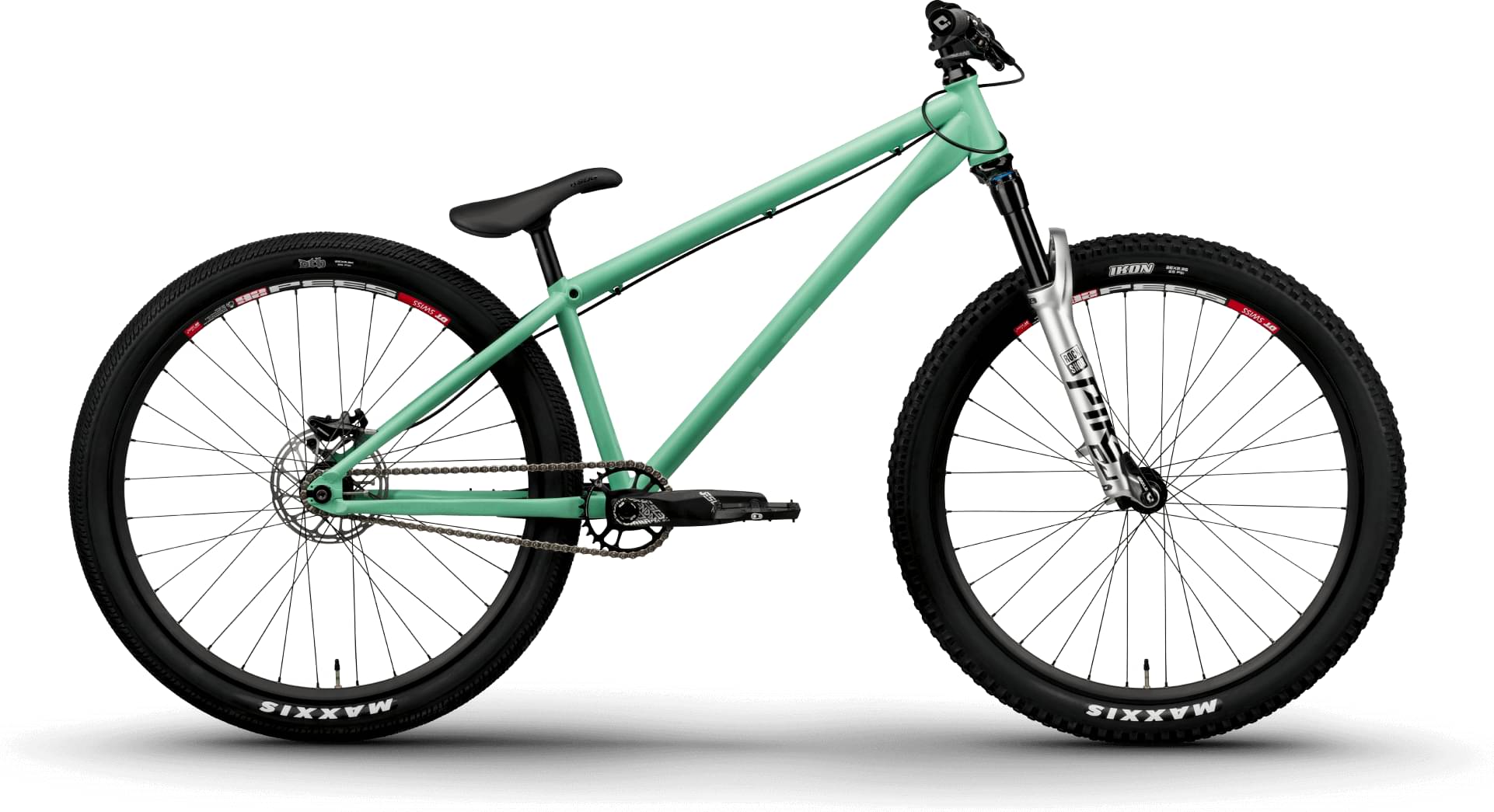

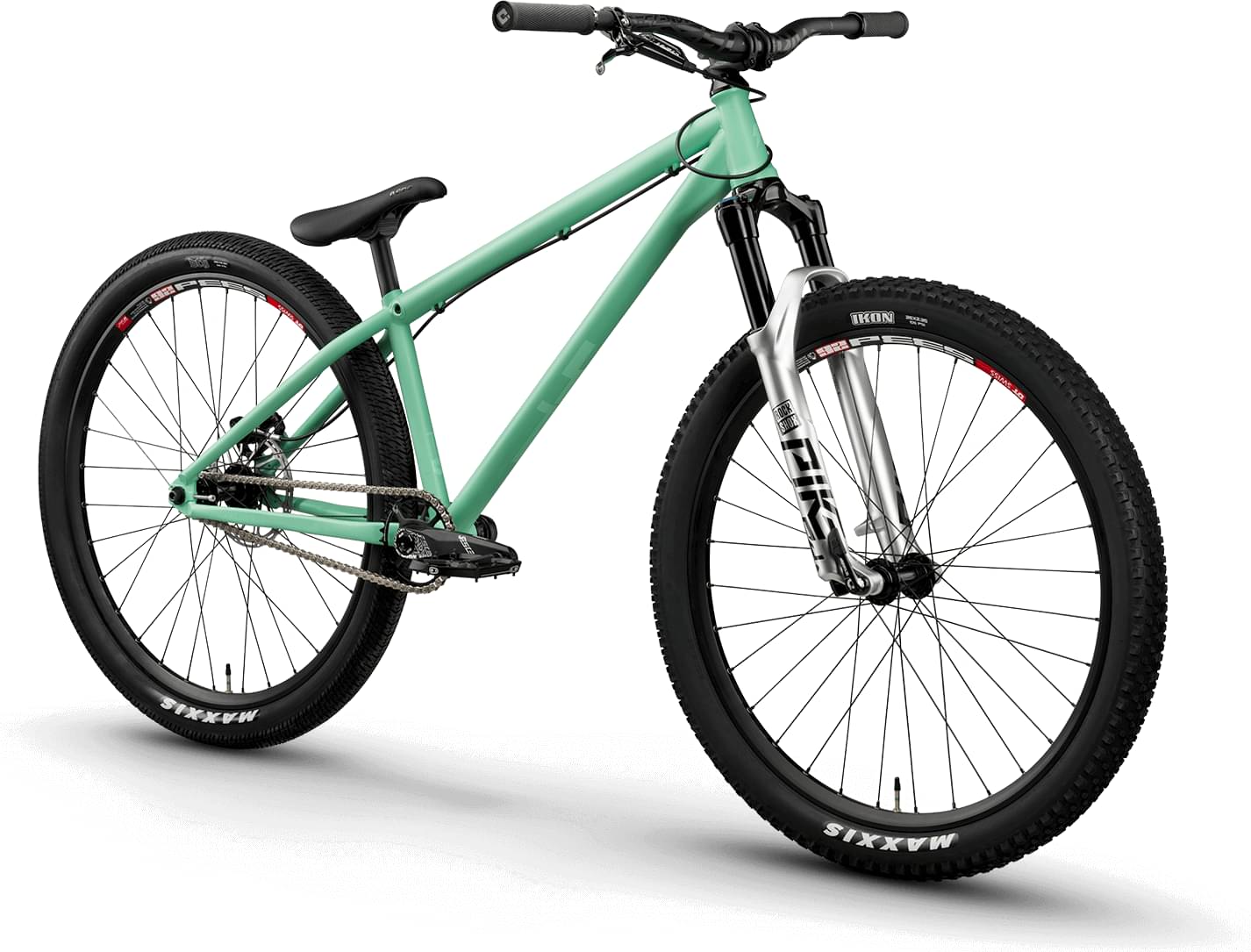

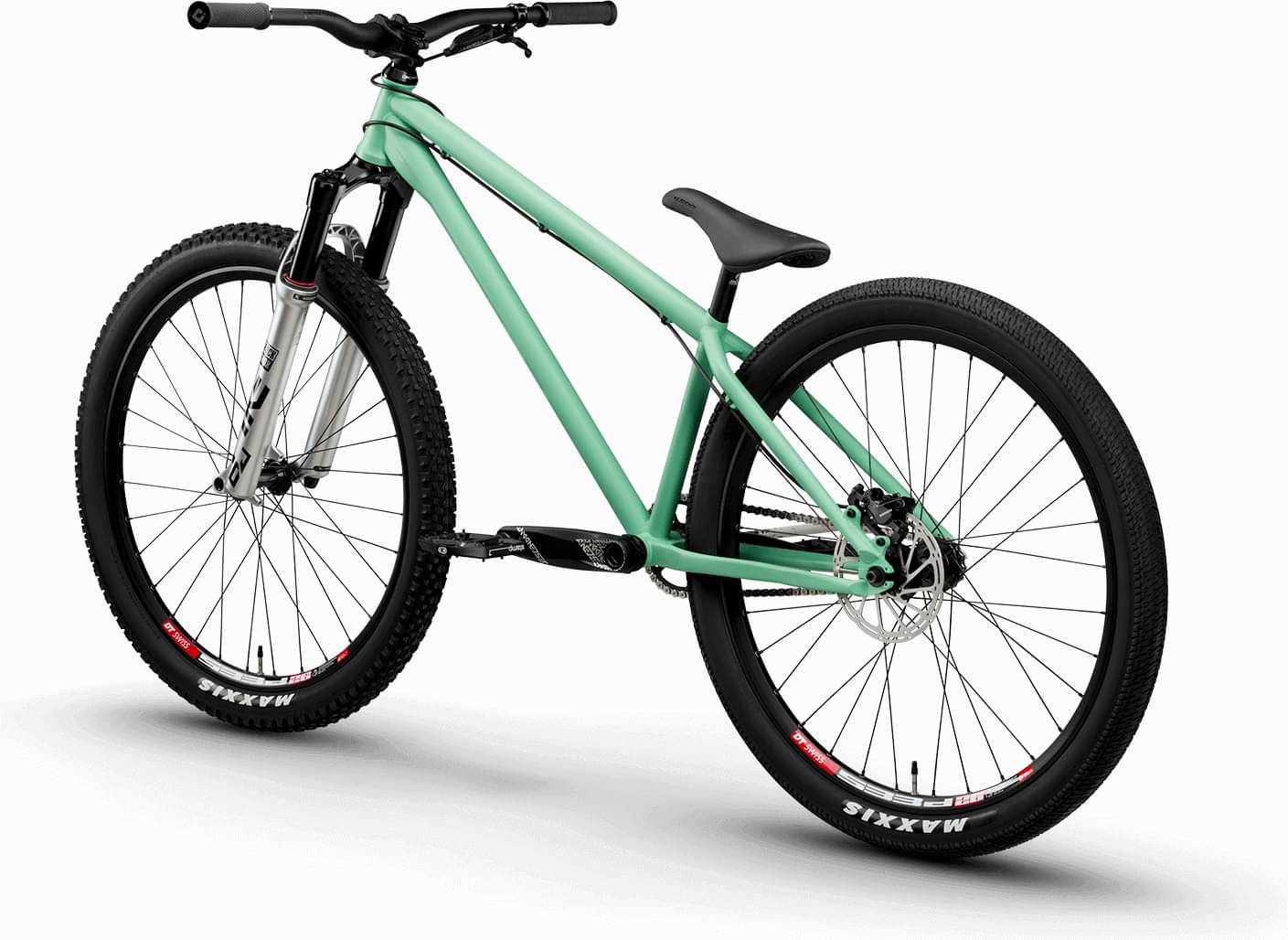

yt Industries Dirtlove ST 26 2024
2024 Mountain
Estimate price |
1,860$
Weight | 11.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Travel Front 100mm -
Fork RockShox Pike DJ
-
Groupset Truvativ Descendant -
Suspension Hardtail -
Brakes SRAM Level TL Hydraulic Disc
Sizing
Recommended size guide.
Regular
150cm - 185cm
Long
183cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
RockShox Pike DJ, 26“ | 100 mm Travel | 100 x 15 mm Axle | Offset 40 mm Solo Air, adjustable Compression and Rebound
Drivetrain
Crank
SRAM DESCENDANT 6K, Crank Arm Length 165 mm | 30 T | DUB
Wheels
Rims
YT CUSTOM, Aluminum Rims DT 533d 26“ | Inner Width 22 mm | Front Hub 100 x 15 mm
Tires
FRONT: MAXXIS IKON I REAR: MAXXIS DTH, Front: Tire Size 26“ x 2.35 I Folding Tire I Rear: Tire Size 26“ x 2.3 I Wired Tire
Brakes
Brakes
SRAM LEVEL TL, Rotor CENTERLINE Ø 160 mm Adjustable Reach
Cockpit
Stem
SRAM DESCENDANT, Length 40 mm | 35 mm Clamp | Rise 0°
Handlebar
SRAM DESCENDANT RISER BAR, Width 760 mm | Rise 25 mm | 7° Back Sweep | 5° Up Sweep
Grips
ODI ELITE MOTION V2.1, Lock On
Headset
ACROS AIX-326, High Cap | 2 Spacer 5 mm
Seat
Saddle
SDG APOLLO PIVOTAL, YT Custom | Width 134 mm
Seatpost
SDG PIVOTAL, Ø 25.4 mm | Length 200 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | Regular | Long |
|---|---|---|
| Stack Reach Ratio | 1.403 mm | 1.29 mm |
| Bottom Bracket Height | 316 mm | 316 mm |
| Front Center | 654 mm | 688 mm |
| Rake | 40 mm | 40 mm |
| Trail | 93 mm | 94 mm |
| Stack | 561 mm | 561 mm |
| Reach | 400 mm | 435 mm |
| Top Tube Length | 581 mm | 615 mm |
| Seat Tube Angle | 72 ° | 72 ° |
| Seat Tube Length | 313 mm | 313 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° |
| Head Tube Length | 111 mm | 111 mm |
| Chainstay Length | 400 mm | 400 mm |
| Wheelbase | 1053 mm | 1087 mm |
| Bottom Bracket Drop | 23 mm | 23 mm |
| Standover Height | 635 mm | 635 mm |
| Wheels | 26" | 26" |
| Rider Min Height | 150 cm | 183 cm |
| Rider Max Height | 185 cm | 200 cm |
