Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset GRX 800 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Exploro RaceMax
Suspension Fork
Fango RaceMax w/ compact crown
Drivetrain
Rear Derailleur
Shimano GRX - long cage mechanical (RX-812)
Front Derailleur
none
Shift Levers
Shimano GRX
Cassette
11-speed Powerglide, 11-42T
Crank
Shimano GRX, 40T chainring (XXS: 165mm - 51: 170mm - 54&56: 172,5mm - 58&61: 175mm)
Wheels
Rims
WTB Serra 650b, tubeless ready or Fulcrum Racing 700 650b
Brakes
Brakes
Shimano GRX Flat Mount Hydraulic Disc w/ Shimano 160mm rotor
Cockpit
Stem
Apto Stealth (XXS: 70mm - 51: 80mm - 54: 90mm - 56: 100mm - 58: 110mm - 61: 120mm)
Handlebar
3T Superergo PRO
Headset
3T MinMax custom by Cane Creek IS42/28.6 + IS 47/38
Seat
Seatpost
New 3T Charlie Sqaero Team w/ Ritchey WCS Clamp
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.48 mm | 1.49 mm | 1.51 mm | 1.53 mm | 1.56 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 272 mm | 272 mm | 274 mm | 274 mm |
| Front Center | 596 mm | 606 mm | 606 mm | 611 mm | 621 mm | 641 mm |
| Rake | 62 mm | 58 mm | 52 mm | 54 mm | 48 mm | 48 mm |
| Trail | 68 mm | 69 mm | 65 mm | 57 mm | 63 mm | 63 mm |
| Stack | 522 mm | 544 mm | 566 mm | 586 mm | 606 mm | 634 mm |
| Reach | 357 mm | 368 mm | 379 mm | 387 mm | 395 mm | 406 mm |
| Top Tube Length | 508 mm | 528 mm | 548 mm | 568 mm | 588 mm | 608 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 436 mm | 463 mm | 490 mm | 518 mm | 545 mm | 572 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 71 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 125 mm | 147 mm | 161 mm | 180 mm | 201 mm | 232 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 1000 mm | 1010 mm | 1010 mm | 1016 mm | 1026 mm | 1046 mm |
| Bottom Bracket Drop | 79 mm | 79 mm | 77 mm | 77 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 145 cm | 157 cm | 168 cm | 176 cm | 183 cm | cm |

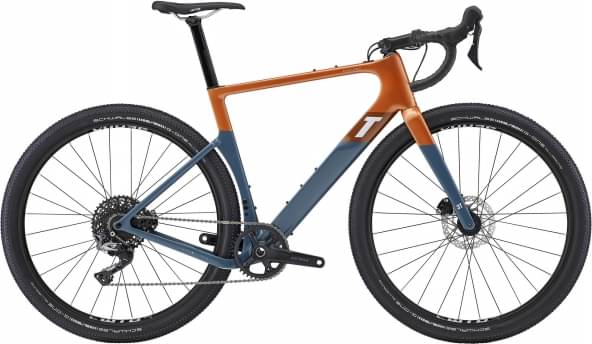

Model Overview
Exploro MAX GRX 1X completes the 3t Exploro model. 3T released 67 bikes variations of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
3T Exploro PRO Rival 2021 is the most economical model, with a starting price of 2999$. 3T Exploro RACE FORCE AXS 1X TORNO 2021 on the other hand costs 6599$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Gravel bikes average price
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2021 and its price was 4199$. In conclusion, this bike price is 70.55% higher than the price of the average Gravel bike.
Exploro MAX GRX 1X components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
As for the wheels, 3T Exploro MAX GRX 1X 2021, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
