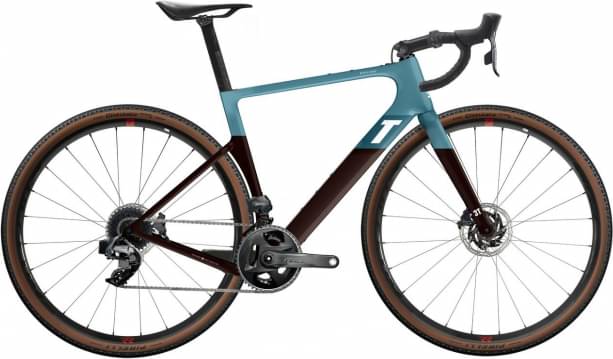

3T Exploro RaceMAX EAGLE AXS 1X 650b 2023
2023 Road
Estimate price |
6,499$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset XX1 Eagle AXS, Force eTap -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Exploro RaceMax
Suspension Fork
Fango RaceMax w/ compact crown
Drivetrain
Rear Derailleur
Eagle XX1 AXS Long Cage
Front Derailleur
none
Shift Levers
SRAM Force AXS eTap
Cassette
12-speed Eagle, 11-50T
Crank
SRAM Force AXS, 42T chainring (XXS: 165mm - 51: 170mm - 54&56: 172,5mm - 58&61: 175mm)
Wheels
Rims
Fulcrum Racing 700 650b
Brakes
Brakes
SRAM Force AXS Hydraulic Disc w/ SRAM 160mm rotor
Cockpit
Stem
Apto Stealth (XXS: 70mm - 51: 80mm - 54: 90mm - 56: 100mm - 58: 110mm - 61: 120mm)
Headset
3T MinMax custom by Cane Creek IS42/28.6 + IS 47/38
Seat
Seatpost
New 3T Charlie Sqaero Team w/ Ritchey WCS Clamp
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.48 mm | 1.49 mm | 1.51 mm | 1.53 mm | 1.56 mm |
| Front Center | 596 mm | 606 mm | 606 mm | 611 mm | 621 mm | 641 mm |
| Rake | 62 mm | 58 mm | 52 mm | 54 mm | 48 mm | 48 mm |
| Trail | 60 mm | 61 mm | 59 mm | 50 mm | 57 mm | 57 mm |
| Stack | 522 mm | 544 mm | 566 mm | 586 mm | 606 mm | 634 mm |
| Reach | 357 mm | 368 mm | 379 mm | 387 mm | 395 mm | 406 mm |
| Top Tube Length | 508 mm | 528 mm | 548 mm | 568 mm | 588 mm | 608 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 436 mm | 463 mm | 490 mm | 518 mm | 545 mm | 572 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 71 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 125 mm | 147 mm | 161 mm | 180 mm | 201 mm | 232 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 1000 mm | 1010 mm | 1010 mm | 1016 mm | 1026 mm | 1046 mm |
| Bottom Bracket Drop | 79 mm | 79 mm | 77 mm | 77 mm | 75 mm | 75 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 145 cm | 157 cm | 168 cm | 176 cm | 183 cm | cm |
Model Overview
Exploro RaceMAX EAGLE AXS 1X 650b belongs to the 3t Exploro Racemax model. 3T released 27 bikes variations of this model so far. Take a sneak peek at all 3t Exploro Racemax bikes models from 2023, by clicking here.
Model range prices
3T Exploro Racemax GRX 2X11 700c 2023 is the most economical model, with a starting price of 3899$. 3T Exploro Racemax X Huracán Sterrato 2023 on the other hand costs 15000$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Gravel bikes average price
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2023 and its price was 6499$. Doing a quick comparison, we notice that Exploro RaceMAX EAGLE AXS 1X 650b price is 163.97% higher than the average cost of a Gravel bike.
Overview of components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
As for the wheels, 3T Exploro RaceMAX EAGLE AXS 1X 650b 2023, has a aluminum model. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. 3T Exploro RaceMAX EAGLE AXS 1X 650b has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
