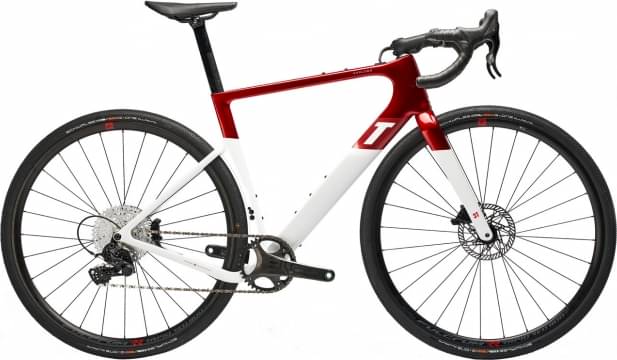

3T Exploro RaceMax Ekar 1×13 700c 2023
2023 Road
Estimate price |
5,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ekar -
Suspension Rigid -
Drivetrain 1 × 13 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Exploro RaceMax
Suspension Fork
Fango RaceMax w/ compact crown
Drivetrain
Rear Derailleur
Campagnolo EKAR 1x13
Front Derailleur
–
Shift Levers
Campagnolo EKAR 1x13
Cassette
13-speed Campagnolo EKAR, 9-42T
Crank
Campagnolo EKAR carbon, 38T chainring (to match 9T smallest cog) (XXS: 165mm - 51: 170mm - 54&56: 172,5mm - 58&61: 175mm)
Wheels
Rims
Fulcrum Rapid Red 900, 700c, 22mm internal width, tubeless ready (upgrade to 3T Discus 45|40, 45|32, Plus i28 possible)
Brakes
Brakes
Campagnolo EKAR hydraulic disc w/ 160mm Campagnolo rotor
Cockpit
Stem
3T Apto Stealth (XXS: 70mm - 51: 80mm - 54: 90mm - 56: 100mm - 58: 110mm - 61: 120mm)
Headset
3T MinMax IS42/28.6 + IS 47/38
Seat
Saddle
–
Seatpost
New 3T Charlie Sqaero Team w/ Ritchey WCS Clamp
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.48 mm | 1.49 mm | 1.51 mm | 1.53 mm | 1.56 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 272 mm | 272 mm | 274 mm | 274 mm |
| Front Center | 596 mm | 606 mm | 606 mm | 611 mm | 621 mm | 641 mm |
| Rake | 62 mm | 58 mm | 52 mm | 54 mm | 48 mm | 48 mm |
| Trail | 68 mm | 69 mm | 65 mm | 57 mm | 63 mm | 63 mm |
| Stack | 522 mm | 544 mm | 566 mm | 586 mm | 606 mm | 634 mm |
| Reach | 357 mm | 368 mm | 379 mm | 387 mm | 395 mm | 406 mm |
| Top Tube Length | 508 mm | 528 mm | 548 mm | 568 mm | 588 mm | 608 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 436 mm | 463 mm | 490 mm | 518 mm | 545 mm | 572 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 71 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 125 mm | 147 mm | 161 mm | 180 mm | 201 mm | 232 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 1000 mm | 1010 mm | 1010 mm | 1016 mm | 1026 mm | 1046 mm |
| Bottom Bracket Drop | 79 mm | 79 mm | 77 mm | 77 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 145 cm | 157 cm | 168 cm | 176 cm | 183 cm | cm |
Model Overview
Exploro RaceMax Ekar 1×13 700c is part of the 3t Exploro Racemax model. There are 27 bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
3T Exploro Racemax GRX 2X11 700c 2023 is the most economical model, with a starting price of 3899$. 3T Exploro Racemax X Huracán Sterrato 2023 on the other hand costs 15000$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Gravel bikes average price
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, 3T Exploro RaceMax Ekar 1×13 700c price was 5999$. Comparing the average cost of a Gravel bike to this one, you will see that Exploro RaceMax Ekar 1×13 700c price is 143.66% higher.
Exploro RaceMax Ekar 1×13 700c components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When it comes to wheels, the Exploro RaceMax Ekar 1×13 700c bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Exploro RaceMax Ekar 1×13 700c comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
