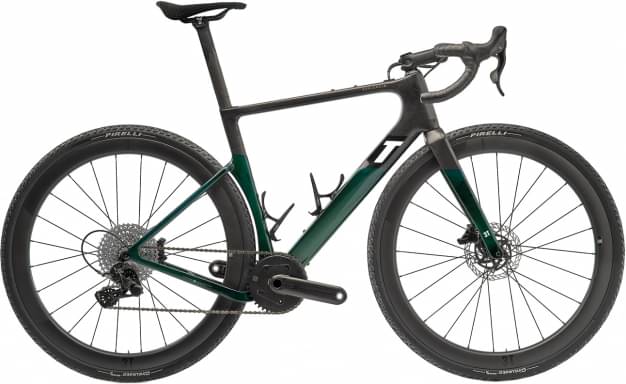

3T Exploro RACEMAX Italia Ekar 1×13 2023
2023 Road
Estimate price |
8,499$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset Ekar -
Suspension Rigid -
Drivetrain 1 × 13 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Exploro RaceMax 418 Italia
Suspension Fork
Fango RaceMax w/ compact crown
Drivetrain
Rear Derailleur
Campagnolo Ekar
Front Derailleur
-
Shift Levers
Campagnolo Ekar
Cassette
13-speed Campagnolo Ekar, 9-42 T
Crank
3T Torno LTD (XXS&51: 170mm - 54&56: 172.5mm - 58&61: 175mm)
Wheels
Rims
3T Discus 45 I 40 LTD Carbon Ti hubs or 3T Discus 45 I 32 LTD Carbon Ti hubs depending on availability
Brakes
Brakes
Campagnolo Ekar hydraulic disc w/ 160mm rotor
Cockpit
Stem
3T Apto stealth (51:80mm - 54: 90mm - 56:100mm - 58:110mm)
Headset
3T MinMax IS42/28.6 + IS 47/38
Seat
Seatpost
3T Exploro seatpost for Ritchey clampp
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 51cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.52 mm | 1.54 mm | 1.56 mm |
| Bottom Bracket Height | 272 mm | 272 mm | 274 mm | 276 mm |
| Front Center | 612 mm | 607 mm | 612 mm | 622 mm |
| Rake | 61 mm | 54 mm | 54 mm | 53 mm |
| Trail | 67 mm | 65 mm | 59 mm | 56 mm |
| Stack | 539 mm | 561 mm | 581 mm | 601 mm |
| Reach | 359 mm | 369 mm | 377 mm | 385 mm |
| Top Tube Length | 513 mm | 531 mm | 544 mm | 558 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 463 mm | 490 mm | 518 mm | 545 mm |
| Head Tube Angle | 69.2 ° | 70.7 ° | 71.7 ° | 72.2 ° |
| Head Tube Length | 147 mm | 161 mm | 180 mm | 201 mm |
| Chainstay Length | 413 mm | 413 mm | 413 mm | 413 mm |
| Wheelbase | 1013 mm | 1008 mm | 1014 mm | 1023 mm |
| Bottom Bracket Drop | 77 mm | 77 mm | 75 mm | 73 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 168 cm | 176 cm | 183 cm |
About this model
Exploro RACEMAX Italia Ekar 1×13 belongs to the 3t Exploro Racemax model. 3T launched 27 bikes of this model so far. Take a sneak peek at all 3t Exploro Racemax bikes models from 2023, by clicking here.
Model range prices
3T Exploro Racemax GRX 2X11 700c 2023 is the cheapest bike model and costs 3899$. 3T Exploro Racemax X Huracán Sterrato 2023 is the most expensive one and costs 15000$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Gravel bikes
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 8499$. Comparing the average cost of a Gravel bike to this one, you will see that Exploro RACEMAX Italia Ekar 1×13 price is 245.21% higher.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The Exploro RACEMAX Italia Ekar 1×13 2023 bike is equipped with 700c carbon wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. 3T Exploro RACEMAX Italia Ekar 1×13 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
