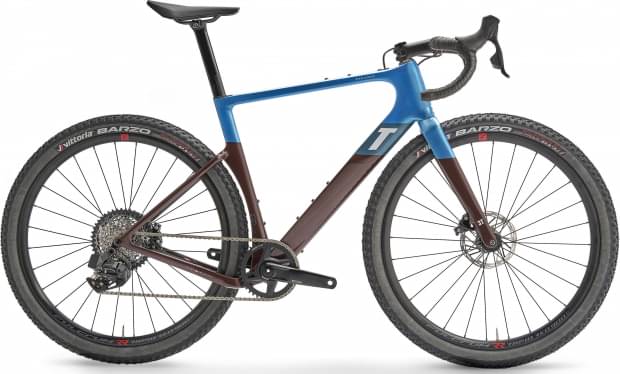

3T Exploro RaceMax Rival XPLR 1X12 650b 2023
2023 Road
Estimate price |
4,809$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Rival XPLR AXS, Rival AXS -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
RaceMax 418
Suspension Fork
Fango RaceMax w/ compact crown
Drivetrain
Rear Derailleur
SRAM Rival AXS XPLR Max 44T
Front Derailleur
-
Shift Levers
SRAM Rival AXS
Cassette
12-speed Rival XPLR, 10-44T
Crank
SRAM Rival AXS Wide, 40T chainring (XXS: 165mm - 51: 170mm - 54&56: 172,5mm - 58&61: 175mm)
Wheels
Rims
Fulcrum Rapid Red 900, 650b, 22mm internal width, tubeless ready (upgrade to 3T Discus 45|40, 45|32, Plus i28 possible)
Tires
Vittoria Barzo 650b
Brakes
Brakes
SRAM Rival AXS XPLR Hydraulic Disc w/ SRAM 160mm rotor
Cockpit
Stem
3T Apto Stealth (XXS:70mm - 51:80mm - 54: 90mm - 56:100mm - 58:110mm - 61:120mm)
Handlebar
3T Aeroflux LTD bar (XXS: 38cm - 51: 40cm - 5&56: 42cm - 58&61: 44cm)
Headset
3T MinMax IS42/28.6 + IS 47/38
Seat
Saddle
Selle Italia Model X Superflow
Seatpost
3T Exploro seatpost for Ritchey clamp
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.49 mm | 1.51 mm | 1.53 mm | 1.55 mm | 1.58 mm |
| Front Center | 597 mm | 612 mm | 607 mm | 612 mm | 622 mm | 642 mm |
| Rake | 61 mm | 61 mm | 54 mm | 54 mm | 53 mm | 53 mm |
| Trail | 63 mm | 60 mm | 58 mm | 52 mm | 50 mm | 50 mm |
| Stack | 524 mm | 546 mm | 568 mm | 588 mm | 608 mm | 636 mm |
| Reach | 355 mm | 366 mm | 376 mm | 384 mm | 392 mm | 403 mm |
| Top Tube Length | 503 mm | 520 mm | 538 mm | 551 mm | 565 mm | 584 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 436 mm | 463 mm | 490 mm | 518 mm | 545 mm | 572 mm |
| Head Tube Angle | 68.7 ° | 69.2 ° | 70.7 ° | 71.7 ° | 72.2 ° | 72.2 ° |
| Head Tube Length | 125 mm | 147 mm | 161 mm | 180 mm | 201 mm | 230 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 1005 mm | 1020 mm | 1015 mm | 1021 mm | 1030 mm | 1050 mm |
| Bottom Bracket Drop | 77 mm | 77 mm | 77 mm | 75 mm | 73 mm | 73 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 145 cm | 157 cm | 168 cm | 176 cm | 183 cm | cm |
Model Overview
Exploro RaceMax Rival XPLR 1X12 650b is a 3t Exploro Racemax model. 3T launched 27 bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
3T Exploro Racemax GRX 2X11 700c 2023 is the most affordable bike of this model and has a price of 3899$. On the other hand, 3T Exploro Racemax X Huracán Sterrato 2023, is the most expensive and costs 15000$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Gravel bikes average price
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4452$. If we compare this with the average Gravel bike cost we notice that the price is 80.83% more expensive.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
As for the wheels, 3T Exploro RaceMax Rival XPLR 1X12 650b 2023, has a aluminum model. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Exploro RaceMax Rival XPLR 1X12 650b has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
