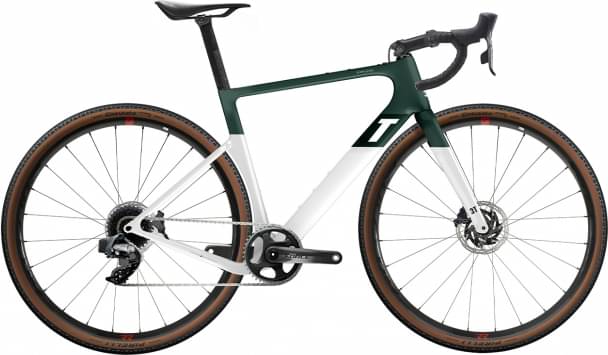

3T Exploro RaceMax Rival XPLR 1X12 700c 2023
2023 Road
Estimate price |
4,809$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset RED AXS, Rival AXS -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Exploro RaceMax
Suspension Fork
Fango RaceMax w/ compact crown
Drivetrain
Rear Derailleur
SRAM AXS XPLR Max 44T
Front Derailleur
-
Shift Levers
SRAM Rival AXS
Cassette
12-speed Rival XPLR, 10-44T
Crank
SRAM Rival AXS Wide, 40T chainring (XXS: 165mm - 51: 170mm - 54&56: 172,5mm - 58&61: 175mm)
Wheels
Rims
Fulcrum Rapid Red 900, 700c, 22mm internal width, tubeless ready (upgrade to 3T Discus 45|40, 45|32, Plus i28 possible)
Tires
Pirelli Cinturato Gravel M 700c
Brakes
Brakes
SRAM Rival AXS XPLR Hydraulic Disc w/ SRAM 160mm rotor
Cockpit
Stem
Apto Stealth (XXS: 70mm - 51: 80mm - 54: 90mm - 56: 100mm - 58: 110mm - 61: 120mm)
Handlebar
3T Aeroflux LTD bar (XXS: 38cm - 51: 40cm - 5&56: 42cm - 58&61: 44cm)
Headset
3T Minimax IS42/28.6 + IS 47/38
Seat
Saddle
Selle Italia Model X Superflow
Seatpost
New 3T Charlie Sqaero Team w/ Ritchey WCS Clamp
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.48 mm | 1.49 mm | 1.51 mm | 1.53 mm | 1.56 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 272 mm | 272 mm | 274 mm | 274 mm |
| Front Center | 596 mm | 606 mm | 606 mm | 611 mm | 621 mm | 641 mm |
| Rake | 62 mm | 58 mm | 52 mm | 54 mm | 48 mm | 48 mm |
| Trail | 68 mm | 69 mm | 65 mm | 57 mm | 63 mm | 63 mm |
| Stack | 522 mm | 544 mm | 566 mm | 586 mm | 606 mm | 634 mm |
| Reach | 357 mm | 368 mm | 379 mm | 387 mm | 395 mm | 406 mm |
| Top Tube Length | 508 mm | 528 mm | 548 mm | 568 mm | 588 mm | 608 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 436 mm | 463 mm | 490 mm | 518 mm | 545 mm | 572 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 71 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 125 mm | 147 mm | 161 mm | 180 mm | 201 mm | 232 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 1000 mm | 1010 mm | 1010 mm | 1016 mm | 1026 mm | 1046 mm |
| Bottom Bracket Drop | 79 mm | 79 mm | 77 mm | 77 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 145 cm | 157 cm | 168 cm | 176 cm | 183 cm | cm |
Model Overview
Exploro RaceMax Rival XPLR 1X12 700c belongs to the 3t Exploro Racemax model. 3T launched 27 bikes of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
3T Exploro Racemax GRX 2X11 700c 2023 is the most economical model, with a starting price of 3899$. 3T Exploro Racemax X Huracán Sterrato 2023 on the other hand costs 15000$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Gravel bikes average price
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, 3T Exploro RaceMax Rival XPLR 1X12 700c price was 4452$. Comparing this to the average Gravel bike price, we see that the price is 80.83% higher.
Exploro RaceMax Rival XPLR 1X12 700c components
Fork material
Exploro RaceMax Rival XPLR 1X12 700c has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The wheels on Exploro RaceMax Rival XPLR 1X12 700c are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. 3T Exploro RaceMax Rival XPLR 1X12 700c has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
