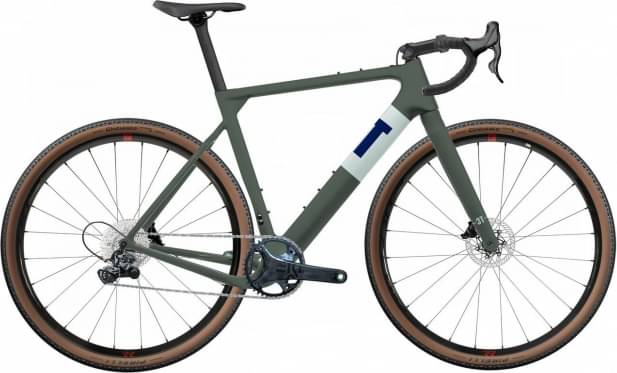

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ekar -
Suspension Rigid -
Drivetrain 1 × 13 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Exploro PRIMO
Suspension Fork
3T Fango
Drivetrain
Rear Derailleur
Campagnolo Ekar
Front Derailleur
-
Shift Levers
Campagnolo Ekar
Cassette
13-speed Campagnolo Ekar 9-42
Crank
Campagnolo EKAR carbon, 38T chainring (to match 9T smallest cog) (S: 170mm - M: 172,5mm - L: 175mm - XL: 175mm)
Wheels
Rims
Fulcrum Rapid Red 900, 700c, 22mm internal width, tubeless ready (upgrade to 3T Discus 45|40, 45|32, Plus i28 possible)
Brakes
Brakes
Campagnolo Ekar Hydraulic Disc w/ Campagnolo 160mm rotor
Cockpit
Stem
APTO STEALTH
Headset
Sealed cartridge 1.125" - 1.5"
Seat
Seatpost
3T Exploro seatpost for Ritchey clamp
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.45 mm | 1.48 mm | 1.51 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 591 mm | 598 mm | 606 mm | 627 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 77 mm | 67 mm | 58 mm | 58 mm |
| Stack | 512 mm | 541 mm | 570 mm | 599 mm |
| Reach | 361 mm | 373 mm | 385 mm | 397 mm |
| Top Tube Length | 524 mm | 545 mm | 566 mm | 587 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 463 mm | 490 mm | 518 mm | 545 mm |
| Head Tube Angle | 69.5 ° | 71.1 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 101 mm | 125 mm | 150 mm | 180 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 991 mm | 998 mm | 1006 mm | 1027 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 168 cm | 178 cm | 188 cm |
About this model
Exploro TEAM Ekar 1×13 is a 3t Exploro Team model. 3T released 2 bikes variations of this model so far. You can easily view all of the 3t Exploro Team bikes models from 2023, here.
Model range prices
3T EXPLORO TEAM RIVAL AXS XPLR 1X12 2023 is the most economical model, with a starting price of 4699$. 3T Exploro TEAM Ekar 1×13 2023 on the other hand costs 4699$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Gravel bikes average price
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2023 and its price was 4699$. Doing a quick comparison, we notice that Exploro TEAM Ekar 1×13 price is 90.86% more expensive than the average cost of a Gravel bike.
Exploro TEAM Ekar 1×13 components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
The wheels on Exploro TEAM Ekar 1×13 are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. 3T Exploro TEAM Ekar 1×13 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
