Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

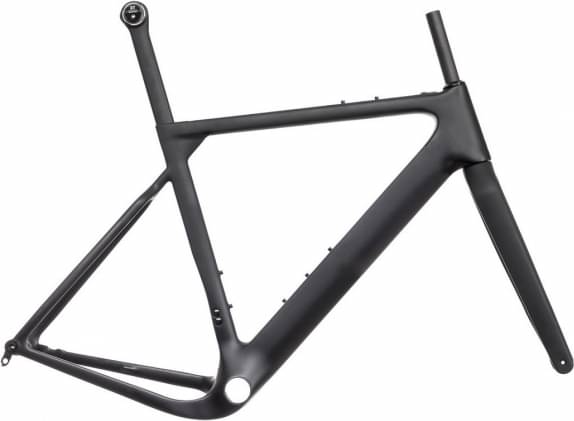

Exploro TEAM
Suspension Fork
3T Fango TEAM
Drivetrain
Rear Derailleur
–
Front Derailleur
–
Shift Levers
–
Cassette
–
Crank
–
Wheels
Tires
–
Brakes
Brakes
–
Cockpit
Stem
–
Handlebar
–
Headset
Sealed cartridge 1.125" - 1.5"
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.45 mm | 1.48 mm | 1.51 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 591 mm | 598 mm | 606 mm | 627 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 77 mm | 67 mm | 58 mm | 58 mm |
| Stack | 512 mm | 541 mm | 570 mm | 599 mm |
| Reach | 361 mm | 373 mm | 385 mm | 397 mm |
| Top Tube Length | 524 mm | 545 mm | 566 mm | 587 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 463 mm | 490 mm | 518 mm | 545 mm |
| Head Tube Angle | 69.5 ° | 71.1 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 101 mm | 125 mm | 150 mm | 180 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 991 mm | 998 mm | 1006 mm | 1027 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 168 cm | 178 cm | 188 cm |
Model Overview
Exploro TEAM Frame is part of the 3t Exploro model. 67 frames variations carry this model name so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
3T Exploro TEAM Frame 2021 is the most economical model, with a starting price of 2499$. 3T Exploro RaceMax Frame 2021 on the other hand costs 3199$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Gravel frames average price
Our math shows that the average cost of a dependable Gravel frame is 1505$. However, this doesn’t mean that if you spend less money on a Gravel frame, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
At the moment of the release date, 3T Exploro TEAM Frame price was 2499$. Doing a quick comparison, we notice that Exploro TEAM Frame price is 66.05% more expensive than the average cost of a Gravel frame.
Exploro TEAM Frame components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your frame. However, the price you have to pay for a carbon fork is considerably higher.
