Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival, FSA -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Exploro ULTRA
Suspension Fork
Fango Ultra w/ compact crown
Drivetrain
Rear Derailleur
SRAM Rival 1 long cage
Front Derailleur
-
Shift Levers
SRAM Rival1 Hydraulic DoubleTap
Cassette
11-speed SRAM Rival 11-42T
Crank
FSA Omega BB386EVO or SRAM Rival depending on availability, 40T chainring (XXS: 165mm - 51: 170mm - 54&56: 172,5mm - 58&61: 175mm)
Bottom Bracket
BB86/BB92, press-fit
Wheels
Rims
Fulcrum Rapid Red 900, 700c
Tires
–
Brakes
Brakes
SRAM Rival Flat Mount Hydraulic Disc w/ SRAM 160mm
Cockpit
Stem
3T Apto Stealth (XXS:70mm - 51:80mm - 54: 90mm - 56:100mm - 58:110mm - 61:120mm)
Handlebar
–
Headset
Integrated headset, sealed cartridge 1-1/8"+1.5", 36°
Seat
Saddle
–
Seatpost
3T Carbon 27.2 round seatpost - Zero offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.49 mm | 1.51 mm | 1.53 mm | 1.55 mm | 1.58 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 272 mm | 272 mm | 274 mm | 274 mm |
| Front Center | 597 mm | 606 mm | 602 mm | 607 mm | 616 mm | 636 mm |
| Rake | 62 mm | 62 mm | 53 mm | 54 mm | 54 mm | 55 mm |
| Trail | 71 mm | 64 mm | 64 mm | 57 mm | 53 mm | 52 mm |
| Stack | 522 mm | 544 mm | 566 mm | 586 mm | 606 mm | 634 mm |
| Reach | 353 mm | 364 mm | 375 mm | 383 mm | 390 mm | 401 mm |
| Top Tube Length | 512 mm | 529 mm | 547 mm | 561 mm | 576 mm | 595 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 436 mm | 463 mm | 490 mm | 520 mm | 549 mm | 576 mm |
| Head Tube Angle | 68.5 ° | 69.5 ° | 71 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 122 mm | 142 mm | 158 mm | 175 mm | 196 mm | 225 mm |
| Chainstay Length | 421 mm | 421 mm | 421 mm | 421 mm | 421 mm | 421 mm |
| Wheelbase | 1005 mm | 1015 mm | 1011 mm | 1016 mm | 1026 mm | 1046 mm |
| Bottom Bracket Drop | 79 mm | 79 mm | 77 mm | 77 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 145 cm | 157 cm | 168 cm | 176 cm | 183 cm | cm |
Model Overview

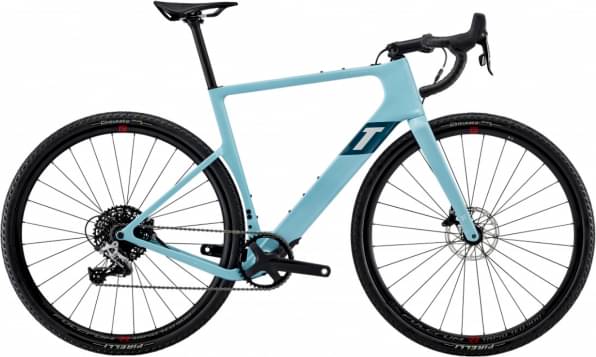

Exploro Ultra Rival 1X11 belongs to the 3t Exploro Ultra model. 3T released 11 bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
3T Exploro Ultra Rival 1X11 2023 is the most economical model, with a starting price of 3699$. 3T EXPLORO ULTRA FORCE D2/EAGLE AXS 1X12 CRANKBROTHERS EDITION 2023 on the other hand costs 7300$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Gravel bikes average price
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2023 and its price was 3699$. Comparing the average cost of a Gravel bike to this one, you will see that Exploro Ultra Rival 1X11 price is 50.24% more expensive.
Overview of components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When leaving the production line, the Exploro Ultra Rival 1X11 model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. 3T Exploro Ultra Rival 1X11 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
