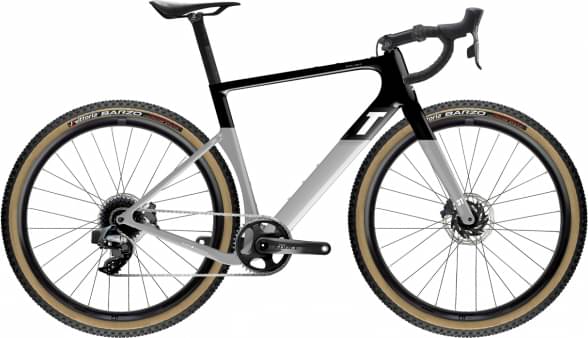

3T RACEMAX BOOST Force D1 AXS 1X12 650b 2023
2023 E-bike
Estimate price |
6,711$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Force eTap -
Suspension Rigid -
Motor MAHLE 55Nm hub-drive -
Battery Mahle iX250 (236Wh) hidden battery included. Optional 172 Wh Range Extender available -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
3T Exploro RaceMax BOOST
Suspension Fork
Fango RaceMax w/ compact crown
Drivetrain
Rear Derailleur
SRAM Force D1 AXS Max 36
Front Derailleur
-
Shift Levers
SRAM Force D1 AXS
Cassette
12-speed Rival AXS 10-36T
Crank
SRAM Force D1 AXS, 38T, Narrow Q- Factor ( XXS: 165mm - 51: 170mm - 54&56: 172,5mm - 58&61: 175mm)
Wheels
Rims
Rodi alloy 650b
Tires
Pirelli Cinturato Gravel M 650b
Brakes
Brakes
SRAM Force D1 AXS Hydraulic Disc w/ SRAM 160mm rotor
Cockpit
Stem
3T Apto Stealth (XXS: 70mm - 51: 80mm - 54: 90mm - 56: 100mm - 58: 110mm - 61: 120mm)
Handlebar
3T Superergo LTD (XXS: 38cm - 51: 40cm - 54&56: 42cm - 58&61: 44cm)
Headset
3T MinMax IS42/28.6 + IS 47/38
Seat
Saddle
Selle Italia Model X Superflow
Seatpost
3T Exploro seatpost for Ritchey clamp
Motor & Battery
Motor
Mahle X20 motor
Battery
Mahle iX250 (236Wh) hidden battery included. Optional 172 Wh Range Extender available
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.48 mm | 1.49 mm | 1.51 mm | 1.53 mm | 1.56 mm |
| Front Center | 596 mm | 606 mm | 606 mm | 611 mm | 621 mm | 641 mm |
| Rake | 62 mm | 58 mm | 52 mm | 54 mm | 48 mm | 48 mm |
| Trail | 60 mm | 61 mm | 59 mm | 50 mm | 57 mm | 57 mm |
| Stack | 522 mm | 544 mm | 566 mm | 586 mm | 606 mm | 634 mm |
| Reach | 357 mm | 368 mm | 379 mm | 387 mm | 395 mm | 406 mm |
| Top Tube Length | 508 mm | 528 mm | 548 mm | 568 mm | 588 mm | 608 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 436 mm | 463 mm | 490 mm | 518 mm | 545 mm | 572 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 71 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 125 mm | 147 mm | 161 mm | 180 mm | 201 mm | 232 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 1000 mm | 1010 mm | 1010 mm | 1016 mm | 1026 mm | 1046 mm |
| Bottom Bracket Drop | 79 mm | 79 mm | 77 mm | 77 mm | 75 mm | 75 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 145 cm | 157 cm | 168 cm | 176 cm | 183 cm | cm |
About this model
RACEMAX BOOST Force D1 AXS 1X12 650b is part of the 3t E Racemax model. 3T released 5 e-bikes variations of this model so far. Take a sneak peek at all 3t E Racemax e-bikes models from 2023, by clicking here.
Model range prices
The most economical model, the 3T RACEMAX BOOST Force D1 AXS 1X12 650b 2023 has a starting price of 6213$. 3T RaceMax Boost LTD X Automobili Lamborghini 2023 on the other hand is the most expensive at 17699$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Gravel e-bikes average price
According to our calculations, the average cost of a Gravel e-bike that is reliable is 3642$. However, you could also get a good Gravel e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
At the moment of the release date, 3T RACEMAX BOOST Force D1 AXS 1X12 650b price was 6213$. In conclusion, this e-bike price is 70.59% higher than the price of the average Gravel e-bike.
RACEMAX BOOST Force D1 AXS 1X12 650b components
Fork material
The fork on this e-bike is made out of carbon, so, it’s a great addition to the e-bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When leaving the production line, the RACEMAX BOOST Force D1 AXS 1X12 650b model has aluminum wheels. After 700c wheels, 650b is the second most popular choice for road bikes. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. 3T RACEMAX BOOST Force D1 AXS 1X12 650b has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
