Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
RaceMax Italia Integrale 418 (2x with removable FD hanger)
Suspension Fork
3T Fango RaceMax Integrale w/ compact crown
Drivetrain
Rear Derailleur
–
Shift Levers
–
Cassette
–
Crank
–
Wheels
Rims
–
Brakes
Brakes
–
Cockpit
Stem
More integrale (51: 80mm, 54: 90mm, 56: 100mm, 58: 110mm)
Handlebar
–
Headset
3T MinMax Integrale IS42/34 | IS47/38(36deg)
Seat
Seatpost
3T RaceMax seatpost for Ritchey clamp
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 51cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.52 mm | 1.54 mm | 1.56 mm |
| Bottom Bracket Height | 272 mm | 272 mm | 274 mm | 276 mm |
| Front Center | 612 mm | 607 mm | 612 mm | 622 mm |
| Rake | 61 mm | 54 mm | 54 mm | 53 mm |
| Trail | 67 mm | 65 mm | 59 mm | 56 mm |
| Stack | 539 mm | 561 mm | 581 mm | 601 mm |
| Reach | 359 mm | 369 mm | 377 mm | 385 mm |
| Top Tube Length | 513 mm | 531 mm | 544 mm | 558 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 463 mm | 490 mm | 518 mm | 545 mm |
| Head Tube Angle | 69.2 ° | 70.7 ° | 71.7 ° | 72.2 ° |
| Head Tube Length | 147 mm | 161 mm | 180 mm | 201 mm |
| Chainstay Length | 413 mm | 413 mm | 413 mm | 413 mm |
| Wheelbase | 1013 mm | 1008 mm | 1014 mm | 1023 mm |
| Bottom Bracket Drop | 77 mm | 77 mm | 75 mm | 73 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 168 cm | 176 cm | 183 cm |
About this model

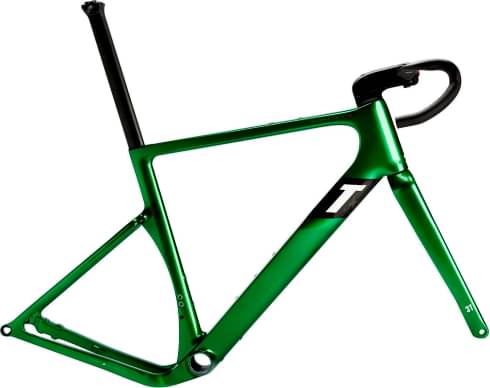

RaceMax Italia Frame is a 3t Racemax model. 3T released 7 frames variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Gravel frames average price
According to our calculations, the average cost of a Gravel frame that is reliable is 1505$. However, you could also get a good Gravel frame even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
When 3T released this model in 2023, its price was 5499$. If we compare this with the average Gravel frame cost we notice that the price is 265.38% higher.
Overview of components
Fork material
RaceMax Italia Frame has a carbon fork, so, it won’t add up to much weight to your frame. However, the price you have to pay for a carbon fork is considerably higher.
