Bike details
Overview
Key information split into simple groups.

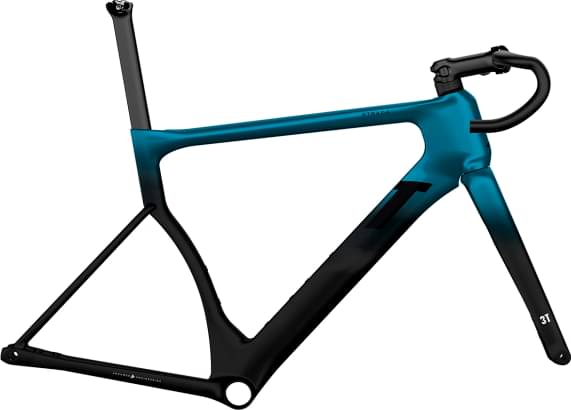

Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
3T Strada Integrale 1X (seattube optimized for no FD mount inserts) - 3T Strada Integrale 2X (FD hanger is part of the frame)
Suspension Fork
3T Fundi Integrale (D shape steering tube, Apto Integrale Stealth stem recommended)
Drivetrain
Rear Derailleur
–
Front Derailleur
–
Shift Levers
–
Cassette
–
Crank
–
Wheels
Rims
–
Brakes
Brakes
–
Cockpit
Stem
–
Headset
3T MinMax Integrale IS42/31.8 + IS47/33
Seat
Seatpost
Strada Integrale Seatpost for Ritchey Clamp
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | 51cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.37 mm | 1.4 mm | 1.44 mm | 1.46 mm |
| Bottom Bracket Height | 265 mm | 267 mm | 267 mm | 267 mm | 267 mm |
| Front Center | 567 mm | 574 mm | 580 mm | 596 mm | 616 mm |
| Rake | 49 mm | 47 mm | 47 mm | 47 mm | 46 mm |
| Trail | 73 mm | 66 mm | 55 mm | 52 mm | 53 mm |
| Stack | 503 mm | 509 mm | 538 mm | 567 mm | 596 mm |
| Reach | 351 mm | 371 mm | 383 mm | 395 mm | 407 mm |
| Top Tube Length | 509 mm | 531 mm | 552 mm | 573 mm | 594 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 487 mm | 500 mm | 506 mm | 518 mm | 533 mm |
| Head Tube Angle | 69.5 ° | 71 ° | 72.7 ° | 73.2 ° | 73.2 ° |
| Head Tube Length | 119 mm | 119 mm | 143 mm | 172 mm | 202 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm |
| Wheelbase | 963 mm | 971 mm | 977 mm | 993 mm | 1013 mm |
| Bottom Bracket Drop | 71 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 157 cm | 168 cm | 178 cm | 188 cm |
Model Overview
Strada Frame belongs to the 3t Strada model. There are 43 frames that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Aero frames
Our math shows that the average cost of a dependable Aero frame is 2657$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Aero frame. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3599$. Comparing this to the average Aero frame price, we see that the price is 35.45% higher.
Overview of components
Fork material
Strada Frame has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
