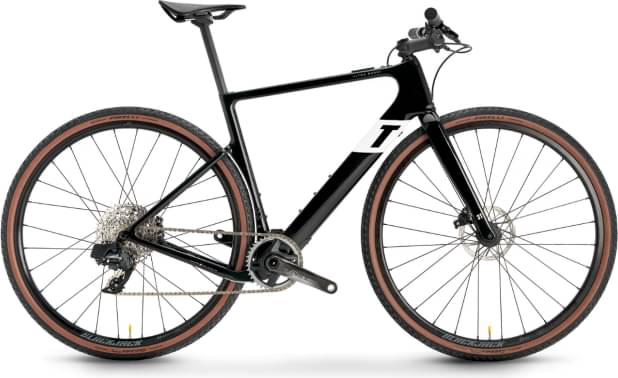

3T ULTRA BOOST URBAN FORCE D1 AXS 1X12 FLATBAR 700c 2023
2023 E-bike
Estimate price |
6,599$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Force eTap, GX Eagle AXS -
Suspension Rigid -
Motor MAHLE 55Nm hub-drive -
Battery Mahle iX350 (350Wh) battery -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Ultra Boost
Suspension Fork
Fango Ultra w/ compact crown
Drivetrain
Rear Derailleur
SRAM Force D1 AXS max 36T
Shift Levers
SRAM GX AXS EAGLE / Level TLM
Cassette
12-speed SRAM Rival AXS XPLR 10-36T
Crank
SRAM Force D1 AXS, 38T, narrow Q-factor ( XXS: 165mm - 51: 170mm - 54&56: 172,5mm - 58&61: 175mm)
Wheels
Rims
Rodi Alloy 700c
Tires
Pirelli Cinturato Gravel M 700x40
Brakes
Brakes
SRAM Level w/ SRAM 160mm rotor
Cockpit
Stem
3T Apto Stealth (XXS: 70mm - 51: 80mm - 54: 90mm - 56: 100mm - 58: 110mm - 61: 120mm)
Handlebar
3t Flatbar LTD (width 700mm, sweep 9°, Rise 30mm)
Headset
Integrated headset, sealed cartridge 1-1/8"+1.5", 36°
Seat
Saddle
Selle Italia Model X Superflow
Seatpost
3T Carbon 27.2 round seatpost - Zero offset
Motor & Battery
Motor
Mahle X20 System
Battery
Mahle iX350 (350Wh) battery
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.49 mm | 1.51 mm | 1.53 mm | 1.55 mm | 1.58 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 272 mm | 272 mm | 274 mm | 274 mm |
| Front Center | 597 mm | 606 mm | 602 mm | 607 mm | 616 mm | 636 mm |
| Rake | 62 mm | 62 mm | 53 mm | 54 mm | 54 mm | 55 mm |
| Trail | 71 mm | 64 mm | 64 mm | 57 mm | 53 mm | 52 mm |
| Stack | 522 mm | 544 mm | 566 mm | 586 mm | 606 mm | 634 mm |
| Reach | 353 mm | 364 mm | 375 mm | 383 mm | 390 mm | 401 mm |
| Top Tube Length | 512 mm | 529 mm | 547 mm | 561 mm | 576 mm | 595 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 436 mm | 463 mm | 490 mm | 520 mm | 549 mm | 576 mm |
| Head Tube Angle | 68.5 ° | 69.5 ° | 71 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 122 mm | 142 mm | 158 mm | 175 mm | 196 mm | 225 mm |
| Chainstay Length | 421 mm | 421 mm | 421 mm | 421 mm | 421 mm | 421 mm |
| Wheelbase | 1005 mm | 1015 mm | 1011 mm | 1016 mm | 1026 mm | 1046 mm |
| Bottom Bracket Drop | 79 mm | 79 mm | 77 mm | 77 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 145 cm | 157 cm | 168 cm | 176 cm | 183 cm | cm |
About this model
ULTRA BOOST URBAN FORCE D1 AXS 1X12 FLATBAR 700c belongs to the 3t E Ultra model. 3T launched 5 e-bikes of this model so far. Take a sneak peek at all 3t E Ultra e-bikes models from 2023, by clicking here.
Model range prices
3T ULTRA BOOST RIVAL XPLR AXS 1X12 DROPBAR 700c 2023 is the most economical model, with a starting price of 6599$. 3T ULTRA BOOST URBAN FORCE D1 AXS 1X12 FLATBAR DISCUS PLUS i28 2023 on the other hand costs 7699$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Gravel e-bikes average price
According to our math, the average price for a trustworthy Gravel e-bike is 3642$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 6599$. Comparing this to the average Gravel e-bike price, we see that the price is 81.19% higher.
Overview of components
Fork material
When it comes to the fork, this e-bike has a carbon one, so, it’s a great addition to the e-bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When it comes to wheels, the ULTRA BOOST URBAN FORCE D1 AXS 1X12 FLATBAR 700c e-bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The ULTRA BOOST URBAN FORCE D1 AXS 1X12 FLATBAR 700c has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
