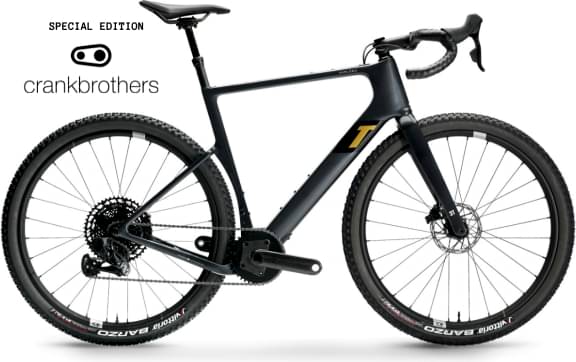

3T ULTRA FORCE D2/EAGLE AXS 1X12 CRANKBROTHERS EDITION 2023
2023 Road
Estimate price |
7,300$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset XX1 Eagle AXS, Force eTap -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Exploro Ultra
Suspension Fork
Fango Ultra w/ compact crown
Drivetrain
Rear Derailleur
Eagle XX1 AXS Long Cage
Front Derailleur
-
Shift Levers
SRAM Force AXS D2 AXS
Cassette
12-speed Eagle, 11-50T
Crank
3T Torno Team (XX&51: 170mm - 54&56: 172.5mm - 58&61: 175mm)
Wheels
Rims
Crank Brothers SYNTHESIS 650b CARBON GRAVEL, I9 hubs
Brakes
Brakes
SRAM Force AXS D2 Hydraulic Disc w/ SRAM 160mm rotor
Cockpit
Stem
3T Apto Stealth (XXS:70mm - 51:80mm - 54: 90mm - 56:100mm - 58:110mm - 61:120mm)
Headset
Integrated headset, sealed cartridge 1-1/8"+1.5", 36°
Seat
Seatpost
Crank Brothers Highline XC/Gravel dropper seatpost (XXS: 60/270mm - 51: 80/310mm - 54&56&58&61: 100/350mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.49 mm | 1.51 mm | 1.53 mm | 1.55 mm | 1.58 mm |
| Front Center | 597 mm | 606 mm | 602 mm | 607 mm | 616 mm | 636 mm |
| Rake | 62 mm | 62 mm | 53 mm | 54 mm | 54 mm | 55 mm |
| Trail | 63 mm | 57 mm | 58 mm | 50 mm | 47 mm | 46 mm |
| Stack | 522 mm | 544 mm | 566 mm | 586 mm | 606 mm | 634 mm |
| Reach | 353 mm | 364 mm | 375 mm | 383 mm | 390 mm | 401 mm |
| Top Tube Length | 512 mm | 529 mm | 547 mm | 561 mm | 576 mm | 595 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 436 mm | 463 mm | 490 mm | 520 mm | 549 mm | 576 mm |
| Head Tube Angle | 68.5 ° | 69.5 ° | 71 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 122 mm | 142 mm | 158 mm | 175 mm | 196 mm | 225 mm |
| Chainstay Length | 421 mm | 421 mm | 421 mm | 421 mm | 421 mm | 421 mm |
| Wheelbase | 1005 mm | 1015 mm | 1011 mm | 1016 mm | 1026 mm | 1046 mm |
| Bottom Bracket Drop | 79 mm | 79 mm | 77 mm | 77 mm | 75 mm | 75 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 145 cm | 157 cm | 168 cm | 176 cm | 183 cm | cm |
About this model
ULTRA FORCE D2/EAGLE AXS 1X12 CRANKBROTHERS EDITION completes the 3t Ultra model. 3T launched 7 bikes of this model so far. You can easily view all of the 3t Ultra bikes models from 2023, here.
Model range prices
The most economical model, the 3T Ultra Rival 1X11 700C 2023 has a starting price of 3699$. 3T ULTRA FORCE D2/EAGLE AXS 1X12 CRANKBROTHERS EDITION 2023 on the other hand is the most expensive at 7300$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Gravel bikes
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2023 for 7300$. Comparing this to the average Gravel bike price, we see that the price is 196.51% more expensive.
Overview of components
Fork material
ULTRA FORCE D2/EAGLE AXS 1X12 CRANKBROTHERS EDITION has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
As for the wheels, 3T ULTRA FORCE D2/EAGLE AXS 1X12 CRANKBROTHERS EDITION 2023, has a carbon model. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The ULTRA FORCE D2/EAGLE AXS 1X12 CRANKBROTHERS EDITION comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
