Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Fork RockShox Pike Select
-
Groupset NX Eagle, Truvativ Descendant -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Pike Select, Charger damper, 46mm offset
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM NX Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM NX Eagle, 12-speed
Cassette
SRAM NX Eagle PG-1230, 12-speed, 11-50 tooth
Crank
Truvativ Descendant 6K Eagle DUB, 170mm length
Bottom Bracket
SRAM DUB, MTB73, 73mm BSA30 threaded
Chain
SRAM NX Eagle, 12-speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Halo Ridgeline wheelset, 110x15mm Boost front, 148x12mm Boost rear with HG driver
Rear Hub
Halo Ridgeline wheelset, 110x15mm Boost front, 148x12mm Boost rear with HG driver
Rims
Halo Ridgeline wheelset, 35mm width; set up tubeless with WTB rim tape, tubeless valves, and Halo sealant
Spokes
Halo Ridgeline wheelset
Tires
Front: WTB Vigilante, High Grip, Slashguard, tubeless, 27.5" x 2.5", Rear: WTB Trail Boss, Fast Rolling, Tough casing, tubeless, 27.5" x 2.4"
Brakes
Brakes
SRAM Guide R, 4-piston, SRAM CenterLine 180mm rotors
Brake Levers
SRAM Guide R
Cockpit
Stem
Truvativ Descendant, 35mm bar clamp, 40mm length
Handlebar
Truvativ Descendant, 35mm clamp diameter, 800mm width, 20mm rise
Grips
Burgtec Bartender
Headset
Cane Creek 40, ZS44 upper, ZS56 lower
Seat
Saddle
WTB Volt Race, custom, black
Seatpost
OneUp Dropper, MMX remote lever, 150mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.41 mm | 1.36 mm | 1.31 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm | 310 mm |
| Front Center | 734 mm | 754 mm | 776 mm | 798 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 119 mm | 119 mm | 119 mm | 119 mm |
| Stack | 609.4 mm | 609.5 mm | 613.9 mm | 618.5 mm |
| Reach | 413 mm | 433 mm | 453 mm | 473 mm |
| Top Tube Length | 578.1 mm | 599.4 mm | 619.4 mm | 639.4 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 410 mm | 435 mm | 460 mm | 485 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Chainstay Length | 413 mm | 413 mm | 413 mm | 413 mm |
| Wheelbase | 1143 mm | 1163 mm | 1185 mm | 1207 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

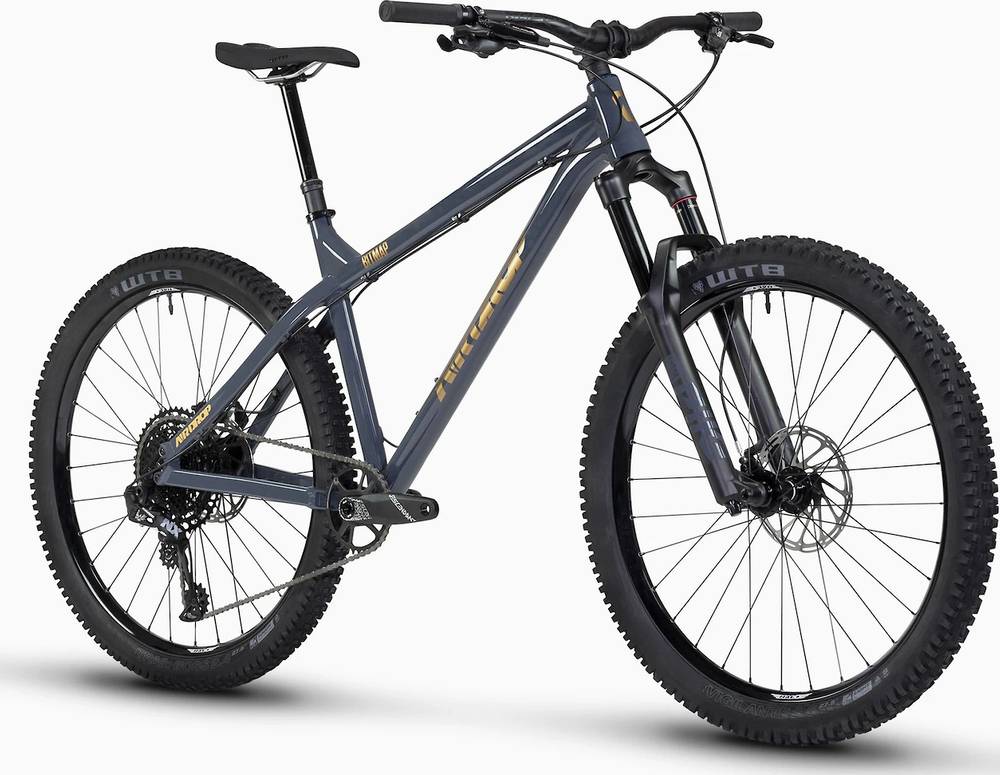

Bitmap Luxe is an Airdrop Bitmap model. 2 bikes variations carry this model name so far. You can easily view all of the Airdrop Bitmap bikes models from 2020, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Trail bikes average weight
Trail bikes have an average weight of 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Airdrop Bitmap Luxe it’s weighing 13 kg (28.66 lbs). At this weight, is slightly heavier than average. In conclusion, the average Trail bike weighs 0.15% less than Bitmap Luxe.
Bitmap Luxe components
Fork
This bike has the RockShox Pike Select fork installed. The fork’s travel is 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The Bitmap Luxe 2020 bike is equipped with 27.5″ aluminum wheels when leaving the factory. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Airdrop Bitmap Luxe is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Airdrop Bitmap Luxe bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
The Airdrop model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
