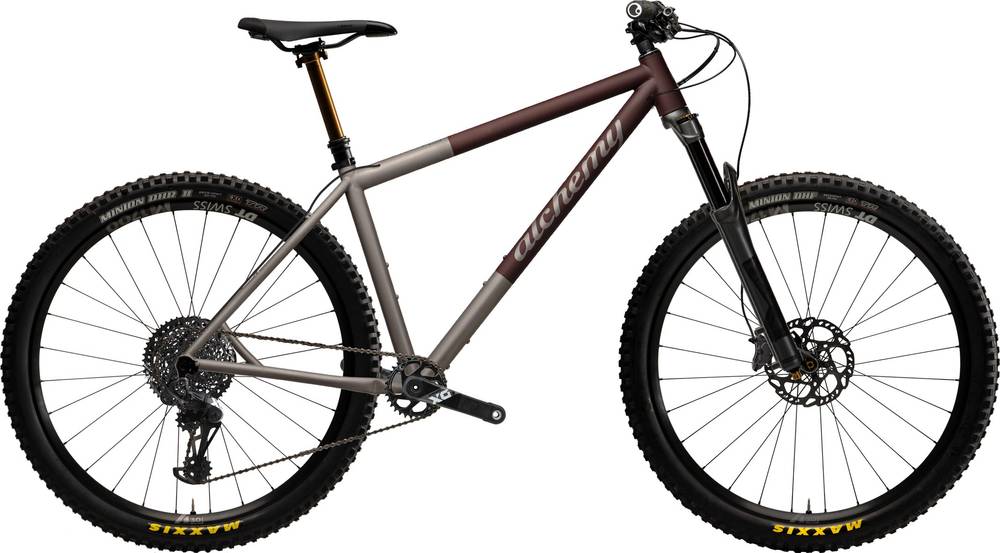

Alchemy Arkti — X01 Eagle 2020
2020 Mountain
Estimate price |
6,799$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 29" -
Travel Front 120mm -
Fork Fox Factory Float 34
-
Groupset X01 Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
165cm - 177cm
LG
175cm - 188cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Fox 34 Factory Kashima 120mm Boost 15mm Grip 2
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM X01 Eagle RD X01 EAGLE BLK
Shift Levers
SRAM X01 Eagle SL X01 EAGLE TRIGGER BLK
Cassette
SRAM XG 1275 EAGLE 10-50T
Crank
SRAM X01 EAGLE FC X01 EAGLE SB+ DUB 175 BLK 32
Bottom Bracket
SRAM DUB BSA MTB73 SB+
Chain
SRAM GX Eagle 12 Speed
Wheels
Rims
DT Swiss M 1700 SPLINE 29 – 30 mm CL 15/110mm
Tires
Maxxis Minion DHF 29×2.3 3c EXO TR, Maxxis Ardent Race 29×2.3 3c EXO TR
Brakes
Brakes
Shimano XT M8000 Hydraulic
Disk Rotors
Shimano 180mm Center Lock Ice Tech Rotor
Cockpit
Stem
RaceFace Aeffect 35 Stem: 60mm x 35 +/- 6 degree, Black
Handlebar
RaceFace Aeffect 35 Handlebar: 35 x 760mm 10mm Rise Black
Grips
Ergon GA 20 Black
Seat
Saddle
WTB Volt Comp 142×265
Seatpost
Fox Transfer Factory w Lever
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.43 mm | 1.37 mm | 1.31 mm |
| Bottom Bracket Height | 312 mm | 312 mm | 312 mm | 312 mm |
| Front Center | 681 mm | 710 mm | 739 mm | 772 mm |
| Rake | 48 mm | 48 mm | 49 mm | 48 mm |
| Trail | 100 mm | 100 mm | 98 mm | 100 mm |
| Stack | 611 mm | 621 mm | 630 mm | 639 mm |
| Reach | 409 mm | 434 mm | 459 mm | 489 mm |
| Top Tube Length | 599 mm | 624 mm | 644 mm | 684 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 370 mm | 420 mm | 470 mm | 530 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1109 mm | 1138 mm | 1167 mm | 1200 mm |
| Bottom Bracket Drop | 58 mm | 58 mm | 58 mm | 58 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 165 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 177 cm | 188 cm | 195 cm |
Model Overview
Arkti — X01 Eagle belongs to the Alchemy Arkti model. Alchemy released 3 bikes variations of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
The most economical model, the Alchemy Arkti — X01 Eagle 2020 has a starting price of 6799$. Alchemy Arkti — XTR 2020 on the other hand is the most expensive at 8399$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2020 and its price was 6799$. If we compare this with the average Trail bike cost we notice that the price is 146.16% higher.
Overview of components
Fork
The Arkti — X01 Eagle comes factory-installed with the Fox Factory Float 34 fork. This has a travel range of 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
The Arkti — X01 Eagle 2020 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Alchemy Arkti — X01 Eagle is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 195 cm (5.18 ft – 6.4 ft). In short, you can easily find one that suits you.
Dropper post
Alchemy Arkti — X01 Eagle includes a dropper post. Therefore, climbing or descending will be a breeze.
