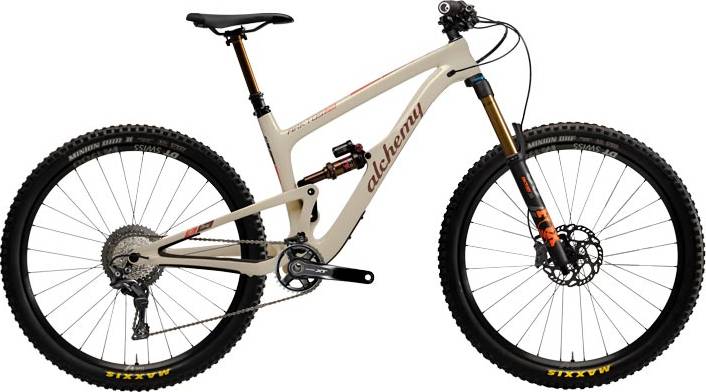

Alchemy Arktos 29 — NX Eagle 2020
2020 Mountain
Estimate price |
4,899$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 140mm -
Fork RockShox Pike Select
-
Groupset NX Eagle, Truvativ Descendant -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
165cm - 177cm
LG
175cm - 188cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
RockShox Pike Select RC 160mm 15mm
Rear Shock
Fox DPX2 Factory Kashima EVOL LV 3-Position Adjust 7.875×2.25, 10×22 Hardware
Drivetrain
Rear Derailleur
SRAM SL NX Eagle
Shift Levers
SRAM SL NX Eagle Trigger
Cassette
SRAM NX Eagle 11-50T
Crank
SRAM Descendant 175mm 32T Eagle SB
Bottom Bracket
SRAM DUB BSA MTB73 SB+
Chain
SRAM NX Eagle
Wheels
Rims
DT Swiss M 1700 SPLINE 29 – 30 mm CL 15/110mm
Tires
Maxxis Minion DHF 29×2.3 DC EXO TR, Maxxis Minion DHR 29×2.3 DC EXO TR
Brakes
Brakes
SRAM Guide T
Disk Rotors
SRAM Centerline 180mm
Cockpit
Stem
Race Face Aeffect R 50mm
Handlebar
Race Face Aeffect R 35×780 20mm Rise
Grips
DMR Deathgrip Thin
Seat
Saddle
WTB Volt 142mm
Seatpost
X-Fusion Manic 150mm 31.6mm with Trigger Remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.43 mm | 1.43 mm | 1.37 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm |
| Front Center | 731 mm | 749 mm | 775 mm | 812 mm |
| Rake | 41 mm | 29 mm | 40 mm | 40 mm |
| Trail | 126 mm | 139 mm | 127 mm | 127 mm |
| Stack | 613 mm | 623 mm | 637 mm | 651 mm |
| Reach | 411 mm | 437 mm | 445 mm | 476 mm |
| Top Tube Length | 573 mm | 603 mm | 623 mm | 658 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 410 mm | 450 mm | 483 mm | 518 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1160 mm | 1178 mm | 1204 mm | 1241 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm |
| Standover Height | 785 mm | 787 mm | 795 mm | 823 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 165 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 177 cm | 188 cm | 195 cm |
About this model
Arktos 29 — NX Eagle is part of the Alchemy Arktos model. Alchemy released 77 bikes variations of this model so far. Take a sneak peek at all Alchemy Arktos bikes models from 2020, by clicking here.
Model range prices
Alchemy Arktos 27.5 — NX Eagle 2020 is the most economical model, with a starting price of 4899$. Alchemy Arktos 29 ST — XTR 2020 on the other hand costs 9499$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Alchemy released this model in 2020, its price was 4899$. In conclusion, this bike price is 77.37% higher than the price of the average Trail bike.
Arktos 29 — NX Eagle components
Fork
This bike has the RockShox Pike Select fork installed. The fork’s travel is 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
Alchemy Arktos 29 — NX Eagle bike has the Fox DPX2 Factory Kashima EVOL LV 3-Position Adjust 7.875×2.25 model installed, and has a travel of 140mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The wheels on Arktos 29 — NX Eagle are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Alchemy Arktos 29 — NX Eagle is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 195 cm (5.18 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Alchemy Arktos 29 — NX Eagle comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
