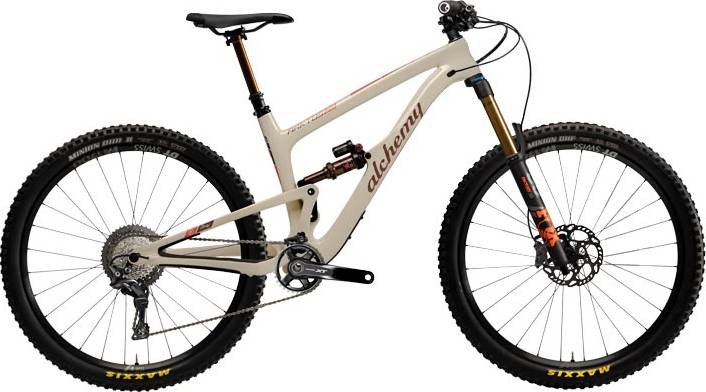

Alchemy Arktos 29 — NX Eagle Plus 2020
2020 Mountain
Estimate price |
5,199$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset NX Eagle, Truvativ Descendant -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
165cm - 177cm
LG
175cm - 188cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Fox 36 29 Factory Kashima 160mm Boost 15mm Grip 2
Rear Shock
Fox DPX2 Factory Kashima EVOL LV 3-Position Adjust 7.875×2.25, 10×22 Hardware
Drivetrain
Rear Derailleur
SRAM SL NX Eagle
Shift Levers
SRAM SL NX Eagle Trigger
Cassette
SRAM NX Eagle 11-50T
Crank
SRAM Descendant 175mm 32T Eagle SB
Bottom Bracket
SRAM DUB BSA MTB73 SB+
Chain
SRAM NX Eagle
Wheels
Rims
DT Swiss M 1700 SPLINE 29 – 30 mm CL 15/110mm
Tires
Maxxis Minion DHF 29×2.3 DC EXO TR, Maxxis Minion DHR 29×2.3 DC EXO TR
Brakes
Brakes
SRAM Guide T
Disk Rotors
SRAM Centerline 180mm
Cockpit
Stem
Race Face Aeffect R 50mm
Handlebar
Race Face Aeffect R 35×780 20mm Rise
Grips
DMR Deathgrip Thin
Seat
Saddle
WTB Volt 142mm
Seatpost
X-Fusion Manic 150mm 31.6mm with Trigger Remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.43 mm | 1.43 mm | 1.37 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm |
| Front Center | 731 mm | 749 mm | 775 mm | 812 mm |
| Rake | 41 mm | 29 mm | 40 mm | 40 mm |
| Trail | 126 mm | 139 mm | 127 mm | 127 mm |
| Stack | 613 mm | 623 mm | 637 mm | 651 mm |
| Reach | 411 mm | 437 mm | 445 mm | 476 mm |
| Top Tube Length | 573 mm | 603 mm | 623 mm | 658 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 410 mm | 450 mm | 483 mm | 518 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1160 mm | 1178 mm | 1204 mm | 1241 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm |
| Standover Height | 785 mm | 787 mm | 795 mm | 823 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 165 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 177 cm | 188 cm | 195 cm |
Model Overview
Arktos 29 — NX Eagle Plus is part of the Alchemy Arktos model. Alchemy released 77 bikes variations of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Alchemy Arktos 27.5 — NX Eagle 2020 is the most affordable bike of this model and has a price of 4899$. On the other hand, Alchemy Arktos 29 ST — XTR 2020, is the most expensive and costs 9499$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2020 and its price was 5199$. Doing a quick comparison, we notice that Arktos 29 — NX Eagle Plus price is 88.23% higher than the average cost of a Trail bike.
Arktos 29 — NX Eagle Plus components
Fork
This bike has the Fox Factory Float 36 fork installed. The fork’s travel is 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this bike is Fox DPX2 Factory Kashima EVOL LV 3-Position Adjust 7.875×2.25, with a travel distance of 140mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The Arktos 29 — NX Eagle Plus 2020 bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Arktos 29 — NX Eagle Plus comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Arktos 29 — NX Eagle Plus comes in 4 sizes, that range from 158 cm – 195 cm (5.18 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
A dropper post is included with the Arktos 29 — NX Eagle Plus. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
