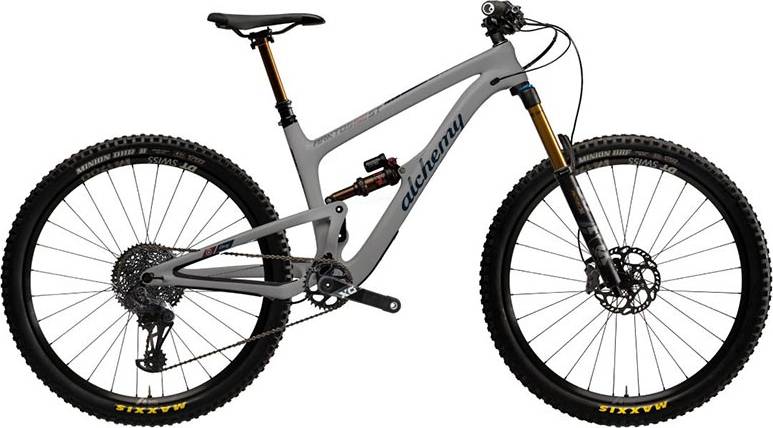

Alchemy Arktos 29 ST — GX Eagle 2020
2020 Mountain
Estimate price |
5,399$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 120mm -
Fork Fox Factory Float 36
-
Groupset GX Eagle, X01 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
165cm - 177cm
LG
175cm - 188cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Fox 36 29 Factory Kashima 140mm Boost 15mm Grip 2
Rear Shock
Fox DPX2 Factory Kashima EVOL LV 3-Position Adjust 7.875×2.0, 10×22 Hardware
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM GX Eagle
Cassette
SRAM GX 1275 Eagle 10-50T
Crank
SRAM GX EAGLE FC X01 EAGLE SB+ DUB 175 BLK 32
Bottom Bracket
SRAM BB DUB BSA MTB73 SB+
Chain
SRAM GX Eagle 12 SPD
Wheels
Rims
DT Swiss M 1700 SPLINE 29 – 30 mm CL 15/110mm
Tires
Maxxis Minion DHF 29×2.3 DC EXO TR, Maxxis Minion DHR 29×2.3 DC EXO TR
Brakes
Brakes
Shimano XT M8000/XT M8120 4 Piston $150
Disk Rotors
Shimano 180mm Center Lock Ice Tech Rotor
Cockpit
Stem
Race Face Aeffect R 50mm 0 Degree
Handlebar
Race Face Aeffect R 35×780 20mm Rise
Grips
DMR Deathgrip Thin
Seat
Saddle
WTB Volt Race 142×165
Seatpost
X-Fusion Manic 150mm 31.6mm with Trigger Remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.41 mm | 1.42 mm | 1.36 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 722 mm | 742 mm | 766 mm | 803 mm |
| Rake | 40 mm | 31 mm | 41 mm | 41 mm |
| Trail | 122 mm | 132 mm | 121 mm | 121 mm |
| Stack | 612 mm | 621 mm | 635 mm | 648 mm |
| Reach | 414 mm | 440 mm | 447 mm | 478 mm |
| Top Tube Length | 571 mm | 601 mm | 620 mm | 656 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 410 mm | 450 mm | 483 mm | 518 mm |
| Head Tube Angle | 66.1 ° | 66.1 ° | 66.1 ° | 66.1 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 429 mm |
| Wheelbase | 1148 mm | 1168 mm | 1192 mm | 1229 mm |
| Bottom Bracket Drop | 41 mm | 41 mm | 41 mm | 41 mm |
| Standover Height | 781 mm | 783 mm | 791 mm | 819 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 165 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 177 cm | 188 cm | 195 cm |
About this model
Arktos 29 ST — GX Eagle is part of the Alchemy Arktos model. Alchemy released 77 bikes variations of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Alchemy Arktos 27.5 — NX Eagle 2020 is the most economical model, with a starting price of 4899$. Alchemy Arktos 29 ST — XTR 2020 on the other hand costs 9499$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5399$. In conclusion, this bike price is 95.47% more expensive than the price of the average Trail bike.
Overview of components
Fork
The Arktos 29 ST — GX Eagle comes factory-installed with the Fox Factory Float 36 fork. This has a travel range of 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The shock that’s installed on this bike is Fox DPX2 Factory Kashima EVOL LV 3-Position Adjust 7.875×2.0, with a travel distance of 120mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
As for the wheels, Alchemy Arktos 29 ST — GX Eagle 2020, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Alchemy Arktos 29 ST — GX Eagle is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 195 cm (5.18 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
A dropper post is included with the Arktos 29 ST — GX Eagle. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
